AMD desktop CPUs use two sockets today: AM4 (2016–present) for Ryzen 1000 through 5000 chips with DDR4 memory, and AM5 (2022–present) for Ryzen 7000, 8000, and 9000 chips with DDR5. The sockets are physically incompatible — an AM5 CPU cannot mount in an AM4 board or vice versa — so your socket decides your CPU ceiling, your memory type, and your upgrade path. Here is how to tell them apart and choose.
How to Tell Which Socket You Have
- By CPU model: Ryzen 1000/2000/3000/5000 desktop chips (and 4000G/5000G APUs) are AM4. Ryzen 7000/9000 (and 8000G APUs) are AM5.
- By memory: if the board takes DDR4, it is AM4; DDR5-only means AM5.
- By chipset name: A320/B350/B450/X470/A520/B550/X570 are AM4. A620/B650/B840/B850/X670/X870 are AM5.

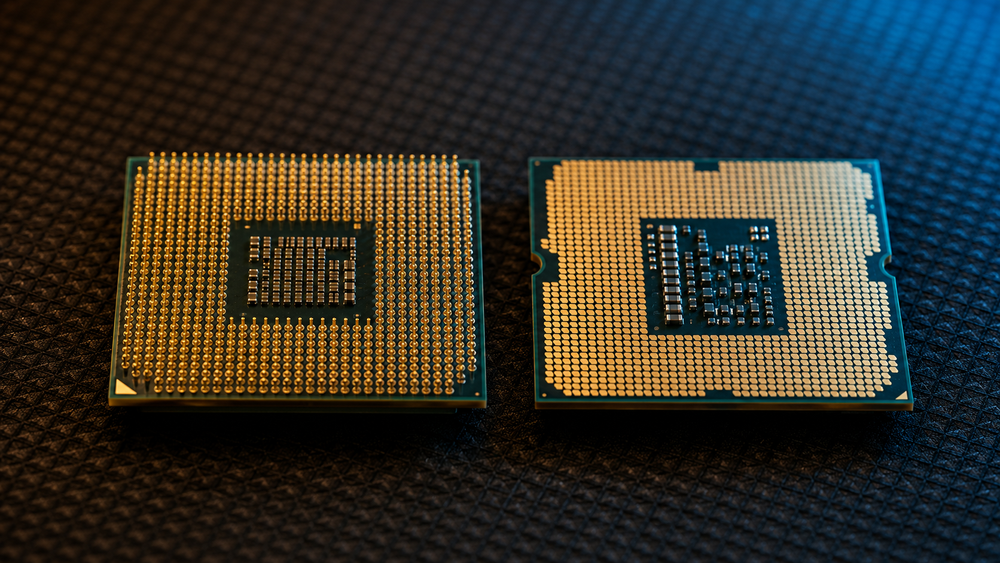

- Physically: AM4 CPUs have pins on the chip (PGA); AM5 moved the pins into the socket (LGA) — the chip has flat pads instead.
AM4: The Budget Champion That Refuses to Die
AM4 hosted five CPU generations on one socket — an industry rarity — and remains on sale because it is a value monster. A chip like the Ryzen 5 5500 with its included cooler plus an affordable B550 board like the MSI B550M PRO-VDH WiFi and inexpensive DDR4 builds a genuinely capable machine for less than many single AM5 components. Choose AM4 when:
- budget is the constraint and DDR4 pricing is working in your favor
- you are upgrading an existing AM4 system (a 5000-series drop-in is the classic finale for old B450 boards — often after a BIOS update)
- the machine has a defined job (office, streaming box, 1080p gaming) rather than a growth plan
The honest caveat: AM4 is a dead end. Ryzen 5000 is its last generation, so a purchase today is the socket's final chapter — a fine deal, but not a foundation.
AM5: The Current Platform With a Future
AM5 brings DDR5, PCIe 5.0, and AMD's public commitment to support the socket for years ahead — Ryzen 7000, 9000, and the X3D gaming chips all share it. A board like the MSI MPG X870E Carbon WiFi pairs with anything from the value Ryzen 5 9600X to the gaming-flagship Ryzen 7 9800X3D. Choose AM5 when:
- you want an upgrade path — buy midrange now, drop in a future generation later without changing board or memory
- the workload rewards DDR5 bandwidth and modern I/O (video editing, heavy multitasking, fast NVMe scratch disks)
- you are building fresh and would otherwise be buying soon-obsolete DDR4 anyway
The Chipset Cheat Sheet
- A620 (AM5) / A520 (AM4): entry boards — no CPU overclocking, fewer lanes; fine for office builds
- B650/B850 (AM5) / B550 (AM4): the mainstream sweet spot — memory overclocking (EXPO/XMP), solid VRMs, PCIe 4.0 (B650: PCIe 5.0 storage on many boards)
- X670/X870 (AM5) / X570 (AM4): enthusiast tier — maximum lanes, USB, and VRM headroom; worth it for many-drive, many-device builds
Within a socket, any chipset runs any CPU of that socket (BIOS version permitting) — chipsets differ in features, not compatibility.
Three Traps Worth Knowing
- BIOS age: an older board may need a firmware update to boot a newer CPU of its own socket. Boards with USB BIOS Flashback can update without a working CPU; otherwise buy from stock that ships updated.
- Cooler compatibility: good news — AM4 mounting hardware carries over to AM5 in nearly all cooler designs, so an upgrade often keeps your cooler. Check the bracket list before assuming.
- Memory is part of the decision: switching sockets means repurchasing RAM. When comparing platform costs, price CPU + board + memory as one bundle — DDR4 vs DDR5 pricing swings can flip the verdict, which is exactly why watching memory prices before committing pays off.
Frequently Asked Questions
Can I put an AM5 CPU in an AM4 motherboard?
No. The sockets are mechanically and electrically incompatible in both directions. The CPU decides the board family, full stop.
Will my AM4 cooler fit an AM5 board?
Usually yes — AMD kept the same mounting hole spacing, and most cooler makers list AM5 compatibility for their AM4 hardware. Verify your specific model's bracket support.
Is AM4 still worth buying?
For budget builds and drop-in upgrades, absolutely — it is one of the best price-to-performance platforms ever. Just buy it knowing there is no next CPU generation for it.
How long will AM5 be supported?
AMD has publicly committed to AM5 support beyond 2027, and its track record on AM4 (five generations) is the best precedent in the industry. No promise covers every future product, but AM5 is the safer multi-year bet.
