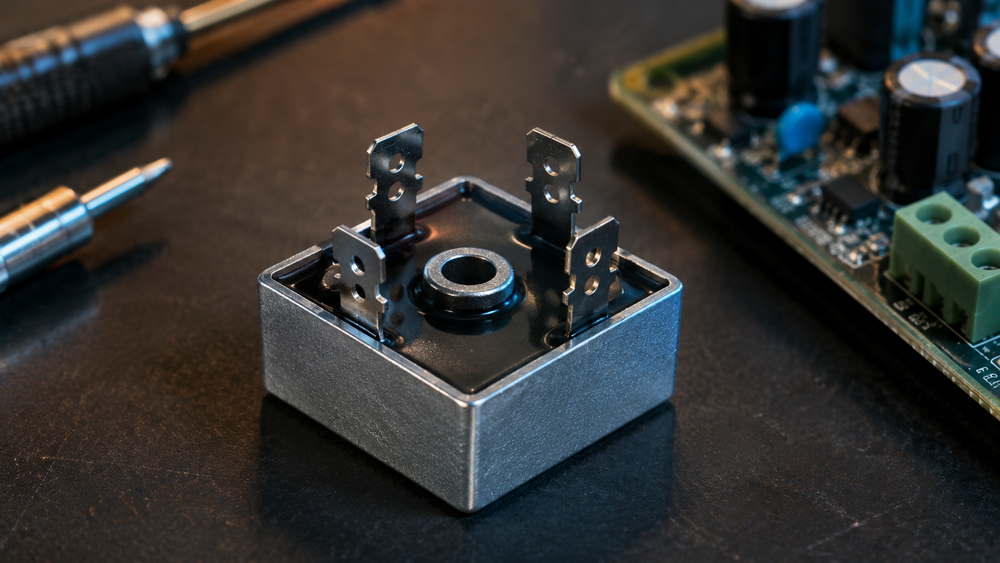

A bridge rectifier is a circuit of four diodes that converts alternating current (AC) from your wall outlet into direct current (DC) that electronic devices can actually use. Nearly every piece of gear you plug in — audio interfaces, monitors, computers, LED lights — contains one, because power grids deliver AC while circuit boards run on DC. Here is how it works and why the design won.
The Problem: Your Gear Speaks DC, the Grid Speaks AC
Mains electricity alternates direction 50 or 60 times per second — the voltage swings positive, then negative, in a smooth sine wave. That is ideal for transmitting power over long distances, but transistors, chips, and LEDs need current flowing steadily in one direction. Every power supply must therefore solve the same problem: turn a wave that spends half its time negative into a steady one-way flow.
What a Diode Does
A diode is the one-way valve of electronics: it conducts current in one direction and blocks it in the other. Put a single diode in the AC path and you get half-wave rectification — the positive half of the wave passes, the negative half is simply thrown away. That works, but it wastes half the incoming energy and produces a lumpy, gap-filled output that is hard to smooth.
The Bridge: Four Diodes, Nothing Wasted
A bridge rectifier arranges four diodes in a diamond. On the positive half of the AC cycle, two diodes conduct and route current through the load in one direction. On the negative half, the other two diodes conduct — and route current through the load in the same direction. Instead of discarding the negative half, the bridge flips it over.
- Half-wave (one diode): uses 50% of the waveform, large gaps in output
- Full-wave bridge (four diodes): uses 100% of the waveform, output pulses at twice the mains frequency
The result is called pulsating DC — always positive, but still bumpy. That is why a bridge rectifier almost never works alone.
Smoothing: Where Capacitors Come In
Downstream of the bridge sits at least one large electrolytic capacitor. It charges on each pulse and releases energy between pulses, filling in the valleys. What remains of the bumps is called ripple, and the quality of a power supply is largely a story about how little ripple survives. Cheap supplies skimp on filtering; the leftover ripple can show up as audible hum in audio gear or visible banding from LED lights.
The Costs of the Bridge
Nothing is free in electronics. Each silicon diode drops roughly 0.7 volts while conducting, and current always passes through two diodes at a time in a bridge — so about 1.4 volts is lost as heat. In small wall adapters this is trivial; in high-current supplies, designers use Schottky diodes (lower voltage drop) or synchronous rectification (transistors acting as smarter diodes) to claw back efficiency. This is one reason quality power supplies run cooler than bargain ones.
Where You Will Meet Bridge Rectifiers
- Every AC adapter and PSU: desktop power supplies, laptop bricks, and phone chargers all rectify mains power before anything else happens
- Audio equipment: the linear power supplies in amplifiers and studio gear use a transformer followed by a bridge and generous filtering — hum in audio is often a rectifier or filtering problem upstream
- LED lighting: LEDs are diodes themselves and strictly DC devices; every mains-powered LED fixture rectifies first, and poor filtering here is a classic cause of camera-visible flicker
- UPS units and power conditioners: battery backups rectify AC to charge their batteries, then invert back to AC for your gear
Why This Matters When You Buy Gear
You will never shop for a bridge rectifier directly, but you feel its consequences constantly: a hum-free audio recording, flicker-free lighting on camera, and a computer that survives brownouts all trace back to how well a designer handled rectification and filtering. It is also why clean incoming power helps every device downstream — surge protectors and power conditioners like the Furman PST-8 exist to hand your equipment's rectifiers well-behaved AC instead of spikes and noise, and an uninterruptible power supply keeps that AC flowing at all.
Frequently Asked Questions
Is a bridge rectifier the same as a power supply?
No — it is one stage of a power supply. A complete supply typically transforms the voltage, rectifies it with a bridge, smooths it with capacitors, and then regulates it to a precise level.
Why four diodes instead of two?
A two-diode full-wave design exists, but it requires a center-tapped transformer that is bulkier and more expensive. The four-diode bridge works with any AC source, which is why it became the standard.
Do bridge rectifiers wear out?
Diodes are robust, but heat and voltage spikes kill them over time. When a device dies with a bang and a burnt smell after a storm, a failed rectifier (or the surge that killed it) is a frequent culprit — and exactly what surge protection is for.
