ECC (Error-Correcting Code) memory stores extra "check bits" alongside data, calculated with a Hamming-code formula. The memory controller recomputes those bits on every read and compares them to what's stored. A mismatch pointing to one flipped bit gets corrected instantly and silently; a mismatch touching two bits gets flagged as uncorrectable instead of returned as good data.
The Extra Chip Doing the Work

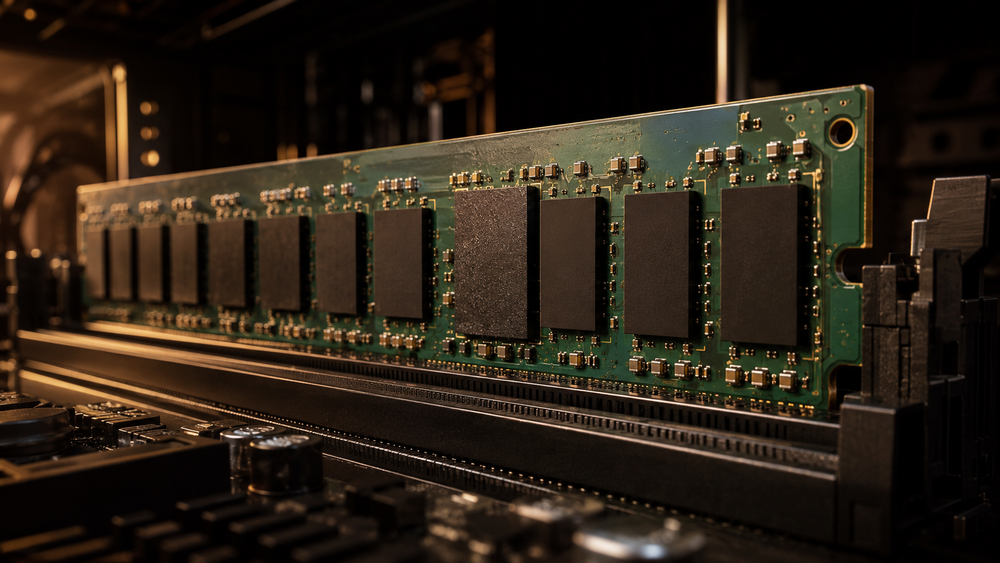

A standard memory module stores data across eight chips. An ECC module adds a ninth, dedicated to check bits rather than user data — typically around 12.5% more silicon per module. Those check bits are not a simple backup copy; they are a mathematically derived summary of the data bits that lets the controller work backward to find and fix an error, not just notice that something looks wrong.
Hamming Codes in Plain Terms
The classic scheme behind ECC is a Hamming code. A handful of parity bits are placed at specific positions among the data bits, and each parity bit is assigned to "watch" a particular overlapping subset of the other bits, chosen so that every data bit is covered by a unique combination of parity bits. When the data is read back, the controller recomputes each parity bit and compares it to what is stored. If everything matches, there is no error. If one or more parity checks fail, the specific pattern of which checks failed — called the syndrome — points directly at the exact bit position that flipped, because that pattern is unique to that one bit. The controller flips it back, and the read completes as if nothing happened.
Why It Can Fix One Flip but Not Two
The standard used in memory modules is called SECDED — Single Error Correct, Double Error Detect. A single flipped bit produces a syndrome that uniquely identifies which bit to fix. Two bits flipping at once produces a syndrome that does not match any valid single-bit pattern, so the controller recognizes it as uncorrectable rather than guessing wrong and silently returning bad data as good. That tradeoff — fix the common case, refuse to guess on the rare case — is why ECC systems report occasional "uncorrectable error" events even though correctable single-bit flips are handled invisibly thousands of times over a system's life.
What Happens in the Milliseconds After a Flip
Correction happens entirely inside the memory controller, in hardware, on every single read — the operating system and running applications are never involved for a correctable error and never even see it happen. Systems typically log these events anyway (through mechanisms like Linux's EDAC subsystem or Windows' WHEA logging) purely for monitoring, since a module racking up frequent correctable errors is often an early warning of a failing DIMM. An uncorrectable multi-bit error is different: it gets raised as a hardware exception, deliberately halting or restarting the affected process rather than letting silently-wrong data propagate.
Why This Matters More as Capacity Grows
Every memory cell is a tiny, independent opportunity for a bit to flip — from electrical noise, marginal manufacturing, or a stray particle strike (the mechanism behind that last one is its own story; see cosmic rays and bit flips). More installed memory means more cells accumulating exposure over time, which is exactly why error-correction matters more for a server or NAS packed with capacity and running continuously than for a desktop rebooted daily.
Where ECC Correction Actually Pays Off
The payoff is largest on systems that run for years without a reboot and cannot tolerate silent corruption:
- NAS boxes running checksumming filesystems like ZFS, where trustworthy RAM is a design assumption, not a nice-to-have
- Render and simulation workstations mid-job, where a silent flip could corrupt output hours into a run
- General server workloads that stay powered on for years, accumulating far more read/write cycles than a desktop ever will
Modules like the Crucial 16GB DDR4 ECC Server Memory and Crucial 32GB DDR4 ECC Registered kit exist specifically for that territory. If you are trying to figure out whether your own hardware can actually run true ECC, see does my motherboard support ECC memory for the CPU-and-board checklist.
Frequently Asked Questions
Does ECC ever correct a bit wrong?
A true miscorrection — mistaking a multi-bit error for a different single-bit error — is possible only with very specific error patterns and is extremely rare in practice. SECDED is specifically designed to recognize double-bit patterns as uncorrectable rather than silently miscorrecting them.
Does the extra checking slow the system down?
There is a small, usually single-digit percentage overhead from the extra calculation on every read, plus ECC modules often run at slightly more conservative clock speeds than non-ECC gaming RAM. For the workloads ECC targets, that tradeoff is a non-issue.
How is this different from a filesystem checksum like ZFS uses?
They are conceptually similar — compute a checksum, verify it, correct or flag on mismatch — but they operate at different layers. ECC protects data sitting in RAM chips; a filesystem checksum protects data sitting on disk. That is exactly why NAS builders often want both together.
Can software catch a bit flip without ECC hardware?
Not reliably. By the time software running on the CPU could inspect a value, it has already trusted whatever the memory controller handed it. Correction has to happen at the hardware level, before the flipped bit is ever used.
