Semiconductor chips are made by growing ultra-pure silicon crystals from refined sand, slicing them into mirror-polished wafers, and then printing microscopic circuit patterns onto them with light — a process called photolithography — repeated across dozens of layers over roughly three months. The result: billions of transistors smaller than a virus, on a chip that costs less than dinner. Here is the journey, step by step.
Step 1: From Sand to 99.9999999% Pure Silicon
Chips begin as quartz — silicon dioxide. Refiners heat it with carbon in arc furnaces to produce metallurgical-grade silicon (about 98% pure), which is nowhere near good enough. Chemical purification then converts it to a gas, distills it, and deposits it back as polysilicon at "nine nines" purity: 99.9999999%. At that level, contamination is counted in atoms. A single stray atom in the wrong place can change how a transistor behaves, which is why the entire industry is obsessed with purity.
Step 2: Growing the Crystal

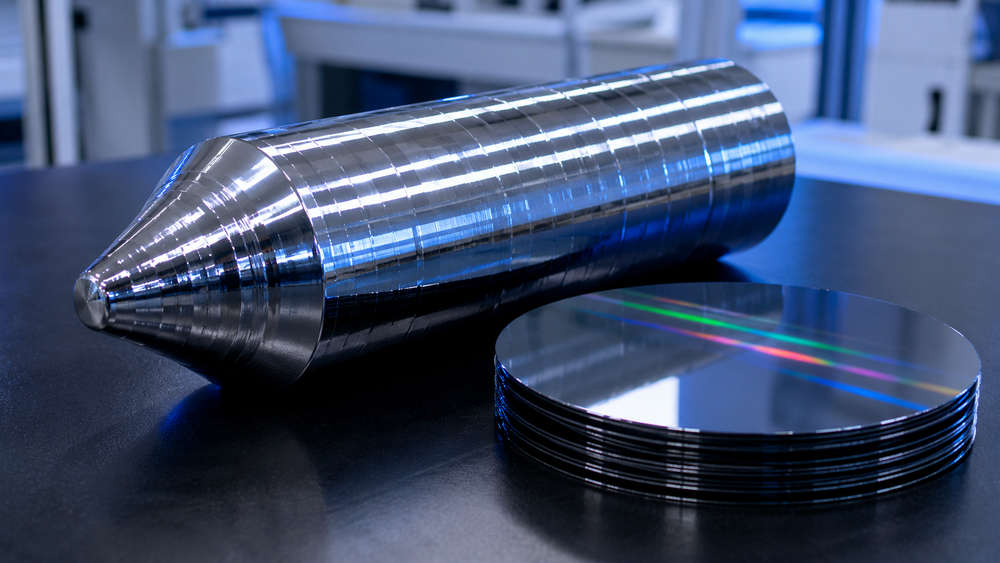

Purity is not enough — the silicon must also be one continuous, flawless crystal. In the Czochralski process, polysilicon is melted at about 1,414°C in a rotating crucible. A seed crystal touches the melt and is drawn upward with excruciating slowness while rotating; atoms freeze onto it in perfect alignment. Over a day or two this grows a shimmering cylindrical ingot up to 300 mm in diameter and over a meter long, weighing a few hundred kilograms — one single crystal.
Step 3: Slicing and Polishing Wafers
Diamond wire saws slice the ingot into wafers under a millimeter thick, which are then ground, chemically etched, and polished until they are flatter, relatively speaking, than any surface you have ever touched. These blank wafers are the canvas. Everything that follows happens in a cleanroom thousands of times cleaner than a hospital operating room, because a dust particle landing on a wafer is, at chip scale, a boulder dropped on a city.
Step 4: Photolithography — Printing With Light
This is the heart of chipmaking. The wafer is coated with a light-sensitive chemical called photoresist. A machine projects ultraviolet light through a stencil-like mask, exposing the resist in the exact pattern of one circuit layer. Developed like a photograph, the exposed pattern is then transferred into the wafer by etching, or used to control where atoms are implanted. Then the wafer is coated again for the next layer — modern processors stack dozens of patterned layers, each aligned to the last with nanometer precision.
The most advanced machines use extreme ultraviolet (EUV) light with a wavelength of 13.5 nanometers, generated by vaporizing droplets of molten tin with a laser 50,000 times per second. Each EUV machine costs several hundred million dollars, ships in multiple cargo planes, and is built by exactly one company in the world (ASML in the Netherlands). This is a large part of why cutting-edge fabs cost $20+ billion.
Step 5: Doping — Teaching Silicon to Compute
Pure silicon barely conducts. Its magic is that implanting trace impurities — boron, phosphorus, arsenic — precisely changes its electrical behavior. This doping creates the N-type and P-type regions that form transistors: microscopic switches that turn current on and off. A modern desktop CPU contains tens of billions of them, each switching billions of times per second. Every app you run compiles down, ultimately, to patterns of these switches flipping.
Step 6: Wiring It All Up
Transistors alone are just switches; they must be connected into circuits. Fabs deposit and pattern more than a dozen layers of copper interconnect above the transistor layer — a three-dimensional highway system with total wire length, on a single chip, measured in kilometers. Insulating layers separate the wiring floors, with vertical connections called vias linking them.
Step 7: Test, Dice, Bin, Package
A finished 300 mm wafer carries hundreds of identical chips (dies). Automated testers probe each one; the wafer is then diced, and good dies are packaged — mounted on a substrate, connected to pins or pads, capped with a heat spreader. Not all good dies are equal: tiny manufacturing variations mean some run faster or cooler than others. Manufacturers sort them by measured capability — a practice called binning — which is how one production line yields multiple products at different speeds and prices. When you compare two processors from the same family, like AMD's Ryzen 5 5500 and its faster siblings, you are often looking at the same silicon design separated by binning and configuration.
Why Chips Keep Getting Better (and What a Process Node Is)
You will hear terms like "5 nm" or "3 nm process." Once, those numbers described a literal transistor dimension; today they are marketing names for a generation of manufacturing technology. What still holds is the trend they describe: each generation packs transistors more densely, which means more performance per watt. It is why a modern gaming processor like the Ryzen 7 9800X3D — which even stacks an extra cache chip vertically on top of its compute die — outruns server rooms from a decade ago.
The Three-Month Miracle
From blank wafer to finished chip takes roughly 12 weeks and over a thousand process steps, executed by machines in near-total automation, in buildings whose air is exchanged and filtered continuously. It is arguably the most precise manufacturing humanity performs at scale — and the end product is in your pocket, your studio, and the device you are reading this on.
Frequently Asked Questions
Why can't more companies make advanced chips?
Leading-edge fabrication demands EUV lithography machines from a single supplier, tens of billions in capital per fab, and decades of accumulated process knowledge. Only a handful of firms — TSMC, Samsung, and Intel — still compete at the leading edge.
Are bigger chips better?
Bigger dies can hold more transistors but suffer more manufacturing defects, so yields drop and prices climb. That tradeoff is why many modern processors are built from multiple smaller "chiplets" connected in one package.
What is the difference between a wafer and a die?
The wafer is the whole silicon disc; a die is one individual chip on it. Hundreds of dies are printed per wafer, tested, then cut apart and packaged.
