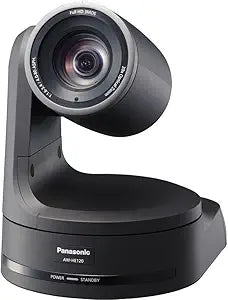

The Panasonic AW-HE120KPJ is a professional HD pan/tilt/zoom (PTZ) integrated camera designed for broadcast, corporate AV, houses of worship, education / lecture-hall, and live-event production environments. Per Panasonic Connect's official AW-HE120 product page, the camera features a 2.2 megapixel U.L.T. (Ultra Luminance Technology) 3MOS sensor delivering up to 1080/60p video via HDMI and 1080/60i via SDI / Component, 1,000 TV lines of resolution, a 60 dB signal-to-noise ratio, a built-in 20x optical zoom (F1.6-F3.4) covering 32.1 mm to 642 mm 35mm-equivalent focal lengths, ±175° pan and -30° to 210° tilt, 60°/sec max pan/tilt speed with highly precise stop control, and 21 W typical power consumption (approximately 48% less than the previous-generation AW-HE100).

Industry Coverage of the Panasonic PTZ Line

ProVideo Coalition's retrospective on 10 years of Panasonic PTZ cameras documents Panasonic's leadership position in the integrated PTZ category, with deployments ranging from Big Brother UK live production to corporate AV systems, broadcast houses-of-worship, and educational institutions. The Panasonic PTZ line is widely deployed in environments where remote operation, repeatable framing, and unobtrusive form-factor matter more than the hand-held cinema-camera aesthetic. Newsshooter's coverage of Panasonic's newer 4K AW-UE150 PTZ establishes that Panasonic continues to invest in the PTZ category through current models — the AW-HE120 is the HD-tier predecessor to those modern 4K successors.

Image Quality & Optical System

The AW-HE120's 3MOS sensor architecture (three CMOS sensors with prism block, rather than a single Bayer-pattern CMOS) is Panasonic's broadcast-class design choice. Per Panasonic's specifications, the 3MOS approach delivers improved color separation and chromatic accuracy versus single-sensor designs at the cost of slightly larger optical block and modestly higher cost. The U.L.T. sensor delivers high low-light sensitivity — meaningful for houses-of-worship + auditorium + lecture-hall environments where ambient light levels vary widely. The 20x optical zoom (32-642 mm 35mm equivalent) covers extreme wide to tight-portrait framing within a single fixed installation — eliminating the need for camera repositioning during a long-form event.

Pan/Tilt Precision and Speed

Per Panasonic's spec sheet, the pan/tilt mechanism delivers a max 60°/sec sweep speed with highly precise stop control. The ±175° pan range allows the camera to cover nearly a full circle from a fixed mounting position — meaningful for stage / auditorium installations where the camera needs to track a moving subject across the entire stage. The -30° to 210° tilt range allows ceiling-mount inverted installations as well as the standard upright orientation — a meaningful flexibility advantage for AV integrators working in unusual mounting environments.

Control Options

Per Panasonic's published spec, the AW-HE120 supports single and multi-unit wireless, serial, and IP remote-control operation. This means the camera integrates into:

• Panasonic AW-RP50 / AW-RP60 / AW-RP120 PTZ controllers for dedicated joystick-and-preset-button operator workflows
• Newtek TriCaster, Ross Carbonite, Blackmagic ATEM production switcher ecosystems with IP-based PTZ control
• vMix, OBS Studio, Wirecast software-based production systems with NDI or RTSP support (via Panasonic's IP camera interfaces)
• Bus / RS-422 / RS-485 daisy-chained multi-camera installations for budget-constrained installations using serial control rather than IP

Where the AW-HE120KPJ Specifically Fits

• Houses of worship deploying multi-camera live-stream and IMAG (image magnification) systems for sanctuary services — the unobtrusive PTZ form factor and remote operation suit church technical workflows where camera operators may be volunteers
• Higher-education and corporate lecture-capture systems — fixed-installation PTZ cameras with preset framing automate recurring class / training capture workflows
• Broadcast and government meeting capture (city council, court, legislative session) where camera operators are scarce but multi-camera coverage of fixed-position speakers is required
• Live-event AV installations (conferences, sporting venues, performing arts centers) where the production switcher operator controls all cameras remotely from the booth
• Corporate boardroom video conferencing — though the AW-HE120 is broadcast-tier rather than huddle-room tier, it fits high-end boardroom installations where Zoom / Teams meeting capture benefits from broadcast-quality framing

Honest Limits Buyers Should Know

• HD (1080p) only, not 4K. The AW-HE120 maxes at 1080/60p output via HDMI. For productions requiring 4K capture, Panasonic's newer AW-UE150 / AW-UE160 / AW-UE163 series cameras are the appropriate tier. Current broadcast standards increasingly require 4K for streaming and OTT delivery — buyers committing to long-term productions should evaluate the 4K successors before purchasing HD-only PTZ in 2026
• Older model in Panasonic's PTZ lineup. Per ProVideo Coalition and Newsshooter coverage, Panasonic has released several PTZ generations since the AW-HE120 launch (HE40, HE42, HE60, HE130, HE145, HE150, UE150 / UE160 / UE163). The HE120 is now toward the older end of the lineup. Renewed / used pricing is appropriate; current-generation pricing is not
• 3MOS sensor architecture is heavier and larger than single-CMOS PTZ alternatives. For installations where weight and form factor matter (lightweight ceiling mounts, portable studio setups), single-sensor PTZ cameras may be a more practical fit
• No PoE+ power. The AW-HE120 uses dedicated 12 V DC + AC adapter or PoE (standard), not PoE+ — limiting some installation flexibility versus newer PTZ cameras designed for high-current single-cable installations
• F1.6-F3.4 aperture range is bright at the wide end but the maximum F3.4 at full telephoto is dimmer — affecting low-light performance at the long telephoto end of the 20x zoom

Where Buyers Should Look Elsewhere

• 4K-required workflows → Panasonic AW-UE150 / UE160 / UE163 4K PTZ family
• Budget-tier PTZ deployments → Panasonic AW-HE42 (entry HD PTZ) or competing tier from PTZOptics, Marshall, Sony
• NDI-priority workflows → Panasonic AW-UE40 / UE50 NDI-equipped PTZ family, or PTZOptics G3 NDI cameras
• Hand-held cinema-camera aesthetic → Panasonic LUMIX BS1H, Sony FX3, Blackmagic Pocket Cinema Camera 6K Pro — different category entirely, not PTZ replacement
• Boardroom / huddle-room one-button operation → Logitech Rally / Rally Bar, Poly Studio X-series — designed for non-technical-user UC&C workflows rather than broadcast tier
