Top 10 Essential Cables Every Studio Needs

Premium Audio Transmission

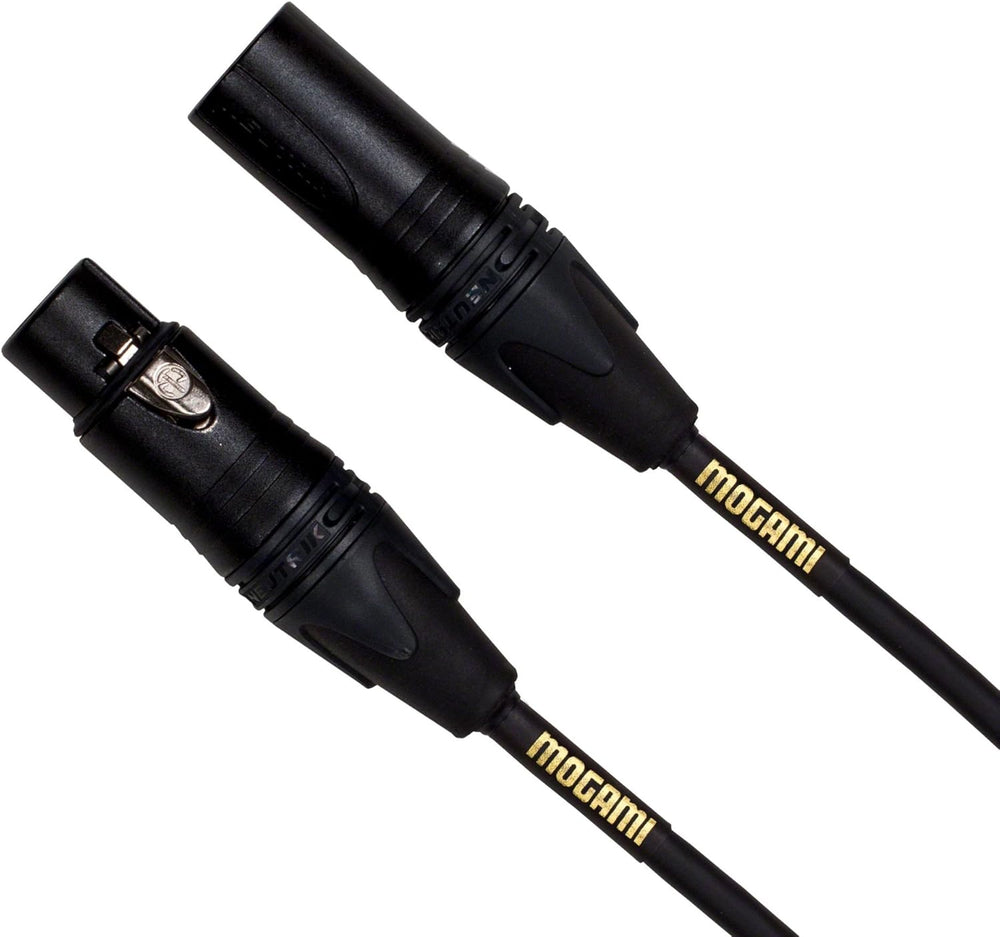

The Gold Studio uses Mogami's Neglex 2534 quad-conductor cable, which the manufacturer specifies provides 10–20 dB improvement in signal-to-noise over equivalent twisted-pair designs by canceling RF and EM interference that gets past the shield (Mogami Neglex Quad Cables). Sound on Sound forum contributors note that paying for Neutrik or Mogami-grade connectors is justified primarily by mechanical reliability and consistent contact integrity over years of plugging cycles (Sound on Sound forum: Worth paying extra for Neutrik?).

Price: $$ | Key Spec: Quad conductor design, 10–20 dB SNR improvement (Mogami) | Verdict: Best Microphone Cable

Compact Camera Connection

Mini HDMI (Type C) uses the same 19-pin signaling as full-size HDMI Type A and operates under the same bandwidth ceilings; HDMI 2.0 supports up to 18 Gbps total (14.4 Gbps video) on Category 2 / High Speed cables, sufficient for 4K60 4:2:0 from mirrorless cameras and field recorders (HDMI Forum 2.0 spec release). For a 6-ft passive run, any High Speed certified cable comfortably clears the budget.

Price: $ | Key Spec: Mini HDMI (Type C), 18 Gbps ceiling on HDMI 2.0 | Verdict: Best Mini HDMI Cable

Multi-Channel Audio

The 25-pin D-sub analog interface originated on the Tascam DA-88 and is now codified by AES as standard AES59, carrying eight balanced channels on a single connector — Sound on Sound's Hugh Robjohns walks through the wiring conventions and why getting the correct variant (TRS vs. XLRM vs. XLRF, and Tascam vs. Yamaha pinouts) matters (Sound on Sound: Which DB25 cable do I need?). Mogami's Gold DB25-TRS uses the company's 2932 multipair cable with industry-standard analog pin-out (Mogami Gold DB25-TRS product page).

Price: $$$ | Key Spec: 8-channel AES59 analog (Tascam pinout) | Verdict: Best Interface Cable

iOS Device Integration

For studio integrations involving iOS audio interfaces, MIDI controllers, or camera tethering, an MFi-authenticated cable is the safer choice — uncertified cables lack the authentication IC required by Apple's accessory protocol and can fail or trigger "This accessory may not be supported" errors after iOS updates (Apple MFi Program: How It Works). The 2 m length is the longest Apple ships from its own product line (Apple Store: Lightning to USB Cable (2 m)).

Price: $$ | Key Spec: MFi-authenticated, 2 m length | Verdict: Best iOS Cable

Network Connectivity

Cat6 is specified by ANSI/TIA-568.2-D for 250 MHz bandwidth on 23 AWG conductors, supporting 1000BASE-T to 100 m and 10GBASE-T to 55 m (Category 6 cable — TIA/EIA-568 reference). Slim 28 AWG patch variants like the SlimRun are intended for short runs between switch and device, not in-wall horizontal cabling, where the higher DC resistance can become a thermal concern under PoE.

Price: $ | Key Spec: Cat6, 250 MHz, 1 Gb/s to 100 m per TIA-568 | Verdict: Best Ethernet Cable

Modern Device Power

USB Power Delivery 3.0 supports up to 100 W (20 V at 5 A) over USB-C, while the PD 3.1 Extended Power Range adds 28 V / 36 V / 48 V profiles for 140 W, 180 W, and 240 W respectively — but only on EPR-rated cables (USB-IF: USB Charger (USB Power Delivery)). For studio devices that draw 5 A, USB-IF certification matters; underspec'd cables can overheat under sustained high-wattage charging.

Price: $$ | Key Spec: USB-C, USB-PD-compatible | Verdict: Best USB-C Cable

Complete Audio Setup

The BL3 is a tripod-base lightweight boom stand bundled in a three-pack value configuration intended for podcast/stream rigs and small project studios where multiple stands are needed at once (B&H Photo: Samson BL3 Ultra-Light Boom Stand). The included cables are budget-grade utility XLRs — adequate for fixed-position studio use; for long touring runs, a Mogami or similar quad-shielded cable is the safer upgrade path.

Price: $$ | Key Spec: Tripod boom + utility XLR bundle | Verdict: Best Audio Bundle

Extended USB Reach

The USB 2.0 specification limits passive cable length to 5 m (~16.4 ft) end-to-end before signal integrity is no longer guaranteed; beyond that, an active extension or a powered hub between segments is required (Audio-Technica: USB cable maximum length). For a studio extension to clear a desk or reach a back-panel port, a passive run inside that 5 m budget is the right tool.

Price: $ | Key Spec: USB 2.0, 5 m passive maximum (USB-IF) | Verdict: Best USB Extension

Professional XLR Connection

The 7-pole XLR is used for active microphones (notably tube condensers like the AKG C12VR and many Telefunken reissues) where the additional pins carry plate voltage and heater current separately from balanced audio. The NC7FX-B is the female cable end with black metal housing and gold-plated contacts, now succeeded by the NC7FXX-B in Neutrik's current lineup (Neutrik NC7FX-B product page). Sound on Sound forum threads consistently recommend Neutrik over generic XLRs for the mechanical contact reliability that defines a connector's working lifespan (Sound on Sound forum: Worth paying extra for Neutrik?).

Price: $ | Key Spec: 7-pole XLR female, gold contacts | Verdict: Best XLR Connector

High-Speed Data Transmission

OM1 is 62.5/125 µm multimode fiber rated for 200 MHz·km at 850 nm, supporting 1000BASE-SX to ~275 m and 10GBASE-SR to ~33 m (Multi-mode optical fiber — OM1 specifications). Fluke Networks' fiber-class reference confirms OM1's distance/bandwidth tier relative to OM2/OM3/OM4 (Fluke Networks: OM1 to OM5 fiber testing). For a 2 m studio jumper between an SFP switch port and a media converter, OM1 is sufficient; for new builds, OM3 or OM4 leaves more headroom for 10G upgrades.

Price: $$ | Key Spec: 62.5/125 µm multimode, LC/LC duplex | Verdict: Best Fiber Cable
