A LAN (Local Area Network) is the private network confined to one building or home — your laptop, printer, and NAS talking to each other over WiFi or Ethernet. A WAN (Wide Area Network) connects separate LANs across distance, and the internet is simply the largest WAN in existence. Your router sits at the boundary between the two, with one side facing your LAN and the other facing the WAN.
What a LAN Actually Is
A Local Area Network is any set of devices connected together in one physical location that you control — typically a home, office, or single building. Devices on a LAN usually get private IP addresses (the familiar 192.168.x.x or 10.x.x.x ranges) assigned by a router, and they can talk to each other directly and fast, with no dependency on an internet connection at all. Printing to a network printer, browsing a NAS's shared folder, or streaming from a media server to a TV in the next room are all LAN traffic — the request never has to leave the building.
What a WAN Actually Is
A Wide Area Network spans a much larger geography and typically connects multiple separate LANs together. A company with offices in three cities might link them with a WAN so employees can reach shared resources across locations. The internet is the WAN nearly everyone actually interacts with day to day — a global network of networks, all speaking the same underlying protocols so that a LAN in one country can reach a server or another LAN on the opposite side of the planet.
The Router: Where LAN Meets WAN

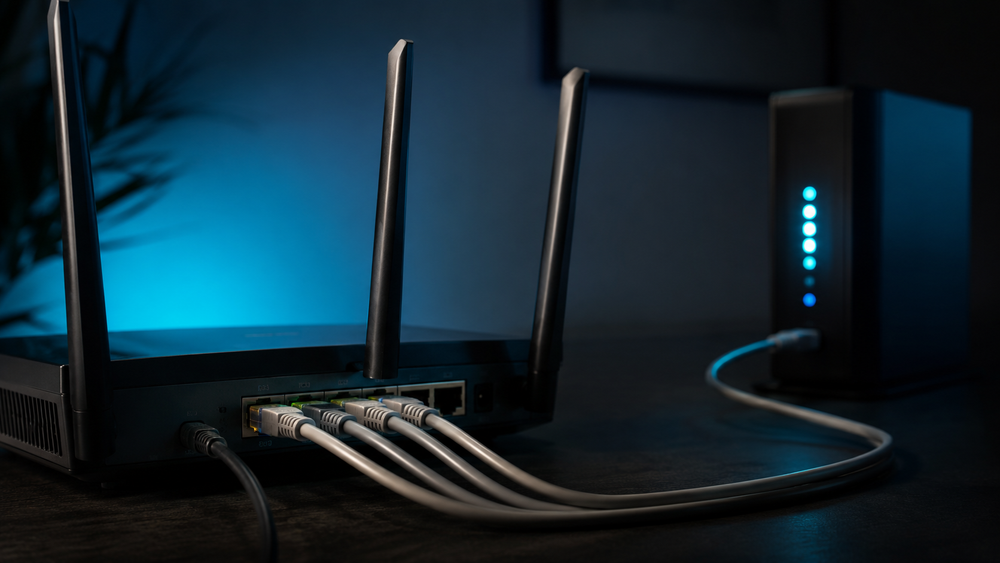

Every consumer router has (at least conceptually) two sides. The WAN port connects upstream to your internet service provider's modem or fiber line — the doorway to the wider internet. The LAN ports (and the WiFi radio) connect downstream to your own devices. A technique called NAT (Network Address Translation) lets every device on your private LAN share the single public IP address your ISP assigns to the WAN side, which is why dozens of devices in a house can all reach the internet through one connection without each needing its own public address. A modern router like the TP-Link Archer AX73 performs exactly this job: WAN in from the ISP, LAN (wired and wireless) out to everything in the home.
Switches Extend the LAN, Routers Connect to the WAN
It helps to keep the two device types straight. A router is the only device in a typical home network that actually touches the WAN — it is the one box making the LAN-to-internet translation happen. A switch, such as the TP-Link TL-SG1008D, has no idea the WAN exists at all — it simply adds more wired ports to the existing LAN, letting more devices plug in near a router that ran out of ports. Plugging a switch into a router's LAN port extends the same local network; it never creates a second network or touches the internet connection directly. Mesh systems like the TP-Link Deco BE25 blur this slightly at the edges — one node handles the WAN connection while every node cooperatively extends LAN coverage — but the underlying LAN/WAN split is unchanged, just distributed across more hardware.
Why This Distinction Matters When Buying Gear
Understanding LAN vs WAN clarifies what different networking products are actually for. A slow internet plan is a WAN problem no router upgrade fixes, while WiFi dead zones and file-transfer speed between your own devices are LAN problems entirely within your control — solved with better access point placement, wired backhaul, or techniques covered in mesh vs. extender vs. powerline vs. MoCA. It also explains why a NAS or a PoE-powered access point sitting on your LAN can move data at speeds far beyond what any internet connection delivers — LAN traffic never has to cross the WAN bottleneck at all. See what PoE is and how it powers LAN devices for one common example.
Frequently Asked Questions
Is WiFi part of the LAN or the WAN?
WiFi is just a wireless way to join the LAN — the router's WiFi radio and its wired LAN ports both connect devices to the same local network. The internet connection coming in on the WAN port is separate from how you connect to the router itself.
Why does my internet work but I still can't see another device on my network?
That is usually a LAN-side issue — a firewall setting, both devices on different WiFi bands or guest networks, or a router configuration — independent of whether the WAN connection to the internet is working fine.
What is the difference between a WAN and the internet?
The internet is a WAN, but not every WAN is the public internet — a company could build a private WAN linking its own offices without any of that traffic touching the public internet at all. In home networking, though, "WAN" and "internet connection" are effectively synonymous.
Can I have more than one LAN in my house?
Yes — routers commonly support a separate guest network or VLANs, which function as additional, isolated LANs sharing the same physical router and internet connection but kept apart from your main devices for security.
