AKG

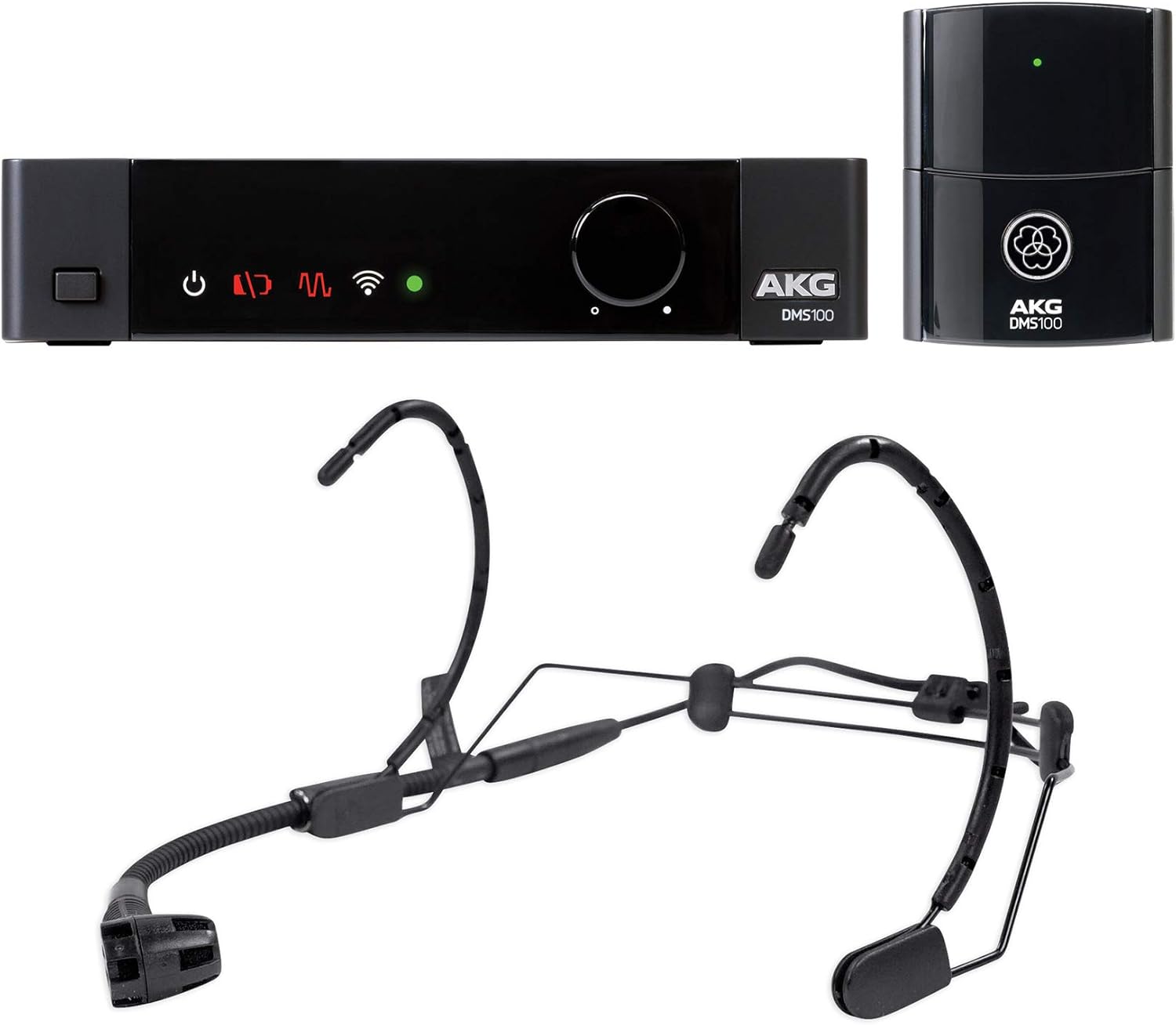

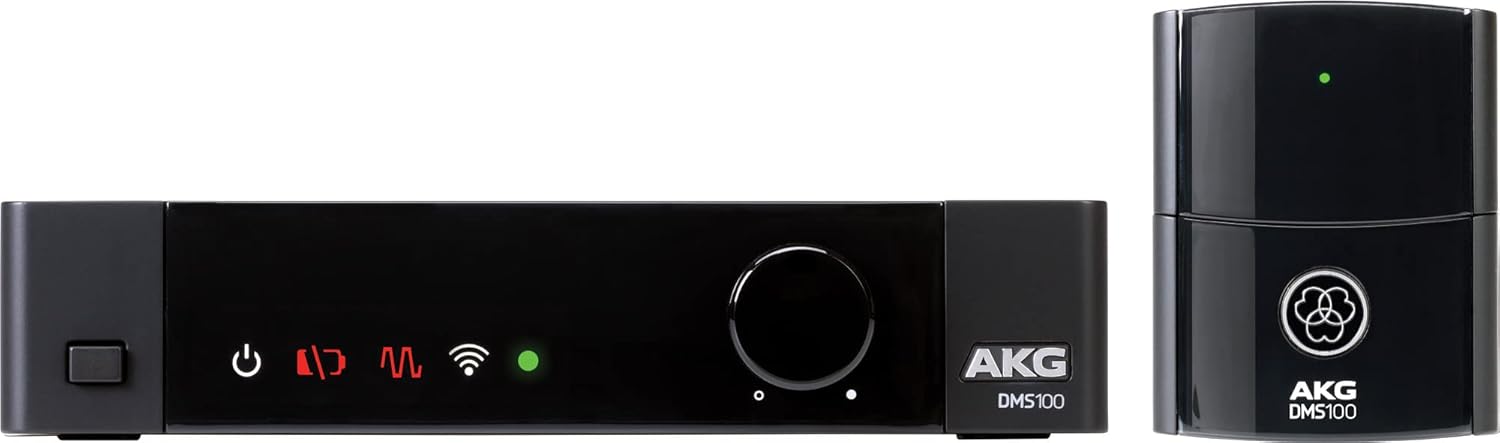

AKG DMS100 BP+C520 L Headset Wireless Microphone System
CondenserXLR
Experience Wireless Freedom with AKG DMS100The AKG DMS100 digital wireless system delivers professional-grade audio for performers and presenters. Featuring signature AKG sound quality, 2.4GHz operation, and AES 256-bit encryption, it offers both reliability and security. System Type: Digital Wi...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Experience Wireless Freedom with AKG DMS100
The AKG DMS100 digital wireless system delivers professional-grade audio for performers and presenters. Featuring signature AKG sound quality, 2.4GHz operation, and AES 256-bit encryption, it offers both reliability and security.
- System Type: Digital Wireless Bodypack System
- Operating Frequency: Digital 2.4 GHz
- Encryption: 256-bit AES
- Simultaneous Systems: Up to 4 coexisting systems
- Operating Range: 100 ft. (30 m)
- Latency: <=2.9 ms
- Audio Resolution: 24-bit, 48kHz
- Microphone: AKG C520 L Headset Microphone
Key Features
Package Includes: (1) AKG DMS100 4-Channel Digital Bodypack Wireless Instrument System 2.4GHZ, 48kHz, (1) AKG C520 L Headset Microphone Vocal Condenser Mic For Speeches, Presentations
Features of DMS100 : Easy Setup and Operation - Seamless setup and operation of up to four simultaneous, coexisting DMS100 systems, Wireless Range - 30m (100') operating range, Long-Lasting Power - Up to 12-hour battery life using 2x AA batteries, High-Resolution Sound - 24-bit, 48kHz digital audio resolution, Rack Mountable - Optional rackmount kit available
Specifications of DMS100: Carrier frequency: Digital 2.4 GHz, Encryption: 256-bit AES, Simultaneous operation: Yes, up to 4 coexisting systems, Working range: 100 ft. (30 m), Latency: <=2.9 ms, Frequency/channel selection: Adaptive channel selection, Diversity wireless: Antenna, time, frequency, Frequency response: 20 Hz - 20 KHz ±1 dB, Dynamic range: 116 dB @ 1 KHz, Signal-to-noise: >90 dBA, Transmitter battery: 2x AA alkaline, Battery life: 12 hours

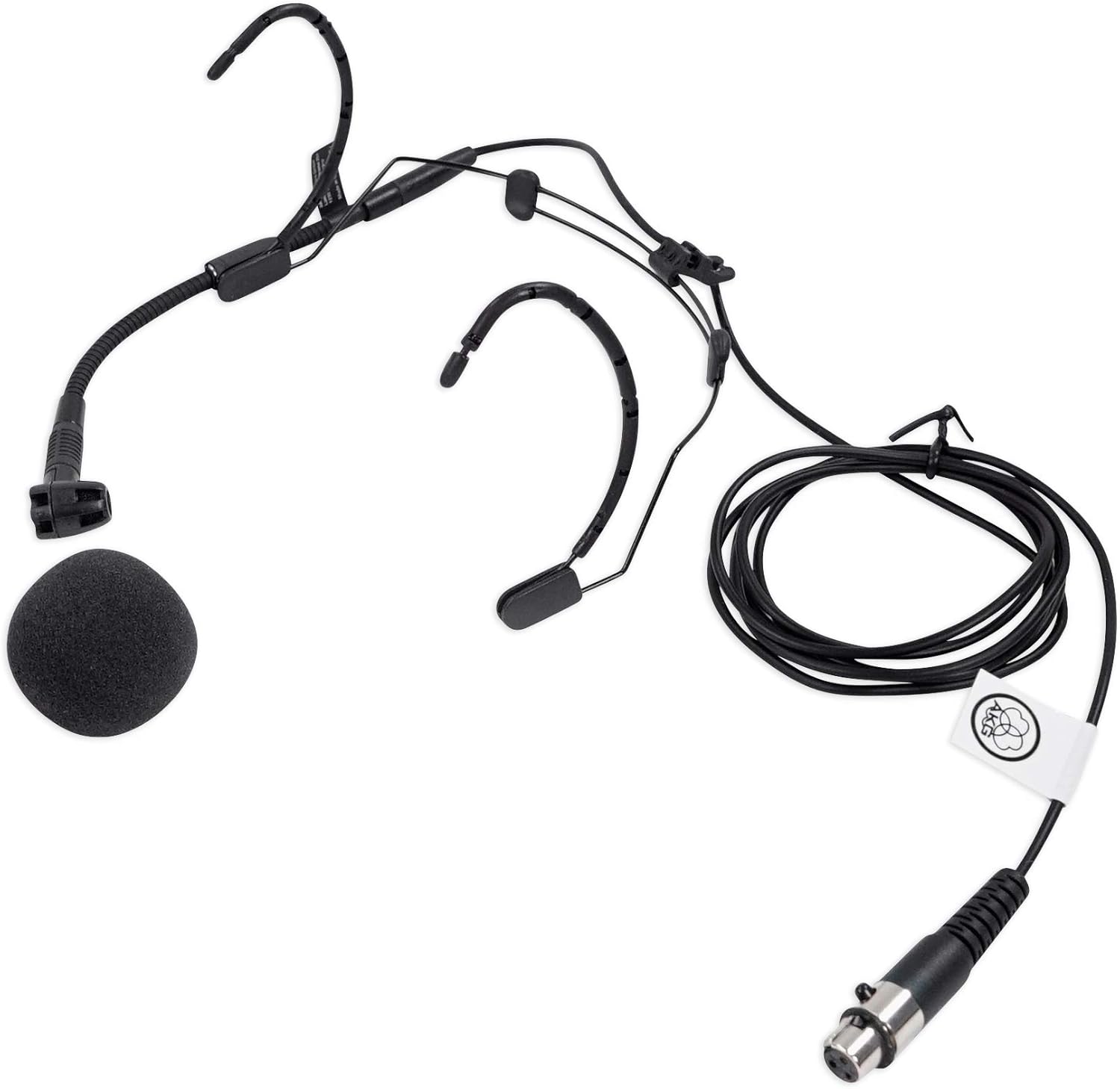

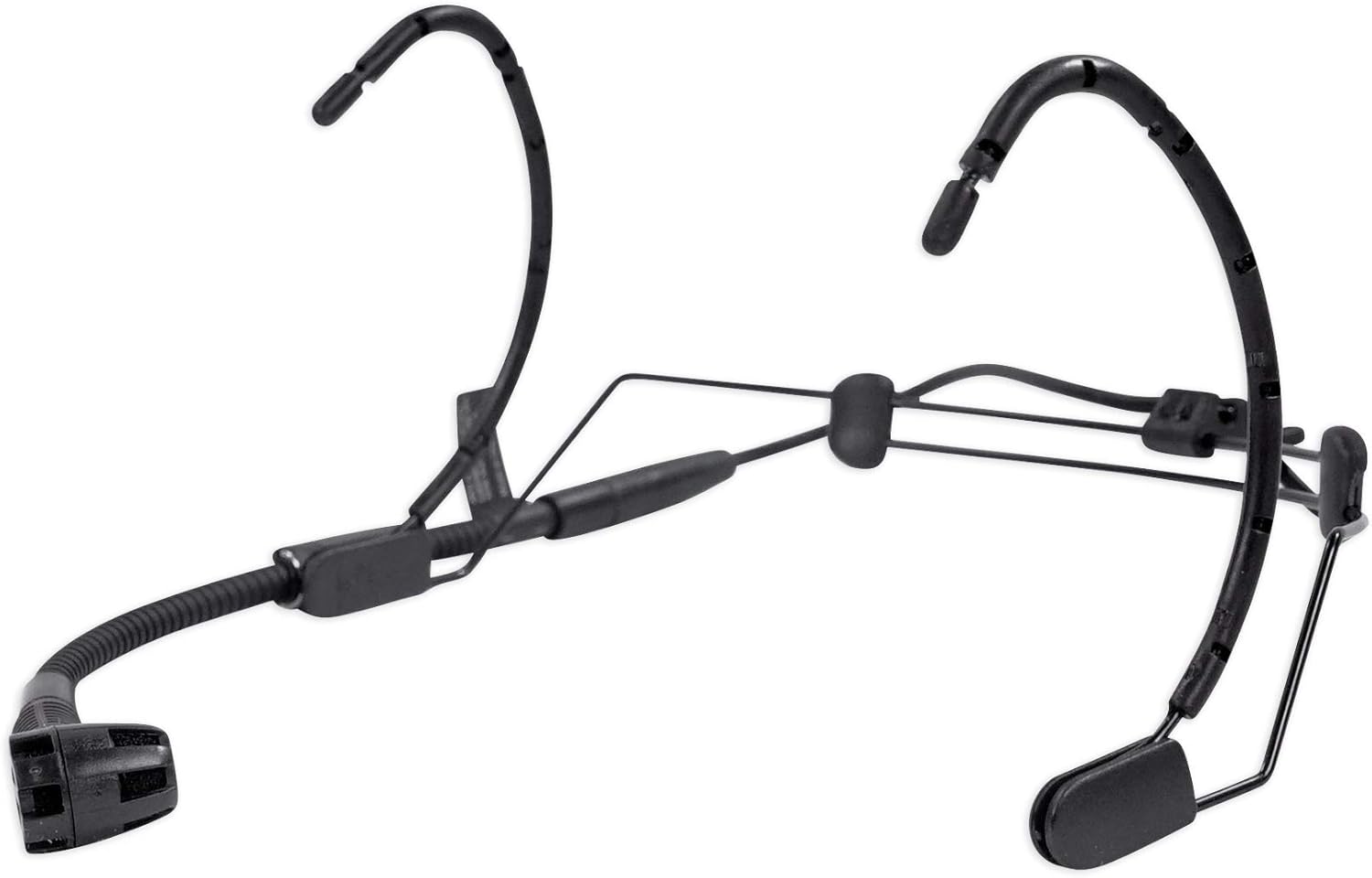

Features of C520 L: Lightweight and adjustable headband construction for maximum comfort and freedom of movement, Left and right flexible boom mounting for precise positioning to the sound source, Condenser capsule on flexible shock mount for efficient rejection of mechanical, ambient and body noise, Moisture shield ensuring a dry microphone capsule, Matte Black Finish, Professional mini XLR connector for all AKG wireless body-pack transmitters
Audio frequency bandwidth: 60 - 20000Hz, Equivalent noise level: 31 dB-A, Sensitivity: 5 mV/Pa, Signal to Noise: 63 dB-A, Electrical Impedance: 200 Ohms, Recommended load impedance: 2000 Ohms, Polar Pattern: Cardioid, Type: 3-pin Mini XLR, Gender: Female, Dimensions (H x L): 195 mm x 195 mm, Net Weight: 26 g , Cable length 1.5 m (5 ft), Voltage: 9 to 52 V, Current: 2 mA, Applications: Live Vocal, Sports/Fitness, etc
Specifications
System Type
Digital Wireless Bodypack Instrument System
Wireless Frequency Band
Digital 2.4 GHz
Audio Resolution
24-bit, 48kHz
Simultaneous Systems
Up to 4 coexisting systems
Working Range
100 ft. (30 m)
Latency
<=2.9 ms
Transmitter Battery Type
2x AA alkaline
Transmitter Battery Life
12 hours
Microphone Type
Condenser Headset
Microphone Polar Pattern
Cardioid
Microphone Frequency Bandwidth
60 - 20000Hz
Microphone Cable Length
1.5 m (5 ft)
Pros & Cons
👍 Pros
- Offers up to 12 hours of battery life with 2x AA batteries for extended use during performances.
- Provides high-resolution 24-bit, 48kHz digital audio, ensuring clear and accurate sound reproduction.
- Features an adaptive channel selection system and diverse wireless capabilities for reliable signal strength.
- Includes a C520 L headset microphone with a lightweight, adjustable design for comfortable wear.
- The C520 L headset's moisture shield protects the microphone capsule from sweat and humidity.
👎 Cons
- Requires 2x AA batteries for the transmitter, which may necessitate frequent replacement depending on usage.
- An optional rackmount kit is needed if rack installation is desired, increasing the overall cost.
- The headset microphone has a cable length of 1.5 meters (5 ft), which might limit movement for some users.
- The system operates on the 2.4 GHz digital frequency band, which can be susceptible to interference in crowded environments.
- The working range is limited to 100 feet (30 meters), which might not be sufficient for very large venues.
Frequently Asked Questions
What type of microphone is included with the AKG DMS100 system?
The system includes an AKG C520 L Headset Microphone, which is a vocal condenser mic designed for speeches and presentations, offering a cardioid polar pattern.
How many hours can the DMS100 system operate on a single set of batteries?
The DMS100 system provides up to 12 hours of battery life when powered by 2x AA alkaline batteries, making it suitable for prolonged events.
Can multiple AKG DMS100 systems be used together without interference?
Yes, the DMS100 system supports seamless setup and operation of up to four simultaneous, coexisting DMS100 systems, utilizing adaptive channel selection for reliability.
Is the AKG C520 L headset microphone comfortable for extended wear?
The C520 L features a lightweight and adjustable headband construction, designed to provide maximum comfort and freedom of movement for the user.
What is the maximum operating range of the AKG DMS100 wireless system?
The AKG DMS100 system has an operating range of 30 meters (100 feet), offering sufficient coverage for many typical performance and presentation environments.
Does the C520 L headset microphone offer protection against moisture?
Yes, the C520 L headset microphone incorporates a moisture shield specifically designed to ensure the microphone capsule remains dry during use.
