Allen & Heath AH-DX012 DX012 12 XLR Output Expander
XLR
Expand Your Audio Capabilities with Flexible Output OptionsThe Allen & Heath DX012 is a 19” rack-mountable audio expander designed for Allen & Heath digital mixing systems. Providing 12 XLR outputs, configurable as analog line outputs or AES outputs, this expander offers flexible connecti...
$1,599.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Expand Your Audio Capabilities with Flexible Output Options

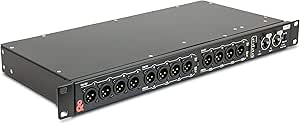

The Allen & Heath DX012 is a 19” rack-mountable audio expander designed for Allen & Heath digital mixing systems. Providing 12 XLR outputs, configurable as analog line outputs or AES outputs, this expander offers flexible connectivity options for your audio setup.
- Compatibility: SQ and dLive (firmware 1.9 onwards) systems
- Outputs: 12 XLR outputs
- AES outputs: globally switchable between 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Connectivity: Compatible with CAT5e (or higher) cables of up to 100m; locking EtherCon ports
- Mounting: Rack-mounted (1u) or shelf/floor operation
Key Features
12 XLR output audio expander compatible with SQ and dLive (firmware 1.9 onwards) systems
AES outputs globally switchable between 44.1kHz, 48kHz, 88.2kHz, 96kHz; Cascade mode allows daisy-chaining of 2 DX16/DX12 Expanders for additional I/O
Redundant DX connection to compatible hardware; can add multiple DX012 to a system: add up to 16 DX012 units to an SQ system, up to 46 units to a dLive S Class system, up to 22 units to a dLive C Class System
Rack-mounted (1u) or shelf/floor operation; Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m; locking EtherCon ports
Specifications
Output Channels
12 XLR
Compatibility
SQ and dLive (firmware 1.9 onwards) systems
AES Output Sample Rates
44.1kHz, 48kHz, 88.2kHz, 96kHz (globally switchable)
Cascade Mode
Supports daisy-chaining of 2 DX16/DX12 Expanders
DX Connection
Redundant
Max Units (SQ system)
16 DX012
Max Units (dLive S Class system)
46 DX012
Max Units (dLive C Class system)
22 DX012
Form Factor
1u Rack-mounted / Shelf/Floor operation
Connectivity
CAT5e (or higher) cables up to 100m
Ports
Locking EtherCon
Pros & Cons
👍 Pros
- Expands audio output capabilities with 12 XLR outputs, ideal for complex live sound or studio setups.
- Offers flexible AES outputs globally switchable between 44.1kHz, 48kHz, 88.2kHz, and 96kHz sample rates.
- Features a cascade mode, enabling daisy-chaining of two DX16/DX12 Expanders for even greater I/O needs.
- Provides redundant DX connection to compatible hardware, enhancing system reliability and uptime.
- Supports large-scale systems, allowing up to 16 DX012 units for SQ systems and up to 46 units for dLive S Class systems.
👎 Cons
- This expander is specifically compatible with SQ and dLive systems, limiting its use with other audio mixing consoles.
- The full benefits of the AES outputs and cascade mode depend on having compatible hardware and specific system configurations.
- While rack-mounted, the 1u size might still require dedicated rack space, adding to the overall equipment footprint.
- The need for CAT5e (or higher) cables, while common, requires users to ensure they have the correct cabling for connections up to 100m.
- The product is an output expander only, meaning it does not provide any input capabilities for microphones or instruments.
Frequently Asked Questions
What systems is the Allen & Heath AH-DX012 compatible with?
The Allen & Heath AH-DX012 is an audio expander compatible with SQ and dLive systems, provided they are running firmware version 1.9 or onwards.
How many XLR outputs does the DX012 provide?
This unit offers 12 XLR output channels, allowing for expanded audio routing in professional setups.
What sample rates do the AES outputs support?
The AES outputs on the DX012 are globally switchable, supporting sample rates of 44.1kHz, 48kHz, 88.2kHz, and 96kHz.
Can multiple DX012 units be used in a single system?
Yes, you can add multiple DX012 units; for example, up to 16 units to an SQ system, up to 46 units to a dLive S Class system, or up to 22 units to a dLive C Class system.
What type of cabling is required for the DX connection?
The DX connection uses CAT5e (or higher) cables, supporting runs of up to 100 meters, and features locking EtherCon ports for secure connections.
