Allen & Heath AH-ZED14 14-Channel Mixer with USB I/O
★★★★★
XLR48VPhantom powercondenser

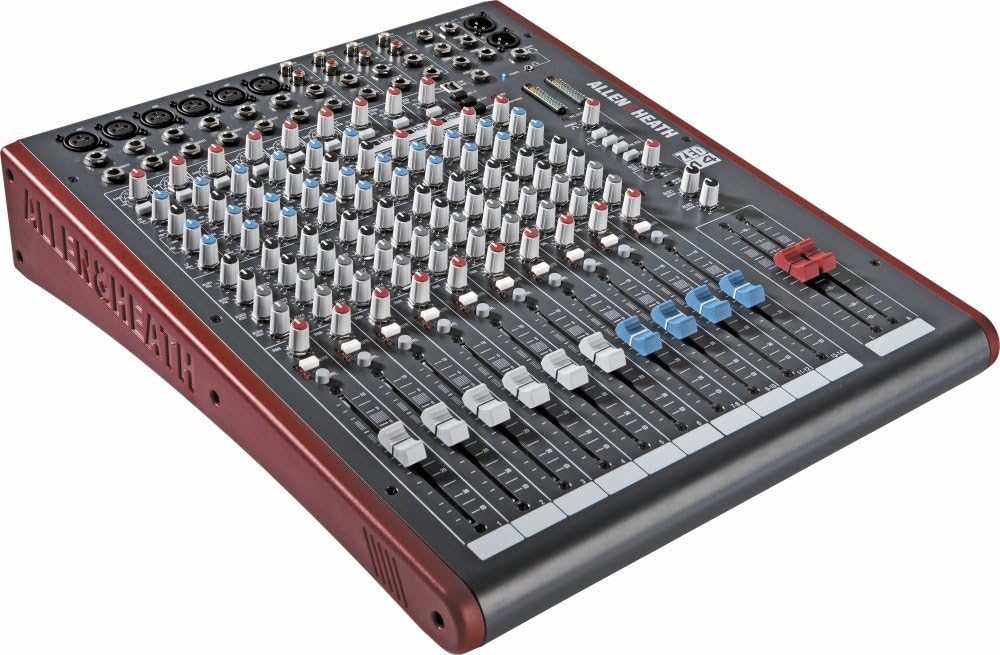

A compact 14-channel mixer with DuoPre mic preamps, MusiQ EQ, and class-compliant USB recording built in.
$649.99*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 19, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
DuoPre XLR Microphone preamps, including 48V Phantom power for condenser microphones and up to 69dB of gain. Each preamp uses two gain stages to provide a full and accurate sound across the entire gain range with enough power for even the most gain hungry mics.

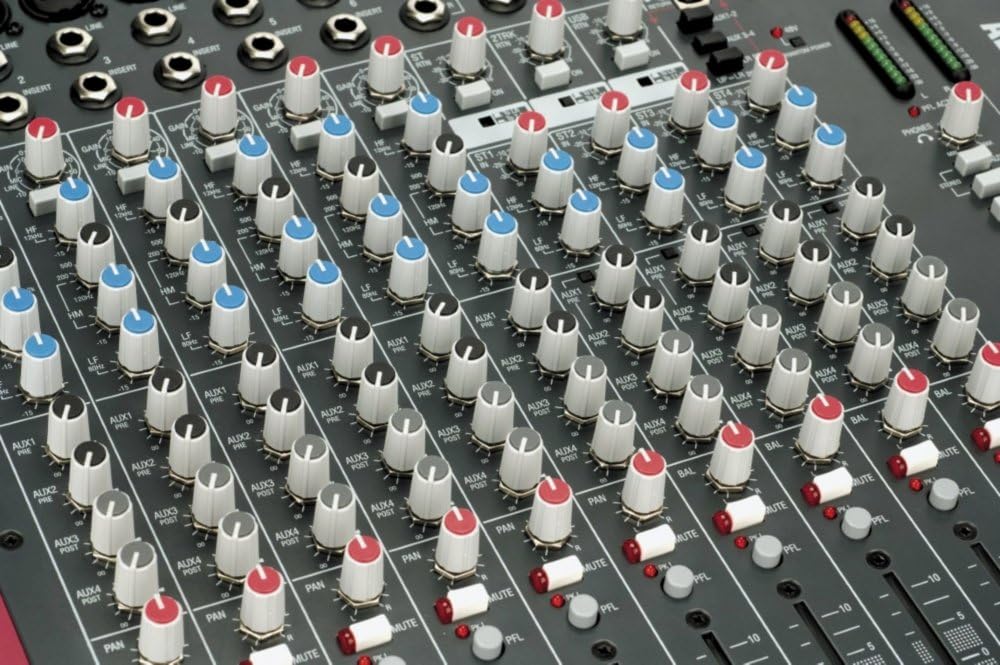

A 100Hz High Pass Filter on every mono input allows unneeded low frequencies to be removed, then the 3-band MusiQ EQ with swept mid frequency uses carefully selected frequencies to ensure your sound sculpting is always musical. Cut or boost highs and lows with shelving EQ and use the mid frequency selection to choose exactly where to adjust the mid frequencies, especially useful for vocals, guitar and other instruments with a rich mid-range.

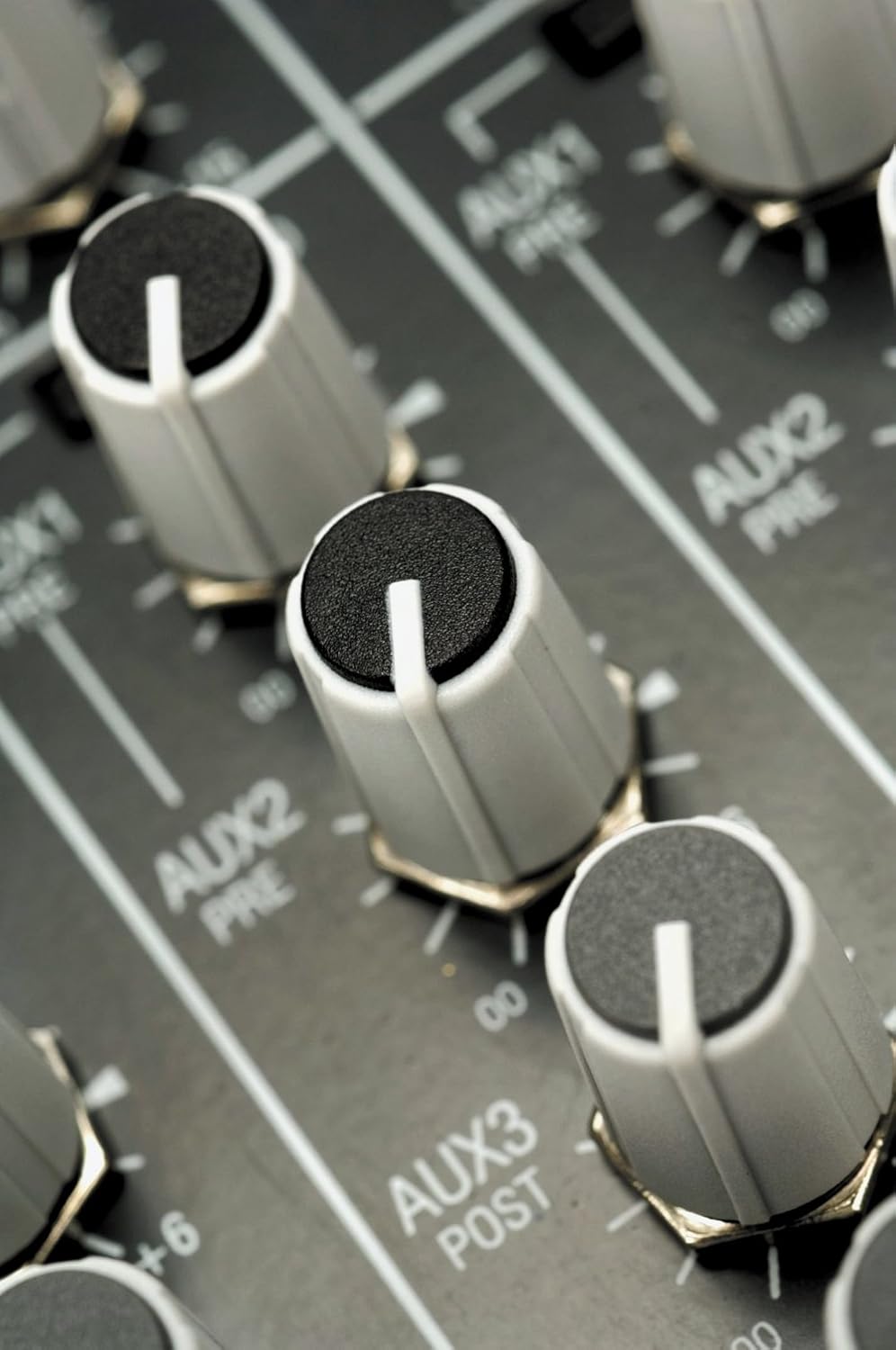

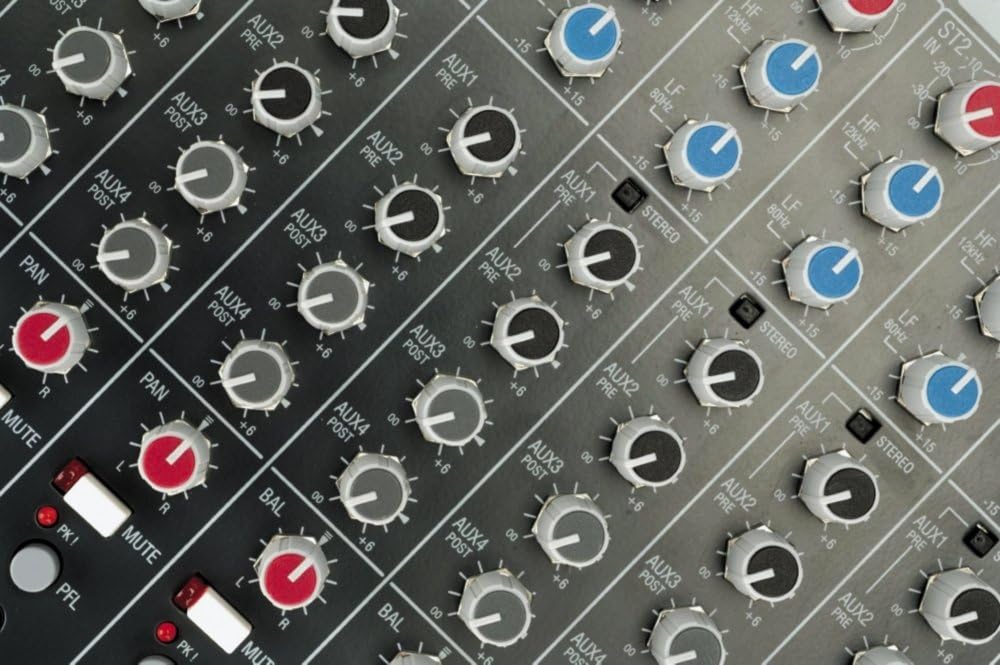

Two ‘Pre-Fade’ Auxiliary outputs enable separate mixes to be sent to monitor speakers or any feeds that require a mix of channels independent of the main mix. Another two ‘Post-Fade’ Auxiliary outputs sends signal at a level which follows the send level to the main mix, ideal for use with external FX units, feeds to subwoofers or creating a mix for streaming or recording.
A routable stereo-in stereo-out USB connection makes it easy to record the whole main mix or just the channels you need and enables a stereo return from the connected device to be routed back to the mix. It’s also class compliant and does not require drivers, meaning not just Mac and Windows computers can be connected, but also many mobile devices such as tablets or even smart phones.
Optional rack ear kit [ZED1402-RK19] securely fits the mixer into a standard 19” rack or flight case.
6 Mic, 6 Line/ Inst, 4 Stereo (2 Left, 2 Right ), 2 USB Audio, 1 FX Return
Specifications
Channels
14
Mic Preamps
6 × DuoPre XLR (48V Phantom Power)
Max Mic Gain
69 dB
EQ
3-Band MusiQ EQ with Sweepable Mid (Mono Channels)
High-Pass Filter
100 Hz (All Mono Inputs)
Aux Sends
2 Pre-Fade, 2 Post-Fade
USB Audio
Stereo In / Stereo Out (Class Compliant)
Inputs
6 Mic, 6 Line/Inst, 4 Stereo, 2 USB, 1 FX Return
Rack Mount
Optional (ZED1402-RK19 kit sold separately)
Pros & Cons
👍 Pros
- DuoPre preamps deliver clean gain up to 69dB, handling even low-output dynamic microphones
- 3-band MusiQ EQ with sweepable mid provides musical tone shaping on each mono channel
- Class-compliant USB audio works without drivers on Mac, Windows, and mobile devices
- Four auxiliary sends (2 pre-fade, 2 post-fade) offer flexible monitor and effects routing
- 100Hz high-pass filter on every mono input helps control low-end rumble at the source
👎 Cons
- USB audio is limited to stereo in and stereo out, not multitrack recording
- No digital effects built in — external effects units are needed for reverb and delay
- Does not include a power supply or rack ears in the box, adding to setup costs
- Limited to six mic preamps, which may be insufficient for larger band or ensemble setups
Frequently Asked Questions
Does the ZED-14 require driver installation to record over USB?
No, the USB audio connection is class compliant, meaning it works without drivers on Mac, Windows, and many mobile devices including tablets and smartphones.
How many microphones can I connect simultaneously to the ZED-14?
You can connect up to six microphones via the XLR inputs, each with access to 48V phantom power and up to 69dB of gain through the DuoPre preamps.
Can I use the USB connection to play backing tracks from a laptop into the mix?
Yes, the USB interface provides a stereo return path, so audio from a connected computer or mobile device can be routed back into the mixer's main mix.
What is the difference between the pre-fade and post-fade auxiliary sends?
The two pre-fade aux sends create mixes independent of the main fader positions, ideal for stage monitors. The two post-fade sends follow the main mix levels, suited for external effects or recording feeds.
Can the ZED-14 be rack-mounted?
Yes, with the optional ZED1402-RK19 rack ear kit, the mixer fits into a standard 19-inch rack or flight case.
