Allen & Heath SQ-5 48-Channel Digital Mixer 32x32 USB Interface
★★★★★
XLR
Unleash Your Sound with Unparalleled Control The Allen & Heath SQ-5 Digital Mixer is engineered to provide exceptional audio fidelity and versatility for both live and studio environments. Featuring a powerful 96kHz XCVI FPGA core, it delivers ultra-low latency and comprehensive processing c...
$3,599.10*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 19, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unleash Your Sound with Unparalleled Control

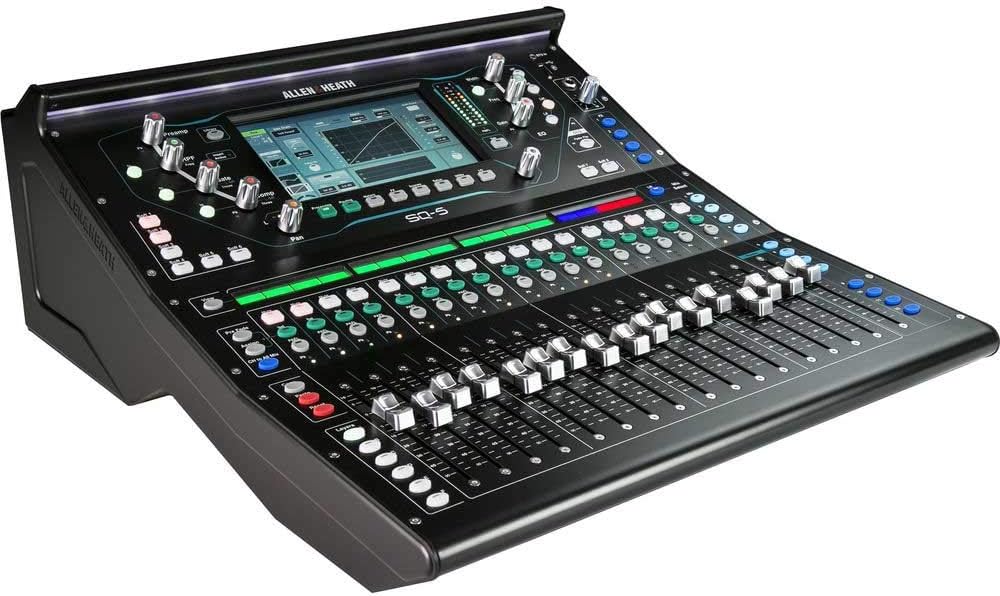

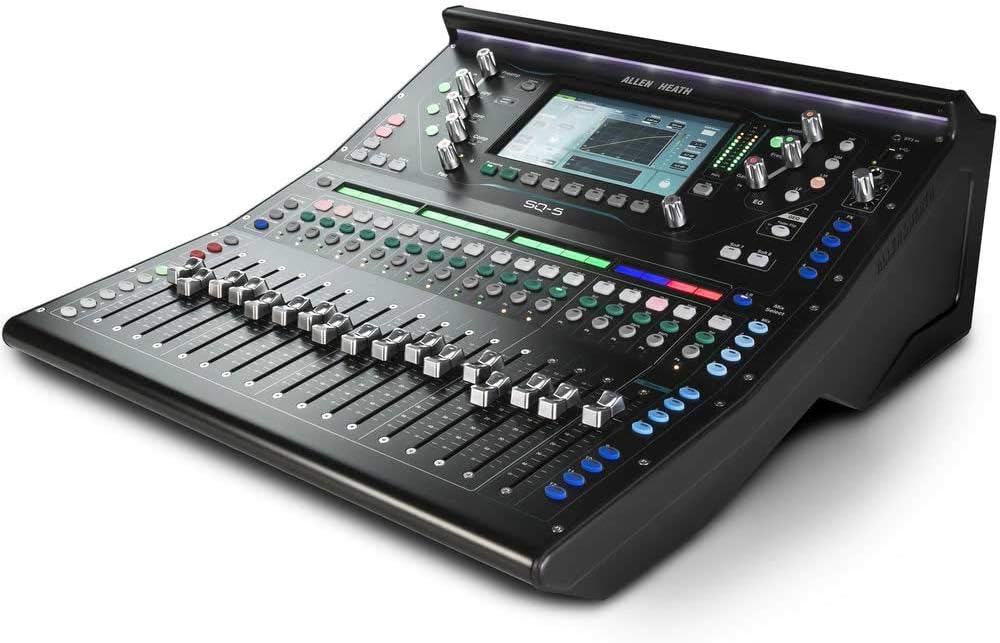

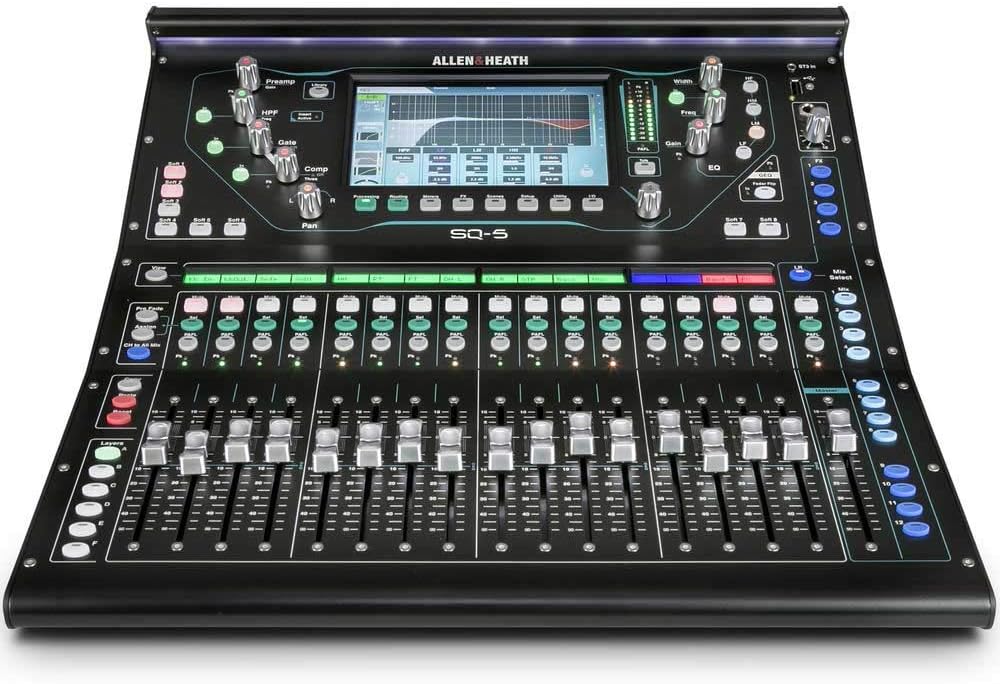

The Allen & Heath SQ-5 Digital Mixer is engineered to provide exceptional audio fidelity and versatility for both live and studio environments. Featuring a powerful 96kHz XCVI FPGA core, it delivers ultra-low latency and comprehensive processing capabilities. With its intuitive 7" capacitive touchscreen, extensive input/output options, and access to DEEP plug-ins, the SQ-5 empowers you to sculpt your sound with precision.
Key Features
- 96kHz XCVI FPGA core with less than 0.7ms latency
- 48 Input channels, 12 Stereo Mixes + LR, 3 Stereo Matrix
- Access to DEEP plug-ins, Automatic Mic Mixing, 8 Stereo FX engines
- 16 Onboard preamps, 17 faders, Rackmountable 19-inch, 8 SoftKeys
- I/O Port for expansion and system compatibility, AES and XLR outputs, 7” capacitive touchscreen
Specifications

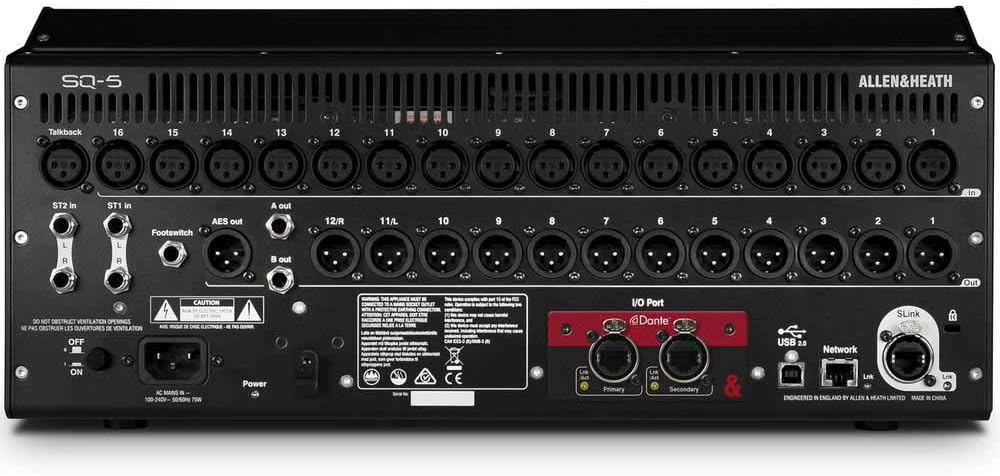

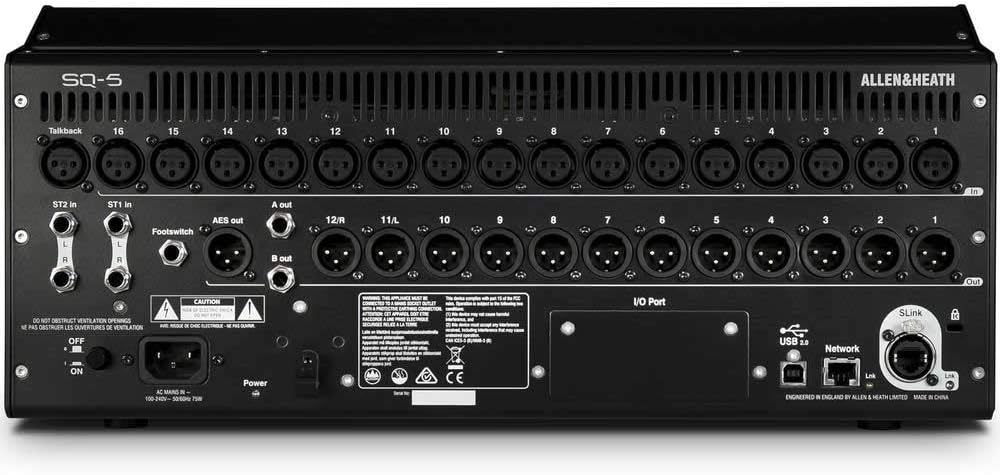

- Mic/Line Inputs: Balanced XLR, fully recallable
- Input Sensitivity: -60 to +0dBu
- Switchable Pad: -20dB
- Maximum Input Level: +30dBu
- Input Impedance: >5kΩ
- ST1, ST2 connectors: Balanced, 1/4" TRS jack
- ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
- XLR Outputs: Balanced, XLR
- AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed) Switchable output sample rates, 44.1kHz/ 48kHz/ 88.2kHz/ (96kHz) 2.5Vpp balanced terminated 110G
- SLink Connection: Neutrik EtherCON (RJ45)
- I/O Port: Multi-channel I/O option module
- Latency: less than 0.7mS, Local Mic Input to Main L/R
- Mains Power: 100-240V AC, 50/60Hz
- Max Power Consumption: 75W
- Dimensions: 17.3" x 20.3" x 7.8" (Desk Mounted)
- Weight: 23.1 lbs
Key Features
96kHz XCVI FPGA core, less than 0.7ms Latency with all processing enabled
48 Input channels, 12 Stereo mixes + LR, 3 Stereo Matrix
16 onboard preamps, 17 faders, Rackmountable 19-inch, 8 SoftKeys
Access to DEEP plug-ins, Automatic Mic Mixing, 8 Stereo FX engines + dedicated returns
I/O Port for expansion and system compatibility, AES and XLR outputs, 7” capacitive touchscreen
Specifications
Digital Core
96kHz XCVI FPGA
Latency
< 0.7ms (with all processing)
Input Channels
48
Mixes
12 Stereo mixes + LR
Matrix Outputs
3 Stereo Matrix
Onboard Preamps
16
Faders
17
SoftKeys
8
FX Engines
8 Stereo FX engines + dedicated returns
Connectivity
I/O Port for expansion, AES and XLR outputs
Display
7” capacitive touchscreen
Pros & Cons
👍 Pros
- Features a 96kHz XCVI FPGA core, providing extremely low latency of less than 0.7ms with all processing enabled.
- Offers extensive input capabilities with 48 input channels for large productions.
- Provides comprehensive mixing options with 12 stereo mixes, plus LR, and 3 stereo matrix outputs.
- Includes 16 onboard preamps for direct microphone and line input connectivity.
- Equipped with 8 Stereo FX engines and dedicated returns for rich sound processing.
- Features a 7-inch capacitive touchscreen for intuitive control and navigation.
👎 Cons
- While rackmountable, the 19-inch size may still be substantial for very compact setups.
- The 17 faders, while useful, might necessitate layer switching for full 48-channel control.
- "Access to DEEP plug-ins" implies that some advanced processing may require separate licensing or purchase.
- Despite its comprehensive features, the mixer may have a steeper learning curve for new users of digital consoles.
- Relies on an I/O Port for expansion, meaning additional hardware is needed for increased connectivity beyond onboard I/O.
Frequently Asked Questions
What is the latency of the Allen & Heath SQ-5 digital mixer?
The Allen & Heath SQ-5 features a 96kHz XCVI FPGA core, providing extremely low latency of less than 0.7ms, even with all processing enabled.
How many input channels does the SQ-5 support?
This digital mixer offers a total of 48 input channels, making it suitable for complex audio setups.
Does the SQ-5 have built-in effects processors?
Yes, it is equipped with 8 Stereo FX engines and dedicated returns, allowing for comprehensive sound processing.
What kind of display does the Allen & Heath SQ-5 feature?
The mixer includes a 7-inch capacitive touchscreen, providing an intuitive interface for control and navigation.
How many faders are on the SQ-5 mixer?
The SQ-5 comes with 17 faders for tactile control over channels and mixes.
Can this mixer be expanded for more connectivity?
Yes, it includes an I/O Port specifically for expansion and to ensure system compatibility with additional hardware.
