Allen & Heath ZED-10 Touring Audio Mixer USB
★★★★★
48Vphantom power
Compact and Versatile Mixing Solution: Allen & Heath ZED-10 Audio MixerThe Allen & Heath ZED-10 is a compact and versatile audio mixer designed for small band mixing, recording, and live performances. With its high-quality preamps, flexible connectivity, and intuitive design, the ZED-10 i...
$399.99*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 19, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact and Versatile Mixing Solution: Allen & Heath ZED-10 Audio Mixer

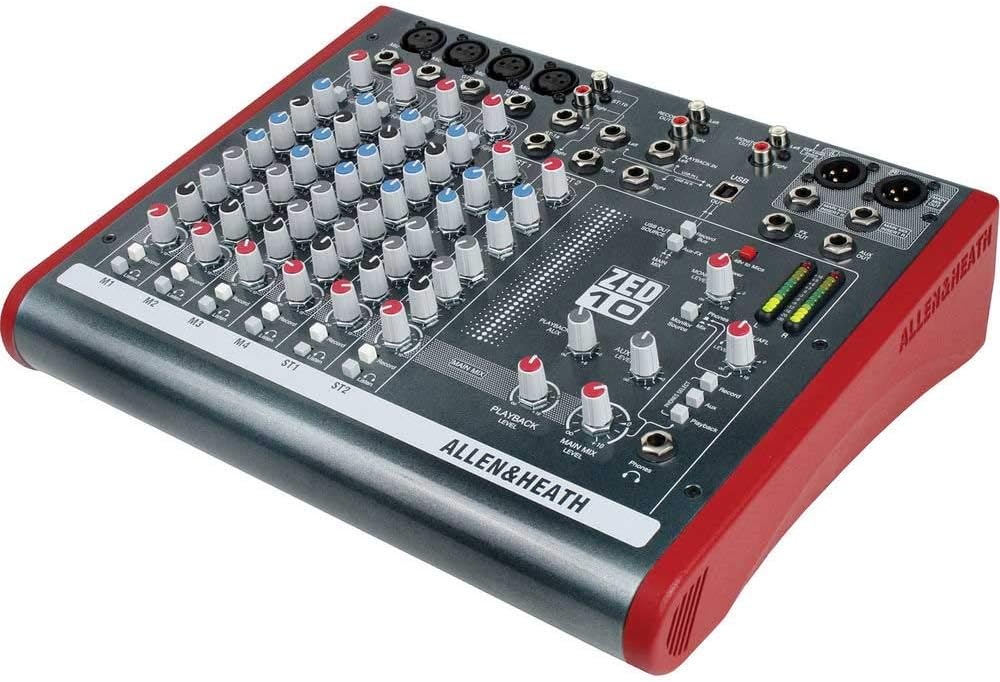

The Allen & Heath ZED-10 is a compact and versatile audio mixer designed for small band mixing, recording, and live performances. With its high-quality preamps, flexible connectivity, and intuitive design, the ZED-10 is an ideal solution for musicians and audio enthusiasts.
Specifications
- Mic/Line Inputs: 4 (2 with Class A FET high impedance inputs)
- Connectors: Neutrik XLR and Neutrik 1/4 inch jacks
- EQ: 3-band EQ with MusiQ
- Aux Sends: 2
- Stereo Returns: Yes
- Stereo Playback: Yes (MP3 player compatibility)
- USB Audio: Configurable USB stereo audio in/out
- Main Stereo Outputs: XLR with inserts

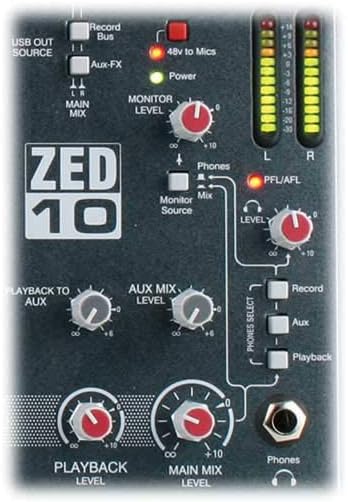

- Monitoring: Comprehensive monitoring section
- Phantom Power: 48V microphone phantom power
- Weight: 7 Pounds
- Dimensions: 10.8"D x 3.7"W x 13.2"H
Bundled Software
Key Features
The compact ZED range of mixers feature the same high-level audio and build quality as A&H’s large format touring consoles, with separate internal channel boards, Neutrik connectors and every pot fixed to the chassis.
Full, clear and detailed preamps with low noise, 60dB of gain and 48V phantom power bring out the best in any microphone. Two of the mono channels also have a HiZ connection to allow direct connection of high impedance sources without the need for a separate DI box.
A 100Hz High Pass Filter on every mono input allows unneeded low frequencies to be removed, then the 3-band MusiQ EQ with swept mid frequency uses carefully selected frequencies to ensure your sound sculpting is always musical. Cut or boost highs and lows with shelving EQ and use the mid frequency selection to choose exactly where to adjust the mid frequencies, especially useful for vocals, guitar and other instruments with a rich mid-range.
The routable stereo USB output can be used to record/stream the whole mix, Aux and FX sends or the dedicated record bus which has switches on each channel which make it super easy to select just some channels for recording. It’s also class compliant and does not require drivers, meaning not just Mac and Windows computers can be connected, but also many mobile devices such as tablets or even smart phones.
Optional rack ear kit [ZED10-RK19] securely fits the mixer into a standard 19” rack or flight case.
4 Mic, 4 Line/Inst, 2 Stereo (2 Left, 2 Right), 2 USB Audio, 1 Stereo Playback
Specifications
Mixer Type
Touring Audio Mixer
Phantom Power
48V
Preamplifier Gain
60dB
Mono Input Channels
4
Line/Instrument Channels
4
Stereo Channels
2 (2 Left, 2 Right)
USB Audio Channels
2
Stereo Playback Channels
1
EQ
3-band MusiQ with swept mid frequency
High Pass Filter
100Hz on mono inputs
Connectors
Neutrik
USB Compatibility
Class compliant (Mac, Windows, mobile devices)
Pros & Cons
👍 Pros
- Features robust construction with separate internal channel boards and Neutrik connectors for durability.
- Equipped with full, clear, and detailed preamps offering 60dB of gain and 48V phantom power for microphones.
- Includes two HiZ mono channels, allowing direct connection of high impedance instruments without a DI box.
- Each mono input has a 100Hz High Pass Filter to remove unwanted low frequencies, improving sound clarity.
- Offers a routable stereo USB output for flexible recording or streaming of the main mix, Aux/FX sends, or specific channels.
👎 Cons
- The 3-band MusiQ EQ has a swept mid frequency but might lack the precision of a fully parametric EQ for some advanced users.
- While compact, a dedicated rack ear kit (ZED10-RK19) is optional and not included, requiring an additional purchase for rack mounting.
- The USB output, while versatile, is stereo only, which may limit multi-track recording capabilities compared to mixers with multi-channel USB interfaces.
- The mixer's feature set, while comprehensive for its size, might not satisfy the extensive routing and processing needs of very large productions.
- Users might need to purchase additional accessories like specific cables or a power adapter if not already owned, as they are not listed as included.
Frequently Asked Questions
What is the build quality of the ZED-10 mixer?
The ZED-10 features a robust build with separate internal channel boards and Neutrik connectors, and every pot is fixed directly to the chassis, mirroring the quality of A&H’s larger touring consoles.
Can I connect high impedance instruments directly to the ZED-10?
Yes, two of the mono channels on the ZED-10 are equipped with a HiZ connection, allowing for direct connection of high impedance sources without requiring an external DI box.
How does the EQ section of the ZED-10 function?
Each mono input includes a 100Hz High Pass Filter to remove unwanted low frequencies, and a 3-band MusiQ EQ with a swept mid-frequency for musical sound sculpting, offering shelving for highs and lows.
What are the capabilities of the USB audio output?
The routable stereo USB output can record or stream the entire mix, Aux and FX sends, or a dedicated record bus, and it's class compliant, requiring no drivers for Mac, Windows, and many mobile devices.
How many inputs does the ZED-10 mixer have?
The ZED-10 offers 4 microphone inputs, 4 line/instrument inputs, 2 stereo inputs (2 Left, 2 Right), 2 USB audio inputs, and 1 stereo playback input.
Is the ZED-10 mixer rack-mountable?
Yes, an optional rack ear kit, ZED10-RK19, is available to securely fit the mixer into a standard 19-inch rack or flight case.
Does the ZED-10 provide phantom power for microphones?
Yes, the preamps on the ZED-10 offer 48V phantom power, along with 60dB of gain and low noise, to enhance microphone performance.
