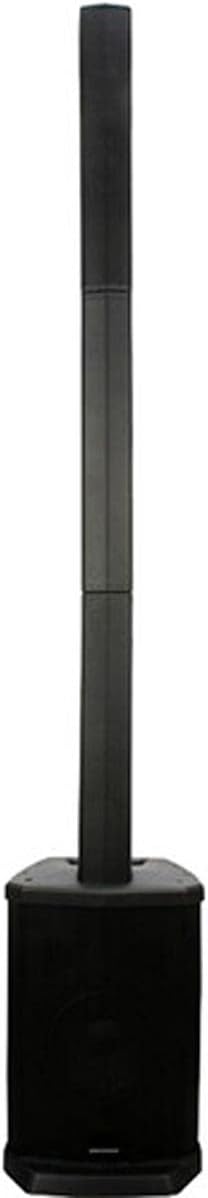

American Audio APX-CS8 Column Powered PA Speaker System
★★★★★
Portable and Powerful PA System for Any EventThe American Audio APX CS8 Powered Speaker is a versatile and portable PA system designed for live performances, musicians, and mobile entertainers. This feature-packed system delivers impressive output from a compact column design, making it an excell...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Portable and Powerful PA System for Any Event
The American Audio APX CS8 Powered Speaker is a versatile and portable PA system designed for live performances, musicians, and mobile entertainers. This feature-packed system delivers impressive output from a compact column design, making it an excellent choice for a wide range of applications.
Specifications:
- System Components: (1) 8-inch active subwoofer, (1) column speaker with four 2.5-inch drivers, (2) spacers
- Mixer: 8-input mixer with line out
- Inputs: Two (2) Mic/Line Input (XLR), Two (2) Guitar/Line Input (1/4" Stereo), Bluetooth TWS, SD Card, USB, Mini Jack
- Amplifier: Class-D amplifier
- Enclosure Material: Ballistic plastic
- Bluetooth: Yes
- Subwoofer Diameter: 8 Inches
- Output Wattage: 100 Watts
- Voltage: 110 Volts (AC)
Key Features
SYSTEM INCLUDES: (1) 8-inch Subwoofer (1) Column with four 2.5-inch neodymium Speakers (2) Spacers
Speakers: 8-inch Column Speaker with subwoofer and 4x 2.5inch drivers System type: AC Powered subwoofer with four treble-reflex enclosures SPL Output: 108 dB max
AC Input: AC115V~230V 50/60HZ Amplifier: 100W Class-D Power System Output Connectors: XLR output
Mixer Input Impedance: Ch1-4 inputs (2 Mono Mic/Line, Stereo) Signal Indicators: Main Output LED Ladder Grill: Power coated perforated steel

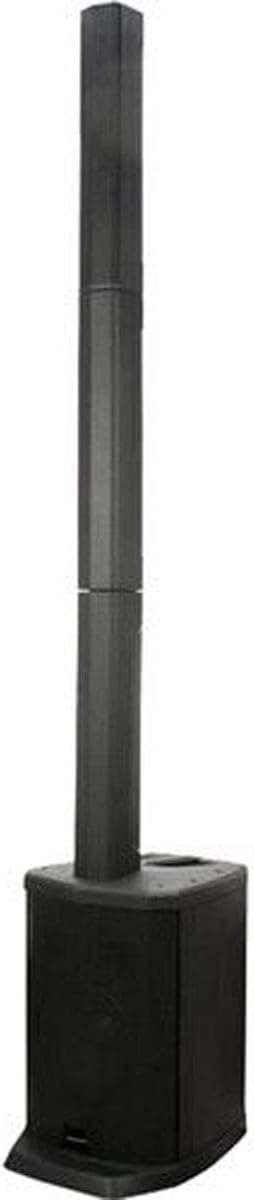

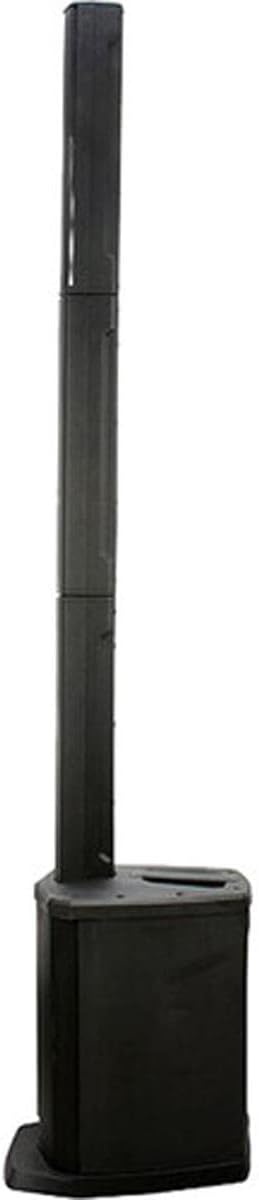

Extended Position (3 columns): Dimensions: 15.7”x12.5”x73.1” / 399x317.9x1856.6mm Weight: 40 lbs. / 18 kg
Compact Position 2 (only 2 column): Dimensions: 15.7”x12.5”x54.6” / 399x317.9x1386.6mm
Compact Position 1 (only 1 column): Dimensions: 15.7”x12.5”x36.1” / 399x317.9x916.6mm

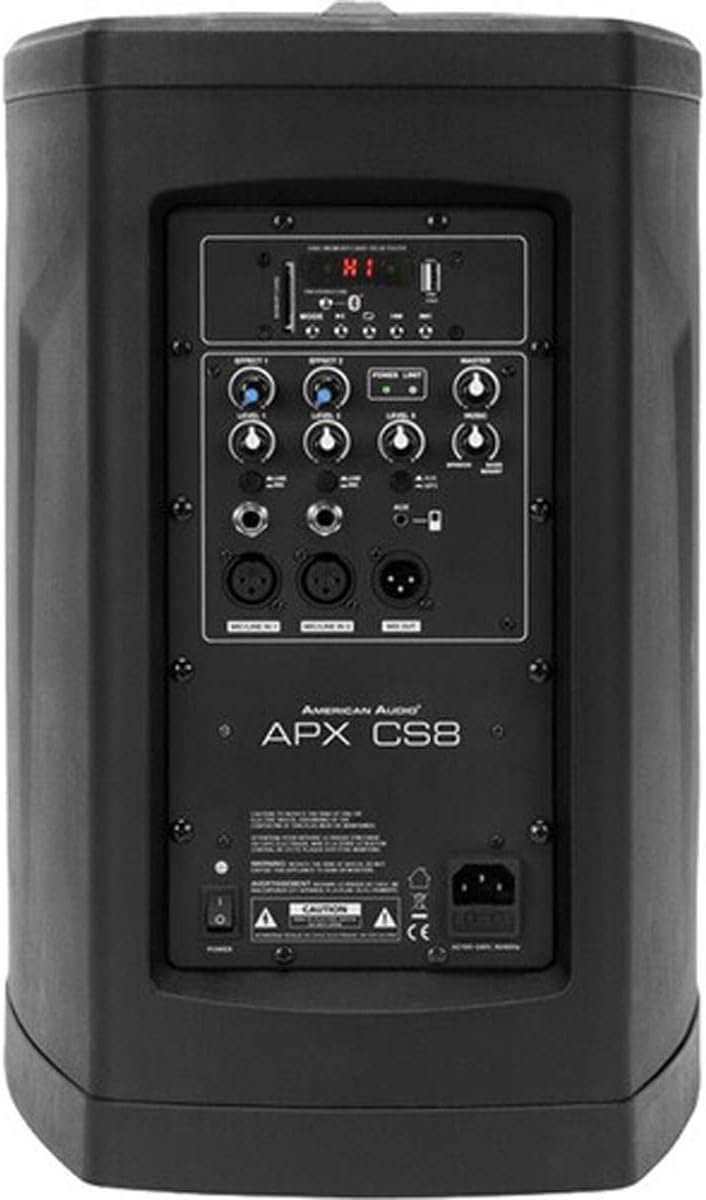

Rear Panel Features: 8 input mixer with line out Two (2) Mic/Line Input (XLR) Two (2) Guitar/Line Input (1/4" Stereo) 1/8” stereo Aux Input TWS (True Wireless Stereo) BLUETOOTH Connection SD Card reader USB Input Line Output (XLR) Two (2) Echo Adjustment Potentiometers Three (3) Channel Volume Adjustment Potentiometers One (1) Master Volume Adjustment Potentiometers One (1) Bass Boost Volume Adjustment Potentiometers
Specifications
System Type
AC Powered Column Speaker System
Subwoofer Size
8-inch
Column Speakers
Four 2.5-inch neodymium drivers
Amplifier Type
Class-D
Amplifier Power
100W
Maximum SPL Output
108 dB
AC Input
AC115V~230V 50/60HZ
Power System Output Connectors
XLR output
Mixer Inputs
2 Mic/Line (XLR), 2 Guitar/Line (1/4" Stereo), 1/8” stereo Aux, USB, SD Card
Wireless Connectivity
TWS (True Wireless Stereo) BLUETOOTH
Grill Material
Power coated perforated steel
Extended Position Dimensions
15.7”x12.5”x73.1” / 399x317.9x1856.6mm
Extended Position Weight
40 lbs. / 18 kg
Compact Position 2 Dimensions
15.7”x12.5”x54.6” / 399x317.9x1386.6mm
Compact Position 1 Dimensions
15.7”x12.5”x36.1” / 399x317.9x916.6mm
Pros & Cons
👍 Pros
- Offers a versatile 8-input mixer with various connectivity options including XLR, 1/4" stereo, 1/8" stereo Aux, USB, and SD card inputs.
- Features True Wireless Stereo (TWS) BLUETOOTH connection, enabling wireless audio streaming and pairing with another compatible speaker for stereo sound.

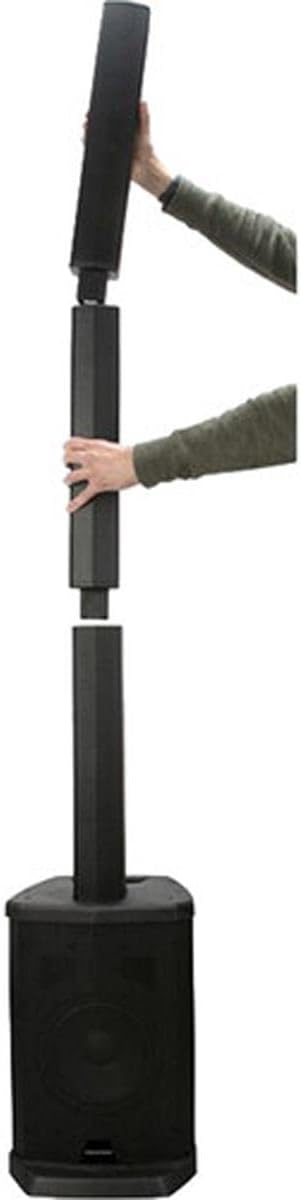

- Provides flexible positioning options with three adjustable column configurations (Extended, Compact 2, Compact 1), allowing adaptation to different venue sizes.
- Equipped with an 8-inch subwoofer and four 2.5-inch neodymium speakers, delivering a full-range sound with a maximum SPL output of 108 dB.
- Includes dedicated potentiometers for echo adjustment, channel volume, master volume, and bass boost, offering precise sound control.
- The system is AC powered with a 100W Class-D amplifier, ensuring robust and efficient audio delivery.
- Comes with a power-coated perforated steel grill, providing durability and protection for the speakers.
👎 Cons
- The maximum SPL output of 108 dB, while good for many applications, might be insufficient for very large outdoor venues or extremely loud events.
- The system's total weight of 40 lbs in its extended position could be a factor for single-person setup or frequent transport.
- The Class-D amplifier power is rated at 100W, which may be less powerful than some high-end PA systems for demanding sound reinforcement.
- While offering Bluetooth, the specific version of Bluetooth (e.g., 5.0, 5.2) is not mentioned, which could impact range or connection stability.
- The speaker drivers (four 2.5-inch neodymium and one 8-inch subwoofer) might have limitations in extreme low-end or high-end frequency response compared to larger, more specialized drivers.
Frequently Asked Questions
What is the maximum sound output level of the American Audio APX-CS8 system?
The American Audio APX-CS8 Column Powered PA Speaker System has a maximum SPL Output of 108 dB.
How many speakers are included in this PA system?
The system includes one 8-inch subwoofer and one column containing four 2.5-inch neodymium speakers, along with two spacers.
What types of input connections are available on the built-in mixer?
The 8-input mixer features two Mic/Line inputs (XLR), two Guitar/Line inputs (1/4" Stereo), a 1/8” stereo Aux Input, TWS BLUETOOTH connection, an SD Card reader, and a USB Input.
Can this PA system be adjusted for different height configurations?
Yes, it offers three distinct column positions: Extended (3 columns), Compact Position 2 (2 columns), and Compact Position 1 (1 column) for versatile setup.
Does the American Audio APX-CS8 support wireless audio streaming?
Yes, the system includes TWS (True Wireless Stereo) BLUETOOTH connectivity for wireless audio streaming and stereo pairing.
