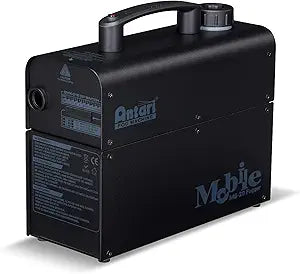

Antari MB-20X 600W Battery-Powered Mobile Fog Machine — main product image
Antari

Antari MB-20X 600W Battery-Powered Mobile Fog Machine

600W

Cable-free 600W fog output in under one second — the Antari MB-20X puts battery-powered atmospheric haze exactly where you need it.

$1,245.99*
✓ In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Antari MB-20X addresses a specific and persistent problem in location production and live events: how do you get fog precisely where you want it when power infrastructure doesn't reach that location? The answer is 600W delivered from a DC 12V battery, producing professional fog output without a single cable running to an AC outlet. At 16ml/min fluid consumption from a 0.4L tank, the MB-20X sustains approximately 25 minutes of full output per fill — enough for short film sequences, theatrical scenes, or event moments where atmospheric haze needs to appear on cue. The approximately 1-second warm-up time is the operational specification that sets this machine apart from conventional fog generators: where a standard machine requires minutes of heat cycle between activations, the MB-20X is ready within a second, enabling precise, repeatable burst cuing that matches the timing demands of professional production.

The machine is built for mobility as a first principle. The battery charger accepts AC 100–240V at 50/60Hz, covering global power standards for traveling productions. The compact form factor means a camera assistant or gaffer can carry and position the unit without dedicated grip support, and reposition it between setups as the production moves. For photography, the MB-20X introduces controlled haze into a frame at locations where running power cables would compromise the scene — a forest clearing, a vehicle interior, a rooftop. In theatrical and event contexts, the wireless operation means placement decisions are driven by creative intent rather than cable routing logistics. The trade-off is capacity: this is a precision atmospheric tool optimized for short, targeted output, not a high-volume fog machine designed for sustained fill of large venue spaces.

Key Features

Input voltage: DC 12V (Battery) AC 100-240V, 50/60Hz (Battery charger)

Rated power: 600W

Warm-up time: 1 second (approx.)

Fluid consumption: 16 ml/min

Fluid tank capacity: 0.4 Liter (0.11 gallon)

Specifications

Rated Power
600W
Input Voltage (Operation)
DC 12V (Battery)
Input Voltage (Charger)
AC 100–240V, 50/60Hz
Warm-Up Time
~1 second
Fluid Consumption
16 ml/min
Fluid Tank Capacity
0.4 L (0.11 gallon)
Continuous Output Duration
~25 minutes per full tank
Brand
Antari
Model
MB-20X

Pros & Cons

👍 Pros

  • One-second warm-up from cold puts the MB-20X in operational readiness between takes without heat-cycle planning — the atmospheric effect follows the director's cue rather than the machine's thermal schedule.
  • Approximately 1-second warm-up time enables burst-precise atmospheric cueing in theatrical, event, and film contexts — eliminating the dead time between activations that hampers slower fog machines.
  • DC 12V battery operation removes the cable-to-power-source constraint entirely, allowing placement in locations — center stage, remote field positions, vehicle interiors — where AC access is impractical or impossible.
  • Battery-powered DC 12V operation eliminates AC cable runs entirely, enabling atmospheric placement at any location or stage position — under a table, inside a set piece, at a remote exterior location — without proximity to mains power.
  • 600W output at 16ml/min fluid consumption delivers enough atmospheric density for camera-visible haze in medium spaces, directional fog accents, and product or portrait atmosphere work.
  • 600W output power produces meaningful fog volume appropriate for filling small-to-medium performance spaces and creating visible atmospheric density on camera.
  • Universal AC 100–240V battery charger input means this machine operates and recharges on international power infrastructure without voltage conversion equipment.
  • Universal AC 100-240V charger input prepares the MB-20X for international production use without an adapter, a practical detail for touring shows and international location shoots.
  • Compact, portable form factor allows the machine to be positioned close to the subject or light source — inside a vehicle, behind a flat, under a riser — without the sight-line constraints of larger rack-mounted fog systems.
  • Compact, portable form factor allows a single operator to reposition the unit between scenes or locations without rigging crew support.

👎 Cons

  • The 0.4-liter fluid tank provides approximately 25 minutes of continuous output at maximum rate — extended productions requiring constant atmospheric presence will need planned refill intervals or a second unit running in rotation.
  • The 0.4L fluid tank capacity limits continuous output to approximately 25 minutes at full consumption rate — extended productions require a refill workflow that interrupts placement without a spare tank.
  • 600W at DC 12V represents a significant current draw; battery runtime under sustained high-output use may be shorter than expected, requiring charge management during multi-hour events.
  • Battery runtime is not published by Antari, making accurate production day planning dependent on hands-on cycle testing rather than spec sheet data.
  • DMX integration is not native to the base unit — incorporating the MB-20X into a cue-controlled effects rig requires separately purchased Antari controller accessories, adding cost and setup complexity.
  • The compact fluid tank and battery system make this machine well-suited for short-burst atmospheric effects but impractical as a primary high-volume fog source for large venues.
  • No DMX or remote control interface is confirmed in the product specification — integration into a controlled lighting console rig may require additional investigation or be unsupported on this model.
  • At 600W, output capacity is insufficient for large venue or wide-stage atmospheric requirements where higher-output DMX-native fog machines rated at 1500W or above are the professional standard.
  • The unit has no built-in output level adjustment at the fog nozzle — controlling atmospheric density on set requires manually cycling the trigger rather than setting a continuous programmable output percentage.
  • As a mobile battery-powered device, replacement battery sourcing and long-term battery capacity degradation are maintenance factors that wired fog machines don't share.

Frequently Asked Questions

Antari does not publish a discrete battery runtime hour figure. Fluid consumption is rated at 16ml/min at full output, and the 0.4-liter tank provides roughly 25 minutes of continuous fog at maximum rate before requiring a refill. Battery-limited runtime extends significantly under intermittent burst operation versus continuous output — actual burst count per charge depends on burst frequency and duration, and hands-on testing under your specific use pattern is required to plan production capacity.
Battery runtime is determined by the DC 12V battery capacity (Antari specifies this separately for the MB-20X) and the output duty cycle. At maximum continuous output, the 0.4L fluid tank empties in approximately 25 minutes at 16ml/min consumption. Battery life typically matches or exceeds tank capacity at normal usage patterns — but for extended sessions, planning around the fluid refill cycle is the practical constraint.
The MB-20X accepts AC 100–240V, 50/60Hz input via a battery charger — this charges the battery rather than powering the machine directly during operation. For continuous AC-powered operation without battery dependency, consult Antari's product documentation for whether direct AC operation mode is supported on this model; typical operation is DC battery-powered.
Antari recommends their own water-based fog fluid formulations for the MB-20X. Non-Antari fluids can leave residue on the heating block over time, reducing output quality and requiring more frequent service. For professional-use reliability, first-party fluid is the correct choice — savings from off-brand fluid tend to be offset by cleaning and maintenance costs on the heating element.
DMX is not a native feature of the base MB-20X unit. Remote trigger options are available via separately purchased Antari wired or wireless controller accessories. For productions requiring DMX integration — synchronized cue triggering from a lighting console — verify Antari's compatible controller lineup against your specific DMX protocol requirements before purchasing the base unit.
Yes — the ~1-second warm-up is a significant operational advantage over fog machines requiring 3–5 minute heat cycles between bursts. The MB-20X is ready to fire within a second of activation, enabling precise atmospheric cuing in live event, theatrical, and film contexts where timing matters. This near-instant readiness is the machine's key operational differentiator.
The MB-20X uses standard water-based fog fluid compatible with Antari's machine specification. Using Antari's own fluid line ensures the heater block is optimized for the fluid's vaporization point and density. Third-party fluids with different formulations may produce inconsistent output, accelerated heater scaling, or off-spec fog density — using manufacturer-recommended fluid maintains both output quality and machine longevity.
A one-second warm-up means the MB-20X produces fog nearly instantly from a cold start — no five-minute heat cycle that consumer fog machines demand between takes. On set, the machine can be powered down between shots and triggered seconds before rolling without the atmospheric effect timing being dictated by equipment readiness rather than creative intent. This is the operational characteristic that separates the MB-20X from consumer-grade alternatives in a professional workflow.
The battery-powered design makes the MB-20X well-suited for outdoor locations where AC power is unavailable or impractical. Wind is the primary environmental limitation for any fog machine outdoors — high wind disperses output rapidly, reducing the visible atmospheric effect distance. Low wind conditions or directional blocking structures such as scrims or natural windbreaks substantially extend visible atmospheric range on outdoor location shoots.
Control options beyond the onboard trigger should be verified in Antari's technical documentation for the MB-20X specifically, as DMX and remote control capabilities vary across their mobile fog machine line. For lighting designers integrating this into a DMX rig, confirming DMX compatibility before deployment is essential — the product listing emphasizes battery mobility and portability rather than specifying a DMX control interface.
