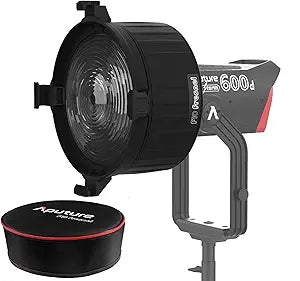

Aputure F10 Fresnel Zoom Lens - 600D PRO Spotlight

Aputure

Aputure F10 Fresnel Zoom Lens - 600D PRO Spotlight

Name: Aputure F10 Fresnel Zoom Lens - 600D PRO Spotlight
Brand: Aputure
SKU: F10

★★★★★5.0 (1 reviews)

Transform the Aputure LS 600d into a precision spotlight delivering up to 200,000 lux at 3.28 feet through a 10-inch glass Fresnel with 15–45° variable beam control.

$186.00*

Check availability

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Aputure F10 is a 10-inch glass Fresnel zoom lens attachment designed to mount directly on the Aputure LS 600d Pro, converting its broad output into a focused, controllable spotlight beam. The dual-lens optical system achieves a 15–45° variable beam angle with seamless focus adjustment — meaning you can dial from a tight 15° character spot to a wider 45° pool without stepped intermediaries. At the narrow end with a 600d Pro, the fixture produces up to 200,000 lux at one meter: that is hard, directional output at a level typically associated with 1,200W HMI daylight sources. The sealed housing architecture actively suppresses light leaks, maintaining the contrast and shadow definition that motivates choosing a Fresnel in the first place.

The F10 is the right tool for productions that need theatrical hard-source quality from a battery-friendly LED system — dramatic narrative lighting, architectural accent work, concert stage keys, or any scenario where the hard edge and throw distance of a Fresnel is the specific design intent. The modifier is a passive optic: it does not alter the spectral output of the 600d, so CRI and TLCI values remain those of the source. Build quality reflects Aputure's professional line — the lens housing is robust enough for repeated setup/teardown on location, and the F10 Barn Doors accessory extends its light-shaping capability to precise cutoffs. The primary rigging consideration is the weight and torque load the combined 600d/F10 assembly imposes on any stand or arm.

Key Features

Up to 200,000 lux @ 3.28' with the Aputure LS 600d 15 to 45° variable beam angle

10" Glass Fresnel lens Dual lens optical design

Compatible with F10 Barn Doors

Seamless focus adjustment

Minimizes light leaks

Specifications

Lens Diameter

10 inches (Glass Fresnel)

Optical Design

Dual lens

Beam Angle Range

15° – 45° (variable)

Max Output (with LS 600d)

200,000 lux @ 3.28 ft (1m)

Focus Adjustment

Seamless / continuous

Compatible Light

Aputure LS 600d Pro (and compatible)

Barn Door Compatibility

Yes (F10 Barn Doors, sold separately)

Light Leak Control

Minimized via sealed housing design

Pros & Cons

👍 Pros

Variable 15–45° beam angle provides precision creative control from tight character key to broader architectural wash in a single modifier
200,000 lux output at 3.28 feet delivers hard-source intensity comparable to much larger fixtures, enabling use in high-ambient or large-stage environments
10-inch glass Fresnel with dual-lens optical design maintains beam consistency and minimizes edge color shift across the zoom range
Seamless focus adjustment mechanism allows smooth beam transitions during live shoots without mechanical clicks or locked positions
Sealed housing design actively minimizes light leaks, preserving contrast and reducing the need for additional flagging on controlled sets

👎 Cons

Compatibility is limited to the Aputure 600d and a narrow range of compatible fixtures — it is not a universal Fresnel adapter
At maximum output with the 600d Pro, the combined rig becomes a large, heavy overhead unit requiring robust rigging hardware and a substantial stand
Barn doors are sold separately — complete light control requires additional spend beyond the lens purchase price
The 10-inch glass element adds significant weight to the front of the light head, shifting the center of gravity and increasing rigging torque load
No integrated diffusion option — for soft-focus or diffused Fresnel effects, external diffusion material must be added manually

Frequently Asked Questions

What output can I expect at typical shooting distances with the F10 and a 600d Pro?

At 3.28 feet (1 meter) at the narrowest beam angle, the F10 paired with the Aputure LS 600d produces up to 200,000 lux. At practical studio distances of 10–15 feet, you're still dealing with a hard, directional output that rivals many dedicated HMI fixtures.

What beam angles does the F10 provide, and how smooth is the focus transition?

The F10 offers a continuously variable beam angle from 15° (tight spot) to 45° (wide flood) via seamless focus adjustment — no click stops or stepped positions. The dual-lens optical design maintains edge consistency across the zoom range without the hot spots common in single-element Fresnels.

Does the F10 introduce color shift when zooming from spot to flood?

The dual-lens optical design is engineered to minimize color temperature shift across the zoom range. Any shift present is within the tolerance of the source light itself, not introduced by the F10 optics.

Can the F10 be used with barn doors, and does it control light spill effectively?

Yes. The F10 is compatible with dedicated F10 Barn Doors (sold separately). The lens housing itself minimizes light leaks through its sealed mount design, but barn doors are recommended for precise cutoff in interview setups or theatrical applications.

Does the F10 affect the color accuracy (CRI/TLCI) of the 600d's output?

The F10 is a passive optical attachment — it shapes and focuses the beam but does not alter the spectral output of the 600d Pro. CRI and TLCI values remain those of the source light, not the modifier.
