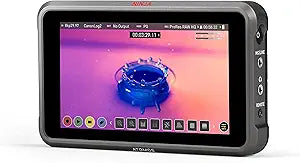

Atomos Ninja V+ 5" 4K HDMI Recording Monitor

★★★★★4.1 (68 reviews)
4K8K1920 x 1080HDMI 2.0

A 5-inch HDR touchscreen monitor and recorder with 1000 nit brightness, ProRes RAW support, and 10-bit 4:2:2 recording to affordable SSDs.

$799.00*
Check availability

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Atomos Ninja V+ builds on the success of the original Ninja V by adding higher-resolution capture support and expanded ProRes RAW recording capabilities in the same compact 5-inch form factor. Its 1920 x 1080 IPS touchscreen reaches 1000 cd/m² of brightness and uses AtomHDR processing to display 10.5 stops of dynamic range, giving cinematographers and camera operators a reliable, daylight-viewable reference monitor that accurately represents HDR content. The touchscreen interface provides quick access to monitoring tools, waveforms, focus peaking, and recording controls without the need for external buttons or menus.

As a recorder, the Ninja V+ captures 10-bit 4:2:2 video in Apple ProRes and Avid DNxHR codecs directly to standard 2.5-inch SATA SSDs, bypassing the compressed internal recording limitations of many cameras. With compatible cameras connected via HDMI 2.0, it can record ProRes RAW at up to 4Kp120, and its architecture supports capture of up to 8K resolution. The HDMI 2.0 output enables pass-through to larger monitors or wireless transmitters, making it a flexible hub in a production signal chain. Powered by a single Sony L-series battery, the Ninja V+ keeps power solutions simple and affordable using widely available NP-F compatible batteries.

Key Features

10-bit HDR

4K 60p Video

H.265 (HEVC)

HD 60P up to 240p

Apple ProRes

Display size: 5.0 inches

Specifications

Brand
Atomos
Model
Ninja V+
Display Size
5.0 inches
Display Type
IPS LCD Touchscreen
Display Resolution
1920 x 1080
Peak Brightness
1000 cd/m²
HDR
AtomHDR, 10.5-Stop Dynamic Range
Max Capture Resolution
Up to 8K
Recording Codecs
ProRes, ProRes RAW, DNxHR, H.265 (HEVC)
Color Depth
10-Bit 4:2:2
Connectivity
HDMI 2.0 Input/Output
Recording Media
2.5" SATA SSD (Mini or Standard)
Power
Sony L-Series Battery Slot
High Frame Rate
Up to 4Kp120 (ProRes RAW), HD up to 240p

Pros & Cons

👍 Pros

  • 1000-nit IPS display with AtomHDR provides accurate, daylight-visible monitoring with 10.5 stops of dynamic range
  • Records 10-bit 4:2:2 ProRes and DNxHR to affordable off-the-shelf SATA SSDs instead of proprietary media
  • ProRes RAW recording support at up to 4Kp120 with compatible cameras unlocks high-quality raw workflows
  • Compact 5-inch touchscreen form factor adds monitoring and recording capability without significant rig weight
  • HDMI 2.0 input and output allows simultaneous recording and signal pass-through to larger displays

👎 Cons

  • Only features HDMI connectivity with no SDI input, limiting use with higher-end cinema cameras that output SDI only
  • ProRes RAW recording at 4Kp120 is limited to specific compatible cameras such as the Z Cam E2 series
  • Sony L-series batteries drain relatively quickly at full display brightness, requiring spare batteries on set
  • The 5-inch screen size can be limiting for critical focus when shared among multiple crew members

Frequently Asked Questions

The Ninja V+ records in Apple ProRes (including ProRes RAW with compatible cameras), Avid DNxHR, and H.265 (HEVC) codecs in 10-bit 4:2:2 quality. It records directly to standard 2.5-inch SATA SSDs or Atomos mini SSDs.
It records onto 2.5-inch mini or standard SATA SSDs, which are widely available and significantly more affordable per gigabyte than proprietary recording media used by some competing monitors.
It uses a single Sony L-series battery slot. Compatible NP-F style batteries are widely available from multiple manufacturers at various capacities.
The Ninja V+ can capture up to 8K resolution from supported camera sources. It also supports 4Kp120 ProRes RAW recording via HDMI with compatible cameras such as the Z Cam E2 and E2-M4.
The display reaches 1000 cd/m² (nits) of peak brightness with AtomHDR processing covering 10.5 stops of dynamic range, making it viewable in bright outdoor shooting conditions.
