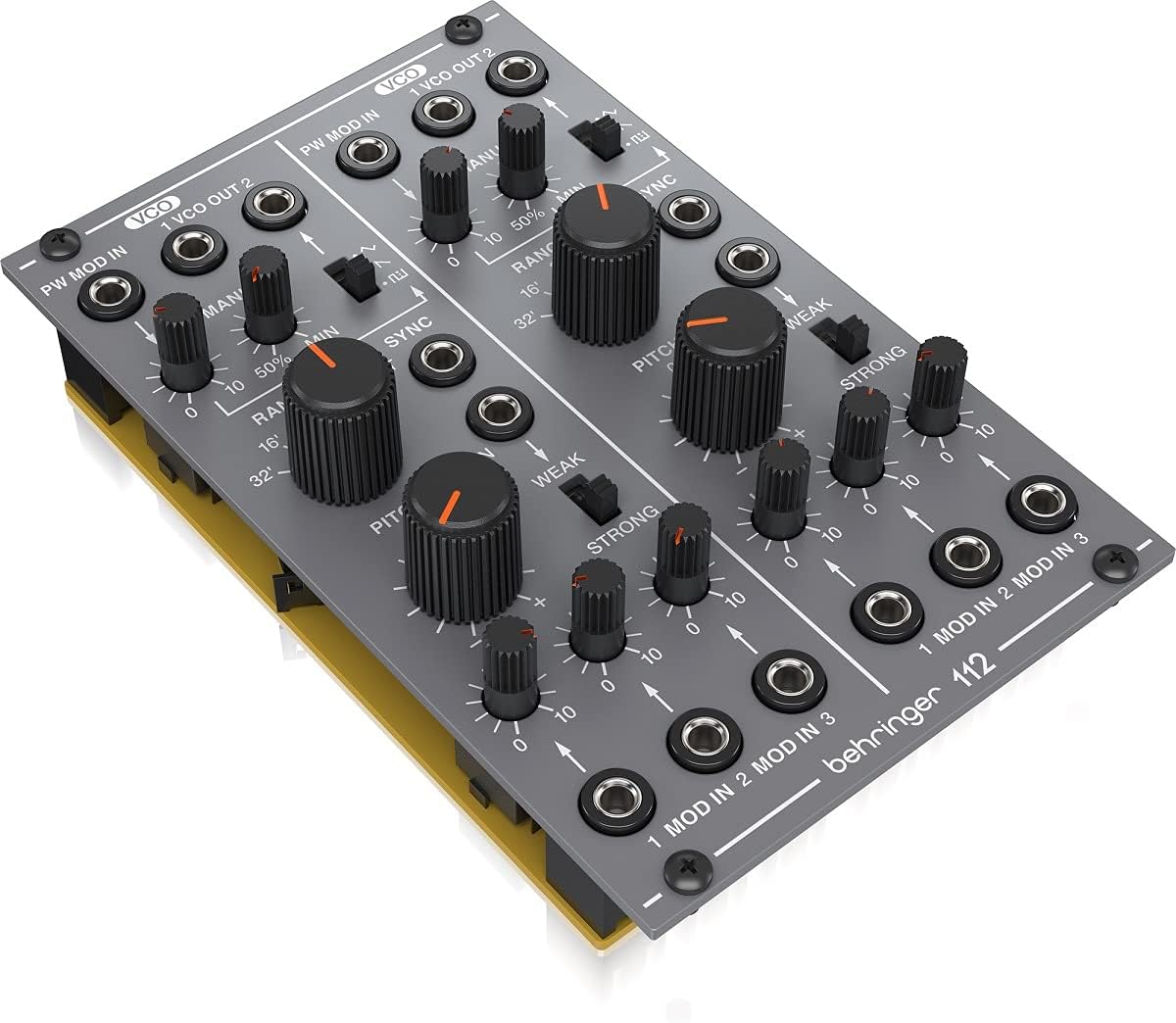

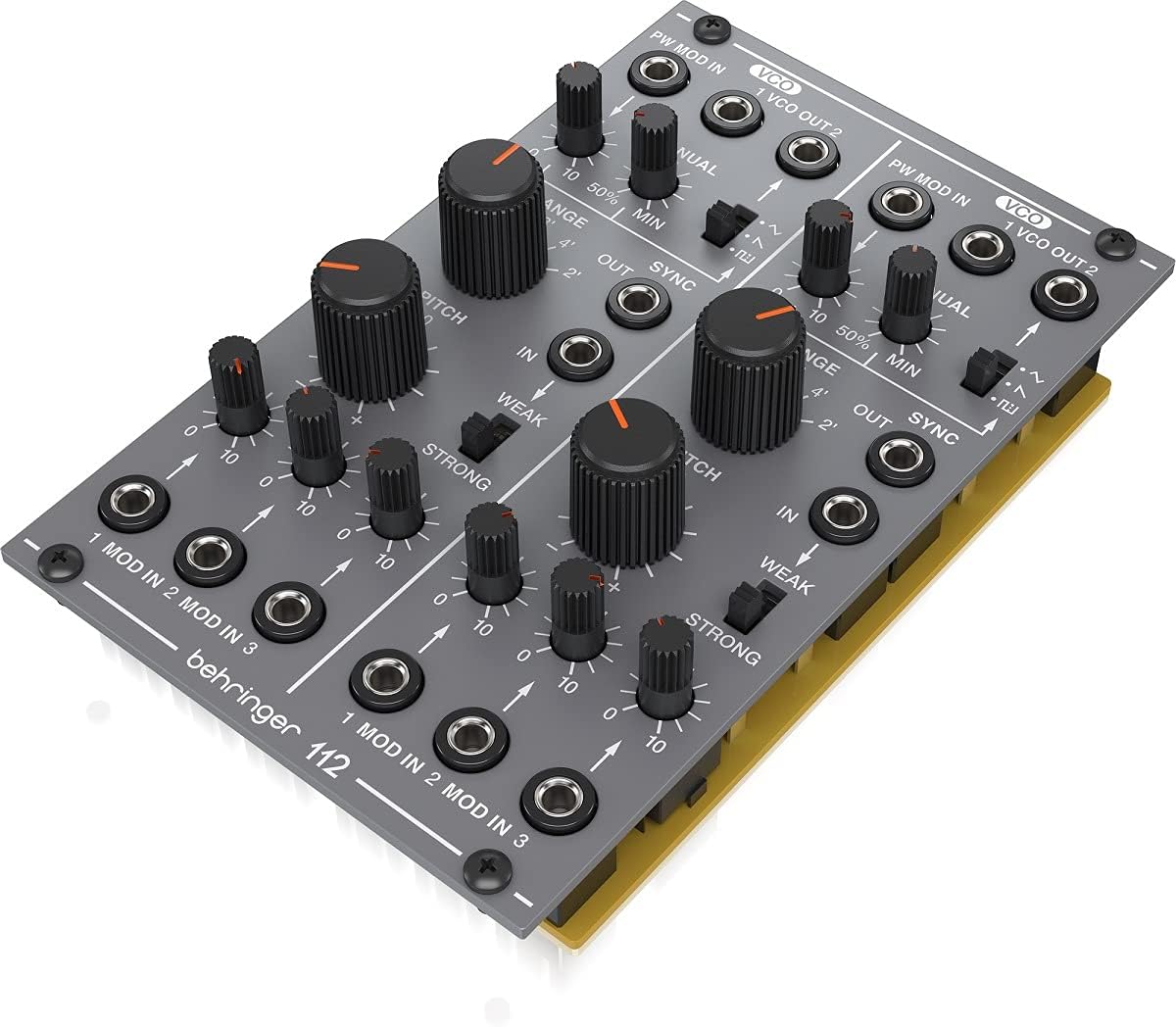

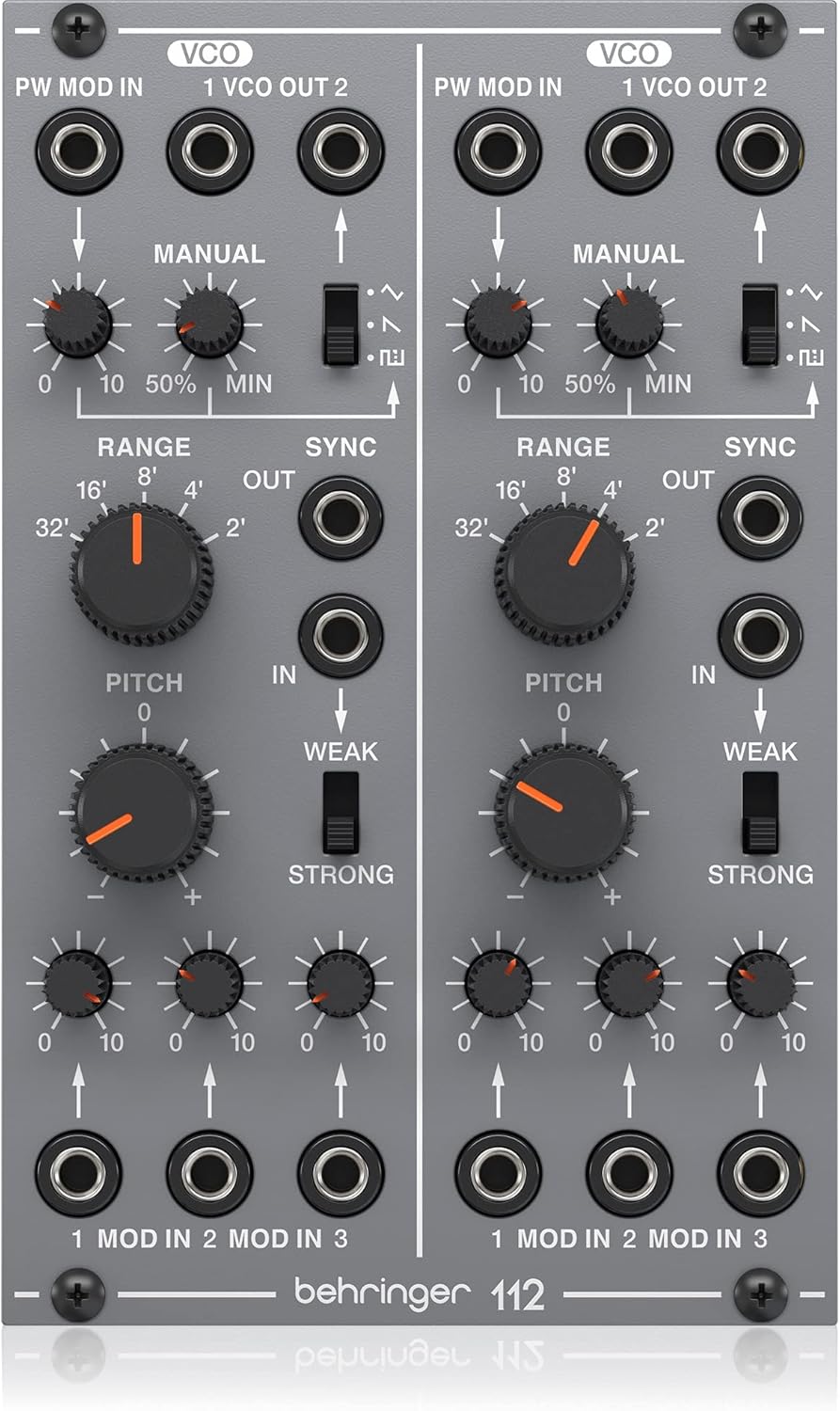

Behringer 112 DUAL VCO Eurorack Synthesizer Module

4.5 (56 reviews)

A 16HP dual analog oscillator Eurorack module with pulse width modulation and six CV inputs for classic synthesis tones.

$67.90*
In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Behringer 112 Dual VCO is a Eurorack-format analog oscillator module that packs two voltage-controlled oscillators into 16HP of rack space. Drawing inspiration from legendary dual-oscillator designs of the early 1980s, it delivers the thick, warm analog tones that defined an era of electronic music. Each oscillator can be modulated and patched independently or interacted through the module's strong and weak sync functions, which force the oscillators into harmonically related or chaotically intertwined relationships — a foundational technique for creating everything from screaming lead tones to evolving textural drones.

With six CV control inputs, the 112 Dual VCO is built for integration into complex patches. Pulse width modulation on the pulse waveform adds dynamic harmonic movement that static waveforms cannot achieve, making pads and bass sounds more alive and present. The module connects via standard 3.5mm jacks and draws power from a standard Eurorack bus. For synthesists building or expanding a modular system on a budget, the 112 Dual VCO offers a practical way to add serious analog oscillator capability without the premium pricing of boutique alternatives, while still delivering the core tonal character and patching flexibility that make modular synthesis rewarding.

Key Features

amazing dual vco module from the '80s

authentic reproduction of original system 100m circuitry

each vco features 3 selectable waveforms: triangle, sawtooth and square with pwm

pwm can be simultaneously controlled manually and via external cv input

each vco offers pitch and range controls, 2 audio outputs and 3 cv inputs

Specifications

Brand
Behringer
Model
112 DUAL VCO
Type
Dual VCO Eurorack Module
Module Width
16HP
CV Control Inputs
6
Features
Pulse Width Modulation, Strong/Weak Sync
Connectors
6 x 3.5 mm jacks
Power Source
Eurorack

Pros & Cons

👍 Pros

  • Two independent VCOs in a single 16HP module saves rack space compared to two separate oscillators
  • Six CV control inputs provide extensive modulation and patching possibilities
  • Pulse width modulation adds harmonic movement and tonal variety to the pulse waveform
  • Strong and weak sync modes enable a wide range of classic hard-sync and cross-modulation sounds
  • Affordable entry point for adding dual analog oscillators to a Eurorack system

👎 Cons

  • 16HP is still a significant amount of rack space in smaller Eurorack cases
  • Requires a full Eurorack ecosystem (case, power, VCA, envelope, output) to produce usable sound
  • Build quality uses plastic components in some areas typical of Behringer's budget approach
  • No built-in quantizer, so precise pitch tracking depends on your CV source accuracy
  • Limited documentation may require familiarity with modular synthesis concepts to get started

Frequently Asked Questions

It is inspired by vintage dual-oscillator designs from the early 1980s analog synthesis era, recreating the architecture and tonal character of those iconic modules in a modern Eurorack format.
The module provides standard analog waveforms from its two oscillators, with pulse width modulation allowing you to shape the pulse wave's harmonic content across a wide tonal range.
Strong sync forces one oscillator to reset its cycle to match the other, producing hard, harmonically rich timbres. Weak sync creates a more subtle, partially synchronized interaction between the two oscillators, yielding more complex and unpredictable tonal variation.
At 16HP wide, it requires a moderate amount of rack space. Verify that your case or rack has at least 16HP of free horizontal space and a compatible Eurorack power connector before purchasing.
Yes. As a sound source module, it requires at minimum a Eurorack case with power supply and a way to hear the output — typically a VCA, an envelope generator, and a mixer or output module. A keyboard or sequencer is also needed to play it melodically.
