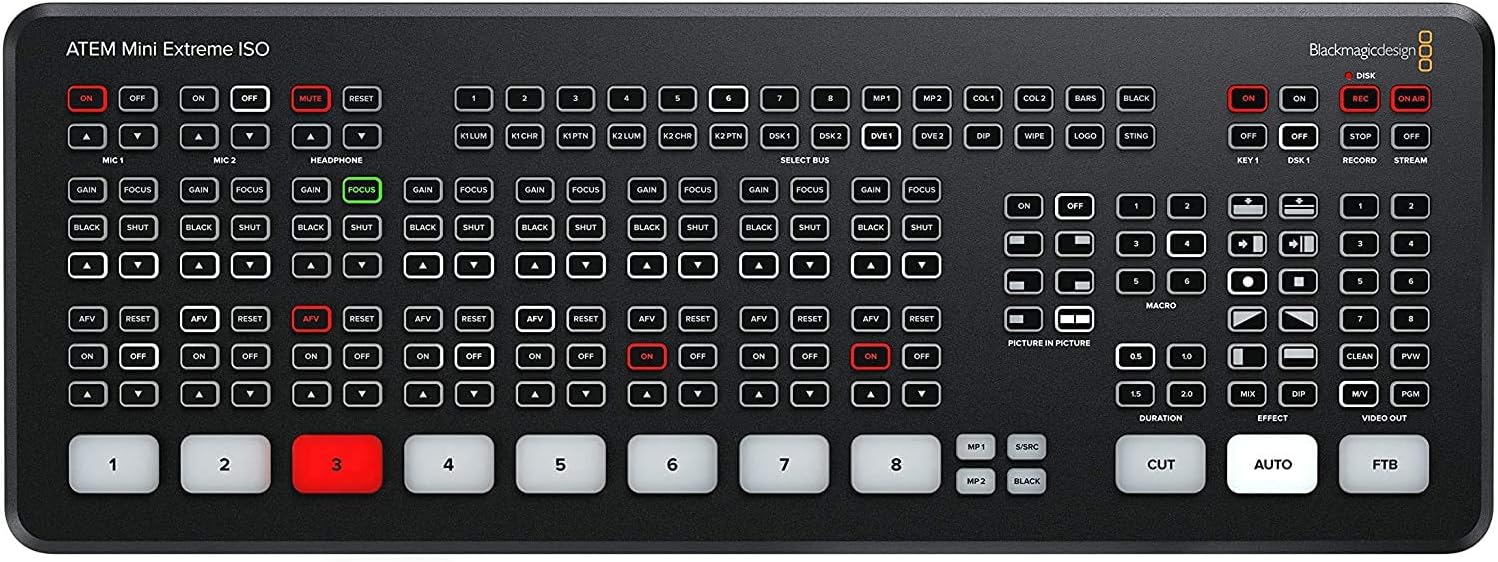

Blackmagic Design ATEM Mini Extreme ISO - Live Stream Switcher Bundle
Unleash Your Live Production PotentialIntroducing the Blackmagic Design ATEM Mini Extreme ISO, a comprehensive solution for professional live streaming and multi-camera production. Featuring advanced capabilities for capturing and editing high-quality video, this switcher is perfect for true prof...
View price on Amazon
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unleash Your Live Production Potential
Introducing the Blackmagic Design ATEM Mini Extreme ISO, a comprehensive solution for professional live streaming and multi-camera production. Featuring advanced capabilities for capturing and editing high-quality video, this switcher is perfect for true professionals. Included in this bundle are the ATEM Mini Extreme ISO switcher, a 6ft HDMI cable, a 7ft Cat5e cable, and a 5-pack of Solid Signal cable ties to keep your setup organized.
Key Features:
- Supports up to 9 layers for complex compositions.
- Includes 4 upstream keyers and 2 downstream keyers.
- Supports up to 16-screen multiview for comprehensive monitoring.
- 4G and 5G phone support for flexible streaming options.
- Records 9 separate H.264 video streams in real time for post-production.
Detailed Specifications:

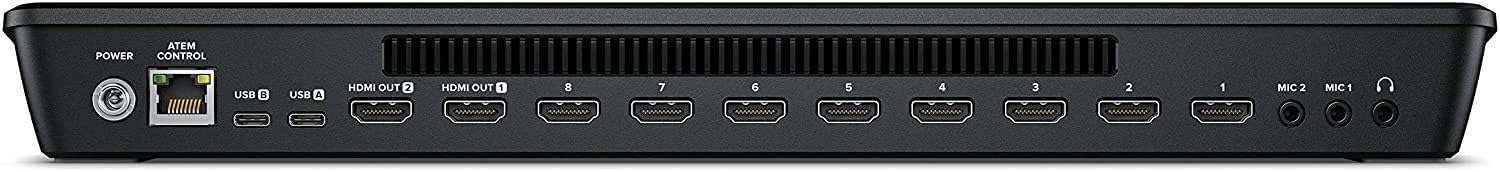

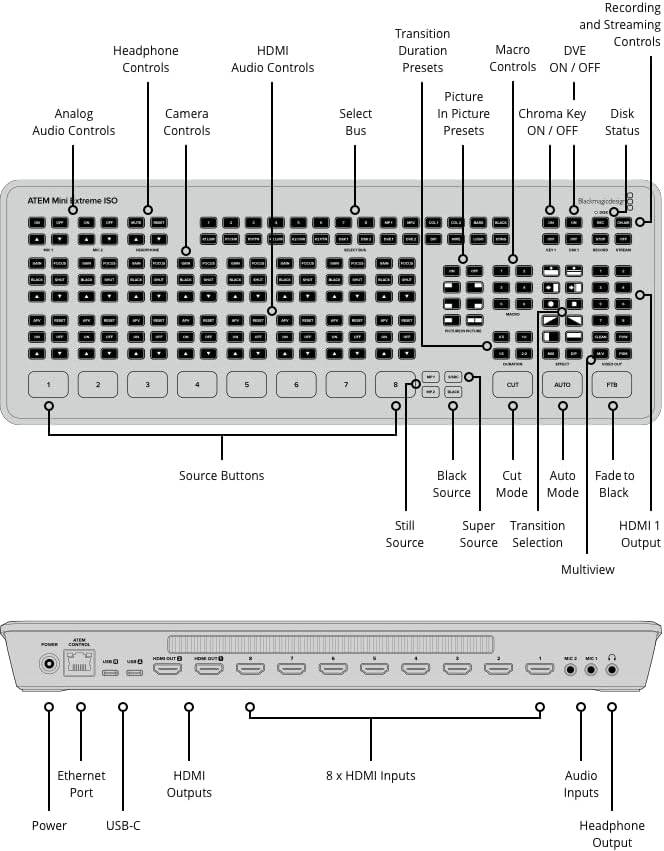

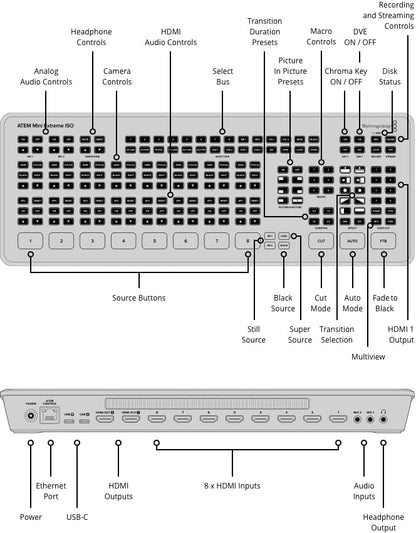

- Inputs: 8 x HDMI Type A (10-Bit 422 YUV) with 2-channel embedded audio; 2 x 3.5mm stereo analog audio; 1 x RJ45 Ethernet
- Outputs: 2 x HDMI Type A (10-Bit 422 YUV) with 2-channel embedded audio; 16-way multiview via HDMI; 2 x USB Type-C 3.1 Gen 1 (webcam out, panel connection external drive recording); 1 x 3.5mm TRRS headphone/microphone stereo analog
- Applications: Built-in hardware streaming engine for live streaming to popular social media platforms, suitable for education, business presentations, and eSport events.

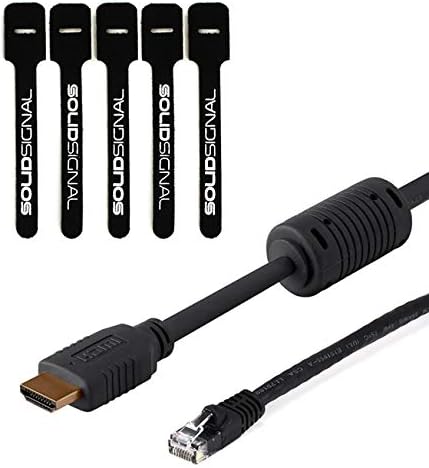

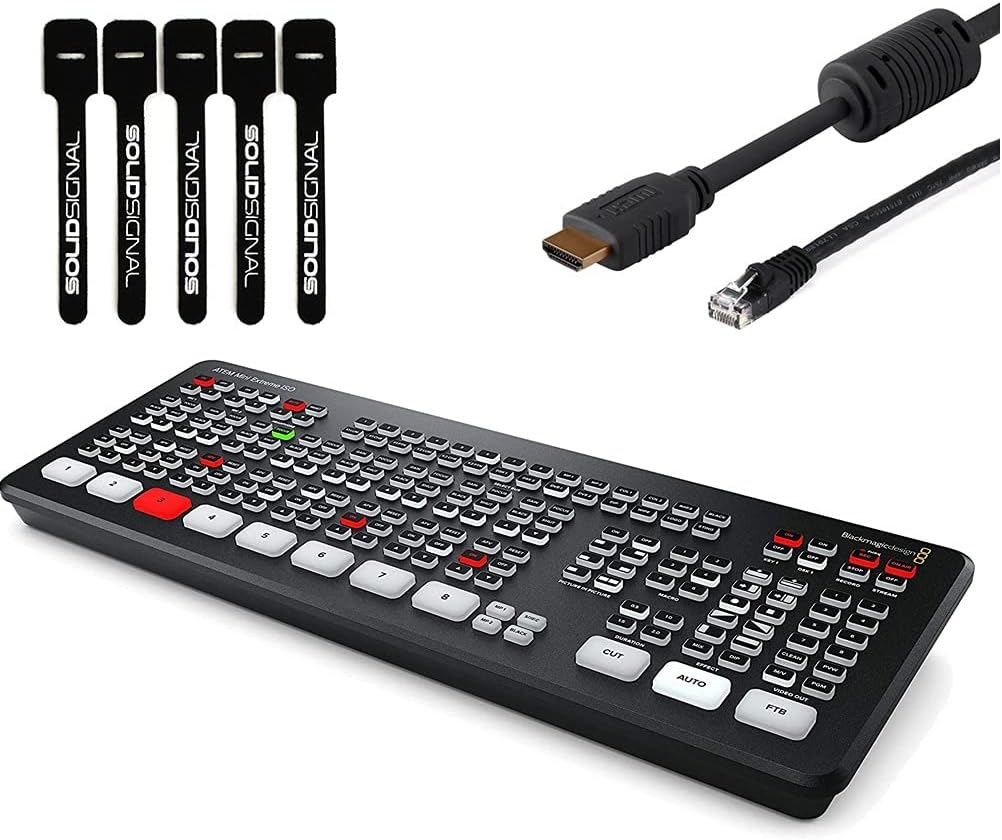

Bundle Includes:

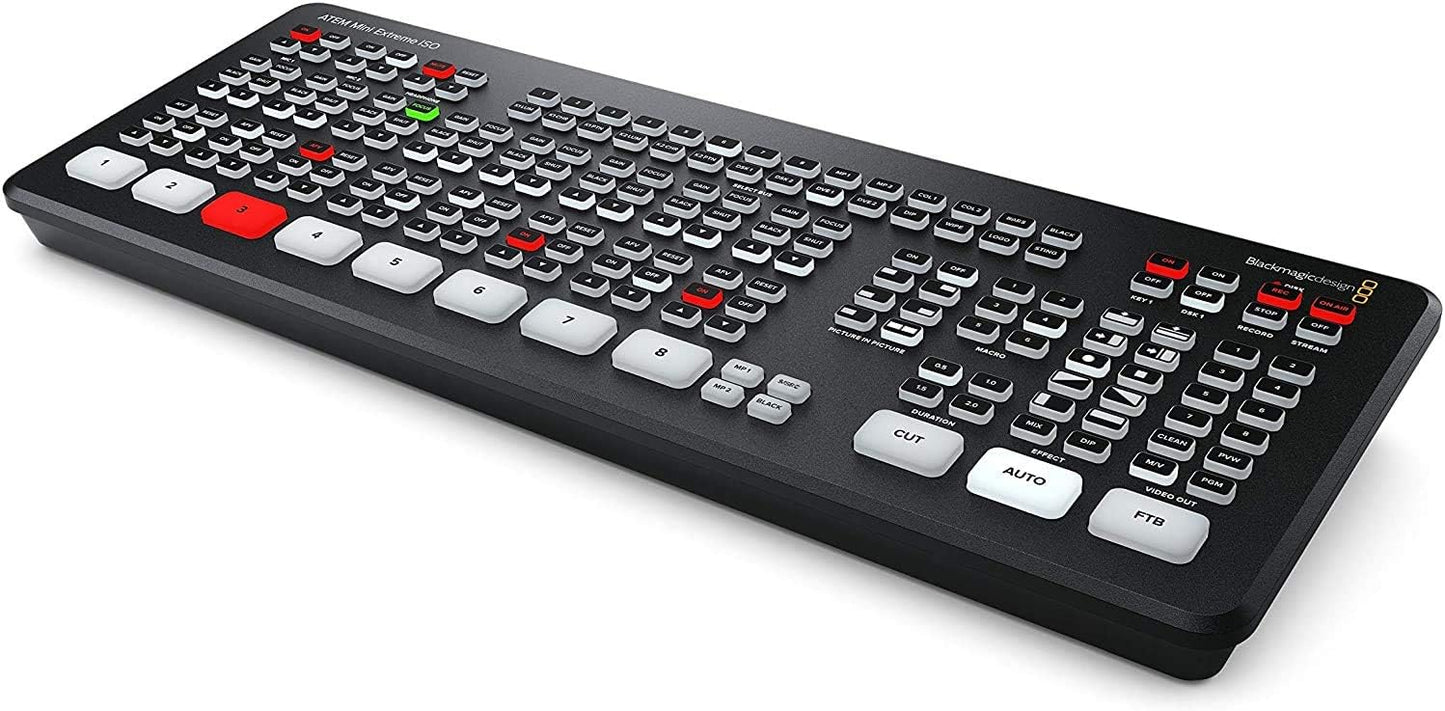

- ATEM Mini Extreme ISO HDMI Live Stream Switcher
- 6ft HDMI Cable
- 7ft Cat5e Patch Cable
- 5-pack of Solid Signal Cable Ties
Key Features
FEATURE RICH: Supports up to 9 layers; 4 x Upstream Keyers; 2 x Downstream Keyers; Up to 16 Screen Multiview; 4G and 5G Phone Support; Records 9 separate H.264 video streams in real time.
APPLICATIONS: Built-in hardware streaming engine for live streaming to popular social media platforms and works with streaming software. Perfect for education & training, business presentations, livestream eSport events and more.
INPUTS: 8 x HDMI Type A (10-Bit 4:2:2: YUV), 2 channel embedded audio; 2 x 3.5mm Stereo Analog Audio; 1 x RJ45 Ethernet.
OUTPUTS: 2 x HDMI Type A (10-Bit 4:2:2 YUV), 2 channel embedded audio; 16-Way Multiview via HDMI; 2 x USB Type-C 3.1 Gen 1 (webcam out, panel connection external drive recording); 1 x 3.5mm TRRS Headphone/Microphone Stereo Analog.
INCLUDES: ATEM Mini Extreme ISO HDMI Live Stream Switcher, 6ft HDMI cable, 7ft Cat5e Patch Cable, 5-pack of Solid Signal Cable Ties.
Specifications
Brand
Blackmagic Design
Model
ATEM Mini Extreme ISO
Video Inputs
8 x HDMI Type A (10-Bit 4:2:2 YUV)
Audio Inputs
2 x 3.5mm Stereo Analog Audio
Ethernet Input
1 x RJ45 Ethernet
Video Outputs
2 x HDMI Type A (10-Bit 4:2:2 YUV)
Multiview Output
16-Way via HDMI
USB Output
2 x USB Type-C 3.1 Gen 1
Headphone/Mic Output
1 x 3.5mm TRRS Stereo Analog
Video Streams Recorded
9 H.264 streams
Keyers
4 Upstream, 2 Downstream
Layers Supported
Up to 9
Phone Support
4G and 5G
Frequently Asked Questions
How many cameras can I connect to the Blackmagic Design ATEM Mini Extreme ISO?
This switcher features 8 HDMI Type A inputs, allowing you to connect up to eight cameras or other video sources.
Can this device stream directly to social media platforms without additional software?
Yes, the ATEM Mini Extreme ISO includes a built-in hardware streaming engine for live streaming to popular social media platforms.
What kind of recording capabilities does this switcher offer?
It records nine separate H.264 video streams in real time, providing individual ISO recordings for post-production editing.
What is the maximum number of layers that can be used for effects?
The ATEM Mini Extreme ISO supports up to 9 layers, including 4 Upstream Keyers and 2 Downstream Keyers for complex video compositions.
Does this switcher provide a way to monitor all my inputs simultaneously?
Yes, it features a 16-Way Multiview output via HDMI, allowing you to monitor all sources, program, and preview feeds.
What is included in the Blackmagic Design ATEM Mini Extreme ISO bundle?
The bundle includes the ATEM Mini Extreme ISO HDMI Live Stream Switcher, a 6ft HDMI cable, a 7ft Cat5e Patch Cable, and a 5-pack of Solid Signal Cable Ties.
Can I connect my phone to this device for enhanced streaming or connectivity?
Yes, this switcher offers support for 4G and 5G phones, which can be beneficial for mobile streaming applications.
