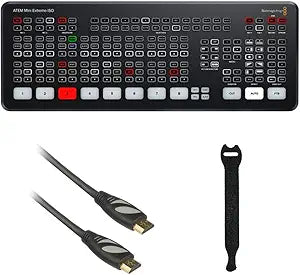

Blackmagic Design ATEM Mini Extreme ISO HDMI Streaming Bundle — main product image

Blackmagic Design ATEM Mini Extreme ISO HDMI Streaming Bundle

Blackmagic Design ATEM Mini Extreme ISO HDMI Streaming Bundle

Name: Blackmagic Design ATEM Mini Extreme ISO HDMI Streaming Bundle
Brand: Blackmagic Design
SKU: ATEM Mini Extreme ISO

★★★★★4.9 (24 reviews)

USB-C

Eight HDMI inputs, ISO recording, and built-in RTMP streaming in one compact switcher — the ATEM Mini Extreme ISO is a full broadcast control room scaled for any production.

Check availability

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Blackmagic Design ATEM Mini Extreme ISO is an 8-input HDMI live production switcher with simultaneous ISO recording of every input to an external USB-C drive. In practical terms, this means a single operator can run an 8-camera live stream and walk away with a fully isolated multi-track recording — every angle captured independently for full post-production control. The re-sync engine on all HDMI inputs is architecturally significant: it removes the requirement for synchronized camera outputs, which means a crew can mix consumer cameras, laptop outputs, and broadcast cameras without frame-glitch artifacts on cuts. The integrated 11-input audio mixer and RTMP streaming over both Ethernet and USB-C complete a production chain that would previously have required multiple discrete devices.

This switcher targets live event producers, corporate AV teams, broadcast crews, and house-of-worship productions that need reliable multi-camera output with ISO safety nets. It scales from a one-person livestream operation — where the hardware panel's direct switching controls are all you need — to a full production environment managed through ATEM Software Control running on a connected laptop for macro automation and advanced keying. The bundle's inclusion of an HDMI cable and cable ties is a practical field addition. For productions where a dedicated vision mixer is overkill but a basic single-input stream box is insufficient, the ATEM Mini Extreme ISO occupies exactly the right capability tier.

Key Features

8-Channel HDMI Live Streaming Switcher

RTMP Streaming via Ethernet or USB-C

11-Input, 2-Channel Audio Mixer

Re-Sync on All HDMI Inputs

Local and Software Switching

Specifications

Brand

Blackmagic Design

Model

ATEM Mini Extreme ISO

Video Inputs

8-Channel HDMI

Audio Mixer

11-Input, 2-Channel

Streaming Capabilities

RTMP Streaming via Ethernet or USB-C

Input Feature

Re-Sync on All HDMI Inputs

Control Options

Local and Software Switching

Pros & Cons

👍 Pros

ISO recording of all 8 HDMI inputs simultaneously to a single USB-C drive enables complete post-production flexibility without a separate multi-channel recorder
Re-sync on all HDMI inputs eliminates glitch cuts between unsynchronized sources, removing the need for external sync generators in mixed-camera setups
RTMP streaming via Ethernet and USB-C simultaneously with ISO recording maximizes production output from a single compact unit
Hardware panel enables live switching without a laptop or software, reducing failure points in time-critical live productions
11-input, 2-channel audio mixer with per-channel control handles complex multi-source audio mixes directly on the switcher

👎 Cons

ISO recording requires a high-speed USB-C SSD rated for sustained multi-stream writes — standard USB drives and HDDs will drop frames under the 8-input load
No dedicated analog XLR audio inputs; external audio sources must be routed through HDMI-embedded audio or an outboard interface
The ATEM Mini Extreme ISO is USB bus-powered for streaming configuration but requires its own AC power — no PoE or battery option for remote mobile setups
ATEM Software Control runs on a connected laptop and must be on the same network; reconfiguring macros or stream keys on-site without a computer is not possible
Color correction and advanced keying features require ATEM Software Control familiarity — the hardware panel alone does not expose these functions

Frequently Asked Questions

How many simultaneous ISO recordings can the ATEM Mini Extreme ISO capture, and what media does it record to?

The Extreme ISO records all 8 HDMI inputs as individual ISO files simultaneously, plus the program output, to a single USB-C connected SSD or drive. You'll need a fast USB-C SSD — at least 10 Gbps rated — to sustain 8+ streams without dropped frames. Spinning drives and slower USB drives will not keep up.

Does the ATEM Mini Extreme ISO require the ATEM Software Control application to access advanced features, or is the hardware panel sufficient for live switching?

The hardware panel on the Extreme ISO handles direct input selection, transitions, and audio mixing for live operation without any software. ATEM Software Control unlocks macro programming, advanced multiview layout customization, upstream/downstream keyer settings, and streaming configuration. For simple live switching, the hardware panel stands alone.

What is the re-sync feature on all HDMI inputs, and why does it matter for multi-camera production?

Re-sync on every HDMI input means the switcher automatically adjusts for timing differences between sources — cameras from different manufacturers, laptops, or replay devices that are not genlock-synchronized. Without re-sync, cutting between unsynchronized sources causes frame glitches. The Extreme ISO eliminates this without requiring external sync equipment.

Can the ATEM Mini Extreme ISO stream and record ISOs simultaneously, or is it one or the other?

It does both simultaneously. The switcher streams via RTMP over Ethernet or USB-C to a streaming platform while independently recording all ISO tracks to a connected drive. The two operations run on separate output paths and do not interfere with each other.

What does the 11-input audio mixer in the ATEM Mini Extreme ISO support, and does it handle external audio sources beyond HDMI-embedded audio?

The 11-input audio mixer handles audio extracted from all 8 HDMI inputs plus additional audio sources, with per-channel level control, delay, and EQ accessible through ATEM Software Control. Direct XLR or analog audio input requires an external audio interface or mixer fed into the switcher via HDMI — the unit has no dedicated analog audio inputs.
