Blackmagic Micro Converter BiDirect 3G — Editorial Review & Use Cases

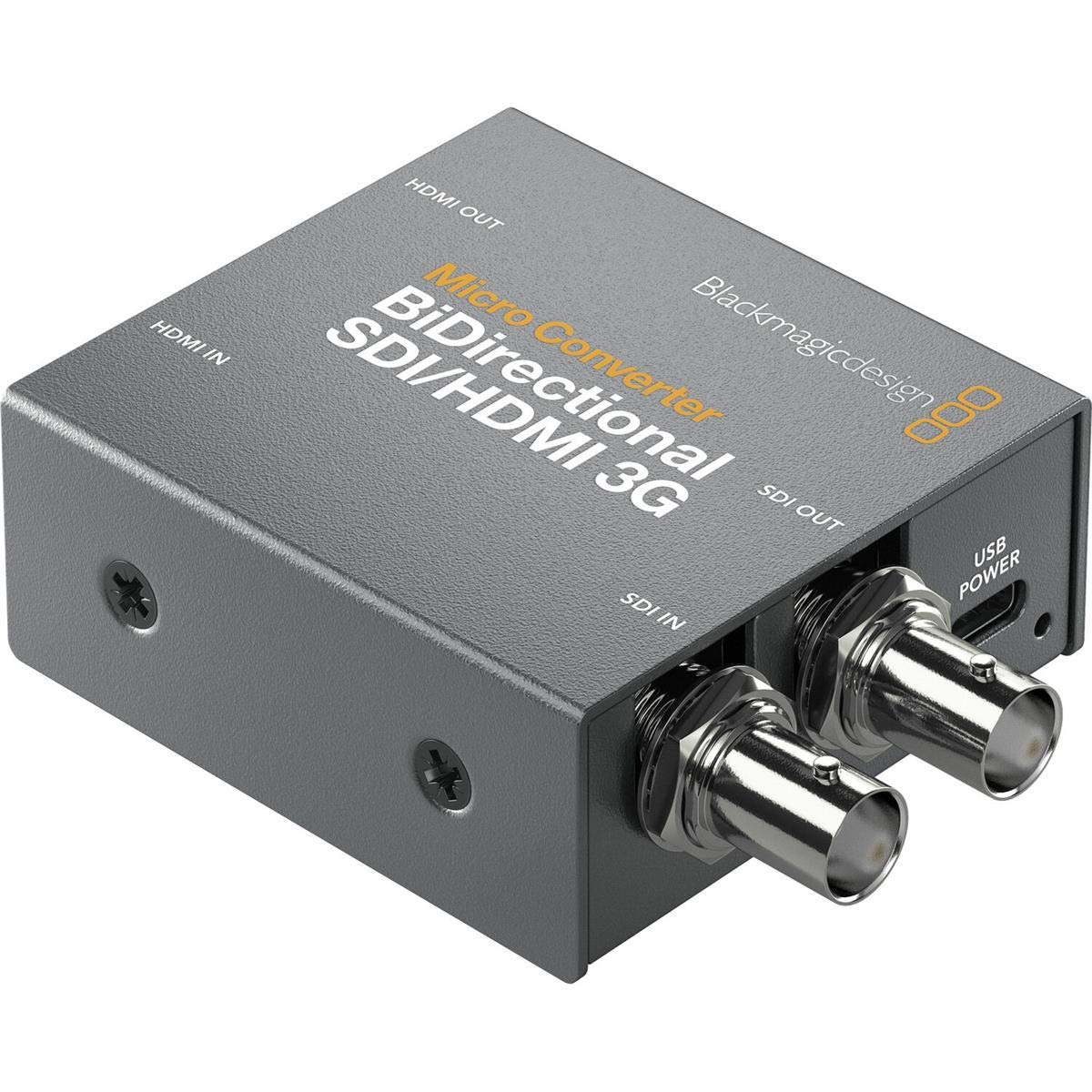

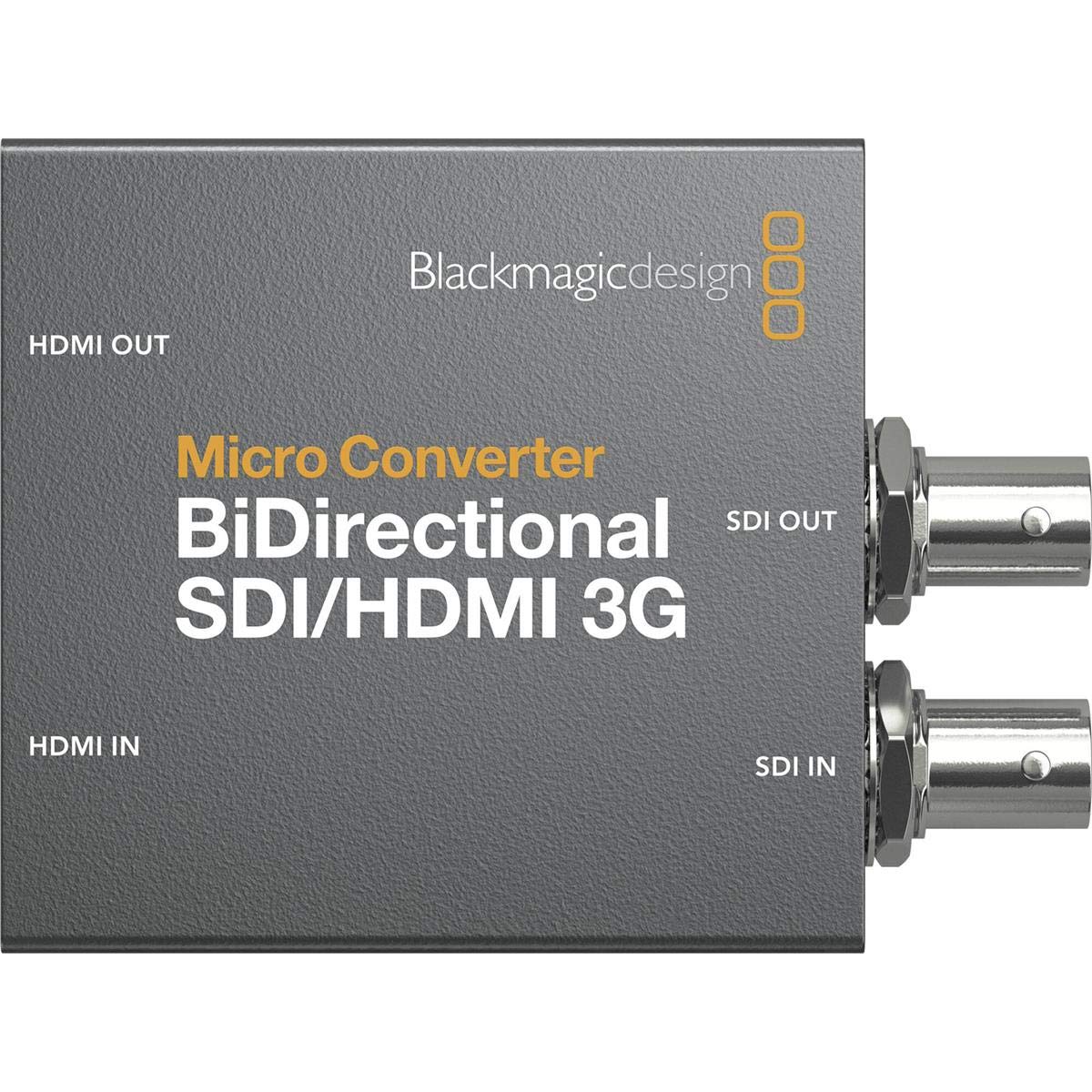

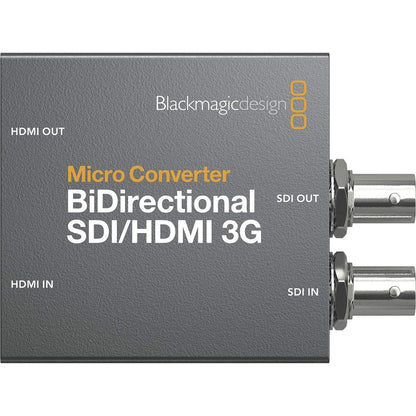

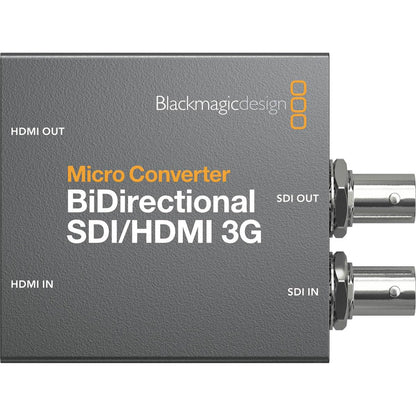

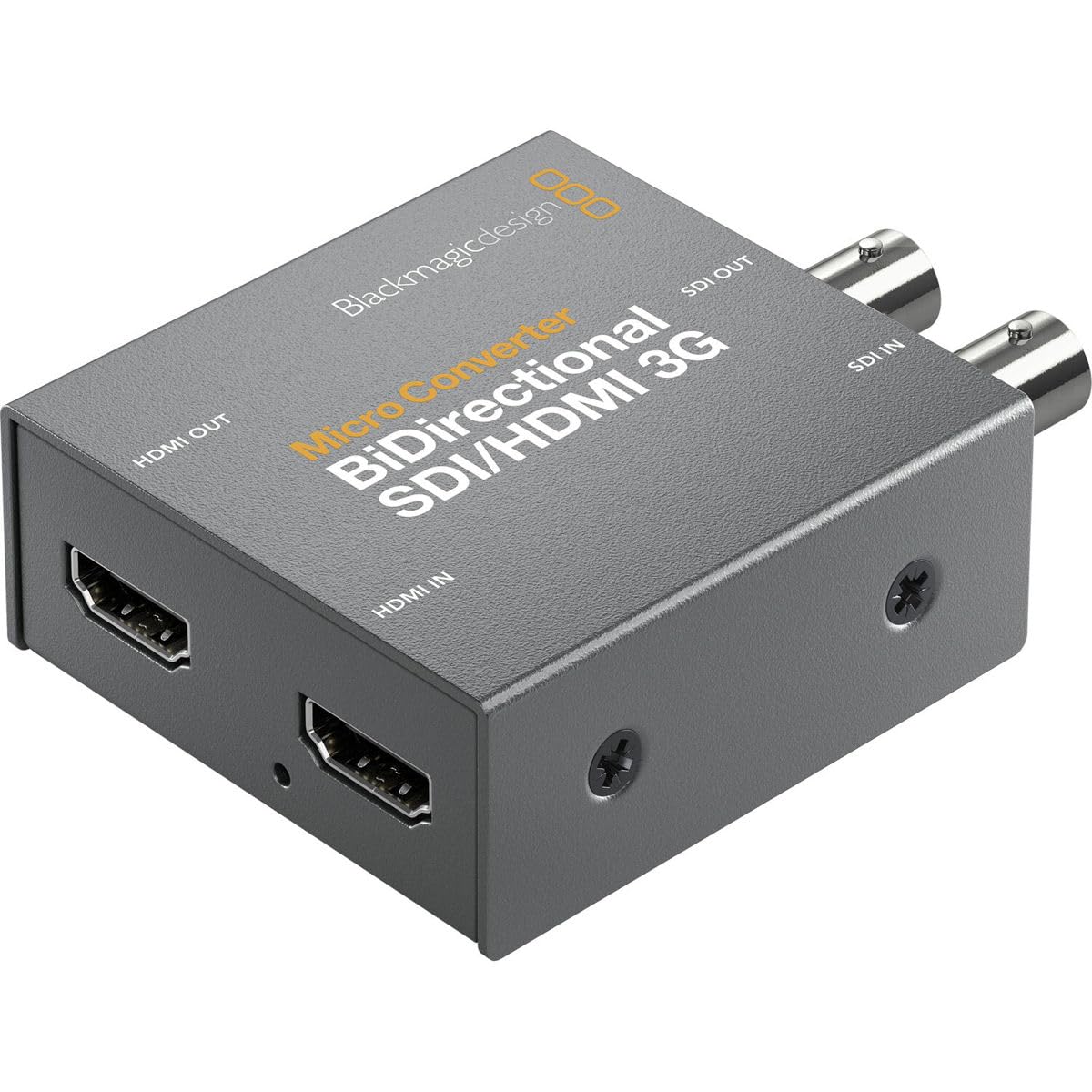

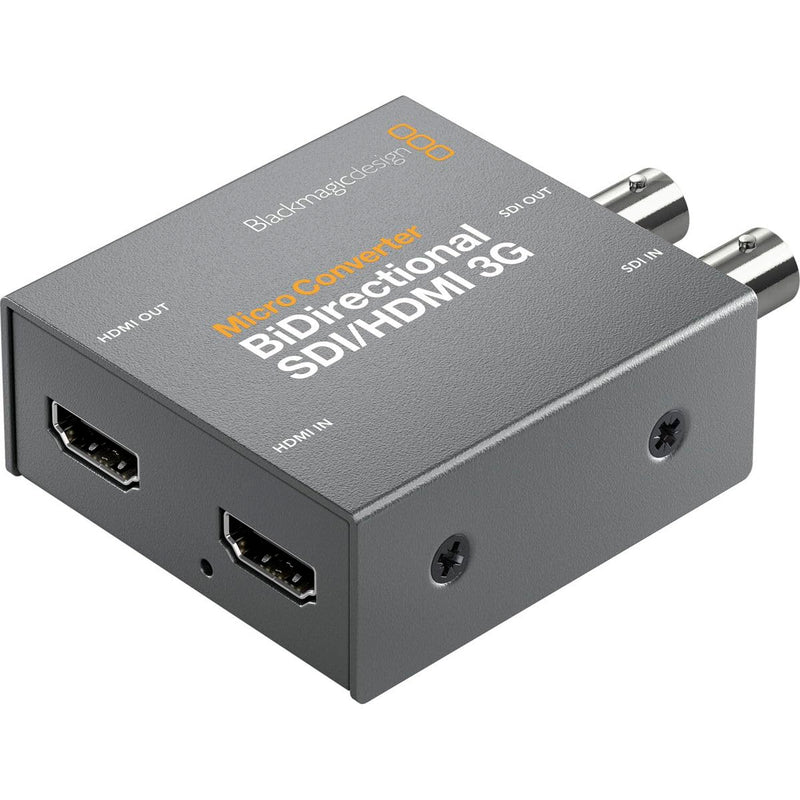

The Blackmagic Design Micro Converter BiDirect 3G (BM-CONVBDC/SDI/HDMI03G/PS) is a bidirectional SDI↔HDMI converter that handles signal direction in either direction simultaneously — an HDMI-to-SDI and SDI-to-HDMI converter in a single pocket-sized USB-powered unit. Per Blackmagic's official Micro Converter product page, the BiDirect 3G supports SD, HD, and 3G-SDI formats (up to 1080p60), runs from USB-C power (5V, ~3W), and includes loop-through outputs on both SDI and HDMI sides for tap-off monitoring without breaking the signal chain.
What the BiDirect 3G Specifically Wins
- True bidirectional in a single box — converts HDMI→SDI AND SDI→HDMI simultaneously. Most competing converters are one-direction-only; the BiDirect 3G handles both directions concurrently for round-trip workflows (camera → SDI run → monitor with HDMI input → operator)

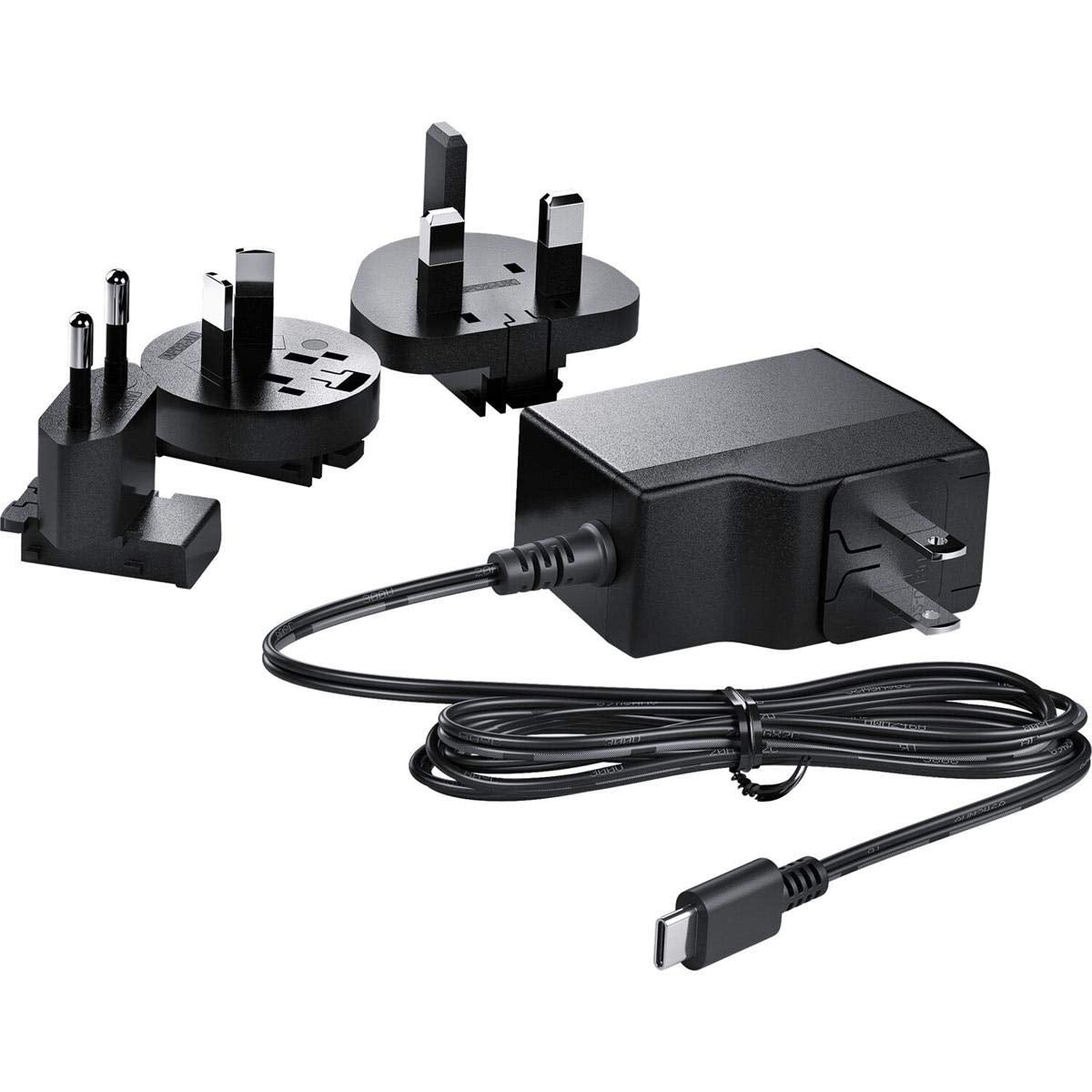

- USB-C power — no proprietary wall-wart adapter. Power from any USB-C source: power bank, laptop port, USB-C wall charger, or the included Blackmagic USB-C PSU. Critical for portable field rigs
- 3G-SDI support up to 1080p60 — handles all the common single-link broadcast / production formats including 720p, 1080i, 1080p23.98/24/25/29.97/30/50/59.94/60
- Loop-through on both ports — tap a monitor or test scope off either side without breaking the converted signal path
- SDI auto-detection — no manual format switching; the device locks to whatever SDI rate the source emits
- Pocketable — fits in a camera bag side pocket; can be gaffer-taped to the back of a monitor or camera cage
Where the BiDirect 3G Specifically Fits
- HDMI-output prosumer cameras (Sony A7-series, Canon EOS R, Panasonic GH-series) feeding an SDI infrastructure in churches, live event venues, or broadcast trucks
- SDI broadcast / production runs into HDMI consumer monitors in event production where reference monitors need the long-run reliability of SDI but operator monitors are HDMI
- ATEM Mini Extreme + SDI-out cameras — convert SDI camera output to HDMI for the ATEM Mini Extreme inputs (Mini Extreme is HDMI-only)
- Mixed-format video village setups on smaller productions where one converter handles bidirectional needs
- Loop-tap for engineering monitoring — feed a waveform / vectorscope off the loop output without disturbing the converted feed
Honest Limits Buyers Should Know
- 3G-SDI maximum — no 6G/12G-SDI, no 4K. The BiDirect 3G caps at 1080p60 single-link. For 4K SDI workflows, step up to Blackmagic's 6G or 12G Micro Converters (single-direction) or the Mini Converter line
- No audio breakout — embedded audio only. Audio rides embedded in both SDI and HDMI; no separate analog or AES audio outputs. Productions needing audio breakout need a Mini Converter Audio model
- Power required even for passive use. Unlike some competing passive SDI-to-HDMI adapters, the BiDirect 3G requires USB-C power for active conversion. Field rigs need a power source — battery USB-C banks work well
- No frame synchronization or genlock input. The BiDirect 3G is a simple converter, not a frame synchronizer. For signal-aligned multi-camera switching with non-genlocked sources, downstream ATEM / SDI router handles sync; the BiDirect 3G just passes the signal
- No HDR metadata pass-through on some firmware revisions. Verify with Blackmagic firmware updates if HDR signaling matters for the workflow
Where Buyers Should Look Elsewhere
- 4K-SDI workflows → Blackmagic Micro Converter 6G or 12G models (single-direction, higher bandwidth)
- Audio breakout needs → Blackmagic Mini Converter Audio family
- Frame synchronization / genlock → Blackmagic Mini Converter SDI Distribution or a dedicated frame sync
- Long-haul fiber or IP video → Blackmagic ATEM SDI Streaming Bridge or fiber-extension solutions
- Cheaper one-direction HDMI-to-SDI only → BMD Micro Converter HDMI to SDI (lower price point, no SDI input)
Sources & Citations
- Blackmagic Design, "Micro Converter product family page," blackmagicdesign.com (accessed 2026-05-18)
- ProVideo Coalition, "Blackmagic Micro Converter family coverage," provideocoalition.com (accessed 2026-05-18)
- Newsshooter, "Blackmagic Design converter coverage," newsshooter.com (accessed 2026-05-18)
Last verified: 2026-05-18
