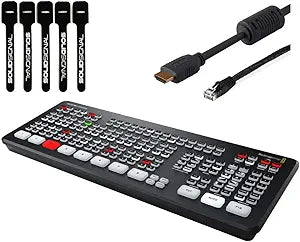

Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Bundle — main product image

Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Bundle

Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Bundle

Name: Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Bundle
Brand: Blackmagic Design
SKU: BMD-SWATEMMINICEXT-BUNDLE

★★★★★4.7 (399 reviews)

The ATEM Mini Extreme bundle delivers 8-input HDMI switching, advanced keying, and built-in streaming in one production-ready package.

View price on Amazon

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Blackmagic Design ATEM Mini Extreme is a professional-grade HDMI live production switcher that brings broadcast-quality capabilities to a compact desktop form factor. With 8 HDMI inputs, 4 upstream keyers, 2 downstream keyers, and support for up to 9 layers, it is designed for complex multi-camera productions including live events, esports broadcasts, corporate presentations, and educational streams. The built-in hardware streaming engine lets you push your feed directly to YouTube, Facebook, Twitch, or other platforms, while USB Type-C webcam output makes it equally useful for high-production-value video conferencing.

This bundle packages the ATEM Mini Extreme with a 6ft HDMI cable, 7ft Cat5e Ethernet cable, and cable ties—practical additions that help you get up and running without hunting for accessories. The 16-screen multiview output is a standout feature, giving operators full visibility of every input alongside program and preview feeds on a single monitor. Direct recording to USB flash disks in H.264 format provides a convenient backup of your stream or a standalone recording option. For productions that have outgrown simpler switchers, the ATEM Mini Extreme offers a significant leap in input count, keying capability, and routing flexibility.

Key Features

FEATURE RICH: Supports up to 9 layers; 4 x Upstream Keyers; 2 x Downstream Keyers; Up to 16 Screen Multiview; 4G and 5G Phone Support; Direct recording to USB flash disks with H.264 video AAC audio files and more

APPLICATIONS: Built-in hardware streaming engine for live streaming to popular social media platforms and works with streaming software. Perfect for education & training, business presentations, livestream eSport events and more

INPUTS: 8 x HDMI Type A (10-Bit 4:2:2: YUV), 2 channel embedded audio; 2 x 3.5mm Stereo Analog Audio; 1 x RJ45 Ethernet

OUTPUTS: 2 x HDMI Type A (10-Bit 4:2:2 YUV), 2 channel embedded audio; 16-Way Multiview via HDMI; 2 x USB Type-C 3.1 Gen 1 (webcam out, panel connection external drive recording)

INCLUDES: ATEM Mini Extreme HDMI Live Stream Switcher (SWATEMMINICEXT), 6ft HDMI cable, 7ft Cat5e Patch Cable, 5-pack of Solid Signal Cable Ties

Specifications

Brand

Blackmagic Design

Model

BMD-SWATEMMINICEXT-BUNDLE

HDMI Inputs

8 x HDMI Type A (10-Bit 4:2:2 YUV)

Audio Inputs

2 x 3.5mm Stereo Analog Audio

Network Input

1 x RJ45 Ethernet

HDMI Outputs

2 x HDMI Type A (10-Bit 4:2:2 YUV)

USB Outputs

2 x USB Type-C 3.1 Gen 1

Upstream Keyers

Downstream Keyers

Multiview

Up to 16 screens via HDMI

Layers

Up to 9

Recording

Direct to USB flash disk (H.264 / AAC)

Bundle Includes

ATEM Mini Extreme, 6ft HDMI cable, 7ft Cat5e cable, 5-pack cable ties

Blackmagic ATEM Mini Extreme Bundle — Editorial Review & Use Cases

The Blackmagic Design ATEM Mini Extreme Bundle (BMD-SWATEMMINICEXT-BUNDLE) is the top-tier variant of Blackmagic's ATEM Mini live production switcher line — combining 8 HDMI inputs, dual streaming engines, multiview output, on-air talkback, dual-record to USB drives, and 6 chroma keyers in a single tabletop production unit. Per Blackmagic's official ATEM Mini family product page, the Mini Extreme is positioned for multi-camera live streaming, hybrid event production, multi-source webinar / corporate AV deployments, and education / classroom recording workflows.

What the ATEM Mini Extreme Specifically Wins

8 HDMI inputs — covers most multi-camera + multi-source setups (4 cameras + 2 computer feeds + 2 video playback) without external scalers or signal aggregation
Dual streaming engines — stream simultaneously to two destinations (YouTube + Twitch, or primary + backup CDN, etc.) without separate hardware
Multiview output — preview all sources + program output on a single HDMI display for operator monitoring
6 chroma keyers — overlay multiple green-screen / luma-key sources simultaneously for complex composite scenes
Dual USB recording — record program out to two USB SSDs concurrently for redundancy (primary + backup)
Talkback over 3.5mm headphone — coordinate with camera operators during multi-camera live productions
No proprietary licensing or software subscriptions — Blackmagic's ATEM Software Control is free; the hardware works standalone

Where the ATEM Mini Extreme Specifically Fits

Multi-camera live event production — 4-camera concerts, conferences, sporting events, religious services, esports streams
Corporate AV deployments with multiple presenter cameras + slide / video sources in board rooms or training facilities
Higher-education lecture capture where 4+ camera angles + screen capture + media playback need switching
Twitch / YouTube live productions with multi-camera setups, picture-in-picture compositing, and live overlay graphics
Podcast / talk-show studios recording 2-4 hosts on separate cameras with multi-view production switching
Houses of worship running multi-cam services with stage cameras + speaker close-ups + congregation wide shots

Honest Limits Buyers Should Know

HDMI inputs only — no SDI native. The Mini Extreme is HDMI-only. Pro broadcast environments using SDI cameras (Blackmagic URSA, Sony PXW, Panasonic AK series) need SDI-to-HDMI converters or step up to the ATEM SDI-class switchers (ATEM SDI Extreme ISO, ATEM Constellation 8K) at significantly higher price tiers
1080p maximum — no 4K production switching. The ATEM Mini Extreme caps at 1080p60. For 4K live production, step up to the ATEM Mini Pro ISO 4K or ATEM Constellation 4K
Limited audio mixing (12 channels via HDMI embedded + 2 analog). Pro audio productions with 12+ microphones need dedicated audio mixers (Allen & Heath SQ-5, Yamaha QL series) feeding into the ATEM via dedicated audio routes
No timeline editing on-device. The Mini Extreme is a live switcher — for non-live recording-then-edit workflows, capture USB recordings and edit in DaVinci Resolve / Premiere Pro / Final Cut after the live event
Steep learning curve for full feature exploitation. Mastering chroma keys + multiview + dual-stream + talkback workflows requires substantial operator training. First-time live-production operators may find the Mini (4 input, non-Extreme) more approachable

Where Buyers Should Look Elsewhere

2-camera entry-level streaming → Blackmagic ATEM Mini (base, 4 inputs at lower price)
SDI broadcast workflows → ATEM SDI Pro ISO, ATEM Television Studio Pro 4K, ATEM Constellation 4K/8K
4K live production → ATEM Mini Pro ISO 4K, ATEM Constellation 4K, Roland V-160HD
Software-only switching → vMix, Wirecast, OBS Studio (free + extensive plugin ecosystem) — software switching trades hardware reliability for lower cost + more flexibility
NDI-priority workflows → NewTek TriCaster, Roland V-160HD with NDI option, or NDI software switchers

Sources & Citations

Blackmagic Design, "ATEM Mini Extreme product page," blackmagicdesign.com (accessed 2026-05-18)
Newsshooter, "Blackmagic ATEM Mini family coverage," newsshooter.com (accessed 2026-05-18)
ProVideo Coalition, "Live-production switcher coverage," provideocoalition.com (accessed 2026-05-18)

Last verified: 2026-05-18

Now that you've seen the details — ready to take a closer look?

View price on Amazon

Pros & Cons

👍 Pros

8 HDMI inputs allow switching between a large number of sources in a single production
4 upstream and 2 downstream keyers enable sophisticated layered compositions with up to 9 layers
Built-in hardware streaming engine lets you go live to platforms without relying on a separate computer
16-screen multiview output provides comprehensive monitoring of all sources on one display
Bundle includes HDMI cable, Ethernet cable, and cable ties so you can set up immediately

👎 Cons

All inputs are HDMI only — SDI sources require an external converter
No built-in display means you need a dedicated monitor for the multiview output
The switcher requires a wired Ethernet connection for streaming; there is no built-in Wi-Fi
Larger and heavier than the ATEM Mini or Mini Pro, making it less portable for solo run-and-gun work

Frequently Asked Questions

How many HDMI inputs does the ATEM Mini Extreme support?

It supports 8 HDMI Type A inputs, each accepting 10-bit 4:2:2 YUV video with 2-channel embedded audio.

Can I record directly from the ATEM Mini Extreme without a computer?

Yes, the switcher can record directly to a USB flash disk via its USB Type-C port, saving files in H.264 video with AAC audio.

What is included in this bundle beyond the switcher itself?

The bundle includes the ATEM Mini Extreme switcher, a 6ft HDMI cable, a 7ft Cat5e patch cable, and a 5-pack of Solid Signal cable ties.

Does this switcher support multiview monitoring?

Yes, it supports up to a 16-screen multiview output via one of its HDMI outputs, so you can monitor all inputs and program/preview feeds on a single display.

Can I use the ATEM Mini Extreme as a webcam for video calls?

Yes, one of the USB Type-C ports outputs a webcam feed that is recognized by conferencing software like Zoom, Teams, and Skype without additional drivers.
