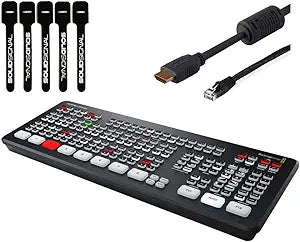

Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Switcher Bundle — main product image
Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Switcher Bundle
Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Switcher Bundle
Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Switcher Bundle
Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Switcher Bundle
Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Switcher Bundle
Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Switcher Bundle
Blackmagic Design

Blackmagic Design BMD-SWATEMMINICEXT-BUNDLE ATEM Mini Extreme Switcher Bundle

★★★★★4.7 (395 reviews)

Eight HDMI inputs, four chroma keyers, and 16-view multiview in a compact switcher built for professional multicam live production.

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Blackmagic Design ATEM Mini Extreme fills a specific and well-defined role in modern production pipelines: it's the switcher that lets a small team execute a multicam live production — eight sources, complex keying, live streaming, and multiview monitoring — without a broadcast-budget equipment list. For education and training facilities, corporate AV teams, eSports production crews, and live streaming operations that need professional switching capability in a portable, cost-effective package, the ATEM Mini Extreme delivers a feature set that competes with hardware costing several times its price point. Four independent chroma keyers and six DVEs are not specifications you typically find at this tier, and they make a meaningful difference in what a two- or three-person crew can produce live.

The physical unit is compact and solid — designed for desk deployment rather than rack mounting, which aligns with its target use cases in classrooms, boardrooms, and event venues where a dedicated rack position isn't available. Front-panel controls are logically laid out for single-operator use, and the dual HDMI outputs cover both clean program feed and 16-source multiview simultaneously, giving the TD full awareness without additional hardware. ATEM Software Control over USB extends the feature set substantially, adding macro programming and deep keyer configuration that the hardware controls alone can't access. It's not a large-scale broadcast router, but within its production scope it is a highly capable, well-integrated tool that earns its place on a professional gear list.

Key Features

APPLICATIONS: Multicamera live streaming to the Internet or broadcast applications. Perfect for education & training, business presentations, livestream eSport events and more.

Specifications

Applications
Multicamera live streaming, Broadcast applications, Education & training, Business presentations, Livestream eSport events

Blackmagic ATEM Mini Extreme Bundle — Editorial Review & Use Cases

The Blackmagic Design ATEM Mini Extreme Bundle (BMD-SWATEMMINICEXT-BUNDLE) is the top-tier variant of Blackmagic's ATEM Mini live production switcher line — combining 8 HDMI inputs, dual streaming engines, multiview output, on-air talkback, dual-record to USB drives, and 6 chroma keyers in a single tabletop production unit. Per Blackmagic's official ATEM Mini family product page, the Mini Extreme is positioned for multi-camera live streaming, hybrid event production, multi-source webinar / corporate AV deployments, and education / classroom recording workflows.

What the ATEM Mini Extreme Specifically Wins

  • 8 HDMI inputs — covers most multi-camera + multi-source setups (4 cameras + 2 computer feeds + 2 video playback) without external scalers or signal aggregation
  • Dual streaming engines — stream simultaneously to two destinations (YouTube + Twitch, or primary + backup CDN, etc.) without separate hardware
  • Multiview output — preview all sources + program output on a single HDMI display for operator monitoring
  • 6 chroma keyers — overlay multiple green-screen / luma-key sources simultaneously for complex composite scenes
  • Dual USB recording — record program out to two USB SSDs concurrently for redundancy (primary + backup)
  • Talkback over 3.5mm headphone — coordinate with camera operators during multi-camera live productions
  • No proprietary licensing or software subscriptions — Blackmagic's ATEM Software Control is free; the hardware works standalone

Where the ATEM Mini Extreme Specifically Fits

  • Multi-camera live event production — 4-camera concerts, conferences, sporting events, religious services, esports streams
  • Corporate AV deployments with multiple presenter cameras + slide / video sources in board rooms or training facilities
  • Higher-education lecture capture where 4+ camera angles + screen capture + media playback need switching
  • Twitch / YouTube live productions with multi-camera setups, picture-in-picture compositing, and live overlay graphics
  • Podcast / talk-show studios recording 2-4 hosts on separate cameras with multi-view production switching
  • Houses of worship running multi-cam services with stage cameras + speaker close-ups + congregation wide shots

Honest Limits Buyers Should Know

  • HDMI inputs only — no SDI native. The Mini Extreme is HDMI-only. Pro broadcast environments using SDI cameras (Blackmagic URSA, Sony PXW, Panasonic AK series) need SDI-to-HDMI converters or step up to the ATEM SDI-class switchers (ATEM SDI Extreme ISO, ATEM Constellation 8K) at significantly higher price tiers
  • 1080p maximum — no 4K production switching. The ATEM Mini Extreme caps at 1080p60. For 4K live production, step up to the ATEM Mini Pro ISO 4K or ATEM Constellation 4K
  • Limited audio mixing (12 channels via HDMI embedded + 2 analog). Pro audio productions with 12+ microphones need dedicated audio mixers (Allen & Heath SQ-5, Yamaha QL series) feeding into the ATEM via dedicated audio routes
  • No timeline editing on-device. The Mini Extreme is a live switcher — for non-live recording-then-edit workflows, capture USB recordings and edit in DaVinci Resolve / Premiere Pro / Final Cut after the live event
  • Steep learning curve for full feature exploitation. Mastering chroma keys + multiview + dual-stream + talkback workflows requires substantial operator training. First-time live-production operators may find the Mini (4 input, non-Extreme) more approachable

Where Buyers Should Look Elsewhere

  • 2-camera entry-level streaming → Blackmagic ATEM Mini (base, 4 inputs at lower price)
  • SDI broadcast workflows → ATEM SDI Pro ISO, ATEM Television Studio Pro 4K, ATEM Constellation 4K/8K
  • 4K live production → ATEM Mini Pro ISO 4K, ATEM Constellation 4K, Roland V-160HD
  • Software-only switching → vMix, Wirecast, OBS Studio (free + extensive plugin ecosystem) — software switching trades hardware reliability for lower cost + more flexibility
  • NDI-priority workflows → NewTek TriCaster, Roland V-160HD with NDI option, or NDI software switchers

Sources & Citations

  1. Blackmagic Design, "ATEM Mini Extreme product page," blackmagicdesign.com (accessed 2026-05-18)
  2. Newsshooter, "Blackmagic ATEM Mini family coverage," newsshooter.com (accessed 2026-05-18)
  3. ProVideo Coalition, "Live-production switcher coverage," provideocoalition.com (accessed 2026-05-18)

Last verified: 2026-05-18

Now that you've seen the details — ready to take a closer look?

Check availability

Pros & Cons

👍 Pros

  • Eight HDMI inputs support a genuinely full multicam setup — covering up to 8 cameras, graphics feeds, and replay sources simultaneously without a second switcher in the chain.
  • Four independent chroma keyers allow complex compositing layers — virtual sets, lower thirds over keyed backgrounds — that would require dedicated hardware on competing units in this price range.
  • Up to 16-view multiview on a single HDMI output gives a solo operator complete situational awareness across all sources without a dedicated multiview processor.
  • Six DVEs support simultaneous picture-in-picture configurations, enabling split-screen and insert graphics that are production-ready without post-processing.
  • The compact form factor fits cleanly on a production desk or travel cart without requiring rack mounting, reducing setup time for event and education deployments.

👎 Cons

  • All inputs are HDMI only — SDI sources require external conversion before they reach the switcher, adding cost and cable complexity for productions running professional broadcast cameras.
  • No built-in genlock or reference input, which limits frame-accurate synchronization in hybrid broadcast environments where timing precision is critical.
  • Audio mixing capabilities, while functional, are not a replacement for a dedicated audio console on productions with complex multi-source audio requirements.
  • The USB streaming path outputs compressed H.264 rather than a clean uncompressed signal, which is a constraint for productions requiring lossless program recording at the switcher output.

Frequently Asked Questions

The bundle packaging indicates it includes essential accessories alongside the ATEM Mini Extreme switcher — verify the specific bundle contents at point of purchase, as bundle configurations can vary by retailer. The core unit itself provides 8 HDMI inputs, dual HDMI outputs, 2 USB ports, 4 chroma keyers, 6 DVEs, 2 media players, and up to 16-view multiview.
Yes — the ATEM Mini Extreme streams directly via USB to a computer running OBS or the ATEM Software Control, or can output directly via the USB connection as a webcam-class device for platforms like Zoom and Teams. This eliminates the need for a dedicated streaming encoder in many production setups, keeping the signal chain tight and the gear count down.
The two HDMI outputs can be configured independently — one for program output to a confidence monitor or recording device, and one for the multiview layout showing up to 16 sources simultaneously. This gives a single operator full visibility across all connected sources while still feeding clean program output downstream.
Yes — ATEM Software Control connects via USB or Ethernet (on models with network connectivity) and gives you full access to all switcher parameters including transition settings, keyer configuration, audio mixing, and macro programming. It significantly expands what's operationally accessible beyond the front-panel hardware controls.
The USB output presents as a webcam device to the host computer, delivering H.264 video suitable for direct streaming or recording via any capture software. For higher-quality isolated recording, an external recorder connected to one of the HDMI outputs is the standard production approach.
