Blackmagic Design

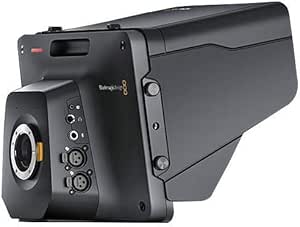

Blackmagic Design CINSTUDMFT/UHD/2 Studio Camera 4K Broadcast
★★★★★
UHD4KXLRphantom power
Revolutionize Your Live Production with Blackmagic Design Studio Camera 4KThe Blackmagic Studio Camera 4K is the ultimate broadcast camera designed for multi-camera Ultra HD live production. Featuring a large 10-inch viewfinder, MFT lens mount, talkback, tally indicators, and advanced connectivit...
$1,865.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Revolutionize Your Live Production with Blackmagic Design Studio Camera 4K
The Blackmagic Studio Camera 4K is the ultimate broadcast camera designed for multi-camera Ultra HD live production. Featuring a large 10-inch viewfinder, MFT lens mount, talkback, tally indicators, and advanced connectivity, this camera is perfect for both indoor and outdoor live events. Its switchable 4K and 1080 HD modes ensure you're ready for any production requirement.
Key Features:
- Large 10-inch Viewfinder with Sunshade
- MFT Lens Mount for Flexible Lens Options
- Talkback and Tally Indicators for Professional Communication
- 12G-SDI and Optional Optical Fiber Connections
- Switchable 4K and 1080 HD Modes
Detailed Specifications:
- Effective Sensor Size: 13.056mm x 7.344mm
- Focus: Auto focus. Peaking mode.
- Lens Mount: Active MFT Mount.
- Lens Control: Iris, focus, zoom on supported lenses.
Video Inputs/Outputs:
- Total Video Input: 1 x SDI.
- Total Video Output: 1 x SDI
- SDI Rates: 1.5G, 3G, 6G, 12G.
- Optical SDI: Supports optional SMPTE optical module.
Audio Inputs/Outputs:
- Analog Audio Input: 2 x XLR , phantom power.
- Analog Audio Output: Aviation headphone jacks (Fixed Wing Plugs) output for talkback and audio monitoring.
- SDI Audio Output: 2 channels in 12G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15-16.
Remote Control:
- 1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM.
HD Video Standards:
- 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94 and 1080i60
Ultra HD Video Standards:
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94 and 2160p60
Key Features
Effective Sensor Size: 13.056mm x 7.344mm / Focus: Auto focus. Peaking mode. / Lens Mount: Active MFT Mount. / Lens Control: I ris, focus, zoom on supported lenses.
Total Video Input: 1 x SDI. / Total Video Ouput: 1 x SDI / SDI Rates: 1.5G, 3G, 6G, 12G. / Optical SDI: Supports optional SMPTE optical module.
Analog Audio Input: 2 x XLR , phantom power. / Analog Audio Output: Aviation headphone jacks (Fixed Wing Plugs) output for talkback and audio monitoring.
SDI Audio Output: 2 channels in 12G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15-16. / Remote Control: 1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM.
HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94 and 1080i60 / Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94 and 2160p60
Specifications
Brand
Blackmagic Design
Model
CINSTUDMFT/UHD/2 Studio Camera 4K Broadcast
Effective Sensor Size
13.056mm x 7.344mm
Focus
Auto focus, Peaking mode
Lens Mount
Active MFT Mount
Lens Control
Iris, focus, zoom on supported lenses
Total Video Input
1 x SDI
Total Video Output
1 x SDI
SDI Rates
1.5G, 3G, 6G, 12G
Analog Audio Input
2 x XLR, phantom power
Analog Audio Output
Aviation headphone jacks (Fixed Wing Plugs)
SDI Audio Output
2 channels in 12G-SDI 48Khz and 24 bit, 2 channels for talkback on channel 15-16
Remote Control
1 x 2.5mm LANC for Iris Control and Focus, SDI CCU control from ATEM
Pros & Cons
👍 Pros
- Features an effective sensor size of 13.056mm x 7.344mm, suitable for broadcast quality images
- Equipped with an Active MFT Mount, offering flexibility with various lenses and control over iris, focus, and zoom
- Supports a wide range of HD and Ultra HD video standards, including 2160p60 for high-resolution output
- Includes multiple SDI inputs and outputs, with support for optional SMPTE optical modules for professional setups
- Incorporates 2 x XLR analog audio inputs with phantom power, enhancing audio recording capabilities
👎 Cons
- The camera's focus is limited to auto focus and peaking mode, which might restrict manual control for some users
- Requires supported lenses for full iris, focus, and zoom control, potentially limiting compatibility with older or third-party optics
- The aviation headphone jacks for audio output are designed for specific "Fixed Wing Plugs," which might necessitate adapters for standard headphones
- Remote control options are specific to 2.5mm LANC for iris and focus, and SDI CCU control from ATEM, not a universal remote protocol
- Does not specify internal recording capabilities, implying a reliance on external recorders or a live production workflow
Frequently Asked Questions
What type of lens mount does this camera use?
The Blackmagic Design Studio Camera 4K Broadcast features an Active MFT Mount, which allows for compatibility with a range of Micro Four Thirds lenses.
Can this camera record in 4K resolution?
Yes, this camera supports Ultra HD Video Standards including 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94 and 2160p60, indicating 4K capabilities.
What are the audio input options available on this studio camera?
The camera is equipped with 2 x XLR analog audio inputs, which also include phantom power for connecting professional microphones.
Does this camera offer any remote control features?
Yes, it provides remote control via 1 x 2.5mm LANC for Iris Control and Focus, and also supports SDI CCU control from ATEM.
What kind of focus capabilities does this camera have?
The camera offers both auto focus and a peaking mode to assist with achieving sharp focus.
What are the output options for video?
The camera has 1 x SDI output and supports SDI rates of 1.5G, 3G, 6G, and 12G, with an option for an SMPTE optical module.
