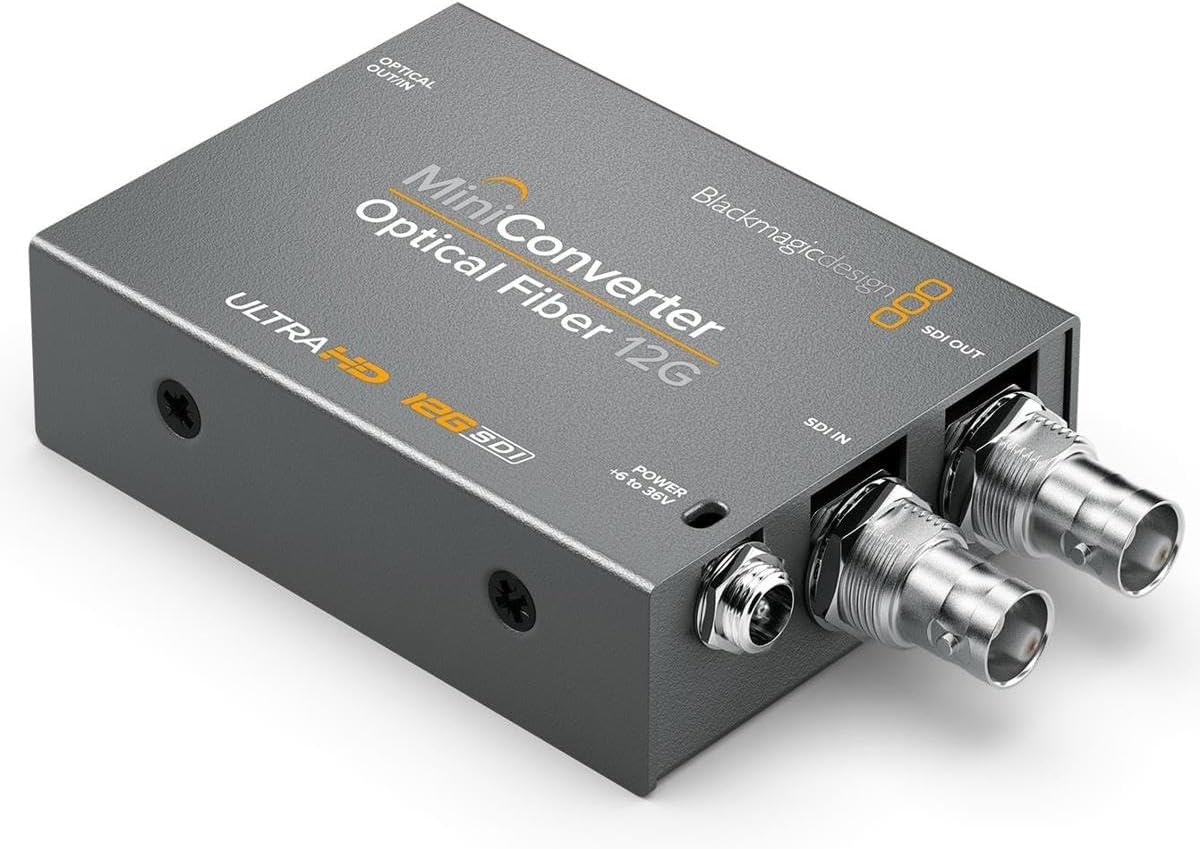

Blackmagic Design CONVMOF12G Mini Converter Optical Fiber 12G — main product image

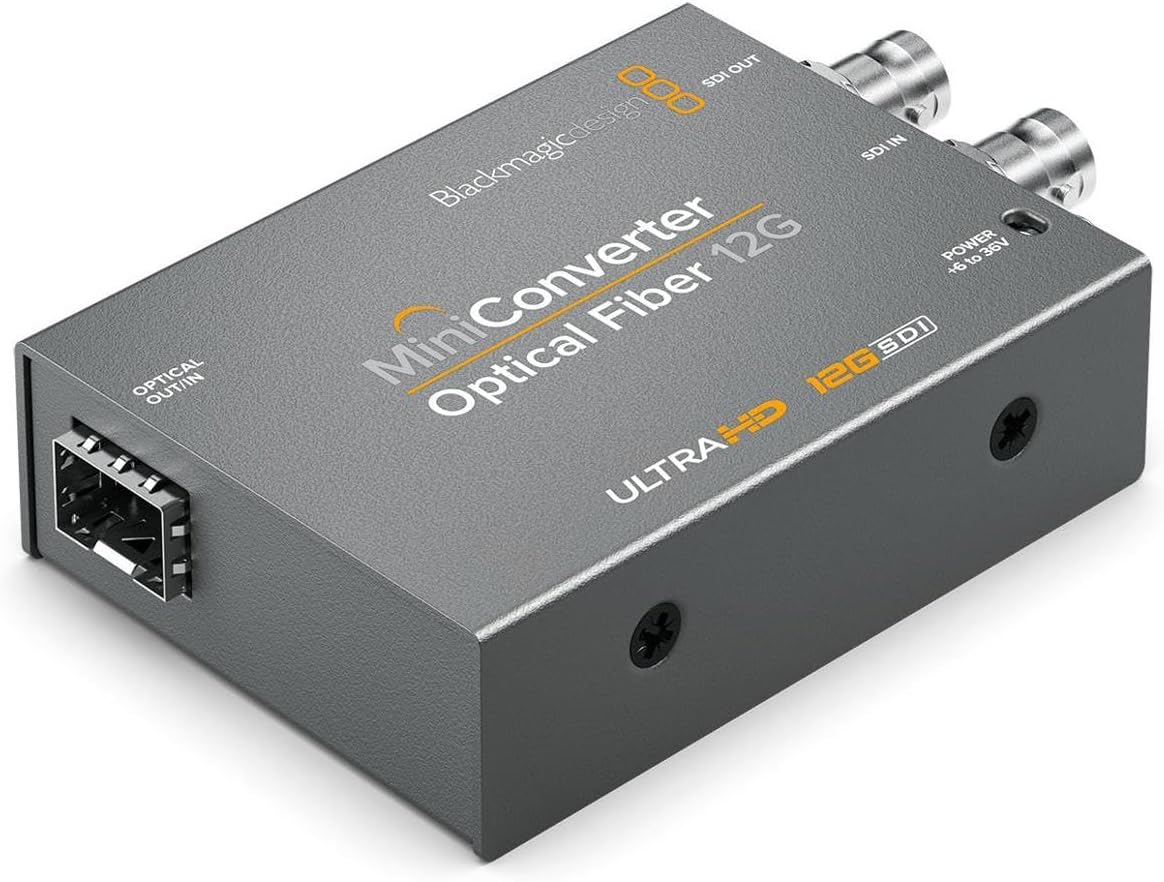

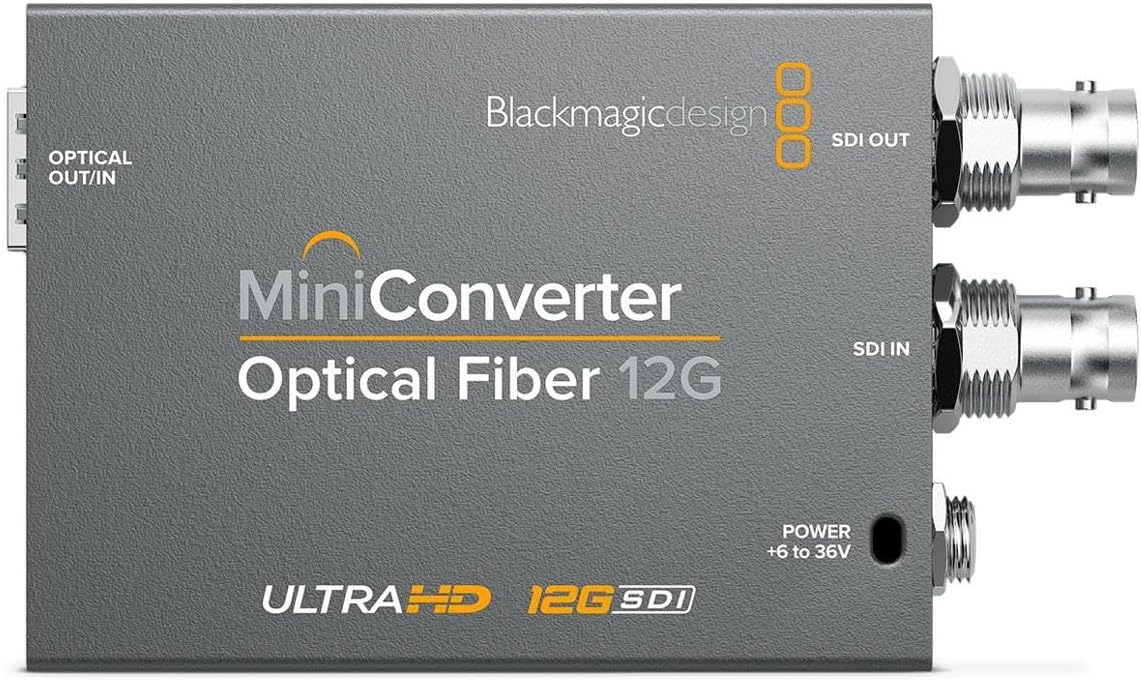

Blackmagic Design CONVMOF12G Mini Converter Optical Fiber 12G
Blackmagic Design CONVMOF12G Mini Converter Optical Fiber 12G
Blackmagic Design CONVMOF12G Mini Converter Optical Fiber 12G
Blackmagic Design

Blackmagic Design CONVMOF12G Mini Converter Optical Fiber 12G

★★★★★4.9 (29 reviews)

Bidirectional 12G-SDI to fiber optic mini converter supporting all formats up to 2160p60 over distances up to 16 km.

$185.00*$199.00Save 7%
✓ In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Blackmagic Design Mini Converter Optical Fiber 12G provides a clean, simultaneous bidirectional bridge between SDI and fiber optic infrastructure. One direction converts a 12G-SDI input to an optical fiber output while the other direction independently converts an optical fiber input back to a 12G-SDI output — and both directions can carry entirely different video formats at the same time. This dual-path design effectively replaces the need for two separate converters, simplifying signal chains in broadcast, live production, and post-production facilities.

Multi-rate 12G-SDI support means the converter automatically handles SD, HD, and Ultra HD signals up to 2160p60, including compatibility with both Level A and Level B 3G-SDI devices. Using standard SFP fiber optic modules, SDI connections can be extended up to 16 km, making this converter ideal for stadium productions, campus-wide broadcast plants, or any installation where copper SDI cable lengths fall short. The compact mini converter housing fits into tight spaces, and the included international power supply features a locking connector to guard against accidental disconnection during critical live events.

Key Features

12G Bidirectional SDI to Optical Fiber Converter

Specifications

Brand
Blackmagic Design
Model
CONVMOF12G
SDI Video Input
1 × SD/HD/12G-SDI
SDI Video Output
1 × SD/HD/12G-SDI (auto-matches input)
Optical Fiber Input
1 × 10-bit SD/HD/12G-SDI switchable
Optical Fiber Output
1 × (auto-matches SDI input)
Max Resolution
2160p60
SDI Levels
Level A and Level B
SFP Compatibility
3G / 6G / 12G-SDI SFP modules
Max Fiber Distance
Up to 16 km
Mounting
Cable Mount
Power
International supply with locking connector

Pros & Cons

👍 Pros

  • Simultaneous bidirectional conversion handles SDI-to-fiber and fiber-to-SDI in one unit
  • Supports all SDI formats from SD through Ultra HD 2160p60 including Level A and B
  • Extends SDI connections up to 16 km over fiber optic cable
  • Compact mini converter form factor fits easily into tight equipment racks or on-set rigs
  • Locking power connector prevents accidental disconnection during live production

👎 Cons

  • SFP fiber optic modules are required but not included adding to the total cost
  • No built-in frame sync or format conversion beyond the SDI-to-fiber signal transport
  • Single SDI input and output per direction limits use to point-to-point connections without distribution
  • Requires an external power supply as there is no Power over Ethernet or battery option

Frequently Asked Questions

Yes, it performs simultaneous bidirectional conversion — it converts SDI input to fiber output and fiber input to SDI output at the same time, and each direction can carry a different video format.
It supports all SD, HD, and Ultra HD formats up to 2160p60, including both Level A and Level B 3G-SDI devices.
With fiber optic cable and compatible SFP modules, you can extend SDI signals up to 16 km.
It accepts standard 3G, 6G, and 12G-SDI SFP fiber optic modules, which are sold separately.
It includes an international power supply with a locking connector to prevent accidental disconnection during operation.
