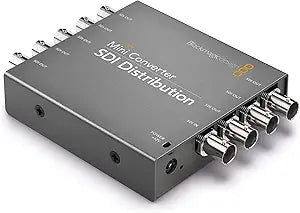

Blackmagic Design FBA_CONVMSDIDA Mini Converter SDI Distribution — main product image
Blackmagic Design

Blackmagic Design FBA_CONVMSDIDA Mini Converter SDI Distribution

★★★★★4.7 (159 reviews)

Split one SDI source into eight re-clocked outputs with automatic SD/HD/3G format switching in a compact, production-proven converter.

$195.00*$199.00Save 2%
✓ In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 19, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Blackmagic Design Mini Converter SDI Distribution fills a fundamental role in any SDI-based production signal chain: taking a single source and splitting it into multiple identical outputs for parallel distribution to monitors, recorders, switchers, and transmission paths. The unit accepts one SD, HD, or 3G-SDI input — auto-detecting the format up to 1080p60 — and distributes it across eight re-clocked SDI outputs. Re-clocking is the critical detail here: each output regenerates the signal's clock timing, stripping accumulated jitter from upstream cable runs and effectively resetting the distance budget for downstream runs. The redundant SDI input provides automatic failover, a feature that moves this from utility gear into mission-critical broadcast infrastructure territory. Full support for embedded audio, ancillary data, and ASI transport streams means the converter is transparent to your signal chain — nothing is stripped or altered in distribution.

The physical unit follows Blackmagic's established Mini Converter form factor — compact, metal chassis, powered by an external supply, with clean BNC connectivity across the rear panel. It rack-mounts using Blackmagic's Teranex Mini Rack Shelf or third-party 1RU converter shelves, fitting cleanly into machine rooms, flypack builds, and OB truck racks. The USB port for firmware updates has historically allowed Blackmagic to add format support post-purchase, extending the converter's useful life. In practice, this is the kind of infrastructure piece that gets installed, configured once, and then forgotten about — which is exactly what you want from distribution equipment in a production environment. Its 3G-SDI ceiling means it serves HD workflows, and productions moving to 4K origination will need to step up to Blackmagic's higher-bandwidth distribution models.

Key Features

Blackmagic Design CONVMSDIDA Switchable SD, HD and 3G SDI Distribution Amplifier Mini Converter.Ideal for connecting the same signal to several devices at once.

SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs.

It even handles ASI

It also supports ancillary data and embedded audio.Blackmagic Design Mini Converter Common Features: Auto Switching SD and HD.Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes.

A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.Redundant SDI Input.Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events.

Specifications

Brand
Blackmagic Design
Model
FBA_CONVMSDIDA
SDI Input
1 x SD/HD/3G-SDI (auto-switching) + 1 redundant
SDI Outputs
8 x SD/HD/3G-SDI, re-clocked
Maximum Bandwidth
3G-SDI (up to 1080p60)
Supported Formats
NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94, 720p/50
Audio
Embedded audio passthrough
Ancillary Data
Full passthrough
ASI Support
Yes
Firmware Updates
Via USB

Blackmagic Mini Converter SDI Distribution — Editorial Review & Use Cases

The Blackmagic Design Mini Converter SDI Distribution (FBA_CONVMSDIDA) is a one-input, eight-output 3G-SDI distribution amplifier — a single broadcast video signal fans out to up to eight downstream destinations (monitors, switchers, recorders, transmitters) without signal degradation. Per Blackmagic's official Mini Converter family page, the unit handles SD, HD, and 3G-SDI formats up to 1080p60, includes automatic format re-clocking on each output, and runs from an included external 12V PSU.

What the Mini Converter SDI Distribution Specifically Wins

  • 8 simultaneous outputs from one input — covers most multi-destination workflows (record + 4 monitors + 2 switchers + 1 streamer) from a single 1U-equivalent box
  • Active re-clocking on every output — long cable runs that would attenuate or jitter on passive splitters arrive at the downstream device clean and locked. Critical for SDI runs over 100ft / 30m
  • Auto-detect SD / HD / 3G formats — no manual configuration. Plug the source in; outputs lock automatically
  • Pro-grade BNC connectors — secure threaded connectors handle vibration / repeated patches without losing connection
  • Reliable broadcast infrastructure component — used in church A/V installs, corporate boardrooms, education lecture-capture rooms, and small-format broadcast trucks for production-feed distribution
  • Standalone (no software / config required) — plug in, power, run. No driver dependency, no firmware-tuning workflow

Where the Mini Converter SDI Distribution Specifically Fits

  • Church / worship facility production distributing a main camera or program feed to projection, livestream encoder, archive recorder, lobby monitor, and overflow rooms simultaneously
  • Live event production sending a program feed to operator monitor + recording + streaming encoder + venue projection
  • Corporate boardroom / training facility AV with multi-display deployments needing one camera fed to multiple screens
  • Education lecture capture distributing a lecturer camera to recording system + classroom screen + LMS encoder + overflow monitor
  • Multi-monitor video village on small / indie film sets where 1 camera feeds 4-6 operator / director monitors
  • Sports / esports production runs with primary game feed splitting to commentary booth + streaming + replay + archive

Honest Limits Buyers Should Know

  • 3G-SDI maximum — no 4K / 6G / 12G. The Mini Converter SDI Distribution caps at 1080p60 (3G single-link). 4K-SDI workflows need the 6G/12G Mini Converter Distribution or Blackmagic Smart Videohub routing
  • One input only — not a routing switcher. The unit fans one input to many; it cannot select among multiple inputs. Multi-source routing needs a Smart Videohub or ATEM SDI Pro
  • External PSU required. Unlike Micro Converters (USB-C powered), the Mini Converter Distribution uses a wall-wart 12V PSU. Field rigs need AC power or 12V battery via PSU adapter
  • HDMI is NOT supported. SDI inputs/outputs only. HDMI sources need conversion (Blackmagic Micro Converter HDMI-to-SDI) before reaching the distribution amp
  • No audio breakout / processing. Audio rides embedded in SDI; the distribution amp does not de-embed or process audio. For audio routing, use a Mini Converter Audio or dedicated audio routing
  • Eight outputs is the hard cap. Productions needing more destinations need to cascade (one output feeds another distribution amp's input) or step to Smart Videohub

Where Buyers Should Look Elsewhere

  • 4K-SDI distribution → Blackmagic Mini Converter SDI Distribution 4K, Smart Videohub Pro 12G
  • Multi-source routing (not just splitting) → Blackmagic Smart Videohub 12x12 / 20x20 / 40x40, Decimator MD-DUCC
  • HDMI distribution → standalone HDMI splitter (Monoprice / OREI brands) for HDMI-native workflows
  • Fiber / long-haul transmission → Blackmagic Studio Fiber Converter family, AJA FiDO transmitters
  • Smaller (1-input, 4-output) needs → Decimator passive SDI splitters (cheaper) or Blackmagic Micro Converter 3G-SDI Distribution

Sources & Citations

  1. Blackmagic Design, "Mini Converter SDI Distribution product family page," blackmagicdesign.com (accessed 2026-05-18)
  2. ProVideo Coalition, "Mini Converter SDI Distribution coverage," provideocoalition.com (accessed 2026-05-18)
  3. Newsshooter, "Blackmagic Mini Converter family coverage," newsshooter.com (accessed 2026-05-18)

Last verified: 2026-05-18

Now that you've seen the details — ready to take a closer look?

View on Amazon

Pros & Cons

👍 Pros

  • Eight re-clocked SDI outputs from a single input — enough distribution for complex multi-monitor, multi-recorder, and broadcast distribution workflows in one unit.
  • Automatic SD/HD/3G-SDI format detection and switching eliminates manual reconfiguration when source formats change during production.
  • Redundant SDI input provides failover protection for live broadcast and event applications where signal loss is not an option.
  • Full passthrough of embedded audio, ancillary data, and ASI transport streams preserves signal integrity across the entire distribution chain.
  • Compact form factor fits standard converter racks and mounts, conserving space in OB trucks, machine rooms, and flypack builds.

👎 Cons

  • Maximum SDI bandwidth is 3G-SDI — no support for 6G or 12G-SDI, meaning 4K/UHD signals cannot be distributed through this unit.
  • No SDI-to-HDMI conversion on any output, so you cannot feed HDMI-only monitors or consumer displays without an additional converter downstream.
  • External power supply is required — no internal PSU or redundant power input, which is a single point of failure in critical signal chains.
  • No front-panel signal status indicators beyond basic LEDs, so diagnosing format or lock issues requires checking downstream devices or using a separate signal analyzer.

Frequently Asked Questions

It fully supports 3G-SDI, which includes 1080p60, 1080p50, and 1080p30. The auto-switching input detects the incoming format — SD, HD, or 3G — and all eight outputs mirror it without manual configuration.
Yes. The redundant input is designed for exactly this — if your primary SDI feed drops, the converter switches to the secondary input, providing signal continuity for mission-critical broadcast and live event applications.
All eight outputs are re-clocked, meaning the converter regenerates the SDI signal timing on each output. This eliminates jitter accumulated from the source and allows you to run longer cable distances from the converter to your destination devices without signal degradation.
Yes. Embedded audio channels and ancillary data — including closed captions, timecode, and metadata — are passed through intact on all eight SDI outputs.
Yes. The Mini Converter has a USB port for firmware updates, and Blackmagic has historically added new format support through these updates.
