Blackmagic HyperDeck Studio Mini — Editorial Review & Use Cases
The Blackmagic Design HyperDeck Studio Mini (HYPERD/STM) is a half-rack solid-state broadcast recorder / player that records and plays back SDI video to and from standard SD cards using broadcast codecs (ProRes, DNxHD, H.264). Per Blackmagic's official HyperDeck Studio page, the Mini accepts 3G-SDI input, records to dual SD card slots (continuous recording across cards), supports ethernet streaming control, and runs as a network-controlled deck via Blackmagic's HyperDeck Ethernet protocol.
What the HyperDeck Studio Mini Specifically Wins
- Dual SD card slots with auto-continuation — when one card fills, recording continues seamlessly on the second card. Critical for long-form recording (sermons, concerts, sporting events, conferences)
- Broadcast codecs (ProRes 422 / ProRes 422 HQ / DNxHD / H.264) — files drop directly into Premiere / FCPX / Resolve / Avid edit timelines without transcode
- Ethernet control for remote operation — controllable from ATEM switchers, automation systems, or networked operator consoles

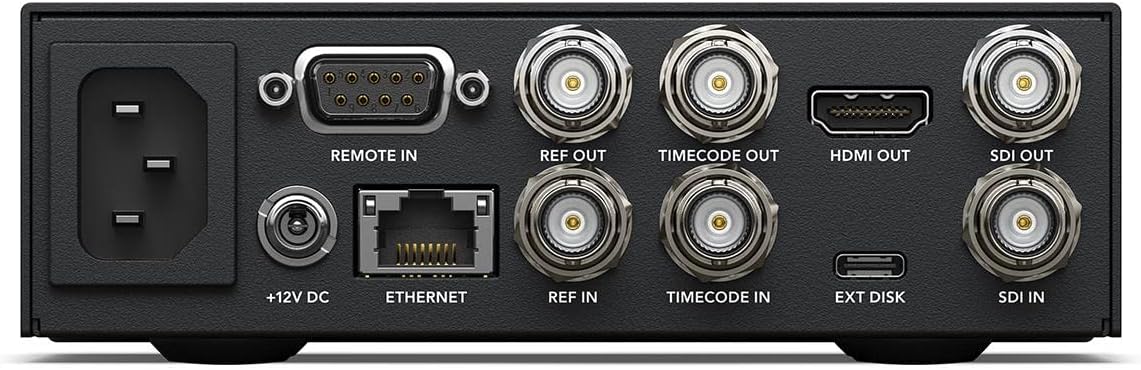

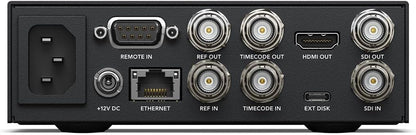

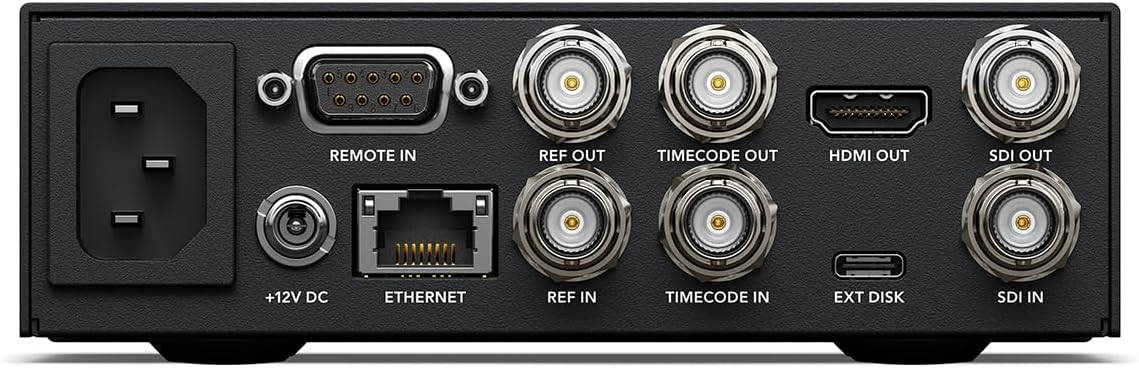

- SDI in + SDI out (with timecode / RS-422 deck control) — drops cleanly into a broadcast infrastructure as a recording deck or playback source
- Half-rack form factor — fits dual-deck per 1U rack slot; cleaner than full-rack alternatives in tight equipment racks
- SD card media is cheap and replaceable — vs proprietary recording media on legacy decks; consumer-grade UHS-II SD cards (Sony Tough, Lexar Professional, SanDisk Extreme Pro) work fine
- Loop playback / VTR-style transport controls — broadcast operator workflow familiar from tape-deck era
Where the HyperDeck Studio Mini Specifically Fits
- Church / worship facility recording capturing services to SD cards in ProRes for later edit / archive
- Conference / corporate event recording with archive + livestream feeds running through one recording chain
- Broadcast standby / commercial playout — pre-recorded spots loaded to SD and played back on cue from network control
- Sports / esports production archive recording program feed + isolated camera feeds
- Documentary / studio interview production with full ProRes capture for finish-grade post
- OB van / small broadcast truck deployment as a backup or primary recording deck
- ATEM workflow integration — networked deck controlled by ATEM macros for in-show playback cues
Honest Limits Buyers Should Know
- 1080p60 maximum — no 4K. The HyperDeck Studio Mini caps at 1080p60 (3G-SDI single-link). 4K workflows need the HyperDeck Extreme 4K, HyperDeck Shuttle 4K, or HyperDeck Studio HD/4K Pro
- SD card media — not enterprise-grade reliability. Consumer SD cards do fail under heavy use. Best practice: V90 / UHS-II cards rated for video, replaced annually in heavy production environments, with redundant recording to a separate device for irreplaceable content
- No internal storage / no SSD media slot. SD cards only. Workflows that need higher capacity or NVMe-class data rates need to step up to HyperDeck Extreme or HyperDeck Studio Pro variants with SSD/USB-C external media support
- Limited audio channels (2 channels embedded). Multi-track audio production needs a separate audio recorder or step-up to HyperDeck Studio Pro (8-channel audio)
- Ethernet control protocol is Blackmagic-specific. Third-party automation systems need integration work; broadcast playout systems typically use BVW-75 / RS-422 fallback

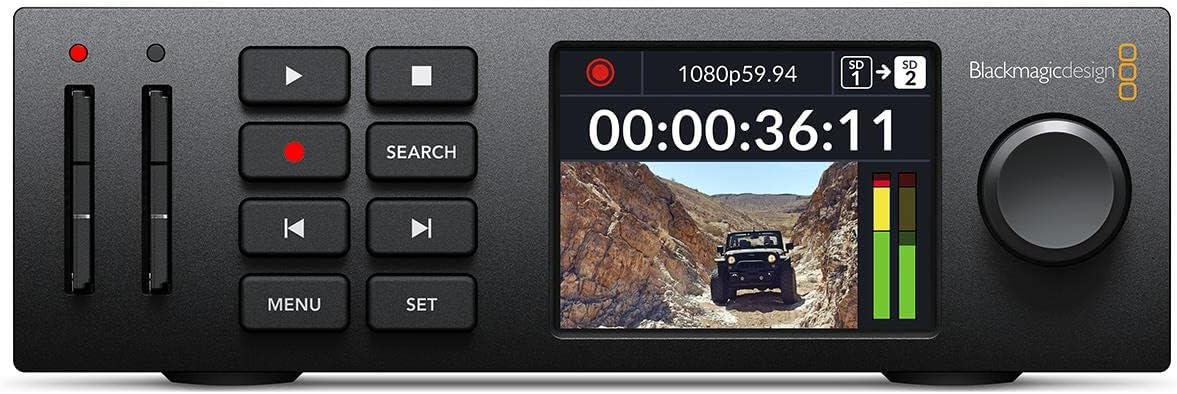

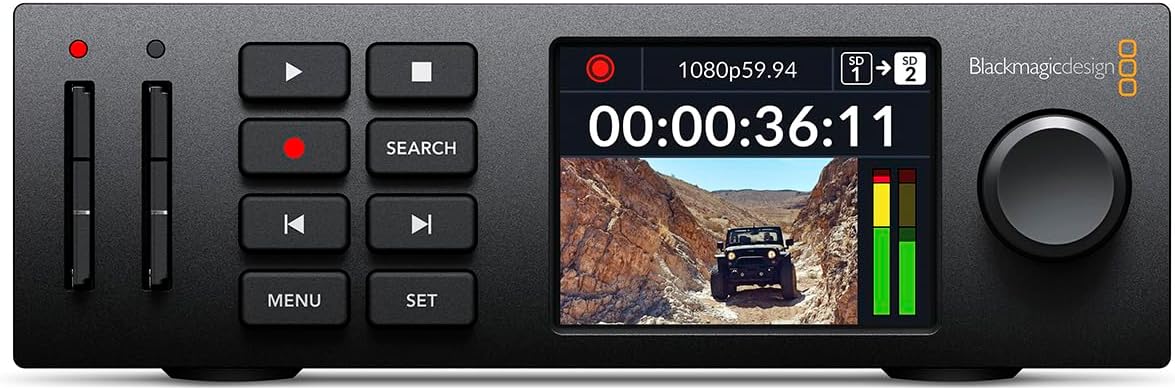

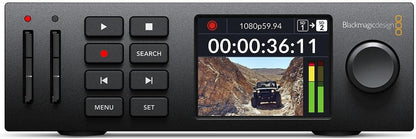

- Front-panel display is small. Bay-rack operators in dimly lit control rooms may find the readout text small; the Ethernet remote control or Web Manager UI provides clearer monitoring
Where Buyers Should Look Elsewhere
- 4K production / archive → HyperDeck Extreme 4K, HyperDeck Studio HD/4K Pro, HyperDeck Shuttle 4K
- Multi-camera / multi-channel synchronized recording → HyperDeck Studio Pro (multi-channel) or ATEM Mini Pro ISO (records each input separately as ISO files)
- SSD / NVMe-grade recording for long-form → HyperDeck Studio HD Pro (SSD slot) or Blackmagic Cloud Pod (SD + NAS)
- Cinema-grade RAW recording from camera HDMI/SDI → Atomos Ninja V+ / Shogun 7
- Cloud / remote workflows → Blackmagic Cloud-enabled HyperDeck variants that sync footage to remote NAS / Dropbox / Frame.io
Sources & Citations
- Blackmagic Design, "HyperDeck Studio product family page," blackmagicdesign.com (accessed 2026-05-18)
- ProVideo Coalition, "HyperDeck Studio coverage," provideocoalition.com (accessed 2026-05-18)
- Newsshooter, "HyperDeck Studio Mini workflow coverage," newsshooter.com (accessed 2026-05-18)
Last verified: 2026-05-18
