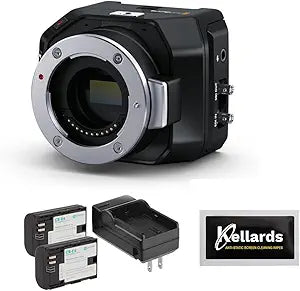

Blackmagic Design Micro Studio Camera 4K G2 Battery Bundle
★★★★★
4KUHDUSB-C
An ultra-compact 4K studio camera with 12G-SDI, 13-stop dynamic range, and remote control over SDI — engineered for multicam production where space is the constraint.
$995.00*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
Active Micro Four Thirds Lens Mount : UHD 4K Resolutions up to 3840 x 2160p60
12G-SDI Video Input/Output, HDMI Output : 13-Stop Dynamic Range, Compact Design
Camera Control via SDI, HDMI, or USB : Program and Talkback over SDI, Tally
USB-C Expansion Port, 3.5mm Audio In : Built-In Color Corrector
Canon LP-E6 Battery Slot
Specifications
Resolution
4K UHD (3840 x 2160p60)
Lens Mount
Active Micro Four Thirds (MFT)
Dynamic Range
13 Stops
Video Output
12G-SDI, HDMI
Camera Control
Via SDI, HDMI, or USB-C
Audio Input
3.5mm Stereo
Expansion
USB-C
Battery
Canon LP-E6
Features
Integrated Color Corrector, Tally, Talkback, Program Return
Brand
Blackmagic Design
Model
Micro Studio Camera 4K G2
ASIN
B0CQML53DM
Pros & Cons
👍 Pros
- 12G-SDI camera control over a single cable eliminates dedicated control cable runs in multicam installations, simplifying infrastructure in space-constrained studio builds
- 13 stops of dynamic range preserves highlight and shadow detail in high-contrast studio environments where lighting ratios are difficult to control precisely
- The integrated color corrector enables live primary grading and camera matching without requiring external downstream color processing
- Active MFT mount provides electronic lens control (autofocus, iris) compatible with a broad ecosystem of cinema, photo, and broadcast glass
- The ultra-compact form factor opens installation positions — robotic heads, confidence monitor brackets, tight overhead rigs — unavailable to full-size studio cameras
👎 Cons
- The MFT sensor's 2x crop factor significantly affects wide-angle focal length equivalencies, requiring wider-than-expected lenses to achieve standard studio coverage angles
- No internal recording — the G2 is a signal source only and requires an external recorder or switcher for any archival capture
- The compact body has limited physical I/O — no dedicated XLR audio inputs, only a 3.5mm stereo audio input, which is inadequate for professional audio workflows without external mixing
- Power via LP-E6 battery provides limited runtime for extended multi-hour live productions; AC power via the appropriate adapter is the preferred stable supply for fixed installations
- The USB-C expansion port provides control connectivity but does not function as a full-bandwidth video output — SDI and HDMI are the production signal paths
Frequently Asked Questions
How does SDI camera control work on the Micro Studio Camera 4K G2, and what does it eliminate from a multicam setup?
The G2 accepts camera control commands — iris, white balance, color correction, tally — over the same 12G-SDI cable that carries video. This means a single cable run from switcher to camera handles both signal and control with no additional serial or IP control cable required. In a multi-camera studio installation, this significantly reduces cable runs and simplifies rack patching.
What does 12G-SDI mean in terms of signal bandwidth, and is it backward compatible with existing SDI infrastructure?
12G-SDI carries 12 gigabits per second — sufficient bandwidth for a single-link 4K/60 signal. It is backward compatible: a 12G-SDI output connected to a 3G-SDI input will downconvert and pass HD signal, though at reduced resolution. If your switcher or router only supports 3G-SDI, you'll get HD output rather than 4K from the G2's SDI port. Verify your downstream infrastructure's SDI generation before assuming 4K throughput.
What lens mount does the Micro Studio Camera 4K G2 use, and what are the implications for production lens choices?
The G2 uses an Active Micro Four Thirds (MFT) mount, which provides electronic communication with compatible lenses for autofocus and iris control. MFT is a well-supported ecosystem with a wide range of cinema, photo, and broadcast lenses available via native mount or adapter. The 2x crop factor relative to full frame is relevant for wide-angle work — a 12mm MFT lens provides roughly a 24mm equivalent field of view.
Does the Micro Studio Camera 4K G2 have built-in color correction, and how does this affect post-production workflow?
Yes — the G2 includes an integrated color corrector accessible via SDI control or the Blackmagic Camera Setup utility. This allows you to make primary color adjustments — lift, gamma, gain — at the camera level, either live for switched broadcast output or as a starting point before further grading in DaVinci Resolve. For live productions, this is significant: it lets a shader match multiple cameras without post-production intervention.
What does the Canon LP-E6 battery slot enable in this camera's deployment options?
The LP-E6 slot allows the G2 to run on battery power — the same batteries widely used across Canon EOS cameras, making them easy to source and share across a production kit. This bundle includes battery accessories. Battery operation extends deployment to location multicam shoots, drone rigs, or environments without convenient AC power runs, expanding the camera's use beyond fixed studio installations.
