Blackmagic Design

Blackmagic Design SWATEMMINIBPR-BUNDLE ATEM Mini Pro Streaming Bundle

4.7 (399 reviews)

Four HDMI inputs, hardware keying, and direct Ethernet streaming in one compact unit — the ATEM Mini Pro turns any multicam setup into a broadcast-ready production.

$349.00*
In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Blackmagic Design ATEM Mini Pro is a hardware vision switcher designed for multicamera live production at the small-format end of the broadcast spectrum. Its four HDMI inputs each accept 10-bit 4:2:2 YUV signals, covering everything from consumer mirrorless cameras to broadcast-grade HDMI outputs from professional camcorders. The integrated hardware encoder handles direct-to-internet streaming over Ethernet at configurable bitrates — eliminating the laptop running OBS that sits between most small-team setups and the internet. Transitions include cut, mix, dip, wipe, and DVE; the upstream keyer handles luma, linear, chroma, and pattern compositing; and the downstream keyer adds a separate compositing layer for persistent graphics or bugs. The built-in six-input, two-channel audio mixer handles embedded HDMI audio from all four sources plus two analog 3.5mm inputs.

This switcher is built for the production scale where budgets rule out a full ATEM or dedicated hardware encoder rack but where the output still needs to look professional: corporate all-hands, hybrid conference productions, educational institutions running recorded lectures, and live event streaming for small-to-mid-size audiences. The bundle's included Cat5e and HDMI cable get you physically connected without a last-minute hardware run, and the cable ties indicate Blackmagic understands this gear ships to working productions. For operators already comfortable with a hardware switcher workflow, the ATEM Mini Pro punches well above its price bracket. The constraint to plan around is the four-input ceiling and the absence of SDI — if your camera package runs SDI natively, budget for conversion at each input.

Key Features

FEATURE RICH: 4 Camera Multiview; Includes Cut, Mix, Dip, Wipe, DVE transitions; Luma, Linear, Chroma, Pattern Upstream keys; Downstream Keyer; Built-in 6-Input 2-Channel Audio Mixer

APPLICATIONS: Multicamera live streaming to the Internet or broadcast applications. Perfect for education & training, business presentations, livestream eSport events and more!

INPUTS: 4 x HDMI Type A (10-Bit 4:2:2: YUV), 2 channel embedded audio; 2 x 3.5mm Stereo Analog Audio; 1 x RJ45 Ethernet

OUTPUTS: 1 x HDMI Type A (10-Bit 4:2:2 YUV), 2 channel embedded audio; Multivew Output; 1 x USB Type-C 3.1 Gen 1 (webcam out, panel connection external drive recording)

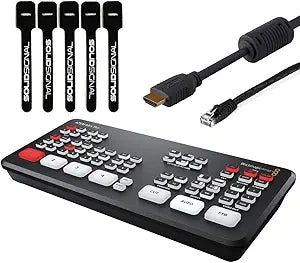

INCLUDES: ATEM Mini Pro HDMI Live Stream Switcher, 6ft HDMI cable, 7ft Cat5e Patch Cable, 5-pack of Solid Signal Cable Ties

Specifications

HDMI Inputs
4 × HDMI Type A (10-bit 4:2:2 YUV, 2-ch embedded audio)
Analog Audio Inputs
2 × 3.5mm Stereo
Network Input
1 × RJ45 Ethernet
HDMI Output
1 × HDMI Type A (10-bit 4:2:2 YUV, 2-ch embedded audio; also Multiview)
USB Output
1 × USB-C 3.1 Gen 1 (webcam out / panel connection / external drive recording)
Transitions
Cut, Mix, Dip, Wipe, DVE
Upstream Keyers
Luma, Linear, Chroma, Pattern
Downstream Keyer
1
Audio Mixer
6-Input, 2-Channel
Included Accessories
6ft HDMI cable, 7ft Cat5e patch cable, 5× cable ties
Model
SWATEMMINIBPR-BUNDLE

Pros & Cons

👍 Pros

  • Built-in direct streaming over Ethernet removes the external encoder from the signal chain, reducing failure points and setup complexity on location.
  • USB-C webcam output allows simultaneous use as a live stream encoder and a professional video conferencing source — one unit covers both workflows.
  • Hardware upstream keyer supports luma, linear, chroma, and pattern modes, enabling professional lower-thirds and virtual sets without external compositing hardware.
  • 4-camera multiview on a single HDMI output gives a technical director full source monitoring without a dedicated multiview monitor or additional hardware.
  • Included accessories (HDMI cable, Cat5e patch cable, cable ties) mean the unit is operationally ready out of the box for a basic two-source stream.

👎 Cons

  • Four HDMI inputs is a hard ceiling — productions requiring five or more simultaneous camera angles must step up to the ATEM Mini Extreme or a full-frame ATEM, significantly increasing cost.
  • No SDI inputs; broadcast environments running SDI-native camera chains require HDMI-to-SDI converters on every input, adding bulk and cost to the signal path.
  • No internal media storage — recording to an external drive requires a USB-C storage device, which is not included in this bundle and must be separately sourced and formatted.
  • ATEM Software Control has a meaningful learning curve for operators unfamiliar with broadcast switcher architecture; the hardware buttons alone expose only a fraction of the unit's transition and keyer capabilities.

Frequently Asked Questions

Yes — direct streaming via the RJ45 Ethernet port is built into the unit itself. You configure the stream destination (YouTube Live, Facebook, Twitch, or a custom RTMP endpoint) through ATEM Software Control, and the switcher handles encoding and transmission independently. The attached computer becomes optional once the stream is configured.
Yes, all three outputs operate concurrently. The HDMI output carries program (or multiview), the USB-C port outputs a webcam signal to any connected computer, and the Ethernet port streams to your chosen platform — all running at the same time without switching modes.
Four HDMI inputs, each handling 10-bit 4:2:2 YUV. Additionally, two 3.5mm stereo analog audio inputs are available for independent audio sources — a confidence monitor feed, a music player, or an IFB return. Four HDMI inputs covers most small-format corporate, education, and event productions cleanly.
The multiview feeds out of the same HDMI output and shows all four inputs plus program and preview on a single screen. You toggle between program output and multiview at the HDMI output via software control. One display handles both monitoring functions; a second display is not required.
Yes — full ATEM Software Control integration is supported over USB-C or Ethernet. The software unlocks macro recording, advanced audio mixing, still store management, and detailed transition customization beyond what the hardware buttons expose. The unit ships without a software disc, but ATEM Software Control is a free download from Blackmagic Design.
