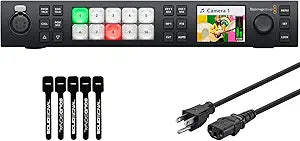

Blackmagic Design SWATEMSCN2/1ME1/HD ATEM 1 M/E Constellation HD Switcher

The Blackmagic Design ATEM 1 M/E Constellation HD is a 10-input HD live production switcher built for the demands of multi-camera broadcast, live events, and houses of worship where input count and compositing depth are the defining constraints. The 10 SDI inputs are all standards-converted — meaning the switcher internally handles 3G/HD/SD signal format differences without requiring upstream conversion hardware, a significant practical advantage on productions where camera inventories include older and newer formats simultaneously. The compositing engine supports up to 7 layers with DVE-capable transitions and keyers, enabling chroma keying, on-screen graphics, and picture-in-picture effects in a single chassis. The 28-channel digital audio mixer means audio can be mixed at the switcher position rather than requiring a dedicated audio console for smaller productions — a real rack and crew reduction for budget-conscious events.

On the output side, the 16-way Multiview SDI is operationally significant: it delivers a tiled confidence view of all sources to a single monitor, reducing the physical footprint of the technical director position on congested stages. The 6 x 3G-SDI outputs provide program, clean feed, aux outputs, and downstream key feeds depending on configuration. Front panel control is comprehensive — the LCD-equipped button layout allows full live switching without a connected computer, and ATEM Software Control over RJ-45 unlocks macro programming and advanced audio routing for more complex show builds. This switcher is the right specification for corporate AV, live worship production, regional sports, and music festival broadcast rigs that have outgrown simple HDMI mixers and need professional SDI infrastructure without the cost and complexity of a multi-M/E broadcast console.
