Blackmagic Design

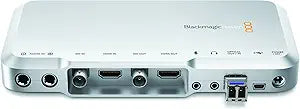

Blackmagic Design SWRCONV ATEM Camera Fiber Converter
USB 2.0
Extend Your Camera's Reach and Capabilities The Blackmagic Design ATEM Camera Converter enables you to extend SDI/HDMI camera signals up to 28 miles (45km) via a reliable optical fiber link. It supports talkback functionality, tally LEDs, and flexible monitoring options, making it perfect for rem...
View price on Amazon
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Extend Your Camera's Reach and Capabilities
The Blackmagic Design ATEM Camera Converter enables you to extend SDI/HDMI camera signals up to 28 miles (45km) via a reliable optical fiber link. It supports talkback functionality, tally LEDs, and flexible monitoring options, making it perfect for remote broadcast and production setups.
Specifications:
- Brand: Blackmagic Design
- Model: SWRCONV
- Type: Camera Converter
- Transmission Distance: Up to 28 miles (45km)
- Connectivity: SDI/HDMI inputs and outputs
- Talkback Function: Supports PC headsets or iPhone-compatible headphones
- Tally LEDs: 2 Tally LEDs
- Power: 12V power connection
Key Features
Ultra robust fiber optic converter
SDI video output: 10-bit 1 series (SD/HD switchable)
HDMI Video Input:HDMI 1 channel (A type terminal)
Talkback Audio: 1 x 3.5mm stereo terminal for talkback microphone
Talkback Audio: 1 x 3.5mm stereo terminal for stereo headphones
Analog Audio: Balanced 1/4" TRS (stereo) dual microphone level input
Analog Audio: Replace audio in SDI/HDMI input when connected
Fiber optic video output input: Single mode x 1 (LC terminal, SD/HD switchable)
Fiber optic audio output input: single mode camera audio input (LC terminal)
Fiber Optic Audio Output Input:Channel 1&2(Camera),Channel 15&16(Audio)
Computer interface: USB 2.0 x 1(for default, update, software control)
Specifications
SDI Video Output
10-bit 1 Series (SD/HD Switchable)
HDMI Video Input
1 Channel (A Type Terminal)
Talkback Audio Input
1 x 3.5mm Stereo Terminal (Microphone)
Talkback Audio Output
1 x 3.5mm Stereo Terminal (Headphones)
Analog Audio Input
Balanced 1/4" TRS (Stereo) Dual Microphone Level
Fiber Optic Video I/O
Single Mode x 1 (LC Terminal, SD/HD Switchable)
Fiber Optic Audio I/O
Single Mode Camera Audio Input (LC Terminal)
Fiber Optic Audio Channels
1&2 (Camera), 15&16 (Audio)
Computer Interface
USB 2.0 x 1 (Default, Update, Software Control)
Frequently Asked Questions
How does this converter integrate into a multi-camera live production setup?
This converter facilitates long-distance transmission from a camera to a switcher using single-mode fiber optic, with both SDI and HDMI inputs and outputs to bridge various camera types into your production system.
Can this device manage audio from the camera and external microphones simultaneously?
The analog audio input for balanced 1/4" TRS microphones is designed to replace the audio present in the SDI/HDMI input when connected, meaning it will prioritize the external microphone audio.
What type of fiber optic cable is compatible with this converter?
This converter is designed to work with single-mode fiber optic cables, utilizing LC terminals for both video and audio input/output.
Is this converter compatible with both standard definition and high definition video formats?
Yes, the SDI video output and fiber optic video input/output are both SD/HD switchable, providing flexibility for different production resolutions.
What is the purpose of the USB 2.0 computer interface on this unit?
The USB 2.0 interface is provided for essential functions such as device defaults, firmware updates, and software control, aiding in maintenance and configuration.
Does this converter support genlock for synchronizing multiple cameras?
Genlock capabilities are not specified in the available features for this converter, suggesting external synchronization methods may be required for multi-camera genlock setups.
