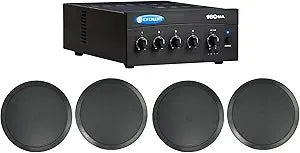

Crown 160MA + CC80T 70V Commercial Audio Amplifier & Speaker Kit — main product image

Crown 160MA + CC80T 70V Commercial Audio Amplifier & Speaker Kit

Crown

Crown 160MA + CC80T 70V Commercial Audio Amplifier & Speaker Kit

Name: Crown 160MA + CC80T 70V Commercial Audio Amplifier & Speaker Kit
Brand: Crown
SKU: 160MA+(2) CC80T Black

60W20w15w10w5w

Complete 70V commercial audio kit with Crown mixer-amplifier and two 8-inch ceiling speakers for restaurants, bars, and retail spaces.

View price on Amazon

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Crown 160MA amplifier bundle is designed as a plug-and-play commercial audio system for small to mid-sized venues like restaurants, bars, retail shops, and waiting rooms. The Crown 160MA mixer-amplifier serves as the central hub, providing 60 watts of output power across both 70V and 8-ohm configurations. Its four inputs—each with independent volume control—allow operators to connect a paging microphone, background music source, music-on-hold feed, and an additional audio source simultaneously. Input 1 includes a mic-level sensitivity of 3mV with 15VDC phantom power, making it ready for condenser paging microphones without an external preamp. Bass and treble tone controls provide basic sound shaping, and a line output allows daisy-chaining to additional amplifiers if needed.

The two included Rockville CC80T ceiling speakers feature 8-inch polypropylene cone woofers and Mylar dome tweeters, delivering a frequency response of 40Hz to 20kHz with 90dB sensitivity. The selectable 70V transformer taps (20W, 15W, 10W, 5W, and 2.5W) give installers flexibility to balance volume levels across zones. With a 9.3-inch cutout diameter and just 3.03 inches of mounting depth, they fit into most standard drop ceilings and drywall installations. The black, paintable grilles allow for unobtrusive integration into any décor. For a small venue needing clean background audio and basic paging capability, this bundle provides the essential components in a single purchase.

Key Features

Package Includes: (1) Crown 160MA Commercial/Restaurant 4 Input 60 Watt 70V Volt 8 Ohm Mixer Amplifier. (2) Pair of RockvilIe CC80T Black 8" Commercial 70v Ceiling Speakers For Restaurant/Bar. Features: Crown Commercial/Restaurant 160MA 4 Input 60 Watt 70 Volt, 8 Ohm Mixer with Amplifier. Frequency Response: 50 Hz - 20kHz. Signal-to-Noise Ratio: > 58 dB - 78 dB

THD + Noise: < 0.5% at rated power at 1 kHz, 0.1% at 5W at 1 kHz. Input Sensitivity: Input 1: Mic 3mV, Line 800 mV, Input 2: 400mV, Input 3: 400mV. Input Impedance: 2.2 kOhms - 10 kOhms. Crosstalk: -82 dB at 1 kHz. Line Output Level: 1V into 10 kOhms. Phantom Power: 15 VDC. AC Line Voltages Available: Universal Power Supply. Line voltage tolerance +15%, -20%. IEC Power Connector: 15A

4 inputs (each with a volume control), and one 60W amplifier output channel in 160MA. Ideal for paging, background music, and music-on-hold. Balanced Phoenix-type mic/line input, telephone output, dual RCA stereo music inputs, screw-terminal speaker outputs. Priority muting by VOX or external switch. Bass and Treble controls on master output

Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications. Product Dimensions (H x W x D): 4.1" x 9.5" x 13.9" inches. Product Weight: 8 Lbs. Features: Pair of RockvilIe CC80T Black 8 Commercial 70v In-Ceiling Speakers for Restaurant/Bar/Cafe. 70V Power Options: 20w. 15w. 10w. 5w. 2.5w. Polypropylene Cone. Rubber Surround. 8 Woofer

1 Aluminum Voice Coil. Mylar Dome Tweeter. 20 oz. Ferrite Magnet. High Quality Spring Loaded Push Terminals. Aim-able Swivel Tweeter. Paintable Flush Mount Grills. Frequency Response: 40Hz 20KHz. Sensitivity: 90dB @ 1w / 1m. Impedance: 8 Ohms. Mounting Depth: 3.03. Cut-out Diameter: 9.3. Color: Black (paintable). 70V Power Options: 20w. 15w. 10w. 5w. 2.5w. 2.5w. 8 Ohm power handling: 50w

Specifications

Amplifier Model

Crown 160MA

Amplifier Power Output

60W (70V / 8 Ohm)

Amplifier Inputs

4 (each with volume control)

Frequency Response (Amp)

50 Hz – 20 kHz

Signal-to-Noise Ratio

58 dB – 78 dB

THD + Noise

<0.5% at rated power (1 kHz), 0.1% at 5W (1 kHz)

Phantom Power

15 VDC

Amplifier Dimensions

4.1 x 9.5 x 13.9 inches

Amplifier Weight

8 lbs

Speaker Model

Rockville CC80T (x2)

Woofer

8" Polypropylene Cone

Tweeter

Mylar Dome

Speaker Frequency Response

40 Hz – 20 kHz

Speaker Sensitivity

90 dB @ 1W/1m

Speaker Impedance

8 Ohms

70V Tap Settings

20W, 15W, 10W, 5W, 2.5W

8 Ohm Power

50W

Cutout Diameter

9.3 inches

Mounting Depth

3.03 inches

Speaker Color

Black (paintable)

Pros & Cons

👍 Pros

All-in-one kit eliminates the guesswork of matching amplifier and speakers for a commercial install
Crown 160MA's four individually controlled inputs handle paging, background music, and music-on-hold from a single unit
Selectable 70V tap wattages on each speaker allow fine-tuning volume across different zones
Ceiling speakers have a shallow 3.03-inch mounting depth, fitting in most standard ceiling cavities

👎 Cons

60W total amplifier output limits expansion beyond two or three speakers at moderate tap settings
4GB RAM is limited — correction: the 160MA lacks wireless or Bluetooth input, requiring wired connections for all sources
Speakers are passive with no built-in EQ, so room acoustics adjustments depend entirely on the amplifier's basic bass and treble controls
Amplifier's signal-to-noise ratio of 58–78 dB is modest, which may introduce audible hiss at very low volume levels

Frequently Asked Questions

What is included in this bundle?

The bundle includes one Crown 160MA mixer-amplifier with 60W output and two Rockville CC80T 8-inch ceiling speakers in black.

Can I connect both a microphone for paging and a music source at the same time?

Yes, the Crown 160MA has four independent inputs with individual volume controls, so you can run a paging microphone on Input 1 and music sources on the remaining inputs simultaneously.

What tap wattage settings are available on the ceiling speakers?

Each CC80T speaker offers selectable 70V tap settings at 20W, 15W, 10W, 5W, and 2.5W, as well as an 8-ohm direct mode rated at 50W.

How large a hole do I need to cut for the ceiling speakers?

Each speaker requires a 9.3-inch diameter cutout with a mounting depth of 3.03 inches.

Can the speaker grilles be painted to match the ceiling?

Yes, the black grilles are paintable, allowing them to blend with any ceiling color.
