Crown

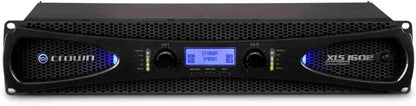

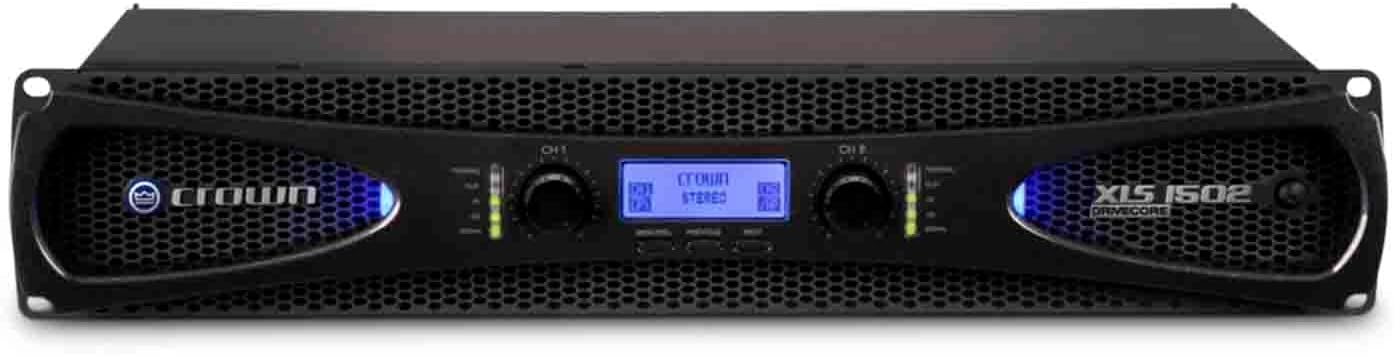

Crown XLS1502 Power Amplifier - 525W - Renewed
★★★★★
525W775W300WXLR11 lb
Powerful and Efficient Sound Amplification Introducing the Crown XLS1502 Power Amplifier. Delivering robust power in a lightweight design, this renewed two-channel amplifier is perfect for live sound reinforcement and professional audio applications. Specifications: * Brand: Crown * Model: ...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Powerful and Efficient Sound Amplification
Introducing the Crown XLS1502 Power Amplifier. Delivering robust power in a lightweight design, this renewed two-channel amplifier is perfect for live sound reinforcement and professional audio applications.
Specifications: * Brand: Crown * Model: XLS1502 * Channels: Two-channel * Power: 525W at 4Ω * Amplifier Class: D * RenewedKey Features
Class D amp with Crown ultra-efficient drive Core technology weighs less than 11 lb. (5 kg)
Higher DSP capabilities: more control; has band pass filter per channel
Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
Selectable input sensitivity; 1.4VRMS and .775VRMS options so that amp can be driven At full power
Set sleep mode after specified time without having to press a button

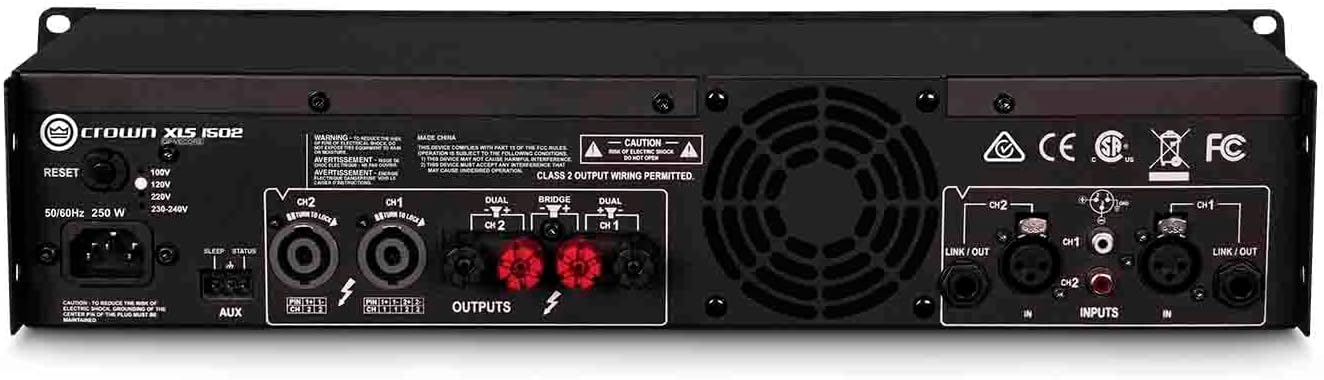

Input: balanced XLR (x2), ¼” TRS (x2), RCA jacks (x1 pair); output: ¼” speaker (x2)
Power: 775W at 2ω, 525W at 4Ω, 300W at 8Ω
Ac input voltage: 100 – 240VAC (10%), 50/60Hz
Specifications
Amplifier Class
Class D
Technology
Crown ultra-efficient DriveCore
Weight
Less than 11 lb. (5 kg)
DSP Capability
Band pass filter per channel
Lighting Functionality
Selectable LED indicators (clip and thermal remain)
Input Sensitivity Options
1.4VRMS and .775VRMS
Power Output (2Ω)
775W
Power Output (4Ω)
525W
Power Output (8Ω)
300W
AC Input Voltage
100 – 240VAC (±10%)
AC Input Frequency
50/60Hz
Inputs
Balanced XLR (x2), ¼” TRS (x2), RCA jacks (x1 pair)
Outputs
¼” speaker (x2)
Pros & Cons
👍 Pros
- Utilizes Class D amplification with Crown's DriveCore technology, resulting in a lightweight design under 11 lbs. (5 kg).
- Offers enhanced DSP capabilities, including a band pass filter per channel for precise audio tailoring.
- Features increased lighting functionality, allowing users to disable all LED indicators except clip and thermal for reduced distraction in dark environments.
- Provides selectable input sensitivity with 1.4VRMS and 0.775VRMS options, enabling full power drive from various sources.
- Includes a sleep mode that can be set to activate after a specified period of inactivity without requiring a button press.
👎 Cons
- Being a renewed product, its long-term reliability may not match that of a brand-new unit.
- The power output of 775W at 2Ω is only achievable at that specific impedance, limiting maximum power for higher impedance loads.
- While featuring increased DSP capabilities, specific details about other DSP functions beyond the band pass filter are not provided.
- The input and output connection options are limited to balanced XLR, ¼” TRS, RCA, and ¼” speaker, which may not cover all professional audio needs.
- Information regarding a warranty or return policy for this renewed item is not explicitly detailed within the product features.
Frequently Asked Questions
What kind of venues is this amplifier suitable for?
The selectable input sensitivity and increased lighting functionality for dark venues suggest it is well-suited for live sound applications where discreet operation and flexible input options are beneficial.
Can this amplifier be integrated into a rack system?
While rack-mountable, the product emphasizes its lightweight nature (under 11 lb.), making it a practical choice for portable rigs as well as fixed installations.
What are the DSP capabilities of this amplifier?
This amplifier features enhanced DSP capabilities, specifically including a band pass filter per channel, allowing for more precise audio control.
Is it possible to use this amplifier with various input sources?
Yes, it offers selectable input sensitivity options (1.4VRMS and .775VRMS) and multiple input types (XLR, TRS, RCA), allowing it to be driven at full power from different source levels.
Does this renewed amplifier come with a warranty?
The listing specifies it is a "Renewed" product; however, details regarding the specific warranty for this renewed item are not provided in the features.
