Elite Screens Q150HD1 QuickStand Drape 150

Elite Screens

Elite Screens Q150HD1 QuickStand Drape 150" Projector Screen

Name: Elite Screens Q150HD1 QuickStand Drape 150" Projector Screen
Brand: Elite Screens
SKU: Q150HD1

★★★★★5.0 (1 reviews)

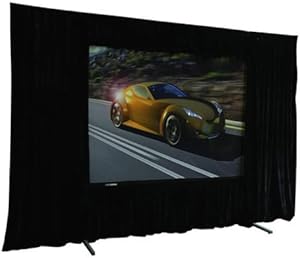

A 150-inch portable projection surface that self-erects in seconds and travels in its own wheeled road case — ready for professional presentations anywhere.

$1,923.00*

Check availability

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Elite Screens QuickStand Drape Q150HD1 addresses a specific operational gap in presentation logistics: deploying a large-format projection surface quickly, by a single operator, in a venue that may offer no permanent rigging infrastructure. At 150 inches diagonal in a 16:9 format, it targets corporate events, educational conferences, house-of-worship programs, and rental inventories where a 130.7" × 73.6" viewable image needs to be available on short notice across variable room configurations. The dual cross spring frame mechanism is the defining differentiator — the screen self-erects with a single upward pull, eliminating any assembly sequence between the case and a presentation-ready surface.

The MaxWhite FG screen material combines a fiberglass backing with a textured front surface rated for 1.1 gain, 180-degree horizontal viewing angle, and compatibility with 4K Ultra HD and Active 3D projection sources. The full black backing eliminates rear light bleed for front-projection use in non-blackout environments. The entire assembly travels and stores in a production-grade wheeled road case with carry handle and locking latches, ensuring the screen is always pre-packed and ready to load without additional packaging. Elite Screens backs the unit with a 2-year standard or 3-year ENR-G warranty and lifetime technical support — a defined service path that matters for rental operators running the screen on high-frequency deployment schedules.

Key Features

Projector Screen Size: 150-inch Diagonal, 16:9 Aspect Ratio. View Size: 73.6" H x 130.7" W. Overall Size: 130.0" H x 138.8" W x 8.9" D. GreenGuard and GreenGuard GOLD.

Screen Material: MaxWhite FG, 1.1 Gain. Fiberglass-backed, 180 degree wide viewing angle, fully black backed front projection screen with textured surface. 4K Ultra HD and Active 3D Projection Ready. Easy to clean with mild soap and water.

Fast-operating portable presentation screen quickly sets up in seconds by simply pulling up due to innovative dual cross spring design.

Screen assembly comes fully integrated in a heavy duty, built-in, travel stage case with wheels, handle, and secure locking latches. Includes elegant drape kit for enhanced aesthetics and professional presentation.

【US Based Company Warranty】 2-Year/3-Year ENR-G Manufacturer's Warranty by Elite Screens if purchased NEW, an ISO9001 manufacturer since 2004 and Lifetime Tech Support by Email or Phone Call by Elite Screens' Professional Service Team.

Specifications

Screen Size

150-inch Diagonal

Aspect Ratio

16:9

Viewable Height

73.6 inches

Viewable Width

130.7 inches

Overall Height

130.0 inches

Overall Width

138.8 inches

Overall Depth

8.9 inches

Screen Material

MaxWhite FG

Gain

1.1

Viewing Angle

180 degrees

Projection Ready

4K Ultra HD and Active 3D

Setup Mechanism

Dual Cross Spring Design

Travel Case

Heavy Duty, Built-in with Wheels and Handle

Certifications

GreenGuard and GreenGuard GOLD

Pros & Cons

👍 Pros

Dual cross spring mechanism deploys the full 150-inch screen in seconds with no tools and no additional crew.
Integrated wheeled road case with locking latches means the unit ships, stores, and loads as a fully self-contained system.
MaxWhite FG fiberglass-backed material provides a 180-degree wide viewing angle, maintaining image quality for off-axis seating common in large venue setups.
1.1 gain is neutral and consistent across the entire surface, avoiding the hot-spot artifacts that appear on higher-gain materials.
GreenGuard and GreenGuard GOLD certification qualifies it for presentations in green-rated venues and sensitive institutional environments.

👎 Cons

Erected footprint of 138.8" W × 130.0" H requires substantial room depth and ceiling clearance — not suitable for small conference rooms or low-ceiling spaces.
The 1.1 gain demands a projector with adequate lumen output; this material will not compensate for underpowered sources in ambient light.
The drape kit, while adding a polished look, slightly increases setup time compared to bare-frame deployment when speed is the only priority.
The integrated case, while convenient, adds bulk and total shipping weight — not a viable option for air freight without additional logistics planning.

Frequently Asked Questions

How long does actual setup and breakdown take on the Q150HD1?

Setup is measured in seconds — the dual cross spring design snaps the frame upright with a single upward pull. Full deployment including the drape kit takes under two minutes. Breakdown is equally fast, collapsing back into the integrated wheeled case without disassembly.

Is the MaxWhite FG material compatible with 4K and HDR projectors?

Yes. The MaxWhite FG surface is rated 4K Ultra HD and Active 3D ready, with a 1.1 gain that performs well with modern short-throw and long-throw projectors in controlled ambient light.

What is the actual viewable image area versus the overall footprint?

The viewable area is 73.6" H × 130.7" W at 16:9. The erected overall unit footprint is 130.0" H × 138.8" W × 8.9" D — site planning for throw distance and ceiling clearance is required before deployment.

Can the MaxWhite FG surface be cleaned after use at an event?

Yes. The fiberglass-backed surface can be cleaned with mild soap and water, making it serviceable for rental inventories and high-traffic presentation programs.

Does the road case come included, or is it a separate purchase?

The screen ships fully integrated in a heavy-duty travel stage case with wheels, handle, and secure locking latches — no separate case purchase required.
