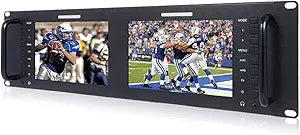

FEELWORLD D71: 3RU Dual 7" 3G SDI Broadcast Rack Monitor
1080x800
Professional Monitoring in a Compact Package: FEELWORLD D71 Rack Mount MonitorThe FEELWORLD D71 is a dual 7-inch 3RU rack mount monitor designed for broadcast and professional video applications. Featuring two high-resolution IPS screens, comprehensive input/output options, and network control ca...
$559.99*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Professional Monitoring in a Compact Package: FEELWORLD D71 Rack Mount Monitor
The FEELWORLD D71 is a dual 7-inch 3RU rack mount monitor designed for broadcast and professional video applications. Featuring two high-resolution IPS screens, comprehensive input/output options, and network control capabilities, the D71 provides exceptional monitoring performance in a space-saving design.
Specifications:
- Screen Size: Dual 7-inch
- Resolution: 1280x800
- Panel Type: IPS
- Brightness: 400nit
- Viewing Angle: 178°/178°
- Inputs: 3G-SDI x 1 (per screen), HDMI x 1 (per screen), CVBS x 1 (per screen), Audio (L/R) x 2 (per screen)
- Outputs: 3G-SDI x 1 (per screen), HDMI x 1 (per screen), Video x 1 (per screen), Stereo Headphone (per screen)
- Control: Ethernet (Software Control Included)
- Tally Light: 3-Color (Red, Green, Yellow) via DB-9 Input
Key Features
7" 3RU Rack Monitors with dual 7” IPS 1080x800 screens, viewing SD, HD and 3G-SDI video on 3RU rack monitor.With GPIO for Software control via Ethernet connection. D71 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you’ll be able to see accurate, consistent and bright images from any point of view.
Easy to operate, time-saving:Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.
Multiple Inputs and Outputs:SDI / HDMI / CVBS / Audio. 3-color Tally Light:DB-9 input signal.There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.
Network Control:D71 rack mount Monitor includes a LAN port,This allows the operator to Software control via Ethernet connection (software included).The user can then control multiple networked D71 monitor at once using a single Software.
Specifications
Display Size
Dual 7-inch
Resolution
1080x800
Panel Type
IPS
Viewing Angle
178°/178°
Brightness
400nit
Rack Unit Size
3RU
Video Inputs
SDI, HDMI, CVBS
Audio Inputs
Yes
Control Interface
GPIO, Ethernet (LAN)
Tally Light Colors
Red, Green, Yellow (3-color)
Pros & Cons
👍 Pros
- Features dual 7-inch IPS screens with 1080x800 resolution, providing clear visuals and wide viewing angles.
- Offers a bright 400nit output, ensuring images are visible and consistent from various perspectives.
- Supports multiple input and output options including SDI, HDMI, CVBS, and Audio for broad compatibility.
- Equipped with GPIO and a LAN port for software control via Ethernet, enhancing operational flexibility.
- Includes 3-color Tally lights for each screen, providing clear visual cues in a live production environment.
👎 Cons
- Requires a 3RU rack space for installation, which may not be suitable for all monitoring setups.
- The 1080x800 resolution, while HD, is not full 1080p, potentially impacting detail on larger setups.
- The design style is consistent across products, which might limit customization options for individual users.
- Specific details on the included software for network control are not extensively outlined.
- Power consumption and specific dimensions are not provided in the feature list.
Frequently Asked Questions
What is the resolution of the screens on the FEELWORLD D71 monitor?
The FEELWORLD D71 features dual 7-inch IPS screens with a resolution of 1080x800.
Can this monitor be controlled remotely?
Yes, the D71 includes a LAN port for network control, allowing operators to manage multiple networked monitors via an Ethernet connection using included software.
What kind of viewing experience do the IPS panels offer?
The IPS panels provide a wide 178°/178° viewing angle and a brightness output of up to 400nit, ensuring accurate, consistent, and bright images from any perspective.
What input and output options are available on this monitor?
The monitor supports multiple inputs and outputs including SDI, HDMI, CVBS, and Audio, making it versatile for various broadcast setups.
Does the FEELWORLD D71 include Tally lights?
Yes, there are front TALLY lights for each screen with 3 colors (Red, Green, Yellow), which are controlled via DB-9 ports on the rear panel.
