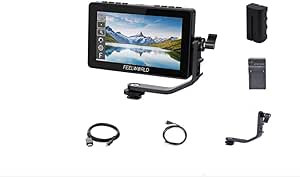

FEELWORLD F5 Pro 5.5" 4K HDMI Touch Screen Monitor Kit

Name: FEELWORLD F5 Pro 5.5" 4K HDMI Touch Screen Monitor Kit
Brand: FEELWORLD
SKU: F5 Pro

★★★★★4.7 (13 reviews)

Compact 5.5" touchscreen field monitor with 1600-nit brightness, 4K HDMI pass-through, and versatile power options for on-set monitoring.

$159.99*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The FEELWORLD F5 Pro is a 5.5-inch IPS field monitor built for filmmakers and content creators who need reliable on-camera monitoring without bulk. Its 1920x1080 panel delivers accurate color reproduction, while the 1600-nit peak brightness ensures the image remains visible under harsh daylight — eliminating the need for a clip-on sunhood in most outdoor situations. The capacitive touchscreen provides intuitive control over monitoring tools and display settings, complemented by physical buttons and three user-assignable function keys for quick access to frequently used features.

On the connectivity side, the F5 Pro accepts 4K HDMI signals at up to 30Hz and passes them through to a second device via its HDMI output, making it easy to integrate into a monitoring chain or feed a separate recorder. Power flexibility is a standout feature: you can run it from an NP-F series battery, a 12V DC adapter, or a standard 5V USB Type-C power bank, and the 8.4V DC output can even supply power to a compatible DSLR. With four 1/4-inch mounting points spread across the chassis, the monitor attaches securely to camera cages, magic arms, and light stands in both horizontal and vertical orientations. The kit includes a battery, charger, and tilt arm, so it is ready to deploy straight out of the box.

Key Features

【Touch screen control sensitive】 The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Besides, it can also be controlled by button, more option. In addition, there are three custom shortcut function keys(F1-F3).

【High bright 1600 nits daylight viewable】No need to sue sunhood. 3D-LUT, touch screen. 4K HDMI input and output, support 30 Hz signal,transmitted without loss and the screen is clearer.

【Multiple mounting points,】Meet different need of monitoring. The monitor features 4 standard 1/4” mounting threads (top, bottom,right side, middle, back) you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.

【Multi languages support】Satisfy different needs. F5 PROX built-in up to 11 languages, meets the different countries needed, such as English,German,Spanish,French, Korean, Dutch,Japanese,Portuguese,Russian,Chines,Traditional Chinese.

【Multiple power supply ways and DC out】 In additional to the power supply through NP-F battery plate and 12V DC power input (can be using 12V/1.5A adapter), it also supports 5V Type-C input, which can be powered by mobile phone charger or power bank.(At least 5V/2A). It can also provide auxiliary DC power out 8.4V, power your DSLR.

Specifications

Brand

FEELWORLD

Model

F5 Pro

Screen Size

5.5 inches

Panel Type

IPS

Resolution

1920 x 1080

Brightness

1600 nits

HDMI Input

4K at 30Hz

HDMI Output

4K loop-through

Touch Screen

Yes

Power Input

DC 7–24V / 5V Type-C / NP-F Battery

DC Output

8.4V auxiliary

Mounting

4x 1/4"-20 threaded holes

3D LUT Support

Yes

Languages

11 (English, German, Spanish, French, Korean, Dutch, Japanese, Portuguese, Russian, Chinese, Traditional Chinese)

Pros & Cons

👍 Pros

1600-nit brightness allows clear viewing in direct sunlight without a sunhood
Three flexible power options including USB Type-C for convenient on-location charging
Touchscreen interface with additional physical buttons and custom shortcut keys for fast adjustments
Four 1/4-inch mounting points on top, bottom, side, and back for versatile rigging
HDMI loop-out enables pass-through to a recorder or second display without signal loss

👎 Cons

4K input is limited to 30Hz, so 4K 60fps sources will not display at full frame rate
5.5-inch screen can feel small for critical focus checks when monitoring from a distance
Touch controls may register accidental inputs when adjusting the monitor's position during shooting
No built-in SDI connectivity, limiting use in professional broadcast setups

Frequently Asked Questions

What is the maximum resolution this monitor can accept via HDMI?

The F5 Pro accepts 4K signals up to 3840x2160 at 30Hz through its HDMI input. The panel itself displays at 1920x1080 Full HD resolution.

Can I power the monitor with a USB power bank?

Yes. The F5 Pro supports 5V Type-C input, so you can power it from a mobile charger or power bank rated at least 5V/2A, in addition to NP-F batteries and 12V DC input.

Does the HDMI output pass through the full 4K signal?

Yes. The HDMI output loops through the 4K signal without loss, allowing you to send a clean feed to a recorder or secondary monitor while monitoring on the F5 Pro.

Can this monitor power my camera?

The F5 Pro has an 8.4V DC output that can supply auxiliary power to compatible DSLRs and mirrorless cameras, reducing the number of batteries you need to manage on set.

How does the touchscreen work alongside the physical buttons?

You can use tap and swipe gestures on the touchscreen for monitoring functions, or use the physical buttons and three customizable shortcut keys (F1–F3) — whichever you prefer.
