FEELWORLD F5-US 6 Inch 4K HDMI Touch Screen Monitor
FEELWORLD F5-US 6 Inch 4K HDMI Touch Screen Monitor
FEELWORLD F5-US 6 Inch 4K HDMI Touch Screen Monitor
FEELWORLD F5-US 6 Inch 4K HDMI Touch Screen Monitor
FEELWORLD F5-US 6 Inch 4K HDMI Touch Screen Monitor
FEELWORLD F5-US 6 Inch 4K HDMI Touch Screen Monitor
FEELWORLD

FEELWORLD F5-US 6 Inch 4K HDMI Touch Screen Monitor

★★★★★4.5 (100 reviews)
4K6 Inch

A field-capable 6-inch touchscreen monitor with 4K HDMI loop-out and custom 3D LUT support built for run-and-gun and documentary production.

View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

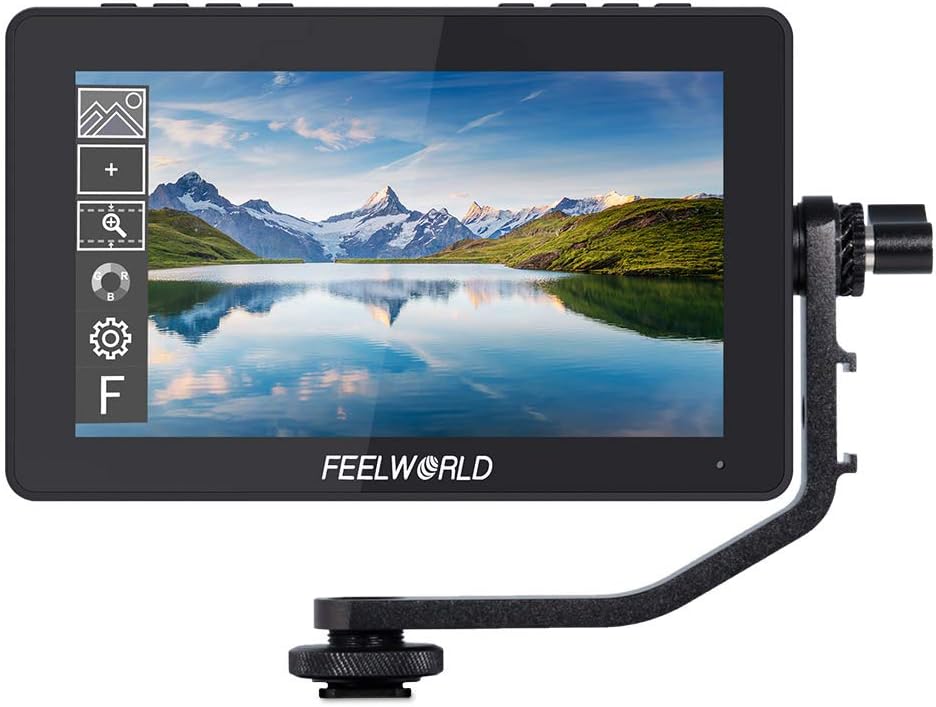

The FEELWORLD F5-US slots into a single-camera or small multicam production workflow as an on-camera or cage-mounted director's monitor. At 6 inches with a 1920×1080 panel, it's sized for close-range critical evaluation — focus confirmation, exposure checking via false color, and composition framing — rather than wide-throw viewing. The 4K HDMI loop-out is the feature that elevates it above basic confidence monitors: it allows camera output to pass through to an external recorder or second monitor without signal interruption, making it a functional signal distribution point in a lean production chain. Support for 32 custom 3D LUTs loaded via SD card means colorists can prep viewing transforms in advance and camera operators can evaluate log footage against a known target without a dedicated LUT box on the rig.

Build quality is consistent with FEELWORLD's mid-tier field monitor line — aluminum chassis, threaded 1/4-20 mounting points on four faces, and a capacitive touchscreen that responds cleanly but includes a lockout mode for rigged or high-vibration environments. The inclusion of a tilt arm, sunshade, and micro HDMI cable in-box reduces day-one accessory sourcing. Power flexibility — NP-F battery plate, 12V DC, and 5V USB-C — makes it adaptable from studio setups to power bank-fed gimbal rigs. The 450 cd/m² brightness handles controlled interiors well; for exterior work in partial sun, the included sunshade is necessary. For productions operating inside a traditional broadcast signal chain requiring SDI connectivity, a different monitor class will be required.

Key Features

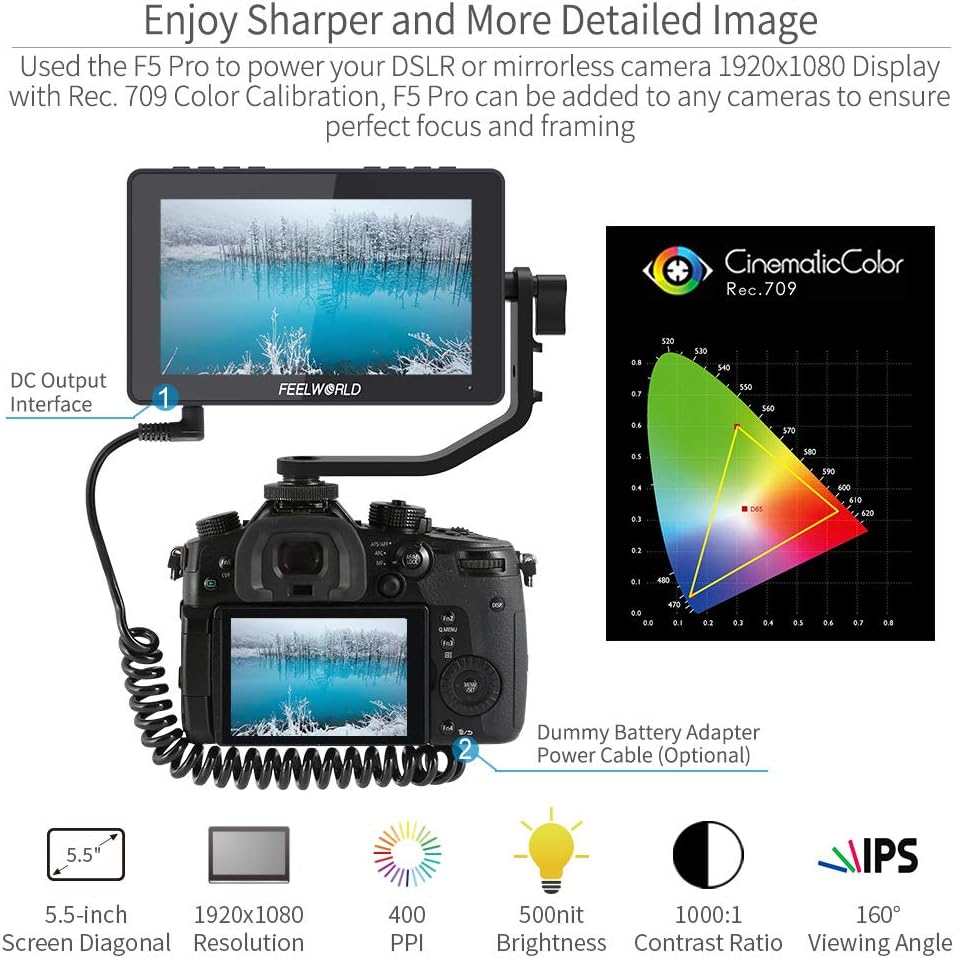

6" LCD, High resolution: video camera monitor features a 6" LCD touchscreen monitor, 1920*1080 high resolution and 16:9 display, 450cd/m2 brightness, 1000:1 contrast ratio. with the 160-degree viewing angle, RCE-709 HD colour standard, the monitor deliver excellent detail, so you can enjoy the sharper and richer colour image."

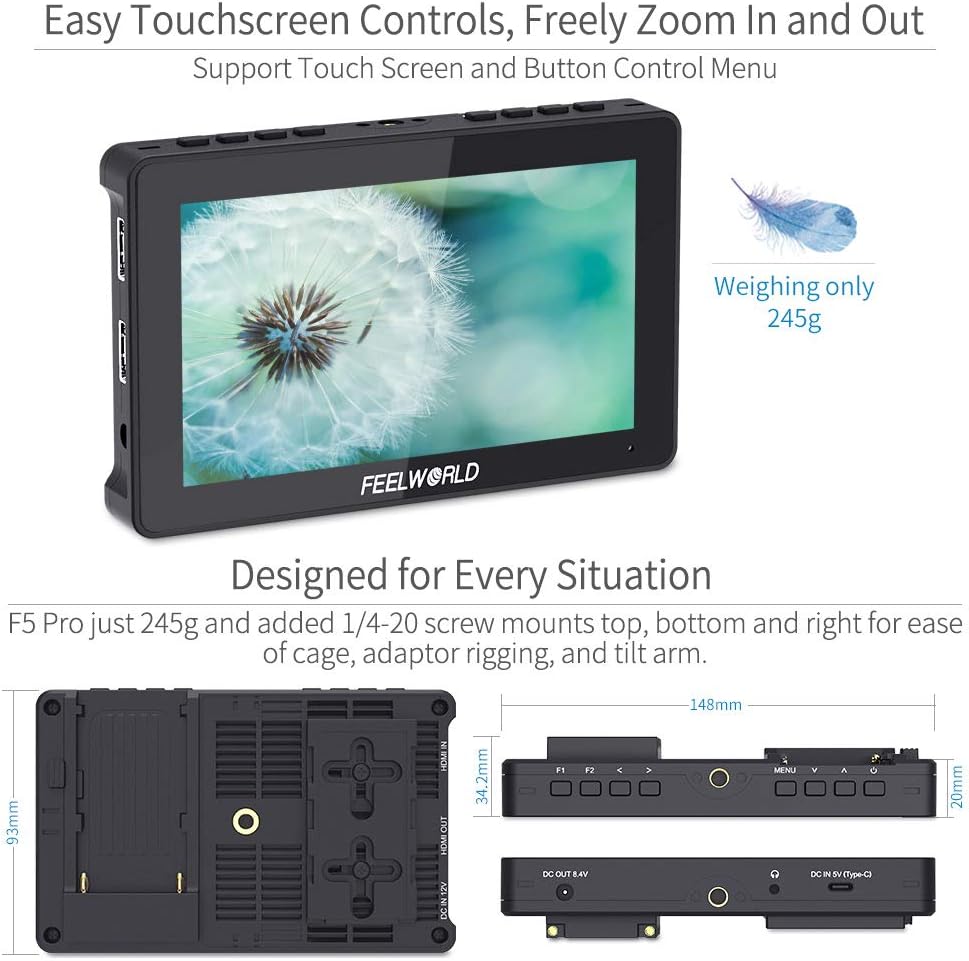

Full touchscreen control: The F5 Pro adopts full touchscreen control, you can freely zoom in and out with the pinch-to-zoom gesture. The built-in monitor is also an interactive touchscreen that makes setting up the F5 Pro incredibly intuitive, which allows you to use simple tap and swipe gestures to change function settings. When you need to turn off the touch screen function to prevent misuse, you can turn it off in the menu setting function."

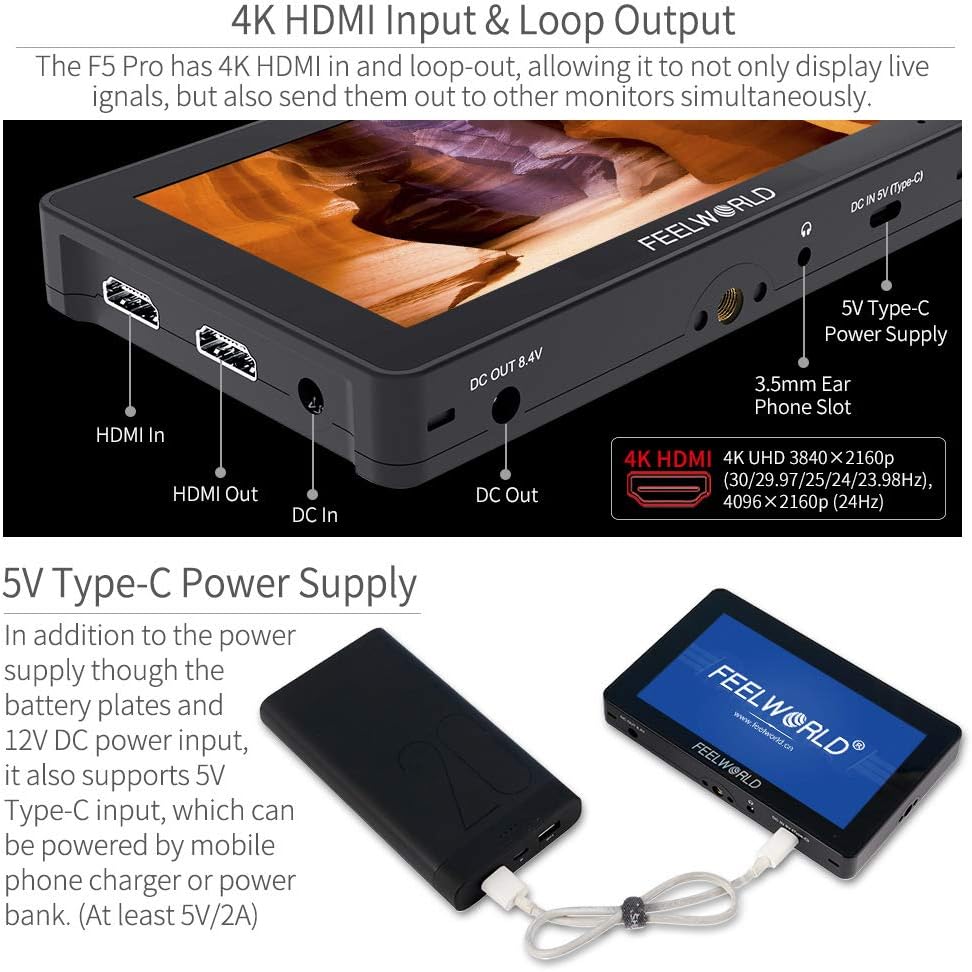

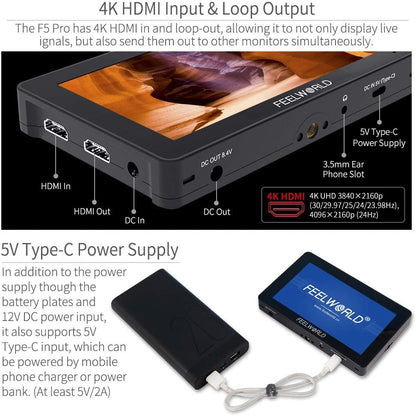

4K HDMI Input & Output: The F5 Pro has 4K HDMI IN and loop-out, allowing it to not only display live signals but also send them out to other monitors simultaneously. It's the ability to display a live picture on multiple displays at once while still maintaining the original video quality. plus, you can monitor audio using the 3.5mm stereo headphone jack. "

Support Professional Custom 3D LUT:FEELWORLD F5PROV4 DSLR video monitor has the function of loading up to 32 sets of LUT files for color calibration through the attached SD card (built-in log file). Just a choice to load a professional LUT, your material will become a professional production with rich colors. Our DSLR monitor 3D LUT Features perfect realize the monitor of pictures and video effects by photographers and directors.

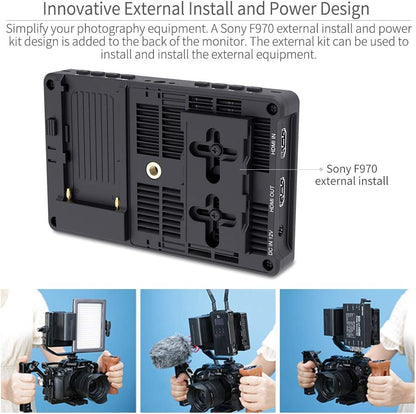

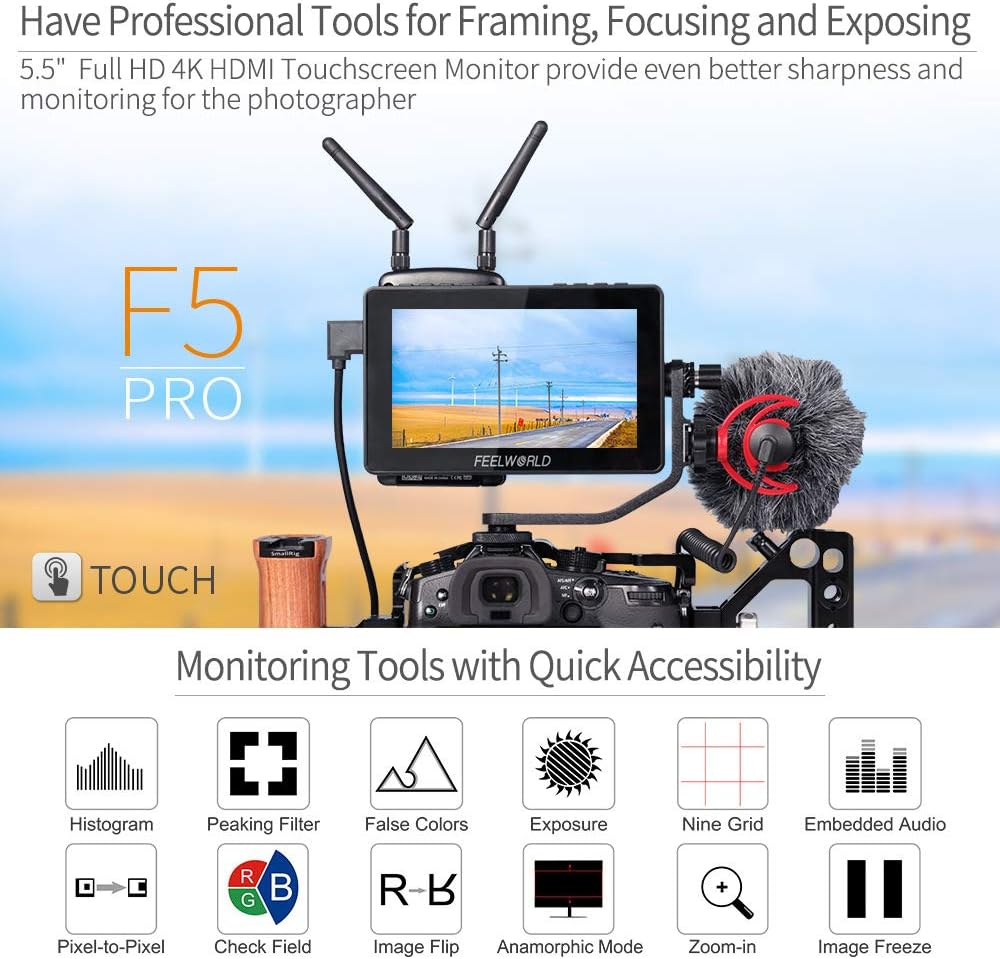

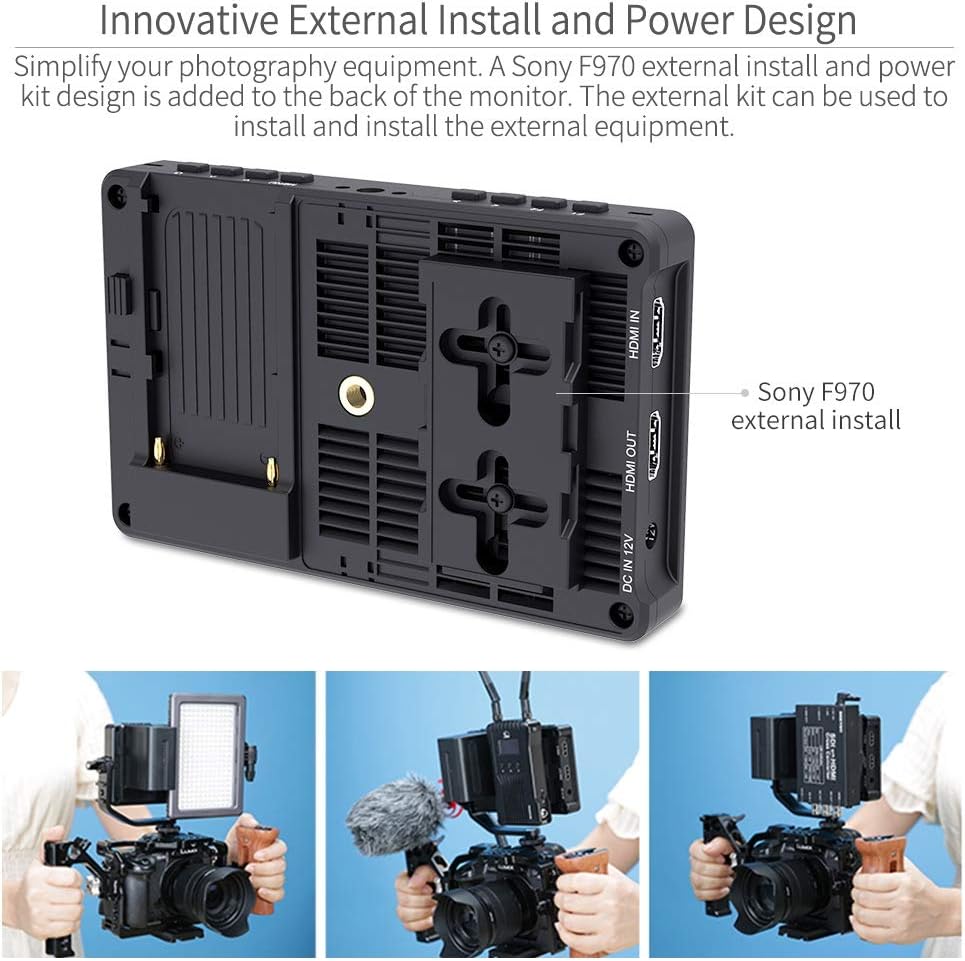

Advanced Functions & Multiple Power Supply ways: A variety function is built into the monitor including Histogram, False-colour, Zebra exposure, Nine-grid, Zoom, Pixel-to-pixel, Center marker, Safe area, Ratio marker, Check field, Image flip etc.In addition to the F970 battery plate and 12V DC power input, the F5 pro also supports 5V Type-C input, which can be powered by mobile phone charger or power back (at least 5V/2A). Note: The 5V Type-C port is only used for power supply.

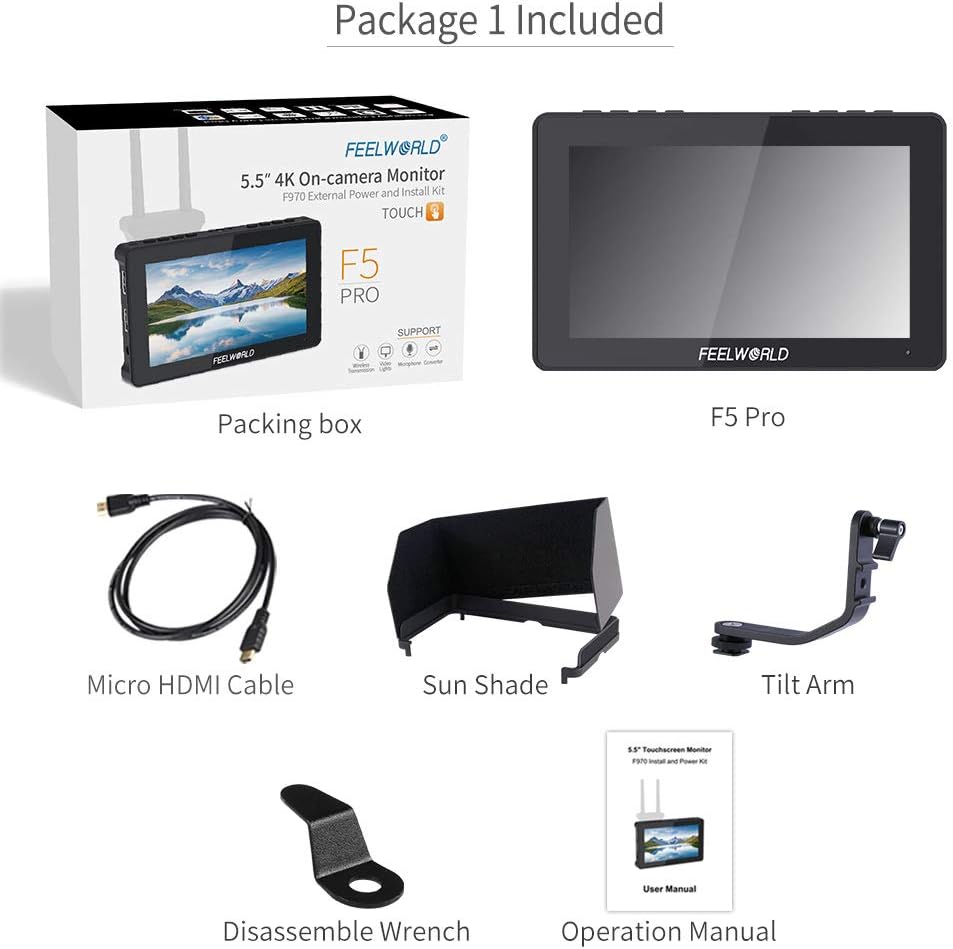

Package Including:1xmonitor+1× Micro HDMI Cable+1× Tilt Arm+1× Sunshade+1× TYPE-C to USB+1× Disassemble Wrench+1× Manual( note: this package no including battery, but you can look for B0CT38FSRP to find the F750 battery for F5PROV4)

Specifications

Screen Size
6 inches
Display Type
LCD Touchscreen
Resolution
1920x1080
Brightness
450cd/m2
Contrast Ratio
1000:1
Viewing Angle
160-degree
Color Standard
RCE-709 HD
HDMI Input
4K HDMI IN
HDMI Output
4K HDMI Loop-out
Audio Output
3.5mm stereo headphone jack
LUT Support
Custom 3D LUT (up to 32 sets via SD card)
Power Input Options
F970 battery plate, 12V DC, 5V Type-C (at least 5V/2A)

FEELWORLD F5 6" 4K HDMI Touch Screen Monitor — Editorial Review & Use Cases

The FEELWORLD F5 is a 6-inch on-camera field monitor with 4K HDMI input pass-through, capacitive touchscreen UI, and the standard video-monitoring toolset (waveform, histogram, vectorscope, false color, peaking focus assist, LUT load, 3D LUT calibration, anamorphic de-squeeze). Per FEELWORLD's official product page family, the F5 targets the budget tier (~$140-180) below Atomos Ninja V (~$700) and SmallHD Focus (~$700+), with HDMI-only input (no SDI) and 1080p native panel resolution despite the 4K HDMI signal handling.

What the F5 Specifically Wins

  • Full monitoring toolset at budget price — waveform, histogram, vectorscope, false color, peaking focus assist, audio level meters, anamorphic de-squeeze, and 3D LUT preview at ~1/4 the price of equivalent Atomos / SmallHD monitors
  • 4K HDMI input pass-through — accepts 4K signal from cameras and downscales for the 1080p display; HDMI loop-out feeds downstream recorders or switchers
  • Capacitive touchscreen UI — pinch to zoom, tap-to-focus-assist, intuitive menu navigation. Markedly faster than dial-and-button workflows on legacy monitors
  • 1080p native panel with 400 nits brightness — adequate for indoor / overcast outdoor monitoring. Direct sunlight reads as washed-out (a limit of this price tier)
  • Standard 1/4"-20 + 3/8"-16 threads — drops onto any camera cage, monopod, magic arm
  • NP-F battery plate — runs on widely-available NP-F550 / 750 / 970 Sony batteries (standard in indie production)

Where the F5 Specifically Fits

  • Indie filmmakers / YouTubers who need monitoring beyond the camera LCD but can't justify $700+ Atomos / SmallHD pricing
  • Camera operators on indie / small-set productions for handheld + tripod monitoring
  • Wedding videographers running A-cam + B-cam where each operator gets a monitor
  • Documentary / run-and-gun shoots where a compact monitor improves focus + framing without budget impact
  • Student / film school productions
  • Solo content creator vlog rigs where the camera is reversed (selfie-style) and the monitor surfaces what the lens sees
  • Stop-motion / animation production using LUT preview for color-managed shots

Honest Limits Buyers Should Know

  • HDMI only — no SDI input. Professional broadcast / cinema cameras with SDI output need an SDI-to-HDMI converter before the F5
  • 1080p panel — not a 4K monitor. The F5 accepts 4K HDMI but displays at 1080p. For pixel-accurate 4K critical-focus monitoring, step up to Atomos Ninja V (1500-nit, 5" 1080p) or SmallHD 5T (4K accurate)
  • 400 nit brightness — direct sunlight problem. Outdoor noonday shoots wash out the screen. Bright-environment monitoring needs SmallHD Focus Bolt (1500 nit) or Atomos Ninja V+ (1500 nit) — both ~5x the F5's price
  • No HDR processing pipeline. The F5 displays SDR / 709 well; HDR workflows (Sony / Canon / Panasonic LogC, HLG, PQ) need monitors with proper HDR LUT pipelines (Atomos Ninja V+ HDR, SmallHD Focus / Focus 7 HDR variants)
  • No internal recording. The F5 is monitor-only. For monitor + recorder, step up to Atomos Ninja V (records ProRes / ProRes RAW to SSD) or Atomos Shogun 7 (SDI in)
  • Build quality is "budget" — plastic housing, more flex than pro-grade monitors. Field-rough environments may wear the F5 faster than an Atomos or SmallHD
  • FEELWORLD firmware is more limited than Atomos / SmallHD. Calibration tools, LUT management, and 3D LUT depth are basic; deeper color-managed workflows need higher-tier monitors

Where Buyers Should Look Elsewhere

  • Bright daylight outdoor shooting → SmallHD Focus Bolt 7 (1500-nit, daylight-readable) or Atomos Ninja V+ (1500-nit)
  • Critical 4K-accurate focus → SmallHD 5T or Atomos Ninja V (4K + ProRes recording)
  • HDR / cinema-tier workflows → Atomos Shogun 7 (HDR + SDI + 4K recording)
  • SDI-only camera workflows → SmallHD 502 Bright (SDI input)
  • Pure cheap-monitoring approach → FEELWORLD F6 PLUS (5.5" cheaper alternative) or generic Andoer / Lilliput monitors at sub-$100
  • Studio / interior controlled-light shoot only → desktop reference monitors (Eizo / Flanders Scientific) that aren't field-deployable

Sources & Citations

  1. FEELWORLD, "F5 4K HDMI on-camera monitor product page," feelworld.ltd (accessed 2026-05-18)
  2. No Film School, "FEELWORLD F5 field monitor coverage," nofilmschool.com (accessed 2026-05-18)
  3. CineD (Cinema5D), "Budget field monitor comparison coverage," cined.com (accessed 2026-05-18)

Last verified: 2026-05-18

Now that you've seen the details — ready to take a closer look?

View price on Amazon

Pros & Cons

👍 Pros

  • 4K HDMI loop-out enables clean signal distribution to a second monitor or recorder without added hardware
  • Up to 32 custom 3D LUTs loadable via SD card for accurate on-set log viewing
  • Three independent power paths (NP-F battery, 12V DC, 5V USB-C) reduce single-point power failure risk on location
  • Full suite of exposure tools — false color, zebra, histogram — covers critical monitoring needs without accessory boxes
  • Touchscreen lockout mode prevents accidental setting changes during rigged or handheld shooting

👎 Cons

  • No SDI input or output limits integration into professional broadcast or ENG signal chains
  • 450 cd/m² brightness is adequate indoors but can wash out in direct sunlight without the included sunshade
  • No waveform monitor or vectorscope — productions requiring broadcast-legal signal analysis will need a separate unit
  • 1920×1080 panel resolution means 4K signals are downscaled for display — useful for framing, not pixel-level focus checking
  • No built-in battery — requires sourcing NP-F cells separately, which adds cost and weight to a field rig

Frequently Asked Questions

Yes — the F5-US includes both 4K HDMI input and HDMI loop-out, allowing you to feed a second monitor or an external recorder simultaneously without splitting or degrading the signal. This makes it a practical node in a multi-display on-set chain.
Yes. The monitor supports up to 32 custom 3D LUT files loaded via SD card, including built-in log curve presets. This enables accurate log-to-Rec.709 viewing transforms on set without relying on a separate LUT box.
Three power paths are available: Sony F970-compatible battery plate, 12V DC input for studio or vehicle power, and 5V USB-C input for power bank operation. Note that the USB-C port is power-only — no data or display function.
Yes — the F5-US includes histogram, false color, zebra, pixel-to-pixel zoom, center marker, safe area overlays, ratio markers, and check field. These cover the core exposure and composition monitoring needs for most single-camera productions.
The capacitive touchscreen can be disabled via the menu to prevent accidental input — a useful option when the monitor is cage-mounted or exposed to gloves, rain, or on-set bumps. All functions remain accessible through the touch interface when enabled.
