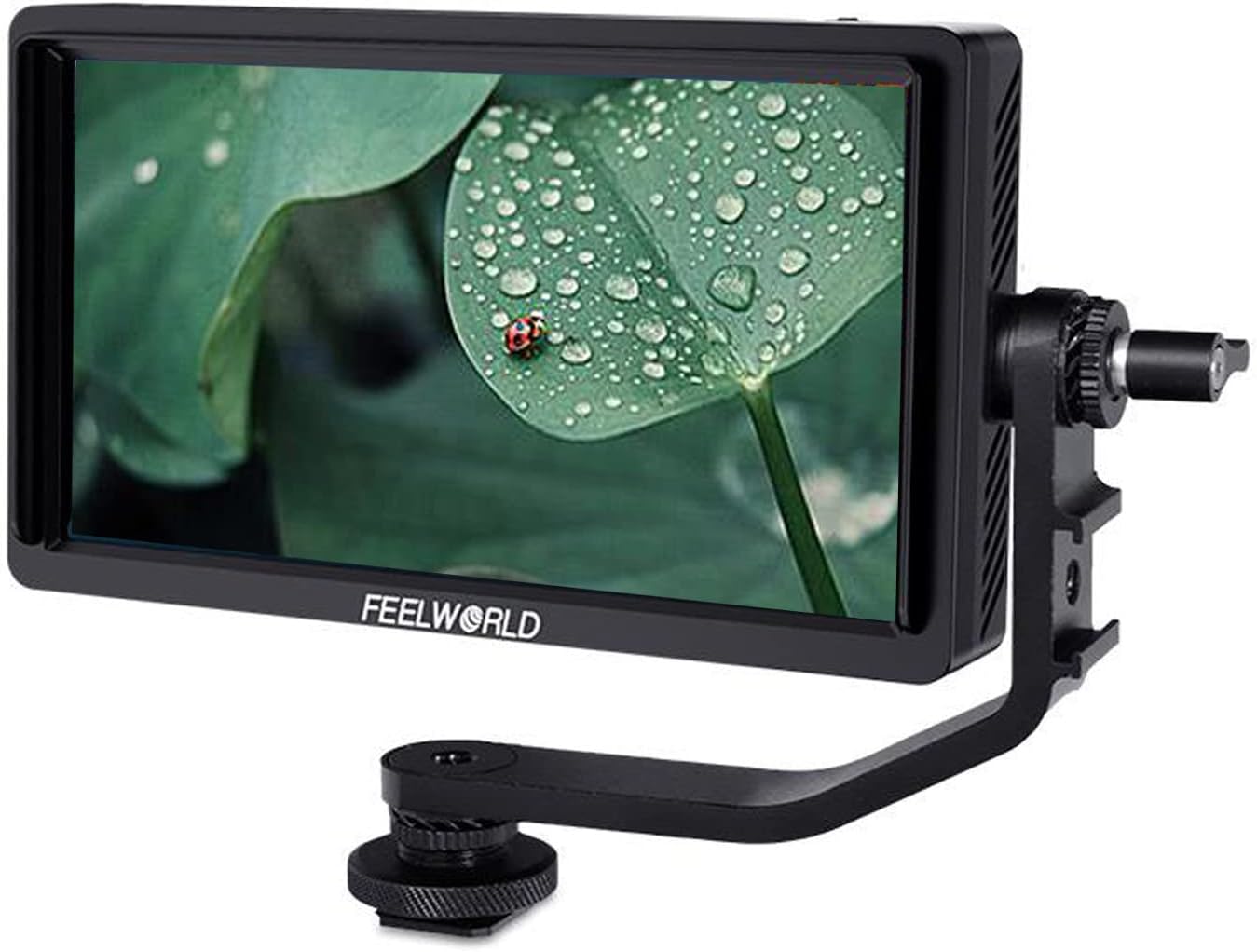

FEELWORLD FW568S 6" 3G-SDI/4K HDMI On-Camera Monitor
★★★★★
4K1920x1080
Compact and Versatile On-Camera Monitoring SolutionThe FEELWORLD FW568S is a 6-inch full HD field monitor tailored for filmmakers and videographers. Featuring 3G-SDI and 4K HDMI inputs, it provides accurate monitoring and flexible power options. Brand: FEELWORLD Model: FW568S Scre...
$239.99*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 13, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact and Versatile On-Camera Monitoring Solution
The FEELWORLD FW568S is a 6-inch full HD field monitor tailored for filmmakers and videographers. Featuring 3G-SDI and 4K HDMI inputs, it provides accurate monitoring and flexible power options.
- Brand: FEELWORLD
- Model: FW568S
- Screen Size: 6 inches
- Resolution: 1920x1080 (Full HD)
- Panel Type: IPS
- Inputs/Outputs: 3G-SDI, 4K HDMI
- Power: DC 12V, F970 Battery Plate, 5V Type-C Input
Key Features
FEELWORLD FW568S is a 6-inch full HD field monitor, equipped with 3G-SDI, 4K HDMI input and output interfaces. There is a F970 external install and power kit on the rear of FW568S, which can install such as wireless transmission, LED light, etc.

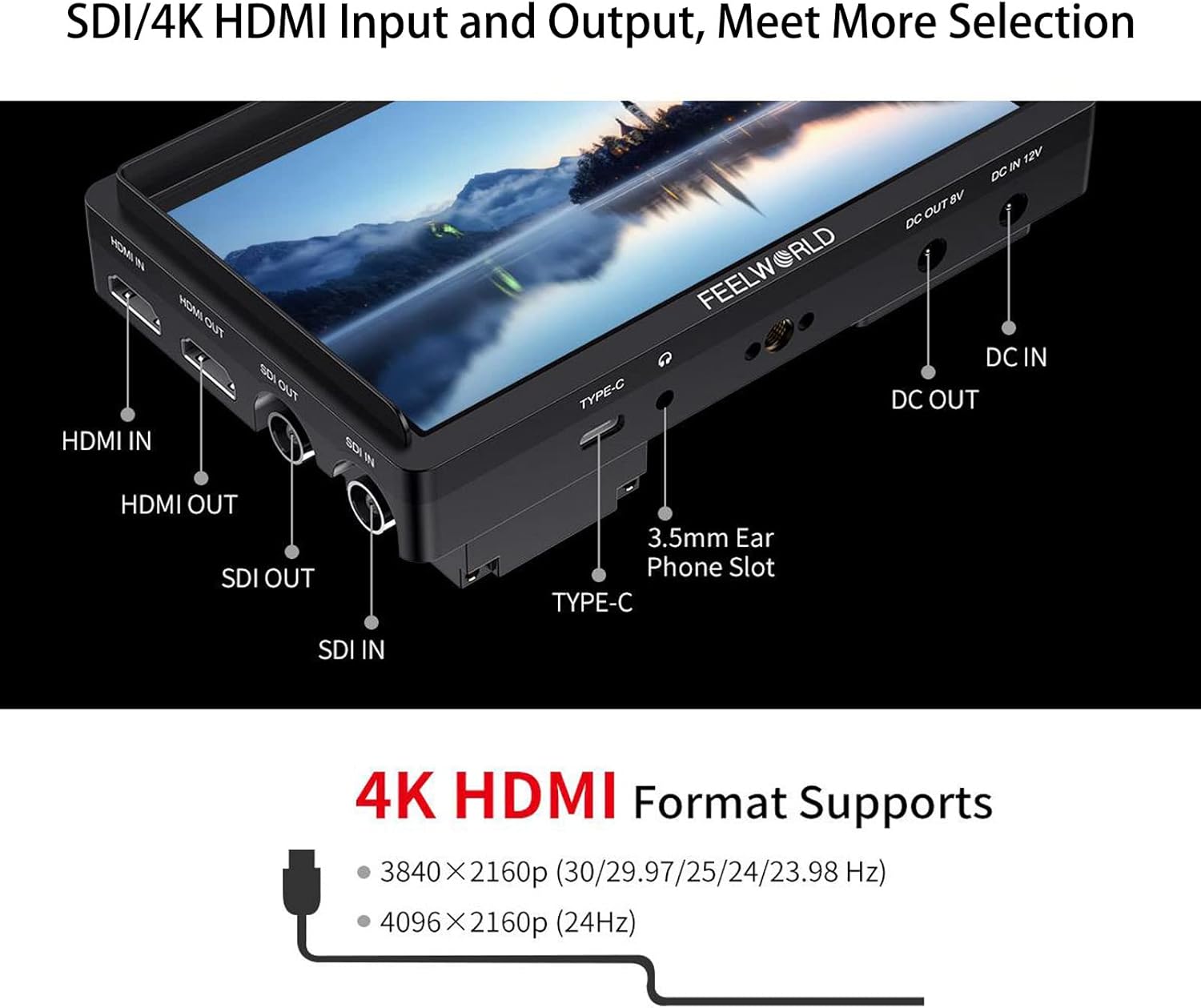

The monitor equipped with SDI and 4K HDMI input and output, compatible with film camera, DSLR camera, mirrorless camera, realize simultaneous monitoring by directors, photographers and 1st AC, support up to 4K@30Hz, the screen is smooth and clear. And provides 3.5mm headphone jack to monitor audio.
Multiple Power Supply Modes In addition to the DC 12V power input (can be using 12V/1.5A adapter), FW568S also has a F970 battery plate, and supports 5V Type-C input which can be powered by mobile phone chargers or power banks (at least 5V/2A) . ● Compatible Battery: F970, F960, F950,F930, F770, F750, F730, F570, F550, F530 series. (Note: the battery not including, please purchase separately)

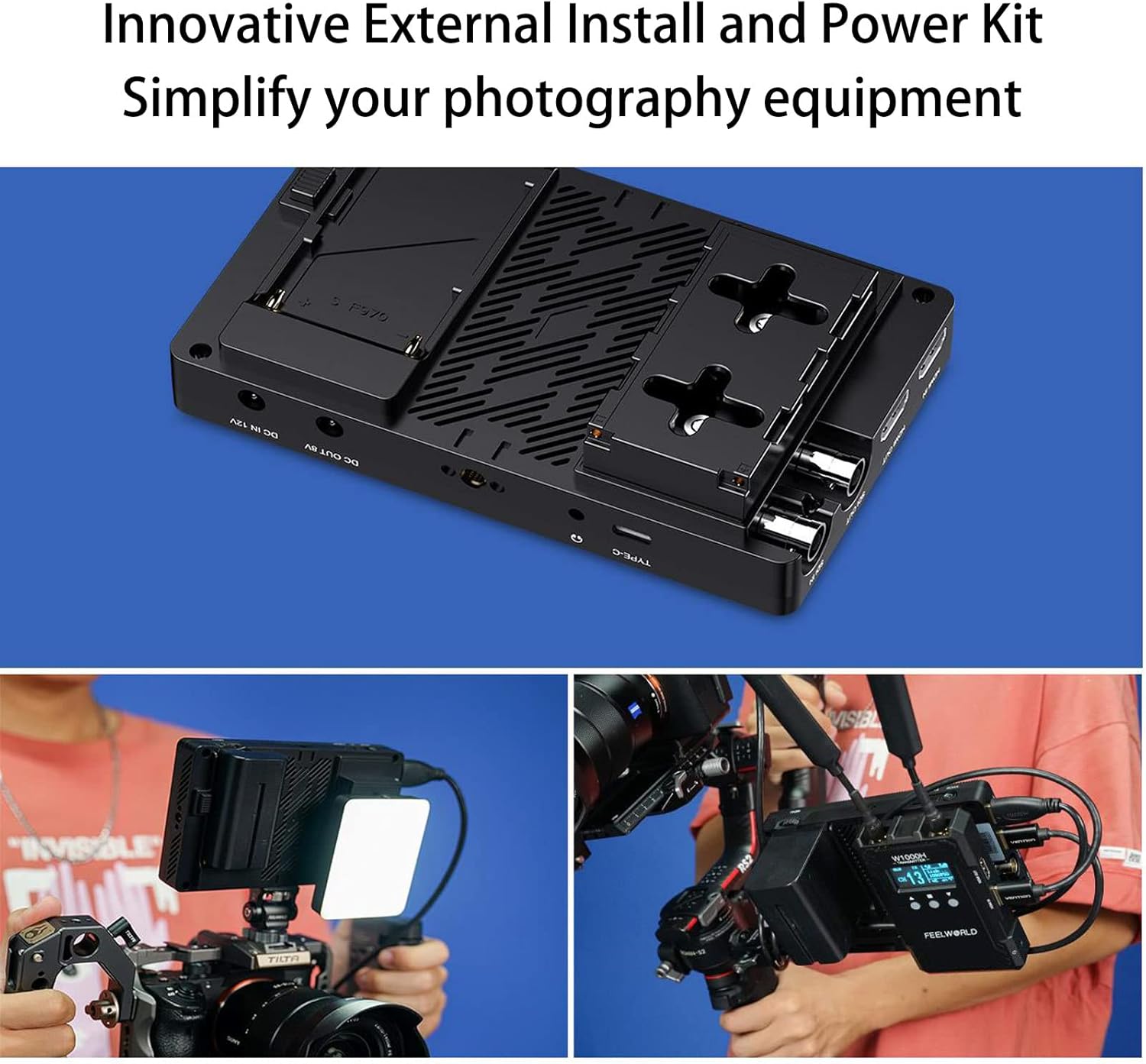

Power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a F970 battery. Greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
FW568S comes with full HD 1920x1080 resolution, provides excellent details, so you can enjoy sharper and richer colors image.
Specifications
Display Size
6 inches
Resolution
1920x1080 (Full HD)
Video Inputs
3G-SDI, 4K HDMI
Video Outputs
3G-SDI, 4K HDMI
Max HDMI Support
4K@30Hz
Audio Output
3.5mm Headphone Jack
External Install Kit
F970 compatible
DC Power Input
12V
USB-C Power Input
5V (minimum 5V/2A)
Battery Plate
F970 series compatible
Pros & Cons
👍 Pros
- Equipped with 3G-SDI and 4K HDMI input and output, supporting up to 4K@30Hz for versatile camera compatibility and clear, smooth footage
- Features a Full HD 1920x1080 resolution, delivering excellent details and sharper, richer colors for precise monitoring
- Includes a F970 external install and power kit on the rear, allowing for the attachment and powering of accessories like wireless transmitters or LED lights
- Offers multiple power supply modes, including DC 12V, F970 battery plate, and 5V Type-C input (via mobile chargers or power banks), enhancing flexibility
- Provides a 3.5mm headphone jack for convenient audio monitoring directly from the field monitor
👎 Cons
- The monitor does not include the F970 battery, requiring users to purchase it separately for portable power functionality
- A 12V/1.5A adapter or a 5V/2A power bank is needed for external power, and these are not included with the monitor
- While it has an external power kit, its design may add some bulk or weight when accessories are attached, potentially impacting camera balance
- The "external install and power kit" may complicate the overall camera setup with additional components, though it saves space
- Specific information regarding the monitor's peak brightness or contrast ratio beyond "excellent details" and "richer colors" is not provided
Frequently Asked Questions
What is the screen size and resolution of the FEELWORLD FW568S monitor?
The FEELWORLD FW568S is a 6-inch monitor featuring a Full HD resolution of 1920x1080, providing excellent detail and color.
What types of video inputs and outputs does this monitor support?
This monitor is equipped with both 3G-SDI and 4K HDMI input and output interfaces, supporting up to 4K@30Hz signals.
Can I power the FW568S using a portable battery or power bank?
Yes, in addition to DC 12V input, it supports F970 series batteries (sold separately) and 5V Type-C input from mobile phone chargers or power banks (at least 5V/2A).
What is the purpose of the F970 external install and power kit on the back?
The external kit allows for the installation and powering of external equipment like wireless transmitters, LED lights, or video converters, saving space and reducing photography equipment weight.
Does the monitor come with a battery or power adapter?
No, the F970 battery is not included and needs to be purchased separately, and the 12V/1.5A adapter is also not explicitly stated as included.
Can I monitor audio with this on-camera monitor?
Yes, the FEELWORLD FW568S provides a 3.5mm headphone jack, allowing you to monitor audio during your shoots.
