FEELWORLD LUT5: 5.5" 3000nit Touch Screen Camera Monitor

★★★★★5.0 (3 reviews)
4K1920x1080HDR

A 3000-nit ultra-bright 5.5-inch touchscreen monitor with 4K HDMI and custom 3D LUT support for shooting in any light.

$219.00*$279.99Save 21%
Check availability

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The FEELWORLD LUT5 is a 5.5-inch on-camera field monitor engineered for filmmakers and camera operators who regularly shoot in challenging lighting environments. Its headline feature is the 3000-nit brightness rating — roughly three times brighter than most field monitors in its class — which ensures the 1920x1080 IPS display remains sharp and readable even under direct sunlight. The full HD panel delivers a pixel density of 368 PPI with a 1000:1 contrast ratio and sRGB/Rec.709 color gamut coverage, providing a reliable on-set reference for exposure and color decisions.

Beyond raw brightness, the LUT5 packs a comprehensive set of professional monitoring tools accessible through its touchscreen interface. Waveform, RGB parade, vectorscope, histogram, focus peaking, zebra, false color, and safe frame overlays are all available with a single tap. The monitor supports up to 50 custom 3D LUTs loaded via the SD card slot, letting cinematographers apply their grading profiles on set for a real-time preview of the final look. On the connectivity side, HDMI input and loop-through output handle signals up to 4K UHD at 30Hz, while a 3.5mm headphone jack provides audio monitoring. The rear-mounted F970 battery plate doubles as an accessory rail for wireless transmitters or LED panels, and the DC OUT 8V port can power a compatible camera — making the LUT5 a compact but versatile hub on any rig.

Key Features

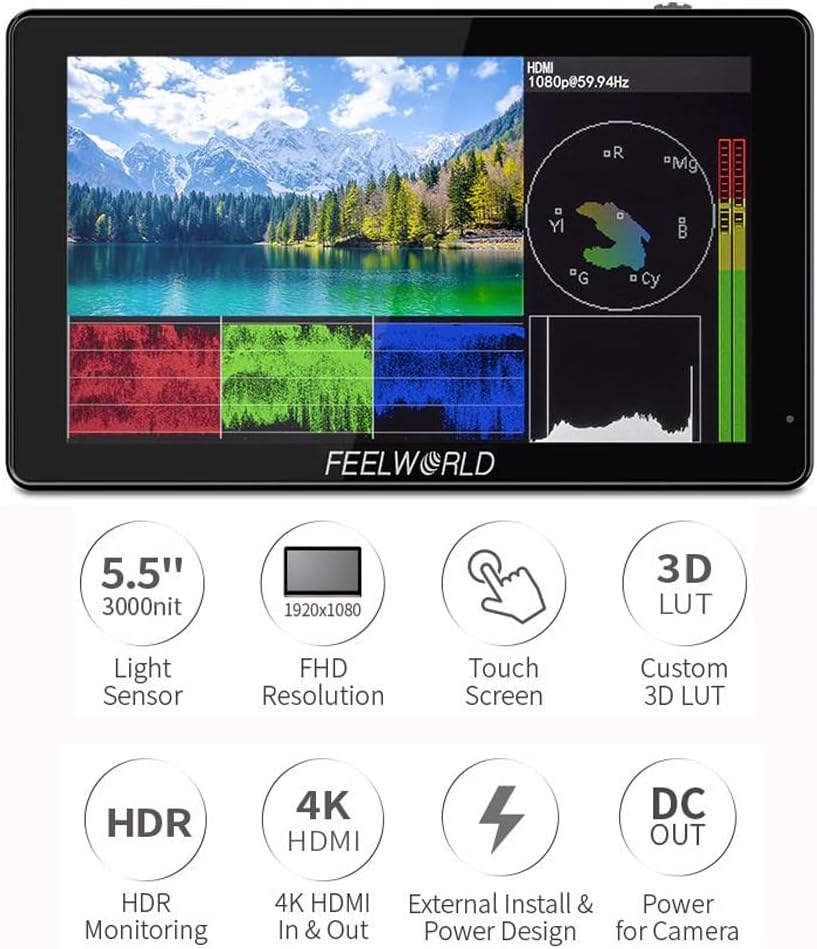

【Better for Camera Assistant】FEELWORLD LUT5 is a 5.5-inch ultra-high bright on-camera monitor,with 3000 nit ultra-high brightness,the screen is clearly visible in the sun.full HD LCD touch screen,easy to operate;supports HDMI signal 4K@30Hz,HDR monitoring,custom 3D LUT and other professional auxiliary composition tools.There is a F970 external install and power kit on the rear of LUT5,which can install such as wireless transmission,LED light,etc

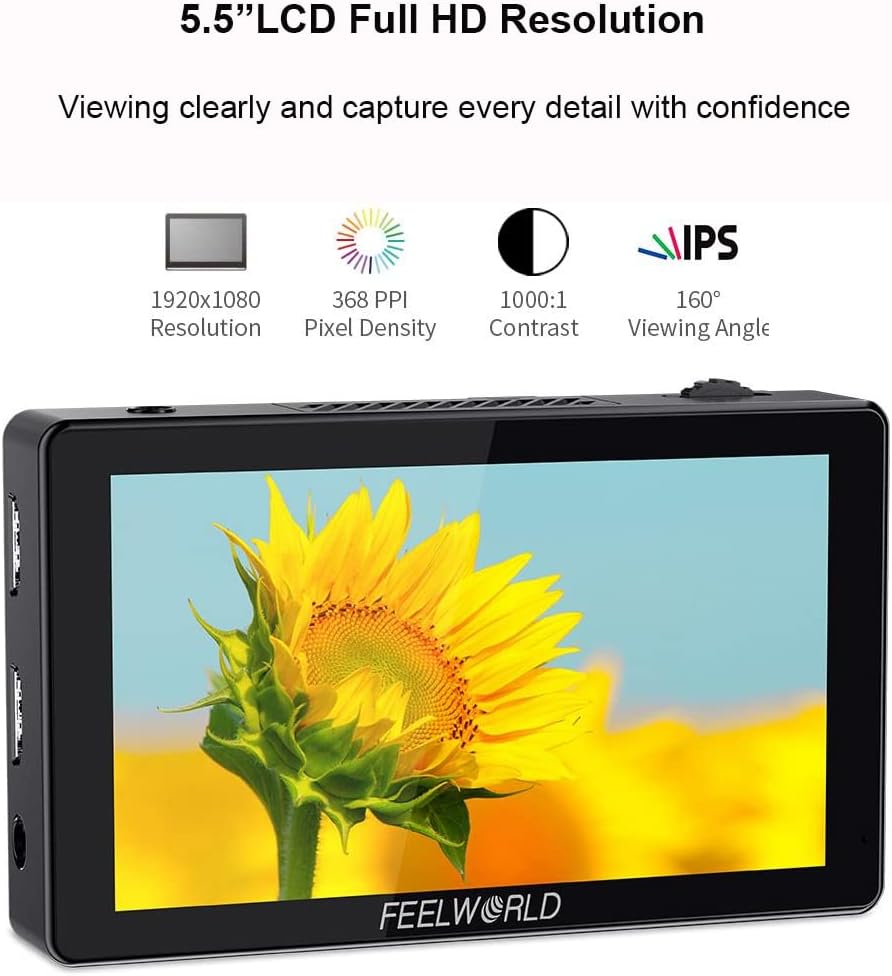

【5.5” LCD Full HD Resolution】The LUT5 comes with a 5.5-inch 1920x1080 full HD panel,Ultra high brightness 3000nits,1000:1 contrast ratio and sRGB / Rec.709 Color Gamut,resulting in exceptional screen clarity even in intense lighting conditions.With the monitor displaying your content at 368 pixels per inch (PPI),you can shoot in broad daylight with confidence and refine your content on the set

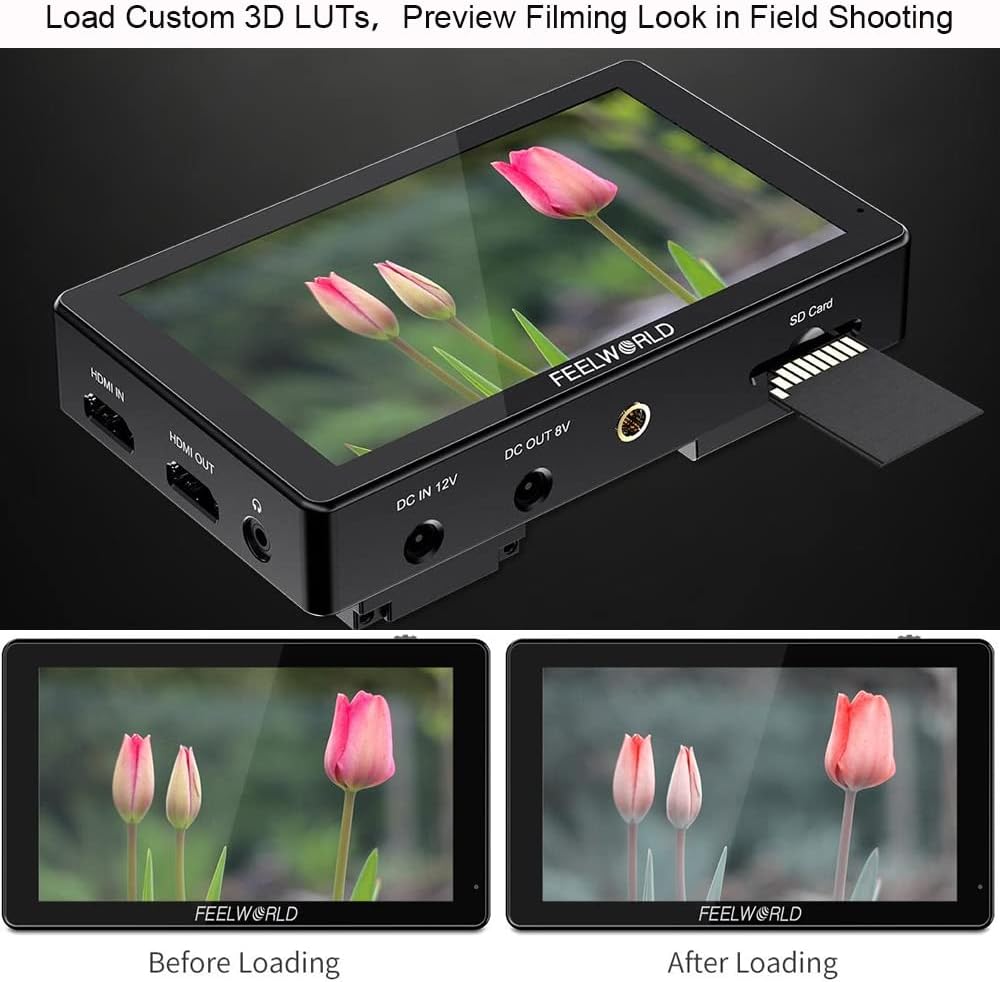

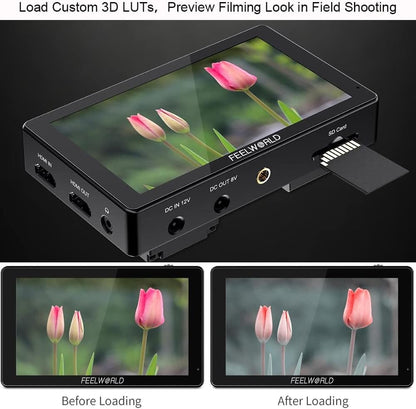

【3D LUT Loading Function】The LUT loading function makes the color calibration easier and more intuitive,optimizes the workflow and improves the work efficiency in the early stage of shooting.LUT5 allows you to load internally up to 50 custom LUTs,looks or profiles at any time via the SD Card Slot and instantly select between them,maintaining creative intent

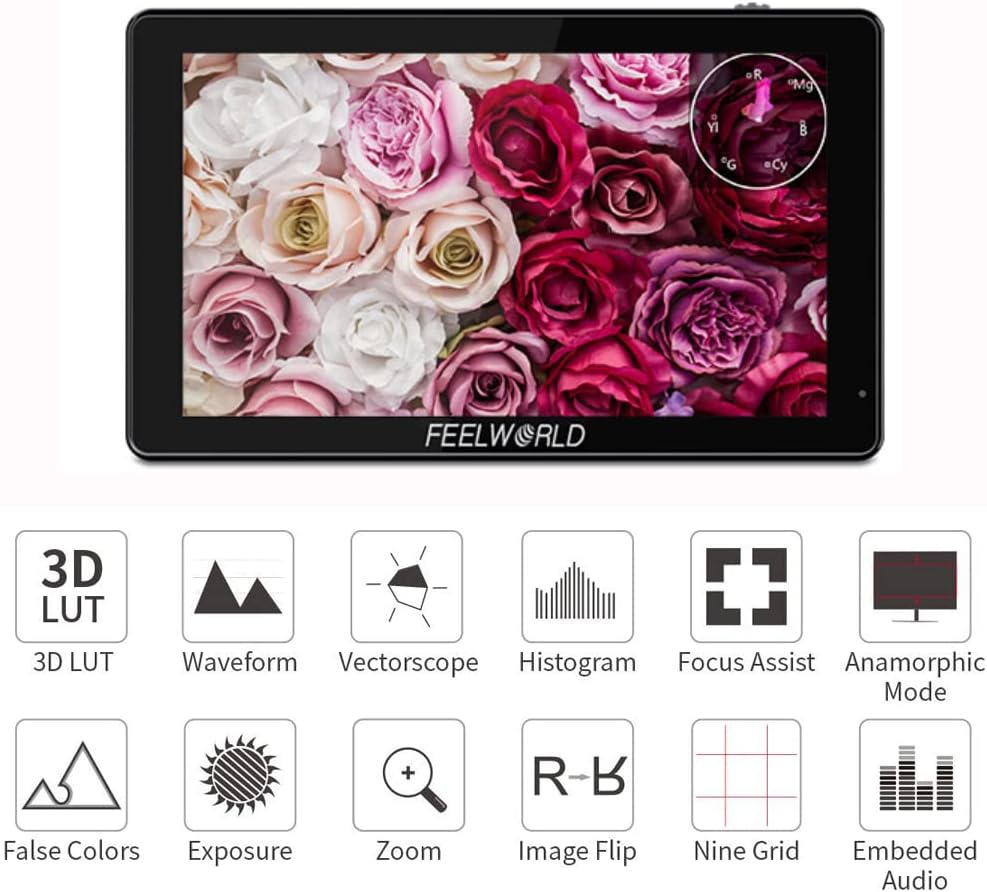

【Smarter Tools for Absolute Precision】Our flexible OS is packed with an extensive suite of scopes,all 1-touch away and simple to use.The Video OS includes tools for focus,framing & exposure (waveform,RGB parade,vectorscope,RGB histogram,histogram,embedded audio,focus peaking,zoom,zebra,false color,safe frames,etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring

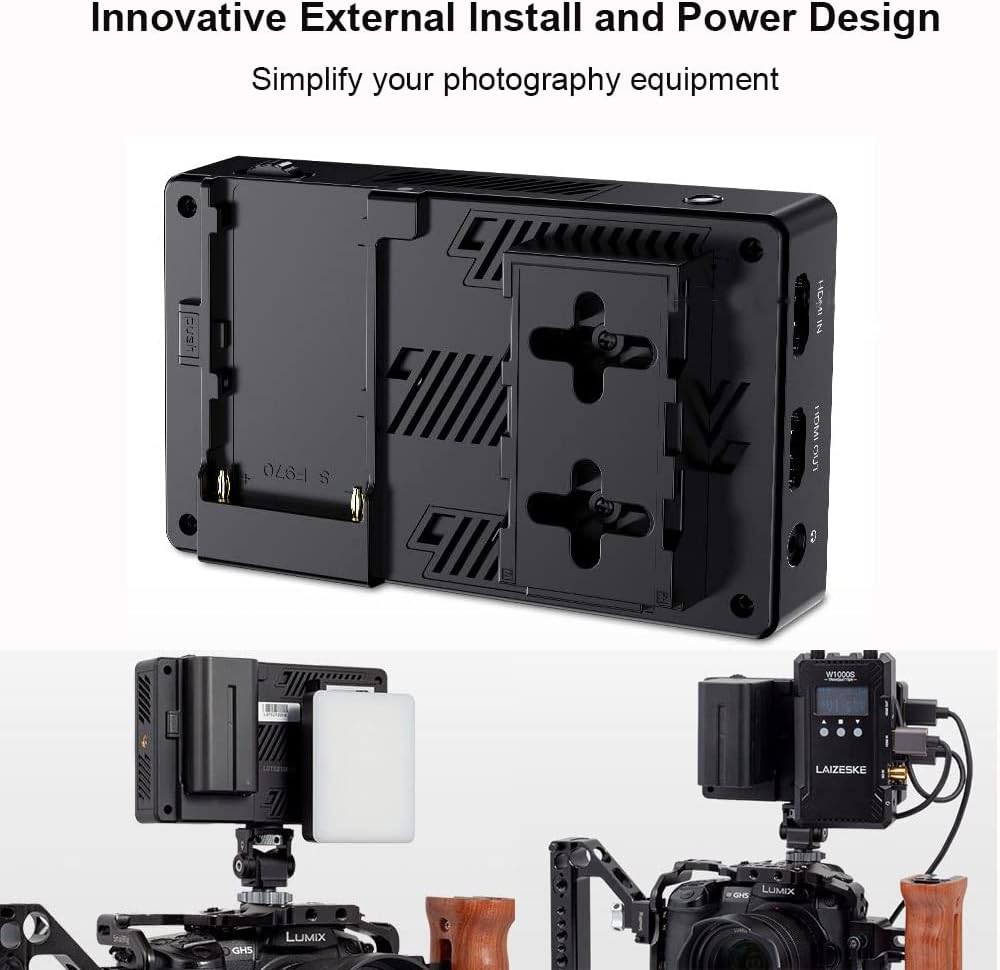

【Mini Hot Shoe Mount&Sun Hood】A F970 external install and power kit design is added to the back of the monitor.The external kit can be used to install and install the external equipment,like wireless transmission,LED light,video converter and others that can be powered by a F970 battery,The LUT5 is not only equipped with DC IN 12V,but also provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras

Specifications

Screen Size
5.5" IPS
Resolution
1920 x 1080
Pixel Density
368 PPI
Brightness
3000 cd/m²
Contrast Ratio
1000:1
Aspect Ratio
16:9
Viewing Angle
80°/80° (L/R), 80°/80° (U/D)
HDMI Input
1 x HDMI (up to 4K UHD 3840x2160p @ 30Hz)
HDMI Output
1 x HDMI (loop-through)
Max 4K DCI Input
4096 x 2160p @ 24Hz
Audio Output
3.5mm Stereo Headphone
Power Input
DC IN 12V
Power Output
DC OUT 8V
LUT Support
Up to 50 custom 3D LUTs via SD card (.cube format)
Color Gamut
sRGB / Rec.709
Pixel Pitch
0.069 x 0.069 mm

Pros & Cons

👍 Pros

  • 3000-nit brightness makes the screen legible in direct sunlight where most monitors wash out
  • Touchscreen interface provides fast, intuitive access to monitoring tools and LUT selection
  • Supports loading up to 50 custom 3D LUTs via SD card for on-set color management
  • Rear F970 mounting kit allows attachment of wireless transmitters, LED lights, or other accessories
  • DC OUT 8V port can power a compatible camera, reducing the number of batteries needed on a rig

👎 Cons

  • 5.5-inch screen size is relatively small for critical focus checks on dense 4K footage
  • High brightness at 3000 nits draws significant power, reducing battery life compared to dimmer monitors
  • Viewing angles of 80° in each direction are narrower than some competing IPS panels
  • Only supports 4K input at up to 30Hz, so 4K 60fps workflows require a different monitor

Frequently Asked Questions

The LUT5 outputs 3000 nits of brightness, which is specifically designed to remain clearly visible in direct sunlight and harsh outdoor lighting conditions.
It accepts signals up to 4K UHD (3840x2160) at 30Hz and 4K DCI (4096x2160) at 24Hz, as well as 1080p, 1080i, 720p, and standard definition formats.
You can load .cube LUT files via the built-in SD card slot. The LUT5 stores up to 50 custom LUTs internally, which you can then select on the fly during shooting.
Yes, the monitor has a DC OUT 8V port that can supply auxiliary power to compatible cameras, in addition to accepting its own power via DC IN 12V or an F970-type battery.
Yes, it features both an HDMI input and an HDMI output, allowing you to pass the signal through to additional monitors or recording devices.
