Fujifilm Prescale 4LW Extreme Low Pressure Film
★★★★★
10.6 in
Reveal Hidden Pressure with Precision Mapping The Fujifilm Prescale Extreme Low (4LW) film offers a unique solution for visualizing and quantifying surface pressure distribution. This pressure indicating film instantly captures and preserves a pressure map, providing valuable insights for optimiz...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Reveal Hidden Pressure with Precision Mapping
The Fujifilm Prescale Extreme Low (4LW) film offers a unique solution for visualizing and quantifying surface pressure distribution. This pressure indicating film instantly captures and preserves a pressure map, providing valuable insights for optimizing contact surfaces.
Specifications:
- Pressure Range: 7.2 - 28 PSI (0.5 - 1.97 kg/cm²)
- Dimensions: 1 ft. x 12.2 in.
- Technology: Color change indicates pressure magnitude
Key Features
Characterize surface pressure between any two mating, touching, or impacting surfaces. The dimensions of this film are 1 ft. x 10.6 in.
Prescale provides a surface pressure “map” that illuminates actual pressure magnitude (in precise PSI or kg/cm^2) and distribution between your two surfaces. The pressure range of this film is 7.2 - 28 PSI (0.5 - 1.97 kg/cm²).

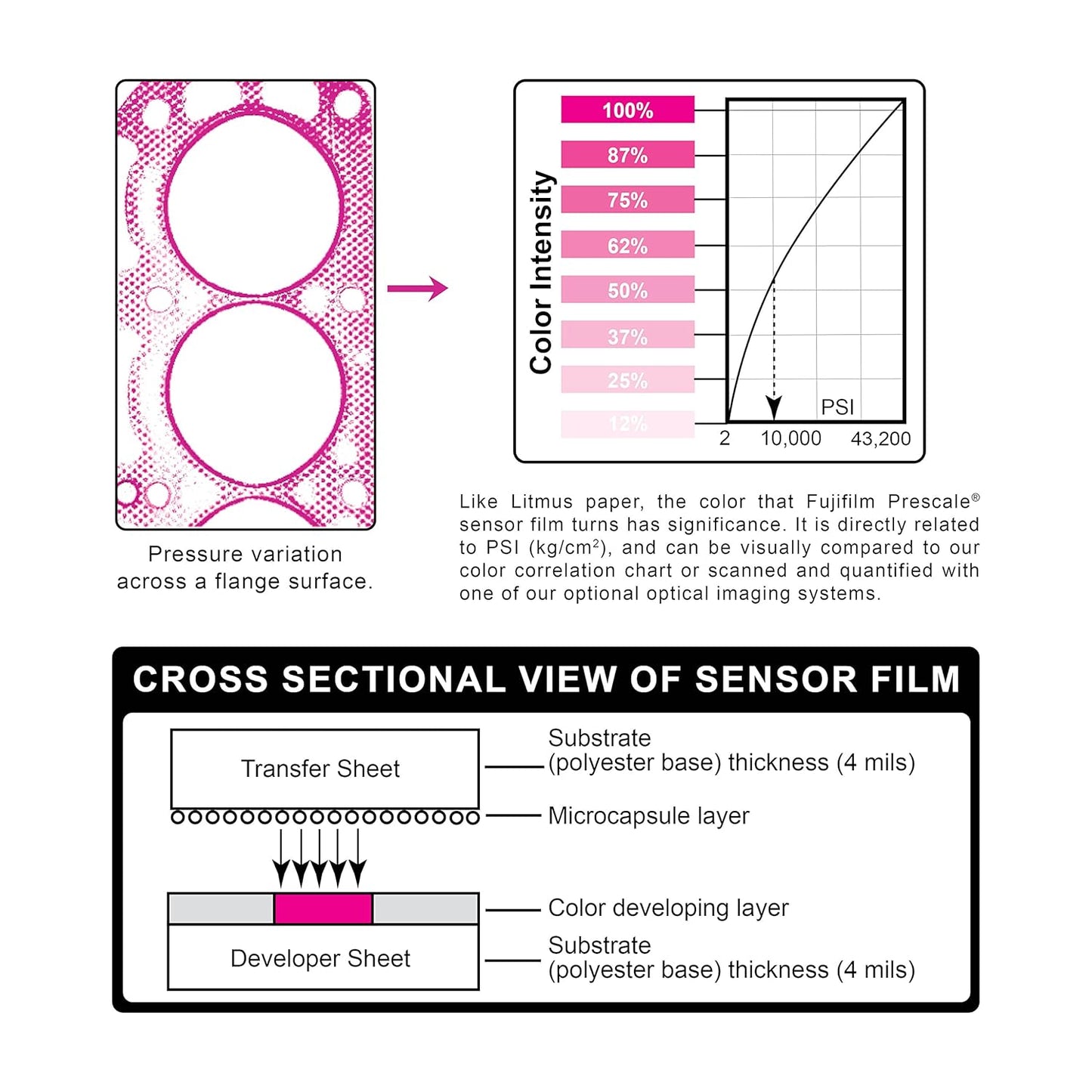

Prescale reveals the contact surface pressure by virtue of a color change. This color change is instantaneous (less than a millisecond) and permanent

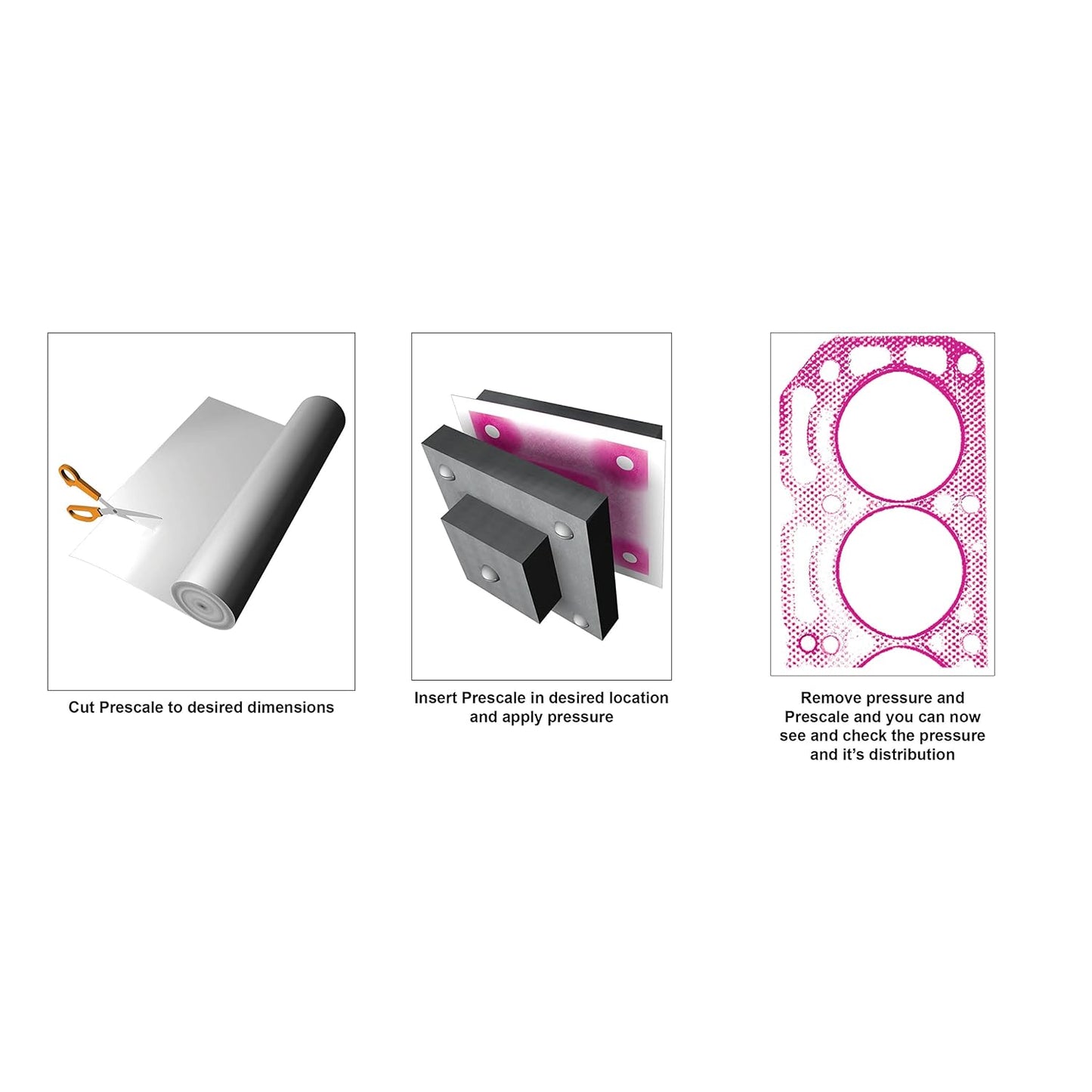

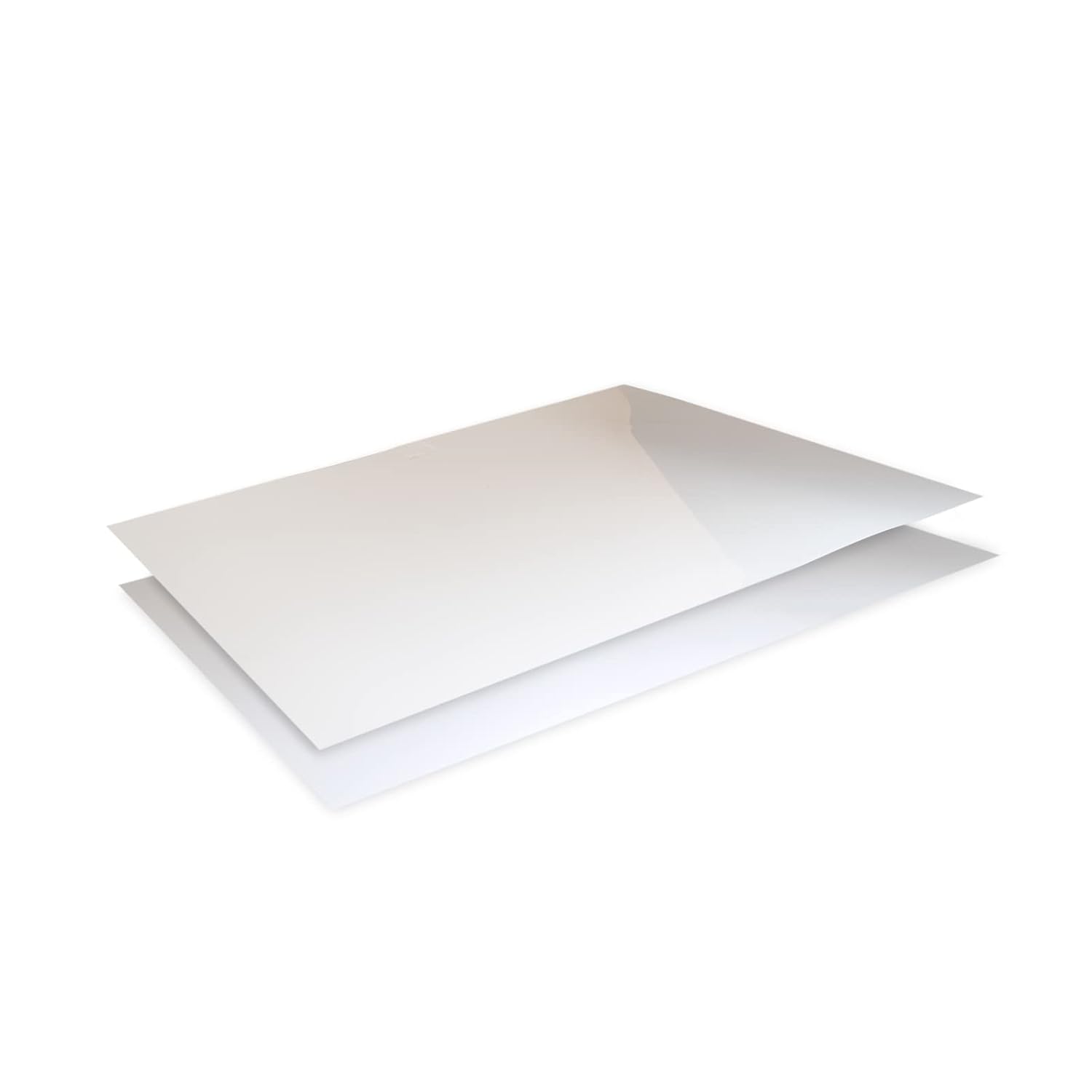

Prescale comes on a roll, is super thin, and can easily be cut from the supplied roll with scissor or laser to your precise application requirement
Included at no cost is the revised & updated Best Practices Guide to Handling & Applying Fujifilm Prescale . This booklet offers expert advice on storage, film preparation, use, and interpretation of results.
All films guaranteed to have 18 months of shelf life available.
Specifications
Brand
Fujifilm
Model
Prescale 4LW Extreme Low Pressure Film
Pressure Range
7.2 - 28 PSI (0.5 - 1.97 kg/cm²)
Film Dimensions
1 ft. x 10.6 in.
Reaction Time
Instantaneous (less than a millisecond)
Color Change Permanence
Permanent
Shelf Life
18 months guaranteed
Included
Best Practices Guide
Pros & Cons
👍 Pros
- Provides a visible surface pressure map, allowing for clear analysis of pressure magnitude and distribution.
- Offers precise pressure readings in both PSI (7.2 - 28 PSI) and kg/cm² (0.5 - 1.97 kg/cm²), ensuring accuracy.
- The color change indicating pressure is instantaneous (less than a millisecond) and permanent for easy evaluation.
- Comes on a super-thin roll, allowing it to be easily cut to exact application requirements with scissors or a laser.
- Includes a revised & updated Best Practices Guide, offering expert advice on handling, application, and interpretation.
👎 Cons
- The film has a specific pressure range of 7.2 - 28 PSI, limiting its use to low-pressure applications.
- The dimensions of 1 ft. x 10.6 in. per roll may be insufficient for very large surface area analyses.
- Requires visual interpretation of color change, which may introduce some subjectivity without digital analysis tools.
- The film is a consumable product, requiring re-ordering for continuous or multiple pressure assessments.
- Despite the best practices guide, precise application and interpretation may still require some user experience.
Frequently Asked Questions
What is the primary purpose of Fujifilm Prescale 4LW Extreme Low Pressure Film?
This film is designed to characterize surface pressure between any two mating, touching, or impacting surfaces by providing a visual "map" of pressure magnitude and distribution.
What is the pressure range this film can measure?
The Fujifilm Prescale 4LW film is capable of measuring pressures in the range of 7.2 - 28 PSI (0.5 - 1.97 kg/cm²), making it suitable for extreme low-pressure applications.
How quickly does the film react to pressure?
The film exhibits an instantaneous color change, occurring in less than a millisecond, which is also permanent for subsequent analysis.
Can the film be cut to fit specific shapes or sizes?
Yes, the Prescale film comes on a roll and is super thin, allowing it to be easily cut with scissors or a laser to match your precise application requirements.
Is there guidance available on how to use and interpret the film?
Yes, the product includes a revised & updated Best Practices Guide, which offers expert advice on storage, film preparation, use, and interpretation of results.
