Fujifilm
Fujifilm 4332020722 Prescale LLW Pressure Indicating Film
★★★★★
10.6 in
Reveal Surface Pressure with Precision Fujifilm Prescale Super Low Pressure LLW (2LW) film offers a unique solution for visualizing and quantifying surface pressure. This pressure indicating film provides a clear "map" of pressure distribution between contacting surfaces. Pressure Range: 70...
$57.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Reveal Surface Pressure with Precision
Fujifilm Prescale Super Low Pressure LLW (2LW) film offers a unique solution for visualizing and quantifying surface pressure. This pressure indicating film provides a clear "map" of pressure distribution between contacting surfaces.
- Pressure Range: 70-350 PSI (5-25 kg/cm²)

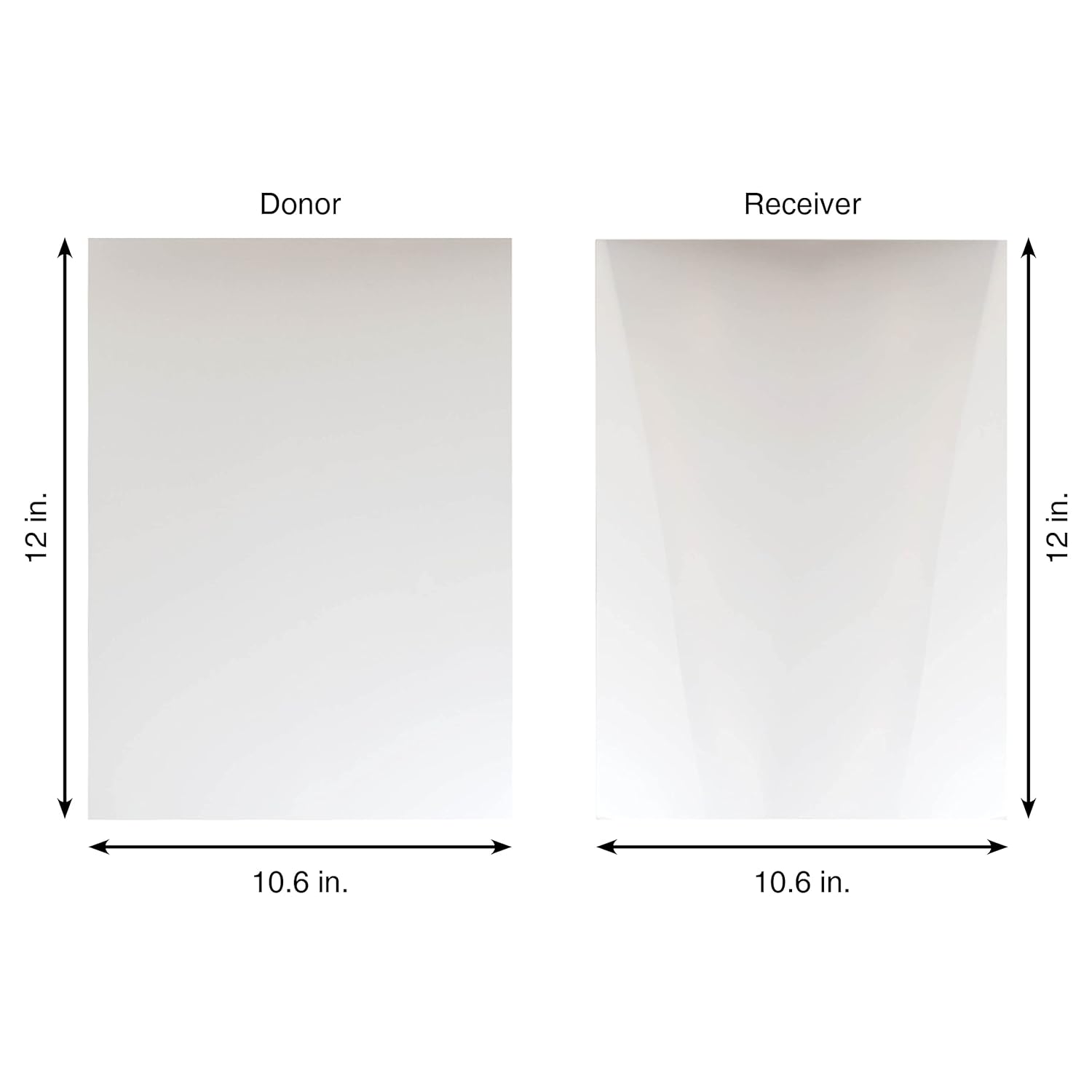

- Dimensions: 1 ft. x 10.6 in.
- Manufacturer: Fujifilm Prescale
- Model Name: LLW (2LW)
- Film Type: Pressure Indicating
Key Features
Characterize surface pressure between any two mating, touching, or impacting surfaces. The dimensions of this film are 1 ft. x 10.6 in.

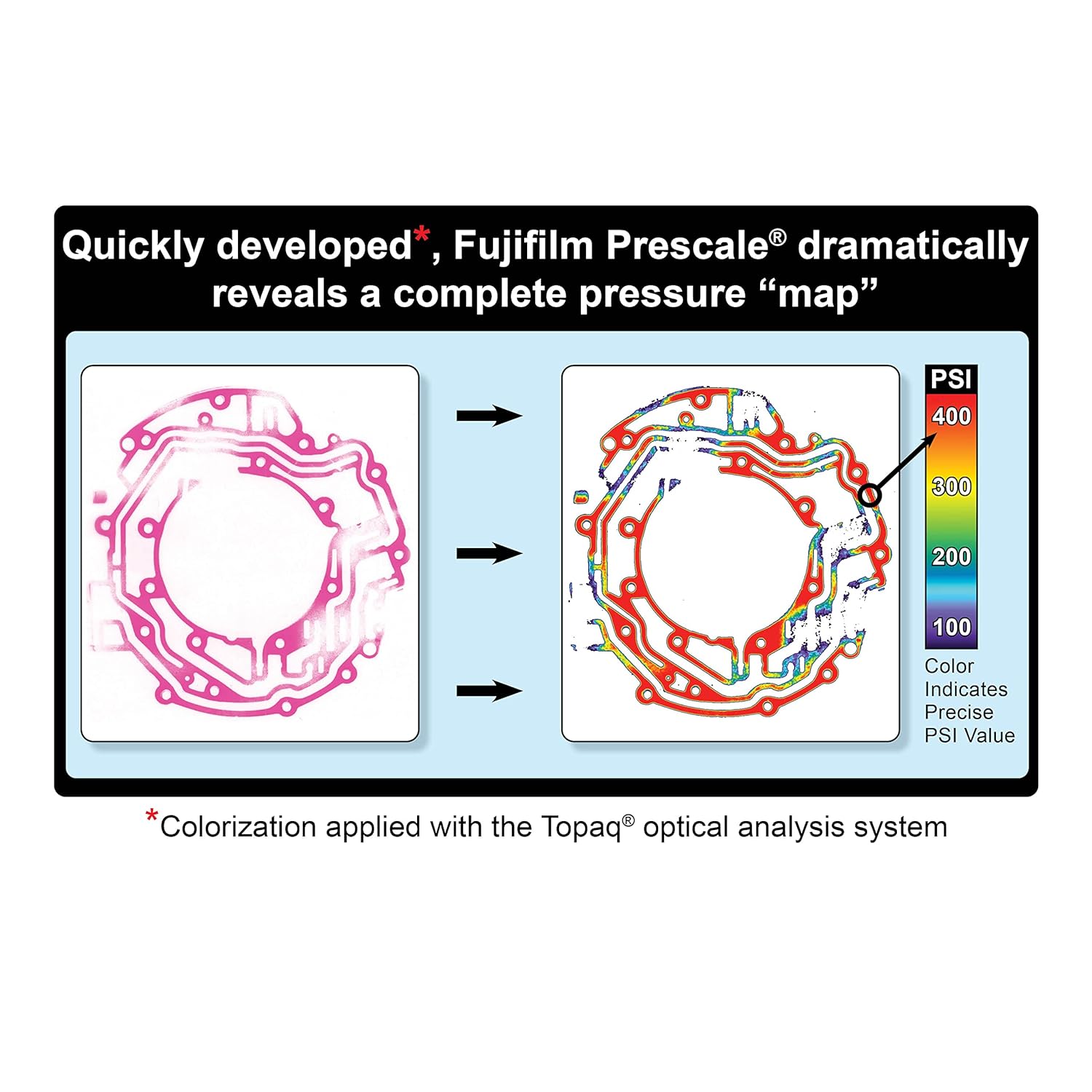

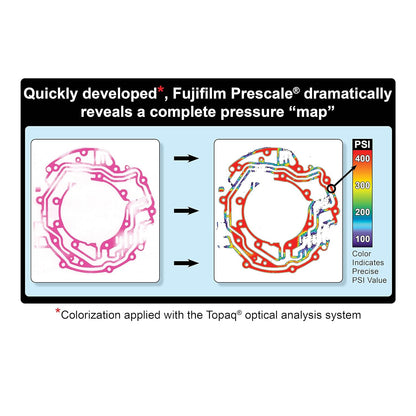

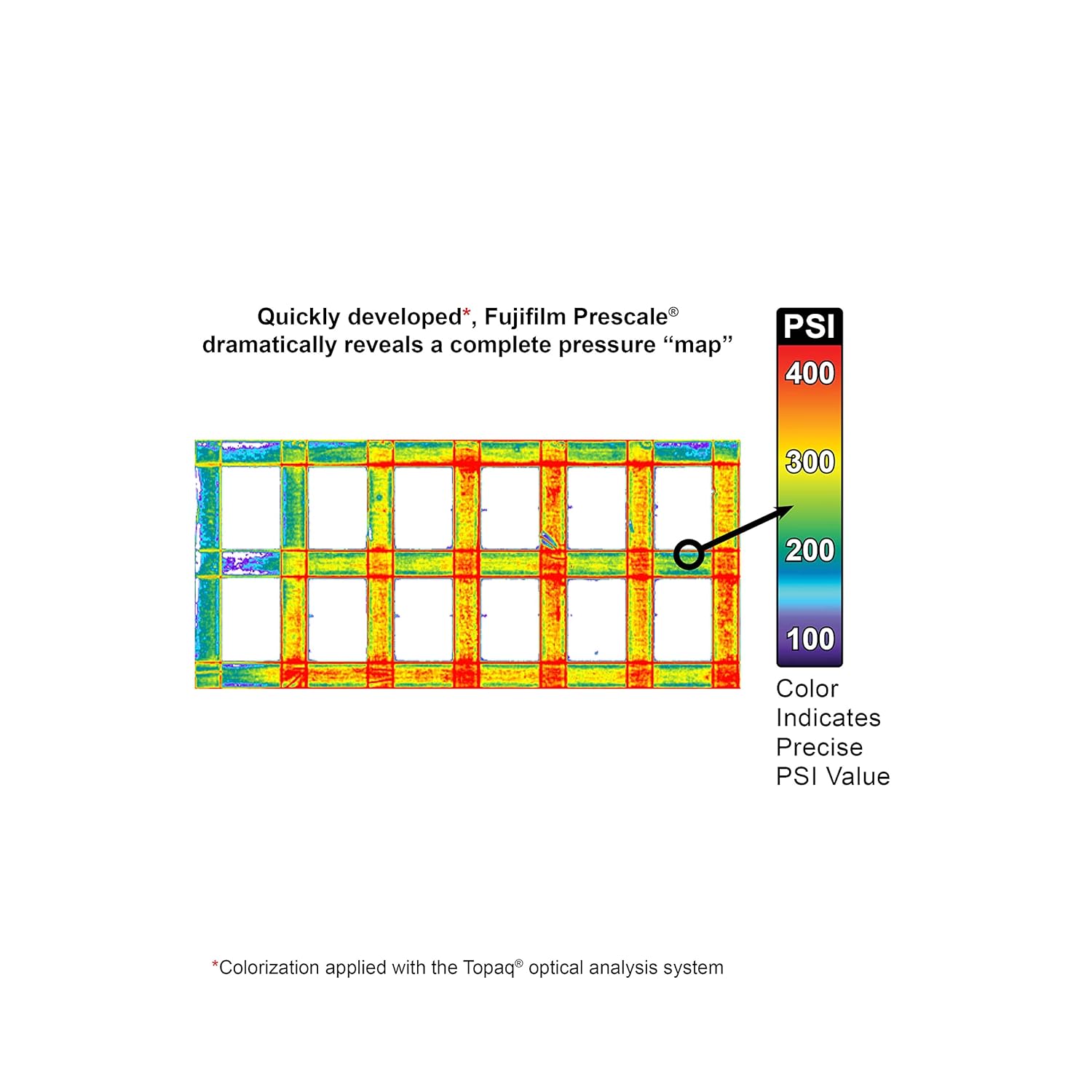

Prescale provides a surface pressure “map” that illuminates actual pressure magnitude (in precise PSI or kg/cm^2) and distribution between your two surfaces. The pressure range of this film is 70 - 350 PSI (5 - 25 kg/cm²)
Prescale reveals the contact surface pressure by virtue of a color change. This color change is instantaneous (less than a millisecond) and permanent

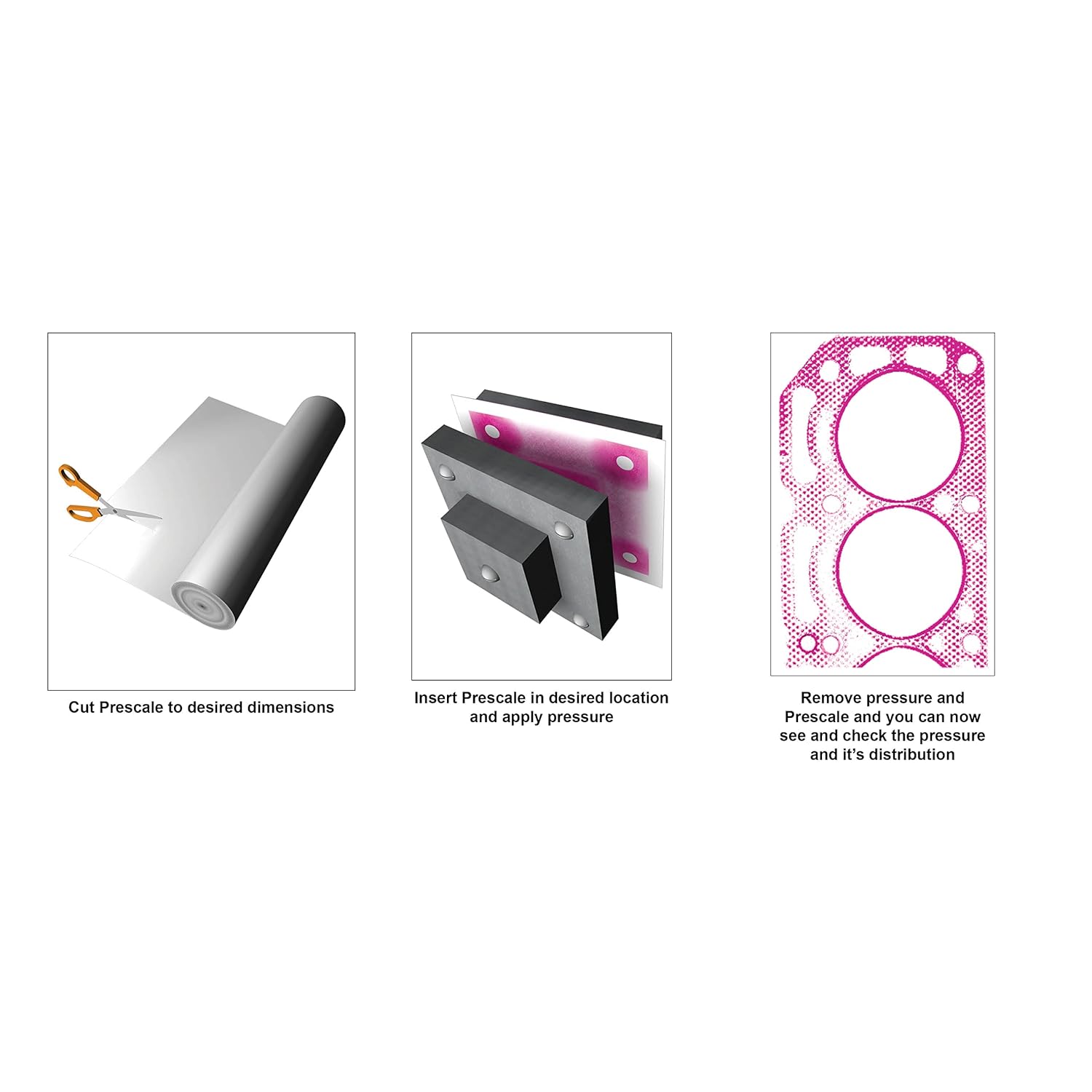

Prescale comes on a roll, is super thin, and can easily be cut from the supplied roll with scissor or laser to your precise application requirement

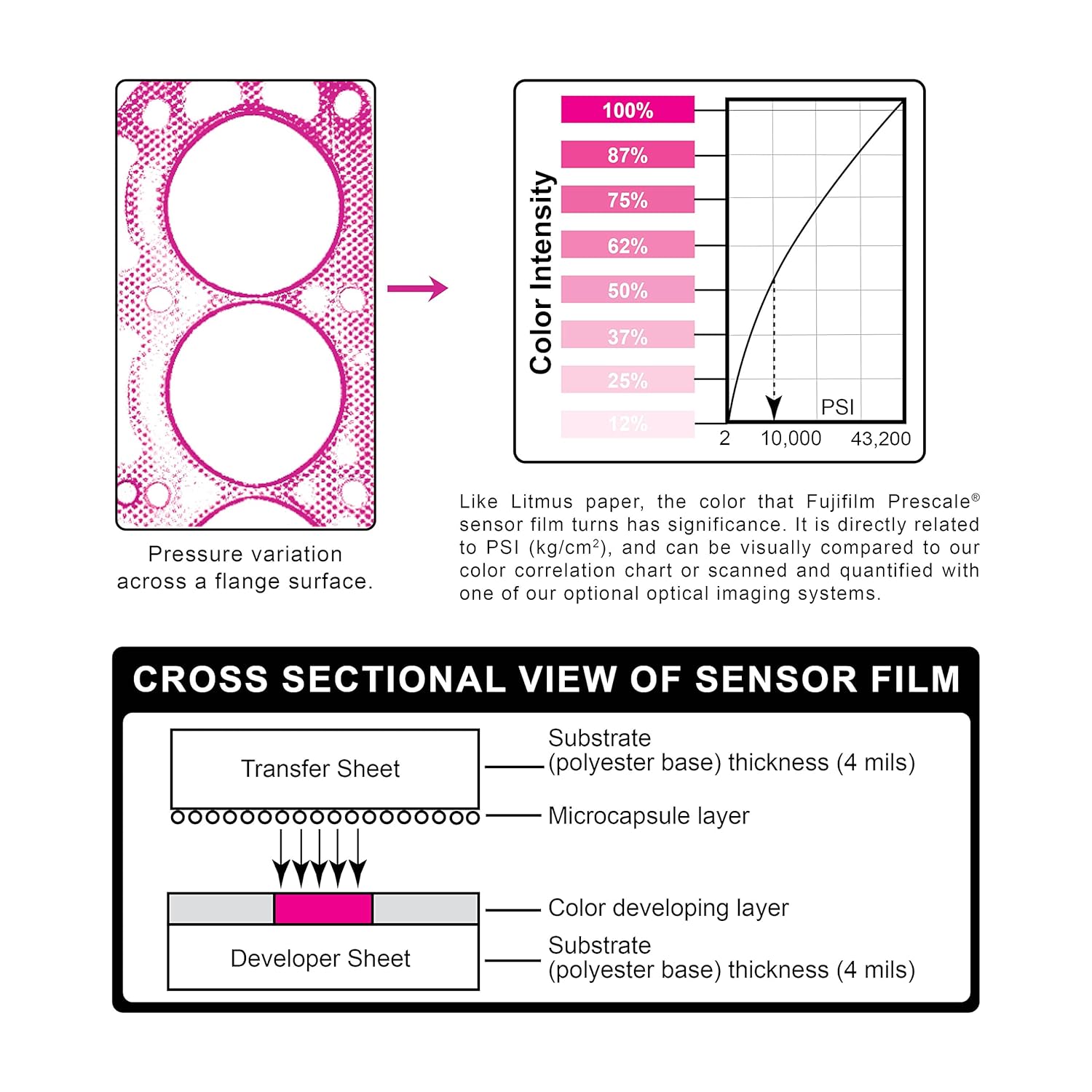

The color intensity of the film is directly related to the amount of pressure applied to it
Specifications
Film Type
Pressure Indicating Film
Dimensions
1 ft. x 10.6 in.
Pressure Range
70 - 350 PSI (5 - 25 kg/cm²)
Reaction Time
Instantaneous (less than a millisecond)
Color Change
Permanent
Pros & Cons
👍 Pros
- Provides an instantaneous and permanent color change upon pressure application, offering immediate visual feedback.
- Delivers a precise surface pressure "map" that quantifies pressure magnitude in PSI or kg/cm², aiding in detailed analysis.
- The film is super thin and comes on a roll, allowing for easy cutting to fit specific application requirements with scissors or a laser.
- Effectively characterizes surface pressure between any two contacting or impacting surfaces, making it versatile for various applications.
- The color intensity directly correlates to the applied pressure, providing a clear visual representation of pressure distribution.
👎 Cons
- The film has a specific pressure range of 70 - 350 PSI (5 - 25 kg/cm²), limiting its utility for pressures outside this bracket.
- While the color change is permanent, the film itself is a consumable product and not designed for repeated measurements without replacement.
- Requires visual interpretation of color intensity to assess pressure, which might necessitate comparison charts or additional tools for precise readings.
- The product comes in a fixed dimension of 1 ft. x 10.6 in. per roll, which may result in material waste for very small applications.
Frequently Asked Questions
What is the primary function of the Fujifilm Prescale LLW Pressure Indicating Film?
This film is designed to characterize and map surface pressure between any two mating, touching, or impacting surfaces, providing insight into pressure magnitude and distribution.
What are the specific dimensions of this pressure indicating film?
The dimensions of this film are 1 ft. x 10.6 in., supplied on a roll that can be cut to size.
What is the pressure range this film can detect?
The Prescale LLW film is capable of indicating pressure within a range of 70 to 350 PSI, or 5 to 25 kg/cm².
How quickly does the film react to pressure changes?
The film exhibits an instantaneous color change upon pressure application, occurring in less than a millisecond, and this color change is permanent.
Can this film be cut to fit specific shapes or sizes for different applications?
Yes, the film comes on a roll and is super thin, making it easy to cut with scissors or a laser to precisely match your application requirements.
