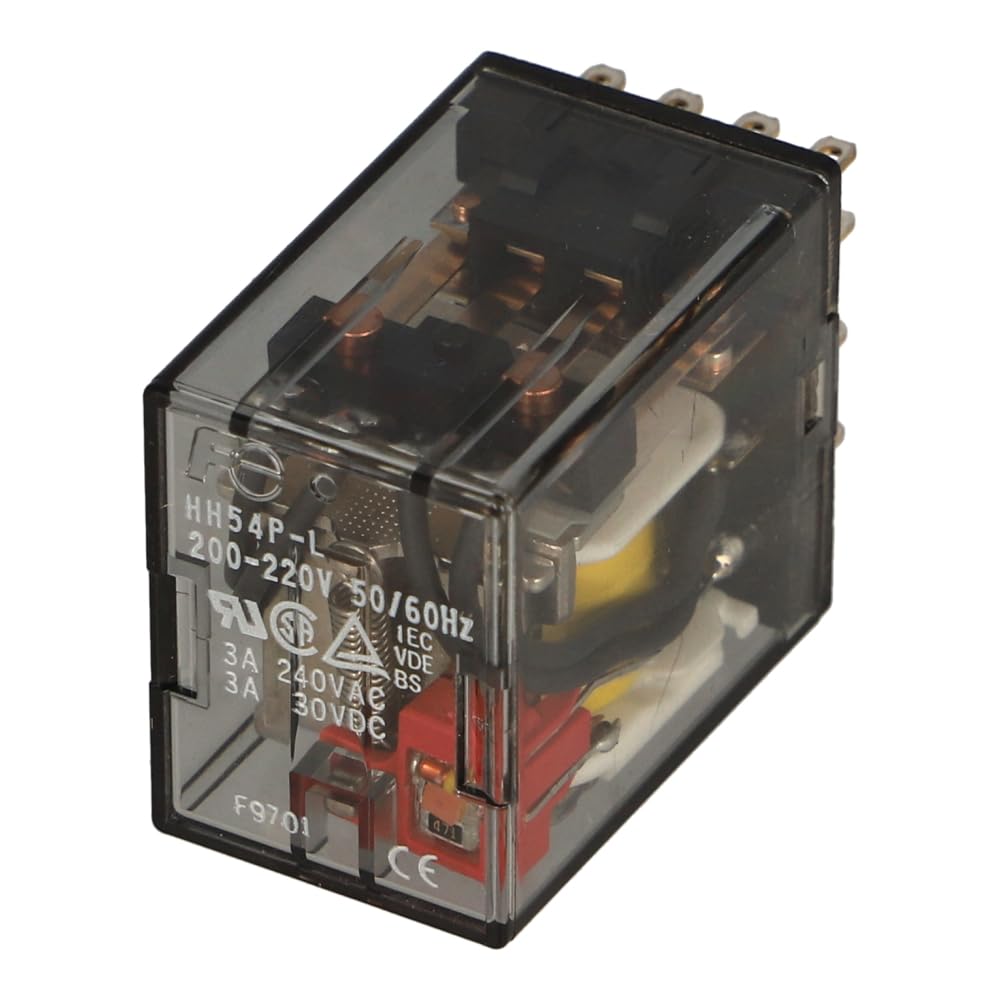

Fujifilm HH54P-L/2 AC200V 4 Pole Plug-in Relay

Name: Fujifilm HH54P-L/2 AC200V 4 Pole Plug-in Relay
Brand: Fujifilm
SKU: HH54P-L/2

A compact 4-pole plug-in relay with built-in indicator for dependable switching in industrial control panels and automation circuits

$35.61*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Fujifilm HH54P-L/2 is a 4-pole plug-in relay designed for general-purpose switching in industrial control panels, automation systems, and equipment interlocking circuits. It operates on an AC200V coil and provides four independent sets of contacts, making it useful for applications where a single control signal needs to switch multiple loads or circuits simultaneously. The built-in indicator gives maintenance personnel instant visual confirmation of the relay's energized state — a small but valuable detail when diagnosing issues in a panel full of identical components.

The plug-in form factor is the practical core of this relay's design. It seats into a standard 14-pin socket base, which means field wiring stays connected to the socket when a relay needs replacement. Swapping a failed unit takes seconds instead of the rewiring that hardwired relays demand. The relay body is compact and built for the demands of industrial environments. When specifying this relay, confirm that your control voltage is AC200V and verify the contact ratings against your load requirements by consulting the manufacturer's datasheet, as these details are essential for safe and reliable operation.

Specifications

Brand

Fujifilm

Model

HH54P-L/2

Type

Plug-in Relay

Coil Voltage

AC200V

Poles

Mounting

Plug-in (requires compatible socket base)

Indicator

Yes

Pros & Cons

👍 Pros

Plug-in design allows fast relay replacement during maintenance without disconnecting field wiring from the socket base
Built-in indicator provides immediate visual confirmation of relay state, speeding up panel troubleshooting
Four independent poles handle multiple switching circuits from a single compact relay, reducing panel component count
Standard 14-pin footprint ensures broad compatibility with commonly available relay socket bases

👎 Cons

AC200V coil voltage is specific to certain regional and industrial power systems, limiting direct use in 120VAC or 24VDC control circuits
The relay socket base required for installation is not included and must be sourced separately
Contact ratings and mechanical life specifications are not listed on this product page, requiring a datasheet lookup before specifying for a particular load
The plug-in form factor is larger than PCB-mount or slim interface relays, which may matter in space-constrained panel layouts

Frequently Asked Questions

What coil voltage does this relay require?

This relay operates on an AC200V coil. Verify that your control circuit supplies 200VAC to the coil terminals before installation — applying incorrect voltage will prevent proper operation or damage the coil.

Does the relay include a socket or does it need to be purchased separately?

The HH54P-L is a plug-in type relay, which means it requires a compatible 14-pin socket base for installation. The socket is typically sold separately and mounts to your DIN rail or panel.

What does the built-in indicator do?

The indicator is a small visual flag or LED on the relay body that shows whether the relay is currently energized. This makes it easy to verify relay status at a glance during troubleshooting or panel inspection without needing a multimeter.

How many switching circuits does the 4-pole configuration provide?

Four poles means four independent switching circuits, each with its own set of contacts. This allows you to control up to four separate loads or signal paths from a single relay coil activation.

Is this relay suitable for DIN rail mounting?

The relay itself plugs into a socket base. The socket base (purchased separately) is what mounts to a standard DIN rail or panel. This plug-in design allows quick relay replacement without rewiring.
