Fujifilm LYSB004UBB9E6-ELECTRNCS Prescale Super Low Pressure Film
★★★★★
10.6 in
Visualize Pressure Distribution with Fujifilm Prescale Film Fujifilm Prescale Super Low Pressure Film is a unique tool for visualizing and measuring surface pressure between mating surfaces. This film provides a pressure map that reveals pressure magnitude and distribution, ideal for quality con...
$688.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 28, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Visualize Pressure Distribution with Fujifilm Prescale Film
Fujifilm Prescale Super Low Pressure Film is a unique tool for visualizing and measuring surface pressure between mating surfaces. This film provides a pressure map that reveals pressure magnitude and distribution, ideal for quality control, R&D, and process optimization.
Specifications:
- Pressure Range: 70 - 350 PSI (5 - 25 kg/cm²)
- Dimensions: 19.7 ft x 10.6 in (6m x 270mm)
- Film Type: Super Low Pressure LLW (2LW)
- Film Color: Color
- Film Format Type: Instant
- Exposures per Roll: 8
- Features: Color change indicating pressure, instantaneous color development
- Included: Best Practices Guide
Key Features
Characterize surface pressure between any two mating, touching, or impacting surfaces. The dimensions of this film are 19.7 ft x 10.6 in (6m x 270mm).

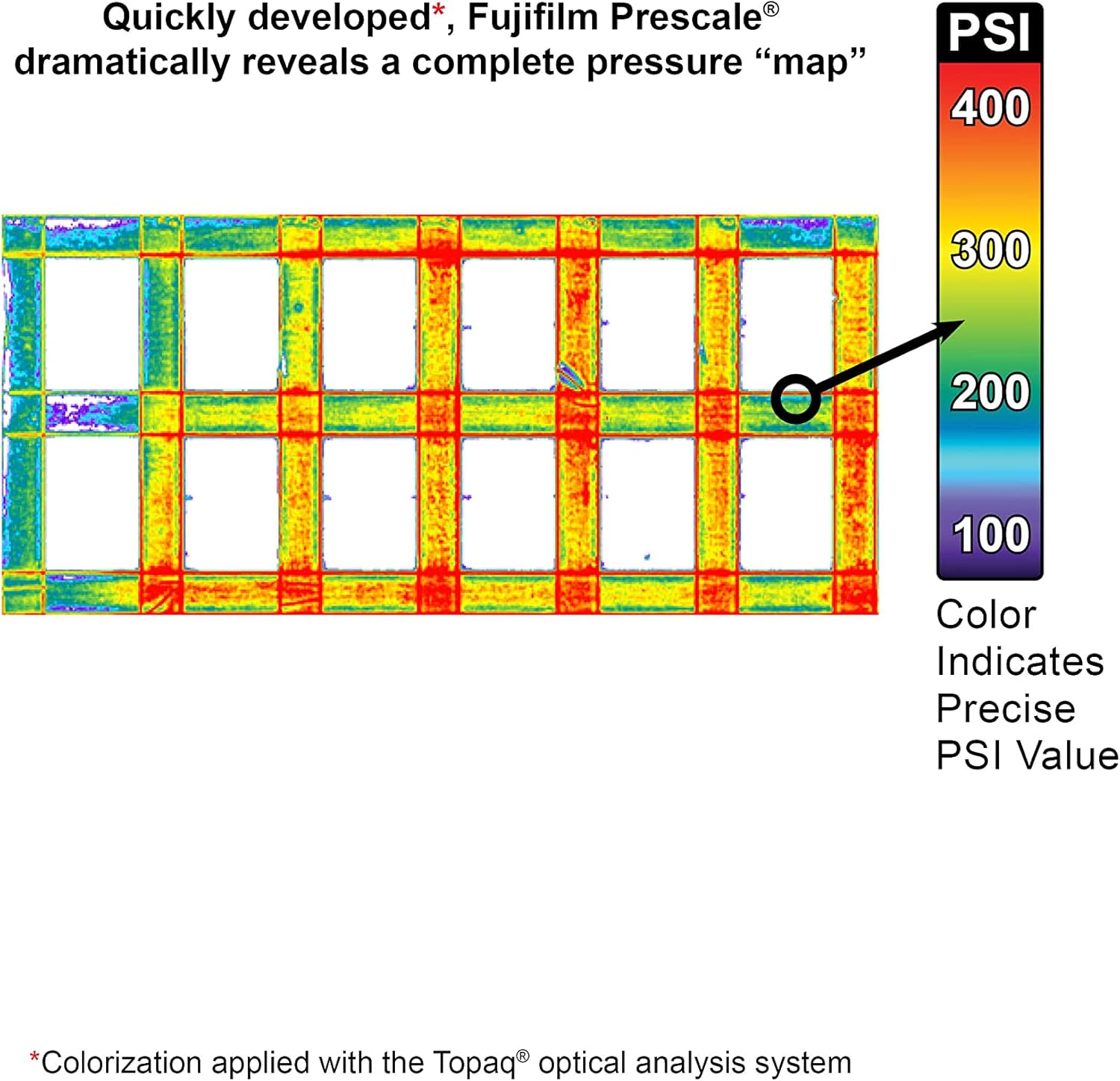

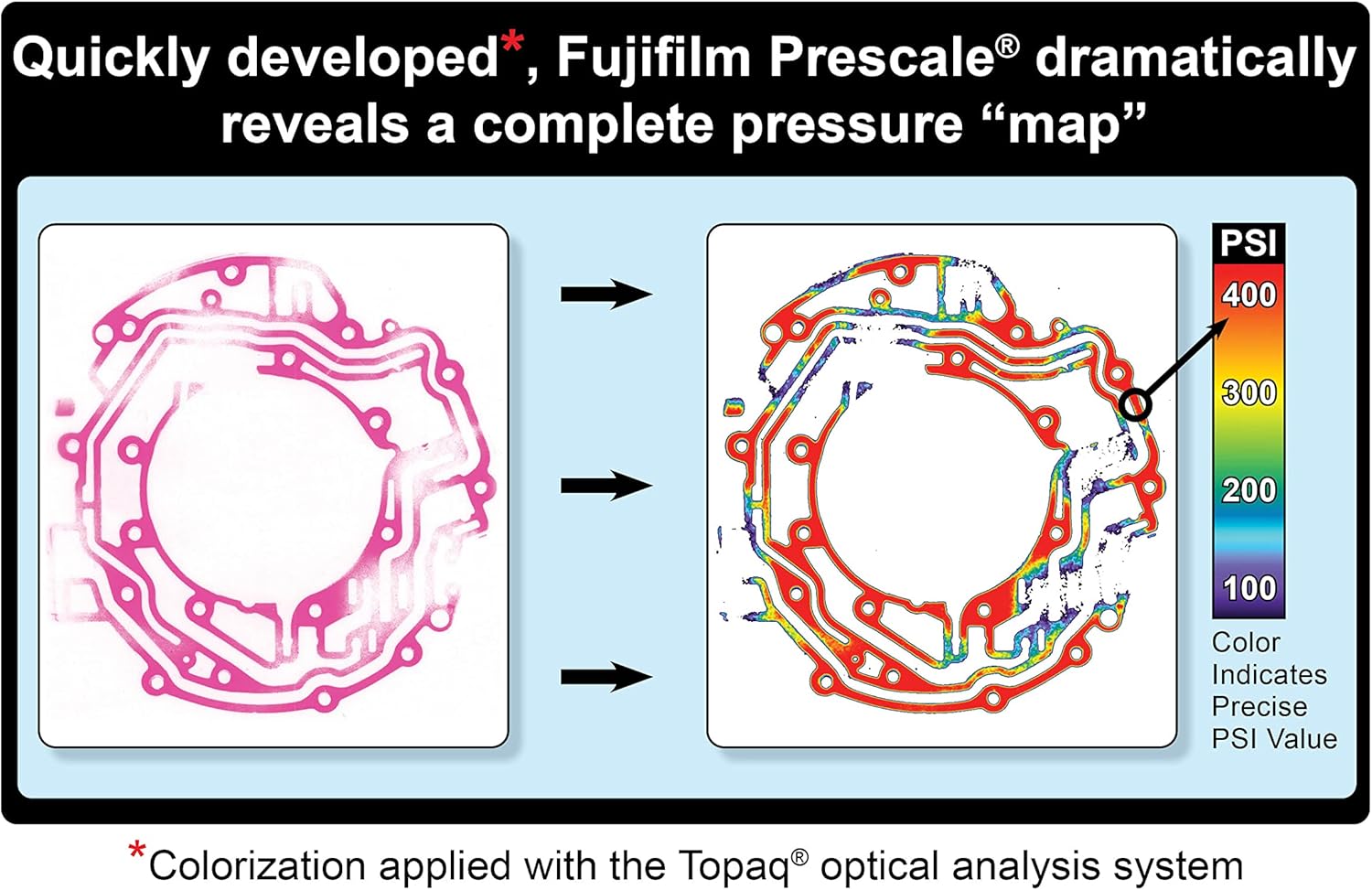

Prescale provides a surface pressure “map” that illuminates actual pressure magnitude (in precise PSI or kg/cm^2) and distribution between your two surfaces. The pressure range of this film is 70 - 350 PSI (5 - 25 kg/cm²).
Prescale reveals the contact surface pressure by virtue of a color change. This color change is instantaneous (less than a millisecond) and permanent

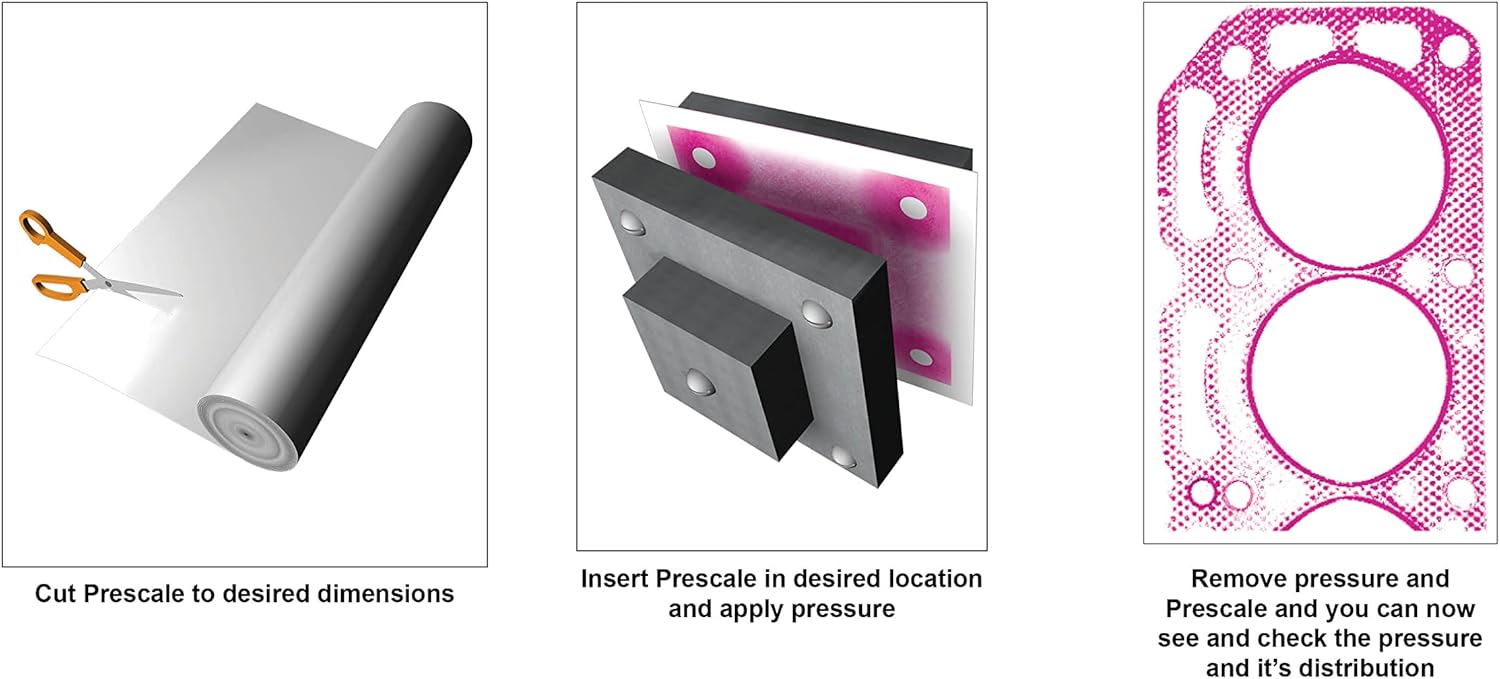

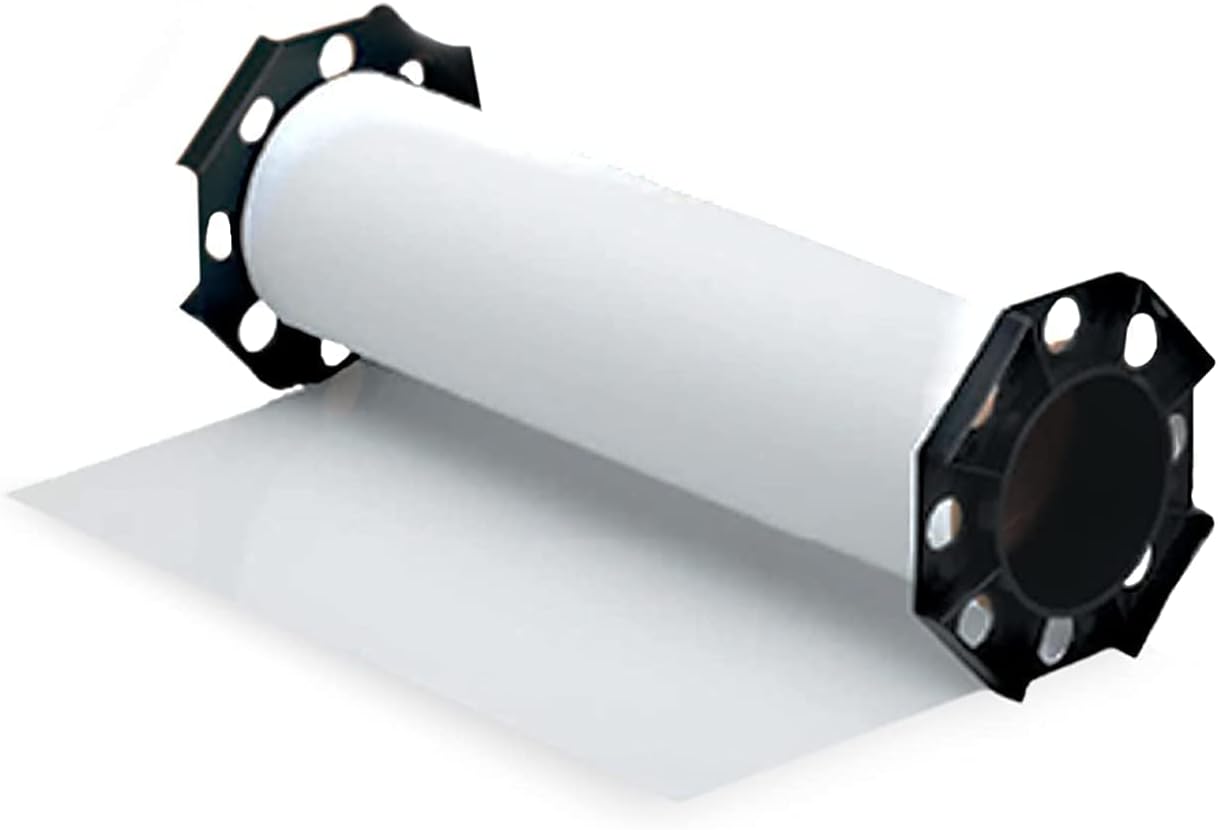

Prescale comes on a roll, is super thin, and can easily be cut from the supplied roll with scissor or laser to your precise application requirement

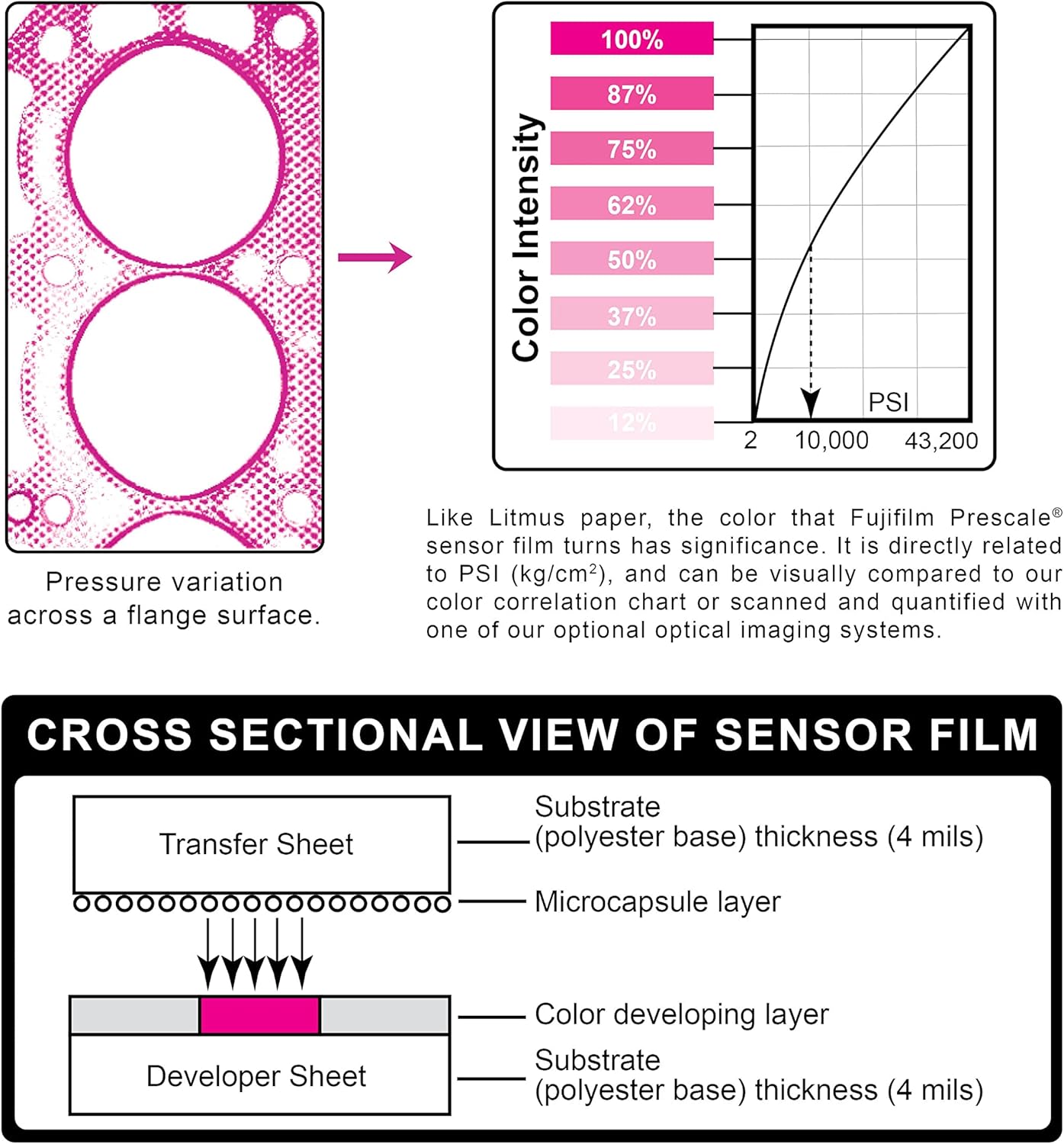

The color intensity of the film is directly related to the amount of pressure applied to it
All films guaranteed to have 18 months of shelf life available.
Specifications
Film Dimensions
19.7 ft x 10.6 in (6m x 270mm)
Pressure Range (PSI)
70 - 350 PSI
Pressure Range (kg/cm²)
5 - 25 kg/cm²
Reaction Time
Less than a millisecond
Shelf Life Guarantee
18 months
Pros & Cons
👍 Pros
- Provides a precise surface pressure "map" showing magnitude and distribution between mating surfaces.
- Features an instantaneous color change (less than a millisecond) that is permanent for reliable analysis.
- Comes on a super-thin roll, easily cut to exact application requirements with scissors or laser.
- The color intensity directly correlates to the amount of pressure applied, offering quantitative data.
- Offers a guaranteed shelf life of 18 months, ensuring usability over an extended period.
- Ideal for characterizing surface pressure between any two mating, touching, or impacting surfaces.
👎 Cons
- Requires manual interpretation of color intensity for pressure values, which may introduce human error without a densitometer.
- The specified pressure range of 70-350 PSI (5-25 kg/cm²) may not cover all very low or very high pressure applications.
- Dimensions of 19.7 ft x 10.6 in (6m x 270mm) are fixed, requiring careful planning for larger or non-standard surface areas.
- The film is consumed upon use, meaning each test requires a fresh piece, impacting cost for extensive testing.
- While super thin, its physical presence could subtly alter contact dynamics in extremely sensitive applications.
Frequently Asked Questions
What is the primary function of Fujifilm Prescale Super Low Pressure Film?
This film is designed to characterize surface pressure between any two mating, touching, or impacting surfaces by providing a visual "map" of pressure magnitude and distribution.
How does the film indicate pressure?
The film reveals contact surface pressure through a color change, where the intensity of the color is directly related to the amount of pressure applied.
What is the pressure range this film can measure?
The Prescale Super Low Pressure Film measures pressure in the range of 70 - 350 PSI (5 - 25 kg/cm²).
Can the film be cut to a specific size?
Yes, the film comes on a roll, is super thin, and can easily be cut with scissors or a laser to meet your precise application requirements.
How quickly does the film show pressure changes?
The color change on the film is instantaneous, occurring in less than a millisecond, and is permanent, allowing for accurate analysis.
What are the dimensions of the film supplied?
The dimensions of this film are 19.7 ft x 10.6 in (6m x 270mm), provided on a continuous roll.
