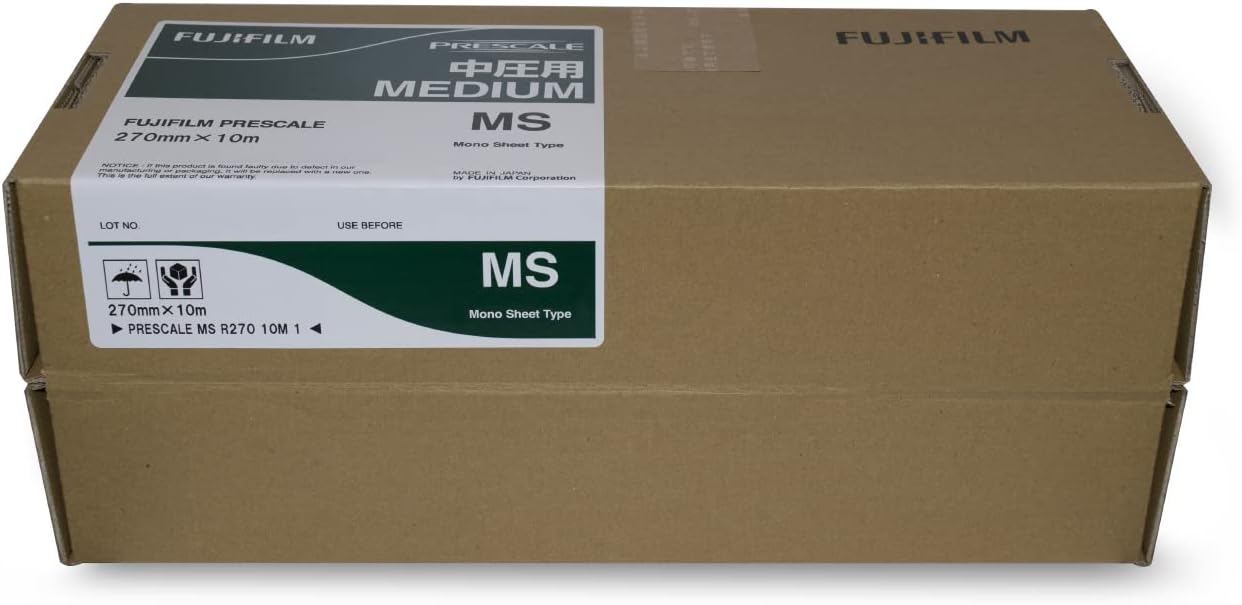

Fujifilm MS Prescale Pressure Mapping Film - Medium, 32.8 ft x 10.6 in
★★★★★
10.6 in
Reveal Surface Pressure with Precision Fujifilm Prescale Medium Pressure (MS) film is a unique pressure indicating film that reveals surface pressure distribution between contacting surfaces. This tactile sensor film provides a pressure map by changing color in response to applied pressure, allo...
$618.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Reveal Surface Pressure with Precision
Fujifilm Prescale Medium Pressure (MS) film is a unique pressure indicating film that reveals surface pressure distribution between contacting surfaces. This tactile sensor film provides a pressure map by changing color in response to applied pressure, allowing for precise measurement and analysis. Ideal for various applications, including heat seal planarity, roller set parallelism, and clamping forces.
Specifications:
- Brand: Fujifilm
- Model: MS
- Pressure Range: 1,400 - 7,100 PSI (100 - 500 kg/cm²)
- Film Dimensions: 32.8 ft x 10.6 in. (10m x 270mm)
- Color Change: Instantaneous and permanent
- Application: Surface Pressure Mapping
Key Features
Characterize surface pressure between any two mating, touching, or impacting surfaces. The dimensions of this film are 32.8 x 10.6 in. (10m x 270mm).

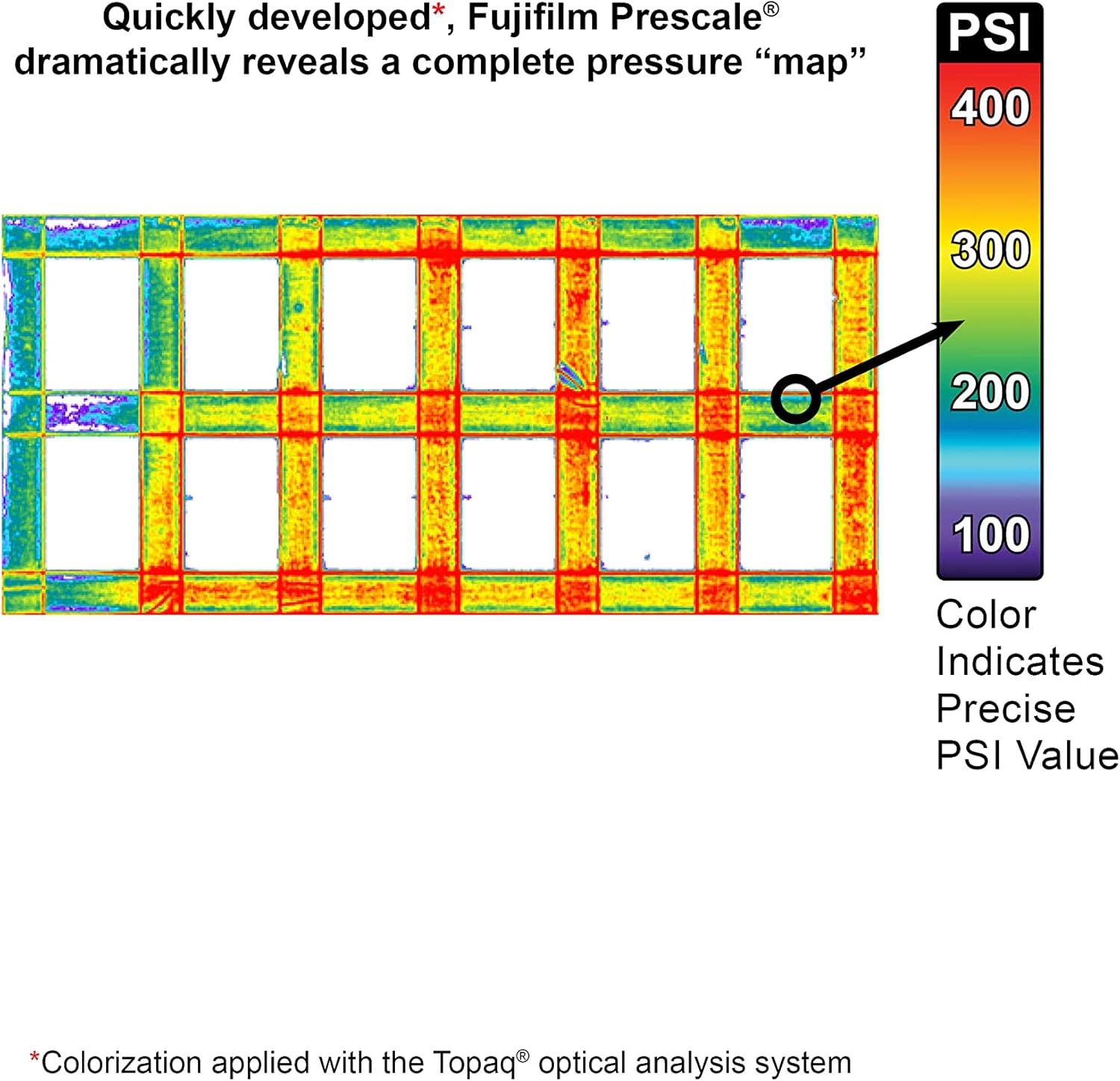

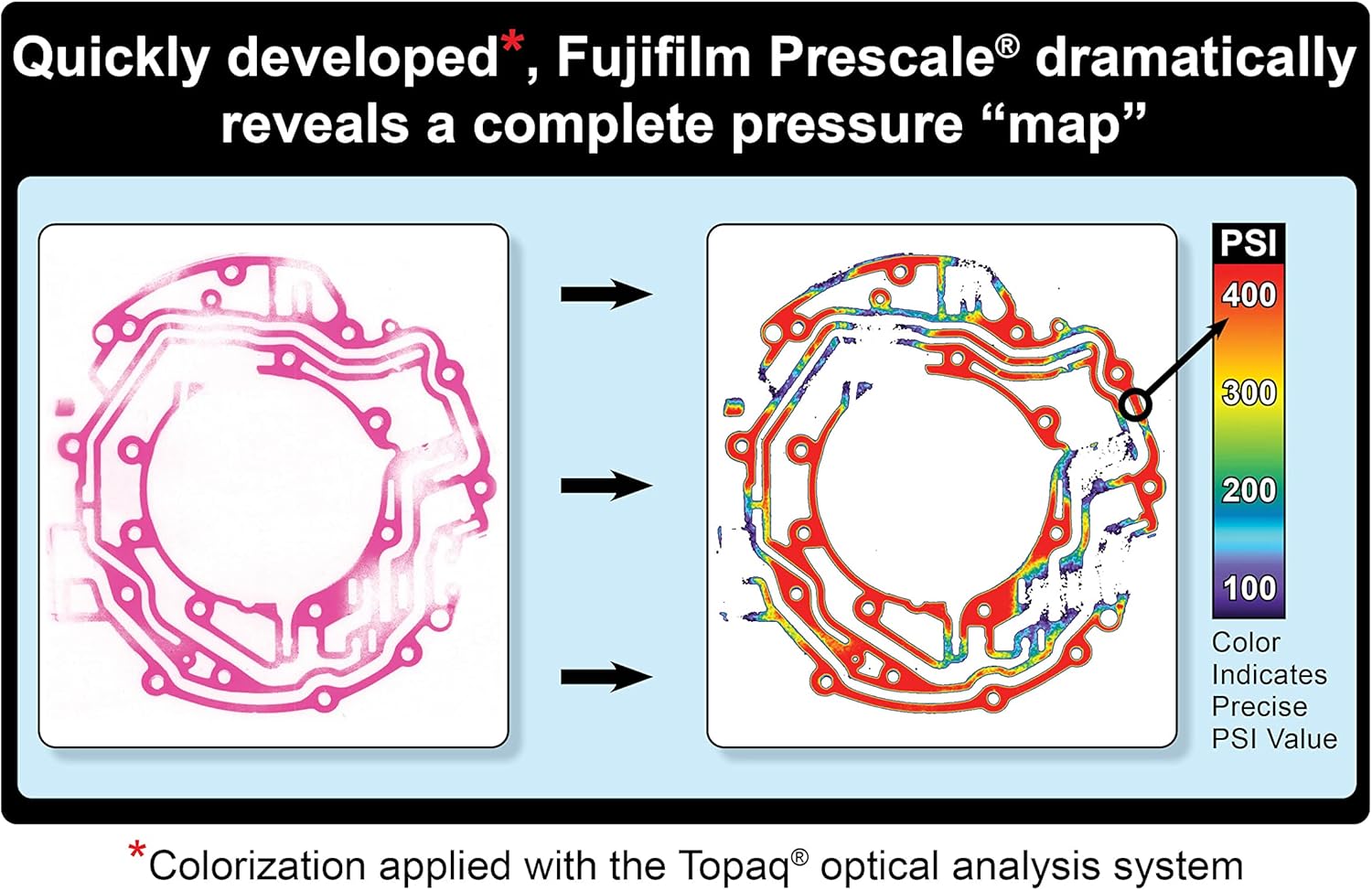

Prescale provides a surface pressure “map” that illuminates actual pressure magnitude (in precise PSI or kg/cm^2) and distribution between your two surfaces. The pressure range of this film is 1,400 - 7,100 PSI (100 - 500 kg/cm²)
Prescale reveals the contact surface pressure by virtue of a color change. This color change is instantaneous (less than a millisecond) and permanent

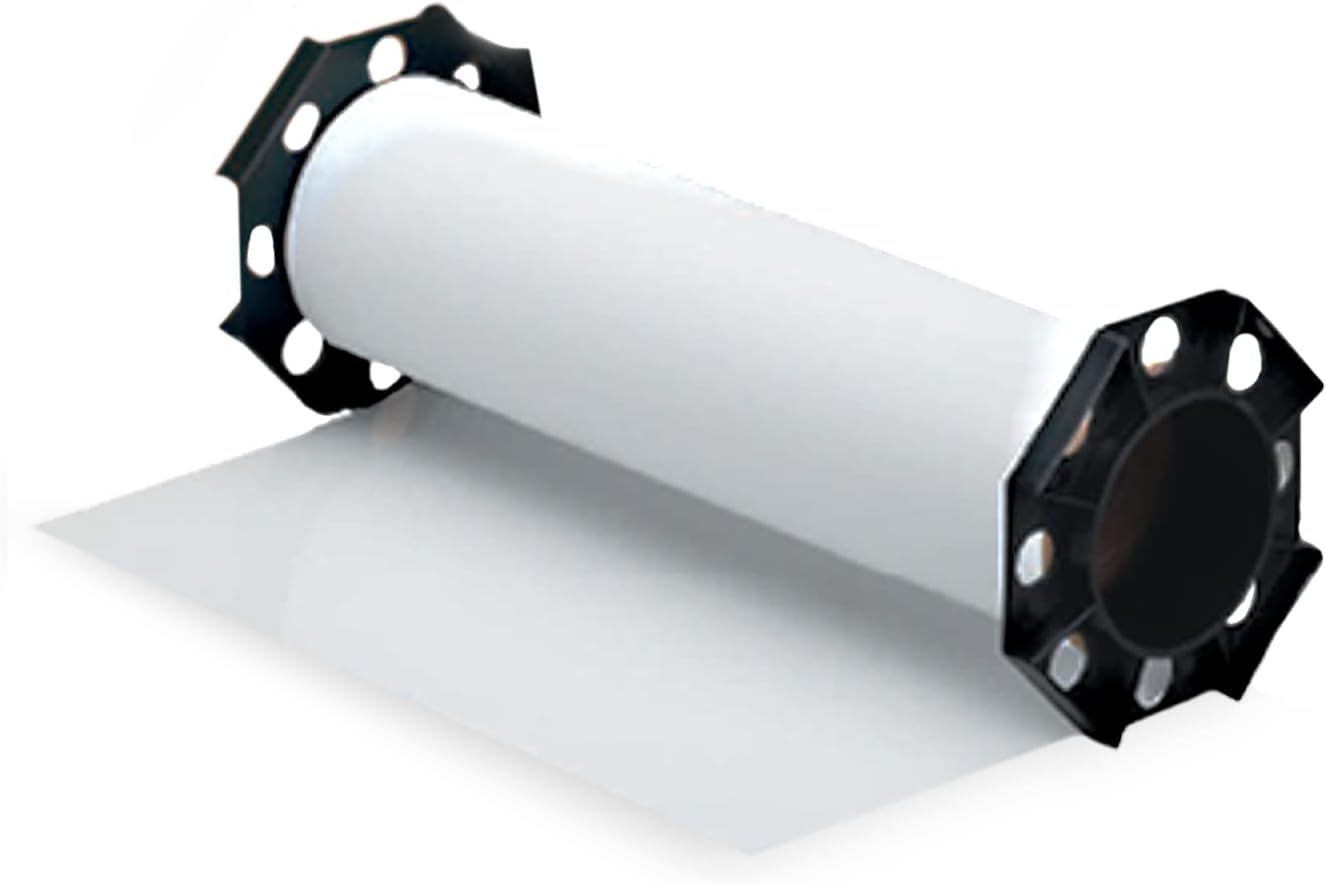

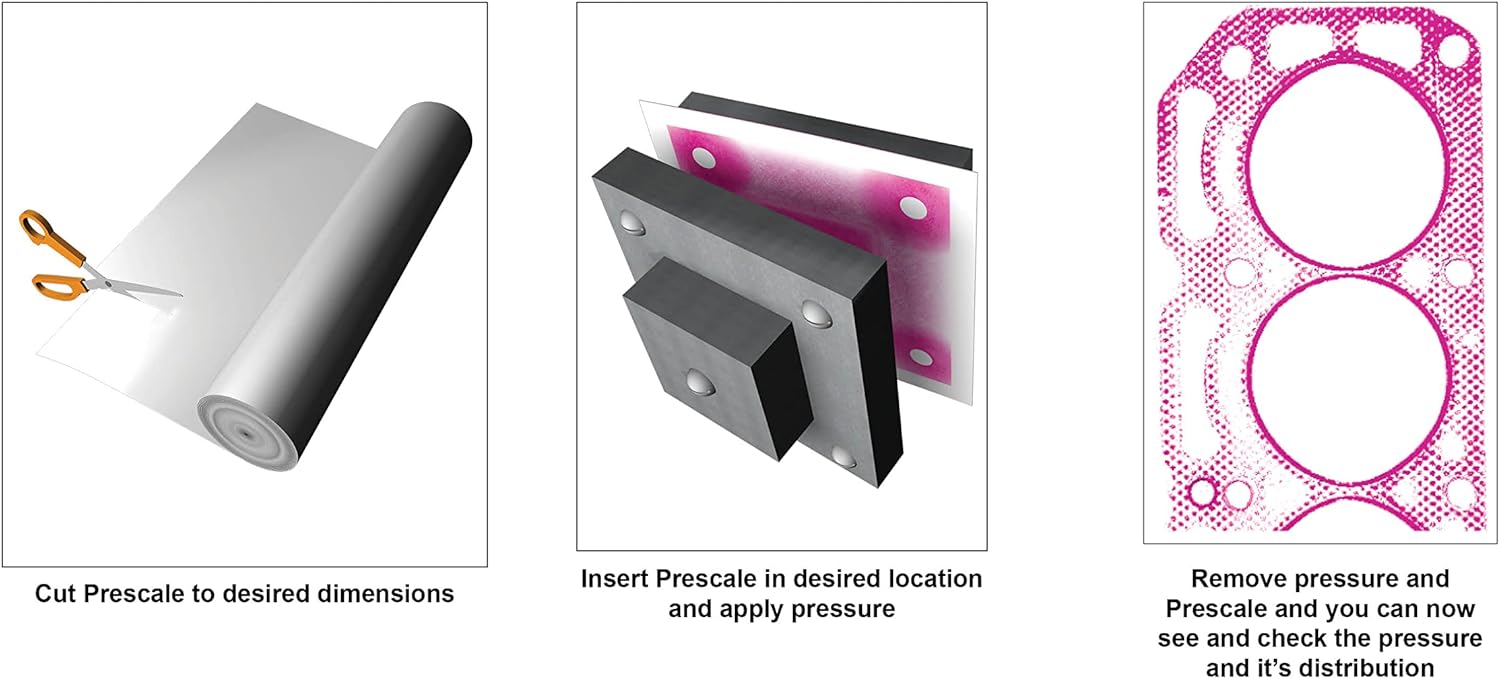

Prescale comes on a roll, is super thin, and can easily be cut from the supplied roll with scissor or laser to your precise application requirement

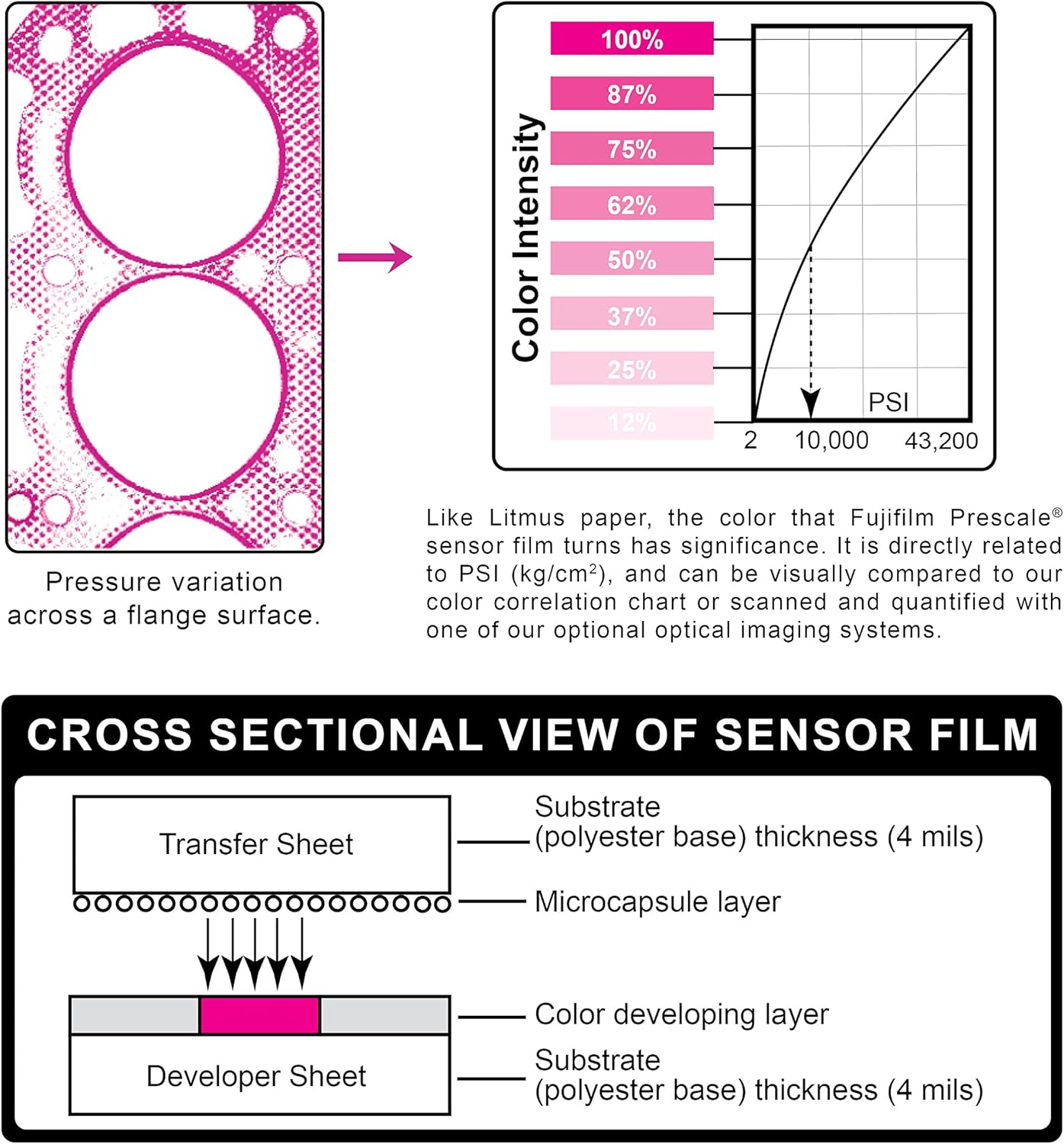

The color intensity of the film is directly related to the amount of pressure applied to it
All films guaranteed to have 18 months of shelf life available.
Specifications
Film Dimensions
32.8 ft x 10.6 in (10m x 270mm)
Pressure Range
1,400 - 7,100 PSI (100 - 500 kg/cm²)
Shelf Life
18 months
Reaction Speed
Less than a millisecond
Pros & Cons
👍 Pros
- Provides a clear surface pressure map between mating surfaces, showing both magnitude and distribution of pressure.
- Offers an instantaneous and permanent color change upon pressure application, allowing for quick analysis (less than a millisecond).
- Comes on a roll that can be easily cut to precise application requirements using scissors or a laser, ensuring versatility.
- Reveals pressure magnitude in precise PSI or kg/cm², offering quantitative data for detailed analysis.
- Guaranteed to have 18 months of shelf life, providing ample time for use across multiple projects.
👎 Cons
- The film has a specific pressure range of 1,400 - 7,100 PSI, which may not cover extremely low or high-pressure applications.
- One roll measures 32.8 ft x 10.6 in, which may be too much material for very small, infrequent projects, leading to potential waste.
- Requires careful handling and interpretation to accurately assess pressure distribution from the color intensity.
- The effectiveness relies on direct contact between two surfaces, limiting its use in non-contact pressure sensing applications.
- While revealing pressure, it does not provide real-time digital readouts, relying instead on visual color interpretation.
Frequently Asked Questions
What is the primary purpose of Fujifilm MS Prescale Pressure Mapping Film?
The primary purpose of this film is to characterize surface pressure between any two mating, touching, or impacting surfaces, providing a visual map of pressure magnitude and distribution.
What are the dimensions of one roll of this pressure mapping film?
One roll of Fujifilm MS Prescale film measures 32.8 feet in length by 10.6 inches in width (10 meters by 270 millimeters).
What pressure range can this specific "Medium" film measure?
This Medium Prescale film is designed to measure pressures within the range of 1,400 to 7,100 PSI (100 to 500 kg/cm²).
How quickly does the film react to pressure and display a color change?
The film reveals contact surface pressure with an instantaneous color change, occurring in less than a millisecond, and the change is permanent.
Can this film be cut to fit specific application shapes?
Yes, Prescale film comes on a roll and is super thin, allowing it to be easily cut with scissors or a laser to fit your precise application requirements.
