Fujifilm Prescale LLW Super Low Pressure Mapping Film - 70-350 PSI
10.6 in
Reveal Surface Pressure with Fujifilm Prescale FilmFujifilm Prescale Super Low LLW (2LW) is a unique pressure indicating film that visualizes surface pressure distribution. Ideal for various applications, it provides a precise pressure map to optimize contact and performance. Specifications: ...
$137.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Reveal Surface Pressure with Fujifilm Prescale Film
Fujifilm Prescale Super Low LLW (2LW) is a unique pressure indicating film that visualizes surface pressure distribution. Ideal for various applications, it provides a precise pressure map to optimize contact and performance.
Specifications:
- Pressure Range: 70-350 PSI (5 - 25 kg/cm²)

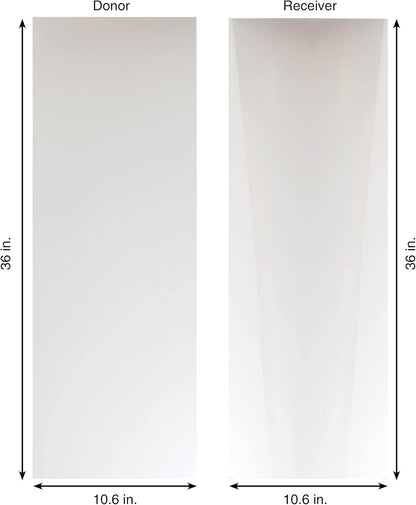

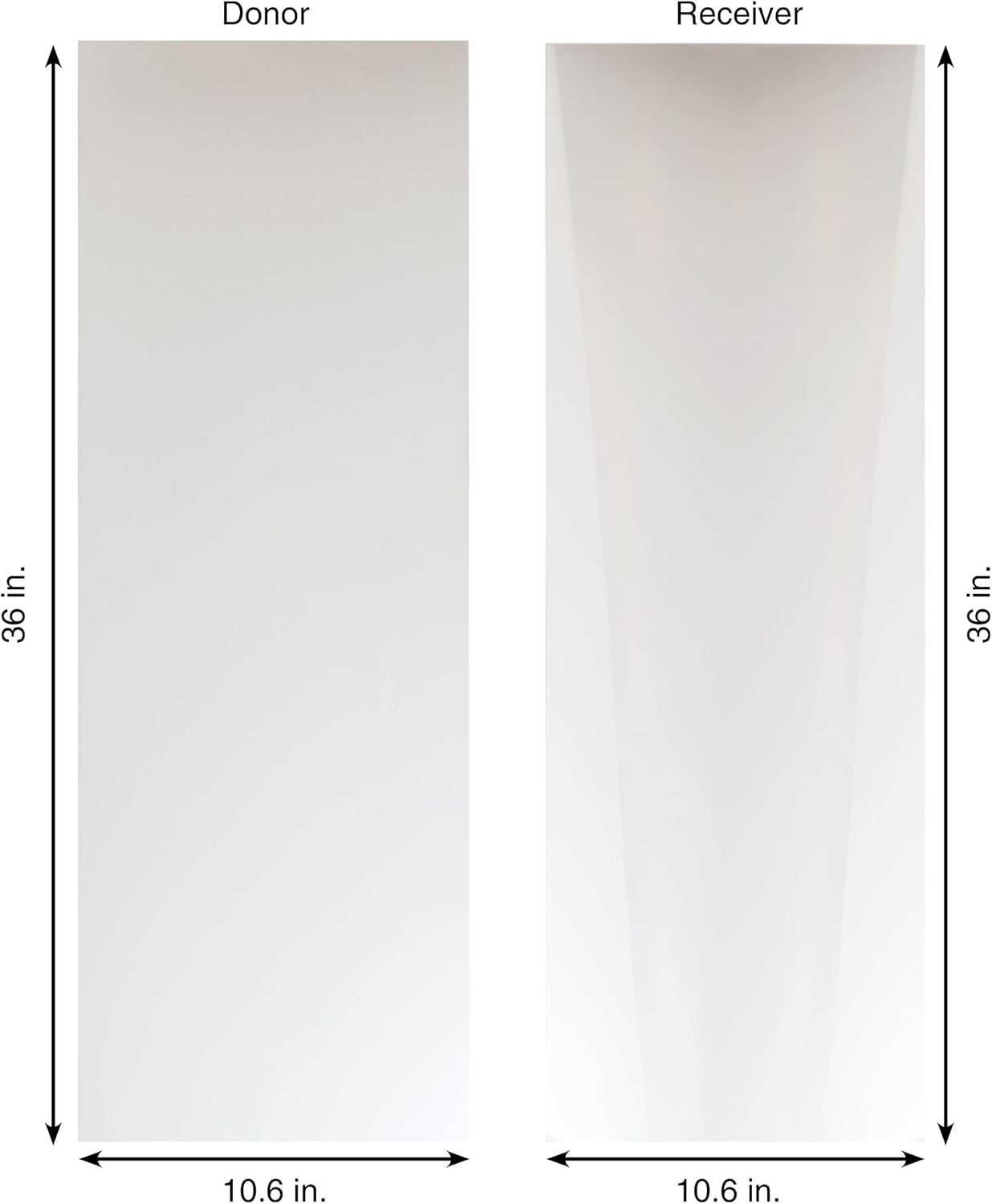

- Dimensions: 3 ft. x 10.6 in.
- Film Type: Super Low (LLW)
- Feature: Instantaneous and permanent color change
- Applications: Heat seal planarity, roller set parallelism, object impact, etc.
Key Features
Characterize surface pressure between any two mating, touching, or impacting surfaces. The dimensions of this film are 3 ft. x 10.6 in.

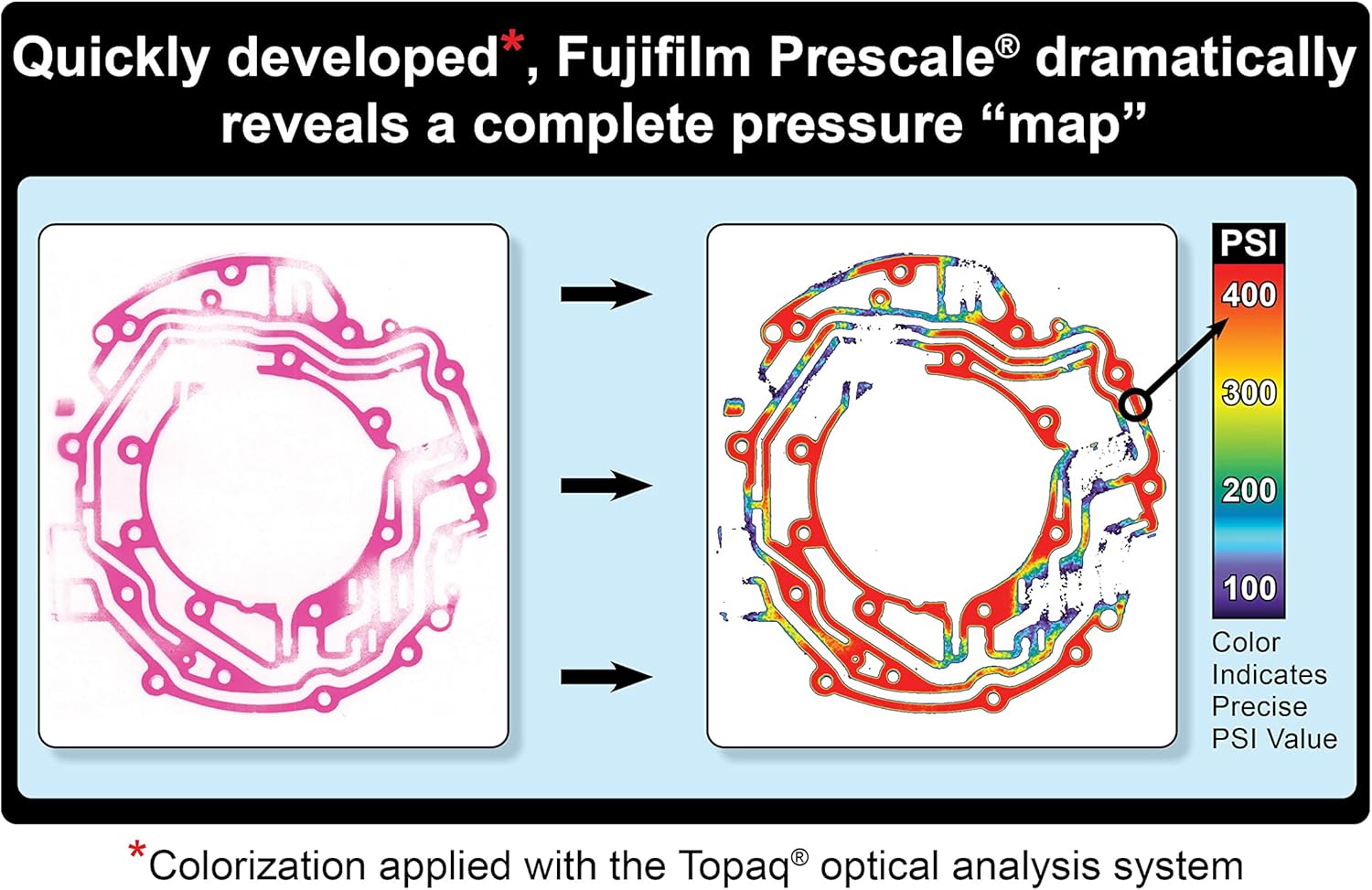

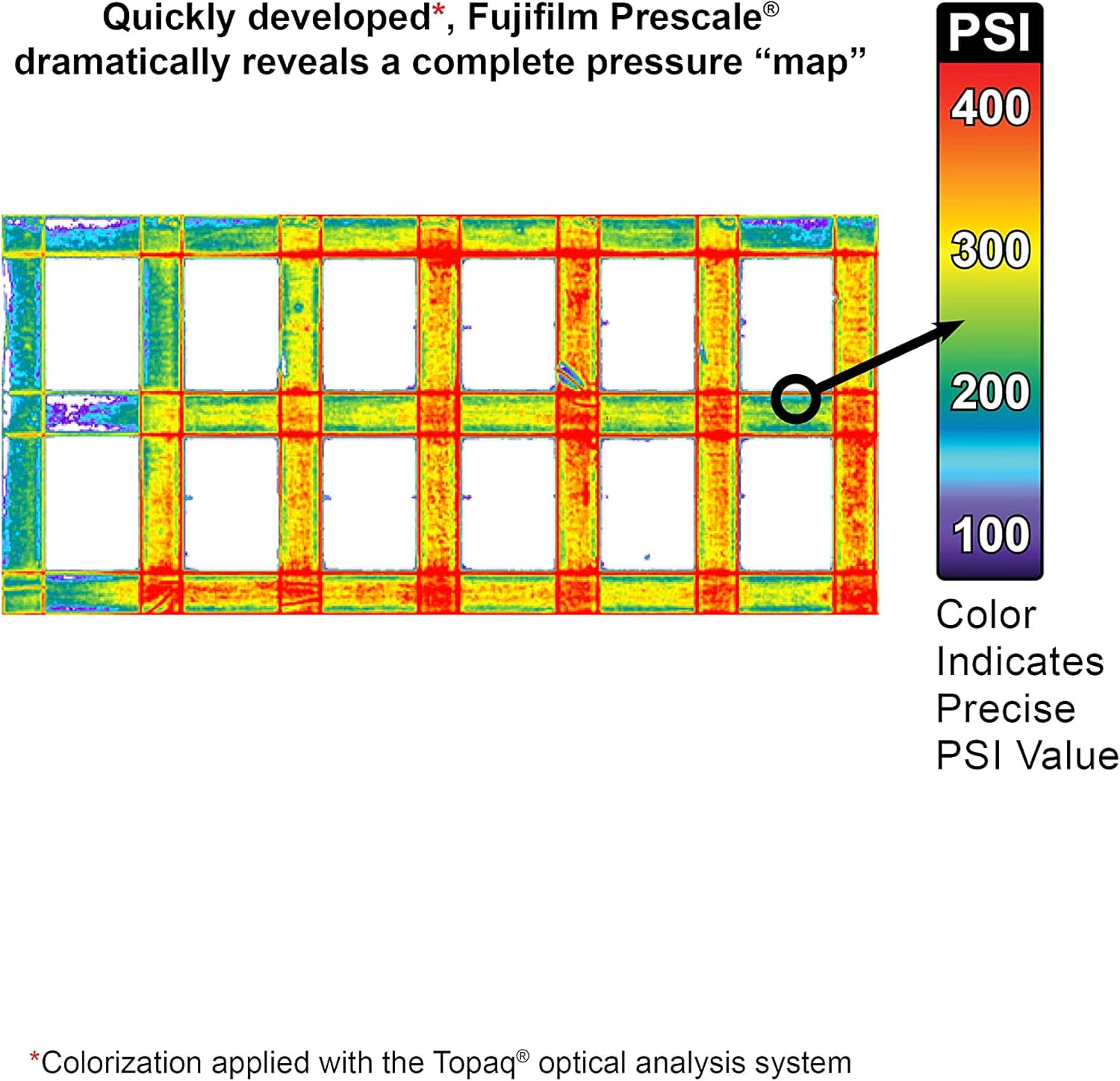

Prescale provides a surface pressure “map” that illuminates actual pressure magnitude (in precise PSI or kg/cm^2) and distribution between your two surfaces. The pressure range of this film is 70 - 350 PSI (5 - 25 kg/cm²)
Prescale reveals the contact surface pressure by virtue of a color change. This color change is instantaneous (less than a millisecond) and permanent

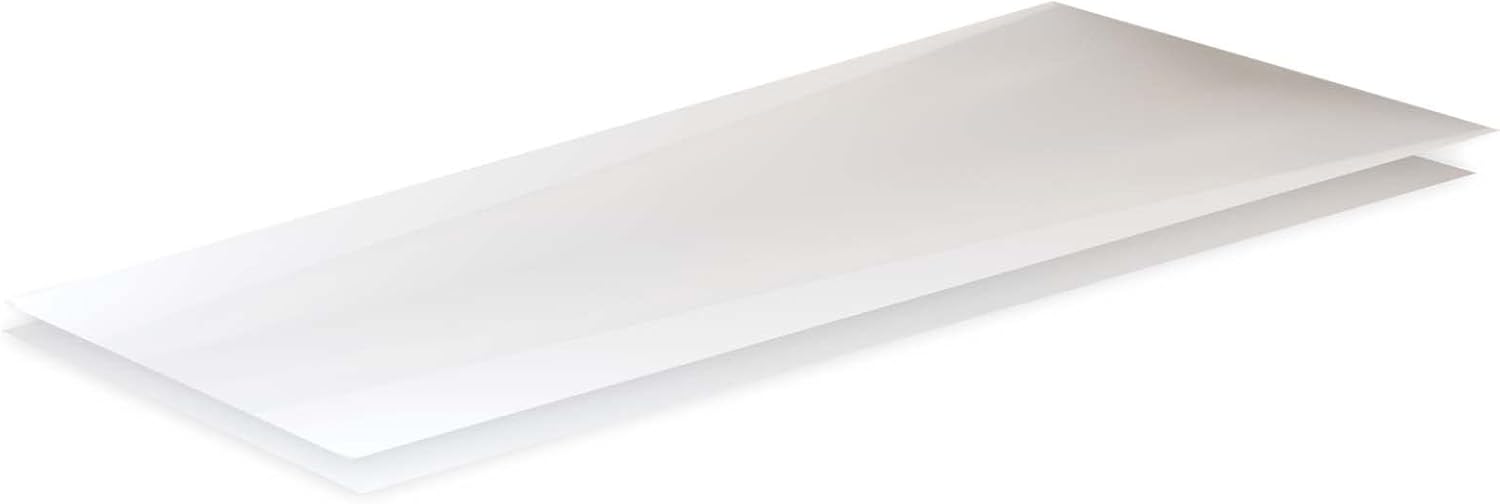

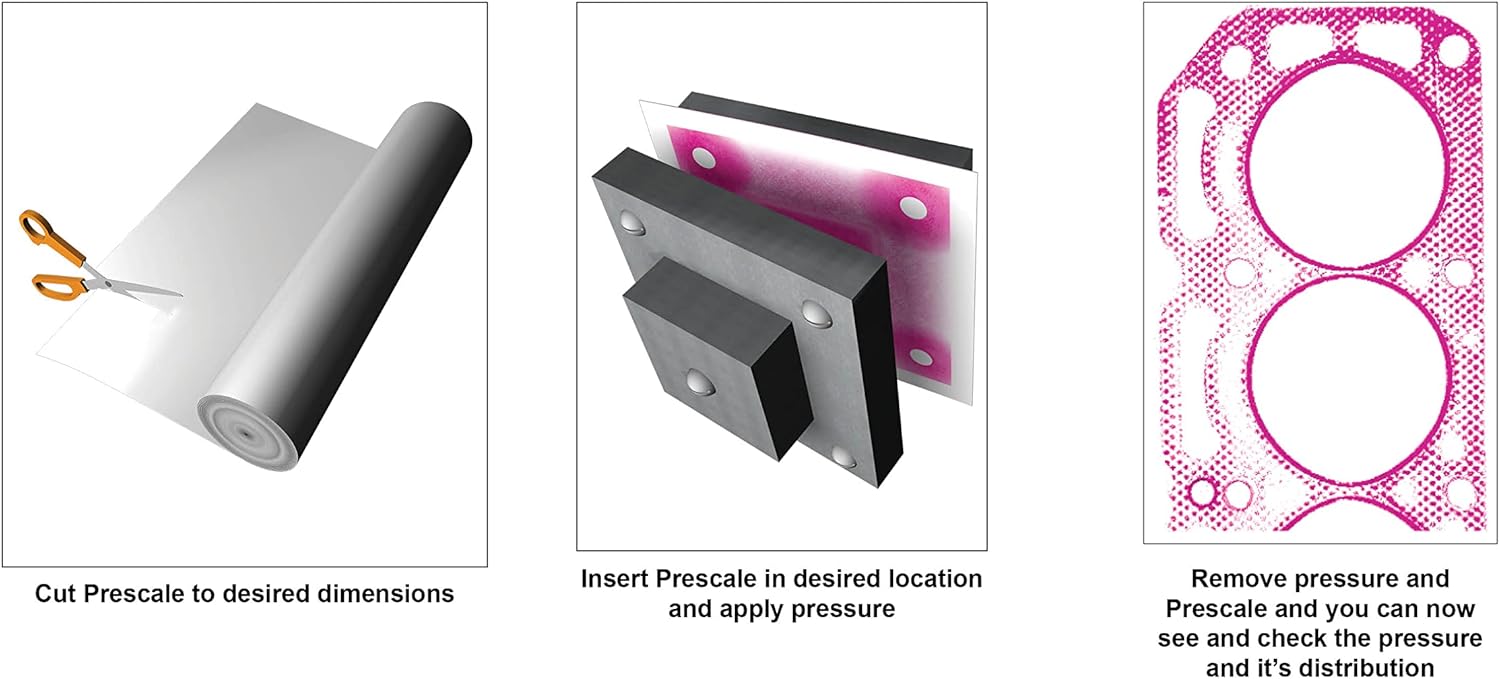

Prescale comes on a roll, is super thin, and can easily be cut from the supplied roll with scissor or laser to your precise application requirement

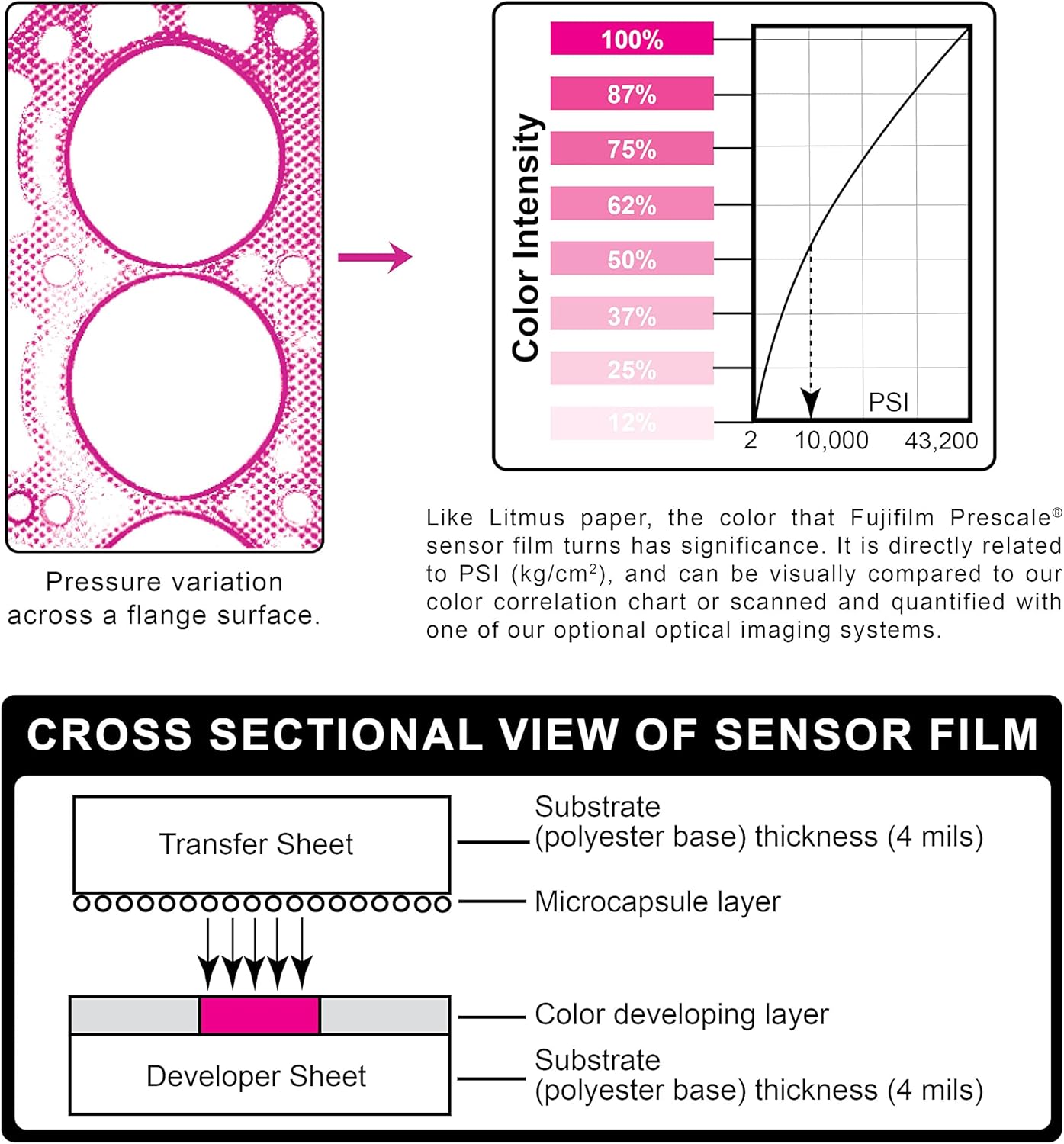

The color intensity of the film is directly related to the amount of pressure applied to it
All films guaranteed to have 18 months of shelf life available.
Specifications
Product Type
Pressure Mapping Film
Pressure Range
70 - 350 PSI (5 - 25 kg/cm²)
Film Dimensions
3 ft. x 10.6 in.
Response Time
Less than a millisecond
Color Change
Instantaneous and permanent
Shelf Life
18 months guaranteed
Pros & Cons
👍 Pros
- Provides a visual pressure map that instantly shows pressure magnitude and distribution between surfaces.
- Capable of measuring a wide super low pressure range from 70 to 350 PSI (5 to 25 kg/cm²).
- Delivers instantaneous and permanent color change upon pressure application, ensuring immediate results.
- The super thin film comes on a roll, allowing for easy cutting to fit specific application requirements.
- Guaranteed to maintain an 18-month shelf life, offering extended usability for various projects.
👎 Cons
- Requires visual interpretation of color intensity to determine the exact pressure applied to the surface.
- The film dimensions of 3 ft. x 10.6 in. may not be suitable for all large or unusually shaped surface pressure analysis needs.
- A separate scanning or analysis tool is likely needed for precise digital quantification of the pressure map.
- The "super low pressure" range of 70-350 PSI may not be applicable for ultra-high or ultra-low pressure measurement needs.
- Users must ensure proper storage to maintain the 18-month shelf life and prevent premature degradation of the film.
Frequently Asked Questions
What is the primary function of the Fujifilm Prescale LLW film?
The Fujifilm Prescale LLW film is designed to characterize surface pressure between any two mating, touching, or impacting surfaces by providing a visual "map" of pressure magnitude and distribution.
What pressure range can this film measure?
This super low pressure mapping film is capable of measuring pressures from 70 to 350 PSI, which is equivalent to 5 to 25 kg/cm².
How quickly does the film react to pressure?
The film exhibits an instantaneous color change, occurring in less than a millisecond, and this color change is permanent for later analysis.
Can the film be customized for different applications?
Yes, the film is supplied on a roll and is super thin, allowing it to be easily cut with scissors or a laser to fit your precise application requirements.
How long can I store this pressure mapping film?
All Fujifilm Prescale films are guaranteed to have an 18-month shelf life available from the date of purchase, ensuring its effectiveness over time.
