Fujifilm Prescale Extreme Low Pressure Mapping Film
Reveal Pressure Distribution with Precision FilmFujifilm Prescale film is a unique tactile pressure indicating sensor film that visualizes surface pressure distribution. Ideal for ensuring even contact in various mechanical and industrial applications. Specifications Type: Fujifilm Prescale ...
$12.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Reveal Pressure Distribution with Precision Film
Fujifilm Prescale film is a unique tactile pressure indicating sensor film that visualizes surface pressure distribution. Ideal for ensuring even contact in various mechanical and industrial applications.
Specifications
- Type: Fujifilm Prescale Extreme Low (4LW)
- Application: Surface Pressure Mapping
- Pressure Range: 7.2-28 PSI
- Size: (4.2" x 3")
Key Features
This 4.2" by 3" sample allows you to test Fujifilm Prescale, a unique, affordable and easy to use tool.

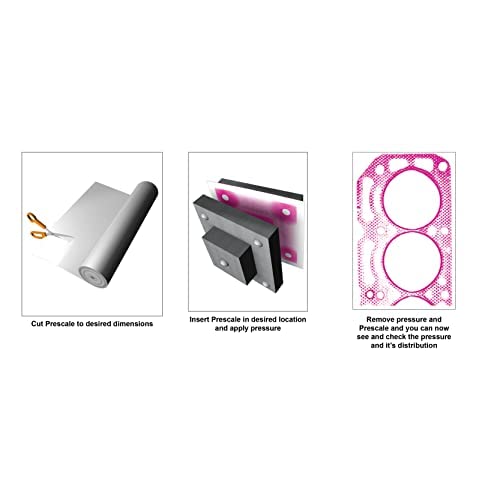

Reveals distribution & magnitude of pressure between any 2 contacting, mating or impacting surfaces
Extremely thin (4 to 8 mils) which enables it to conform to curved surfaces.
Ideal for invasive intolerant environments and tight spaces not accessible to conventional electronic transducers
The color intensity of the film is directly related to the amount of pressure applied to it
All films guaranteed to have 18 months of shelf life available.
Specifications
Brand
Fujifilm
Product Type
Pressure Mapping Film Sample
Size
4.2" by 3"
Thickness
4 to 8 mils
Application
Reveals pressure distribution & magnitude
Conformability
Conforms to curved surfaces
Suitability
Invasive intolerant environments, tight spaces
Measurement Principle
Color intensity directly related to pressure
Shelf Life
18 months guaranteed
Pros & Cons
👍 Pros
- This Fujifilm Prescale sample offers an affordable and straightforward method for pressure mapping between surfaces.
- It effectively reveals both the distribution and magnitude of pressure across contacting, mating, or impacting surfaces.
- The film is exceptionally thin, ranging from 4 to 8 mils, which allows it to conform accurately to curved surfaces.
- It is ideal for invasive-intolerant environments and tight spaces, providing access where electronic transducers cannot fit.
- The color intensity of the film directly correlates to the applied pressure, offering a clear visual indication of force.
- All films are guaranteed to have an 18-month shelf life, ensuring their viability for future projects.
👎 Cons
- This product is a small sample size (4.2" by 3"), which may not be sufficient for large-scale or multiple testing applications.
- As a film-based solution, it provides a static pressure reading and does not offer real-time dynamic pressure monitoring.
- The interpretation of pressure magnitude relies on color intensity, which might require comparative charts or experience for precise quantitative analysis.
- The film is a single-use product for each test, meaning new sheets are required for repeated measurements.
- While versatile for various surfaces, it might not be suitable for extremely high-temperature or chemically aggressive environments without further specification.
Frequently Asked Questions
What can Fujifilm Prescale Extreme Low Pressure Mapping Film be used for?
This film is designed to reveal the distribution and magnitude of pressure between any two contacting, mating, or impacting surfaces.
What is the size of this sample film?
This offering is a sample, measuring 4.2 inches by 3 inches, allowing for initial testing of the product's capabilities.
Is the film flexible enough for non-flat surfaces?
Yes, the film is extremely thin, ranging from 4 to 8 mils, which enables it to conform effectively to curved surfaces.
How does the film indicate pressure levels?
The color intensity that appears on the film is directly related to the amount of pressure applied to it, providing a visual gauge.
What kind of environments is this film particularly suited for?
It is ideal for invasive-intolerant environments and tight spaces that are not easily accessible to conventional electronic transducers.
