Fujifilm
Fujifilm Prescale Extreme Low Pressure Film Roll
★★★★★
12.6 in
## Reveal Pressure Distribution with Precision Fujifilm Prescale Extreme Low Pressure film is a unique tool for visualizing and quantifying surface pressure distribution. Ideal for a wide range of applications, this pressure-indicating film instantly changes color to reveal pressure variations be...
$600.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
## Reveal Pressure Distribution with Precision
Fujifilm Prescale Extreme Low Pressure film is a unique tool for visualizing and quantifying surface pressure distribution. Ideal for a wide range of applications, this pressure-indicating film instantly changes color to reveal pressure variations between contacting surfaces.
Specifications
- Brand: Fujifilm
- Model: Prescale Extreme Low Pressure (4LW)
- Pressure Range: 7.2-28 PSI (0.5 - 1.97 kg/cm²)
- Dimensions: 9.8 ft x 12.6 in (3m x 320mm)
- Film Type: Pressure Indicating Film
- Color Change: Instantaneous and permanent
Key Features
Characterize surface pressure between any two mating, touching, or impacting surfaces. The dimensions of this film are 9.8 ft. x 12.6 in. (3m x 320mm).

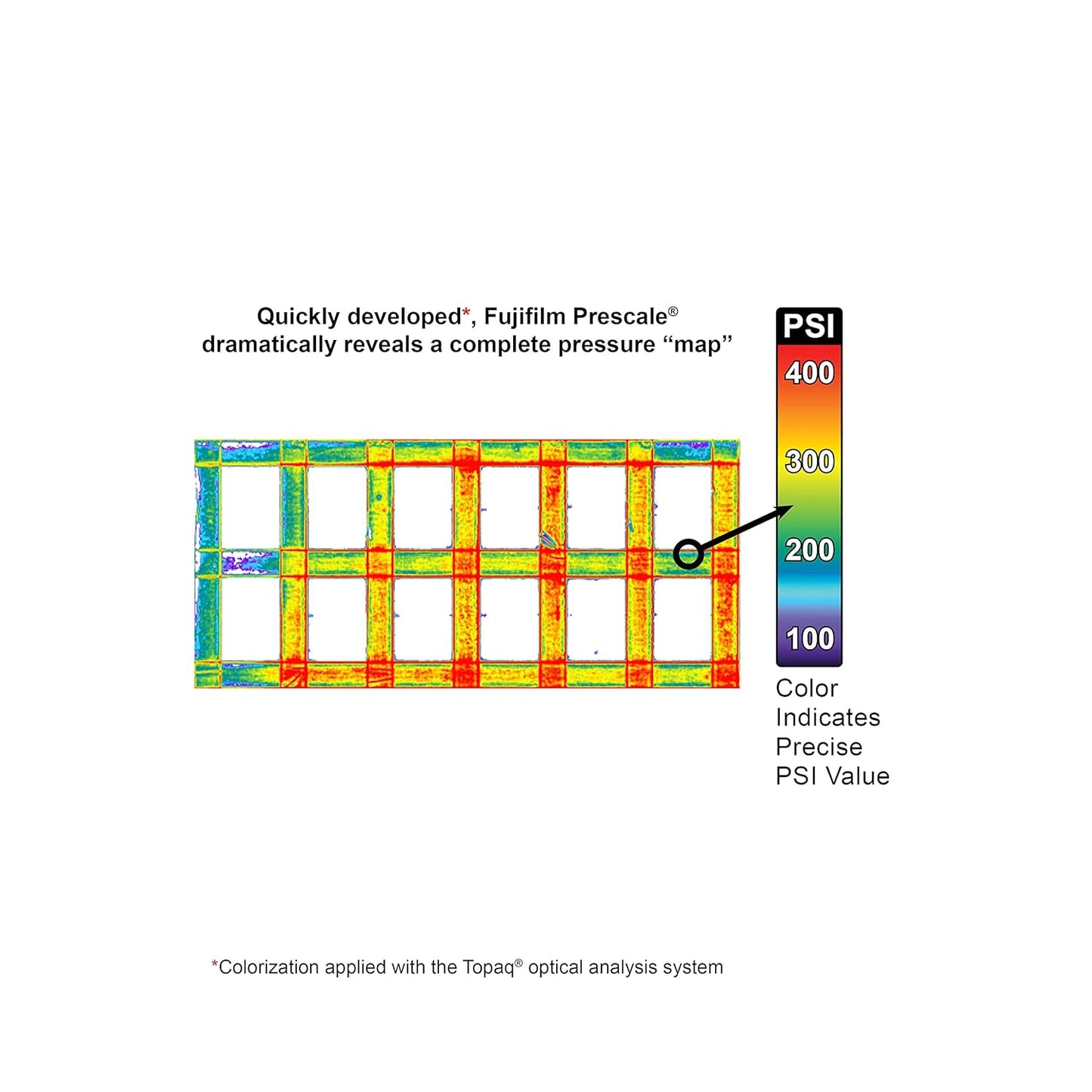

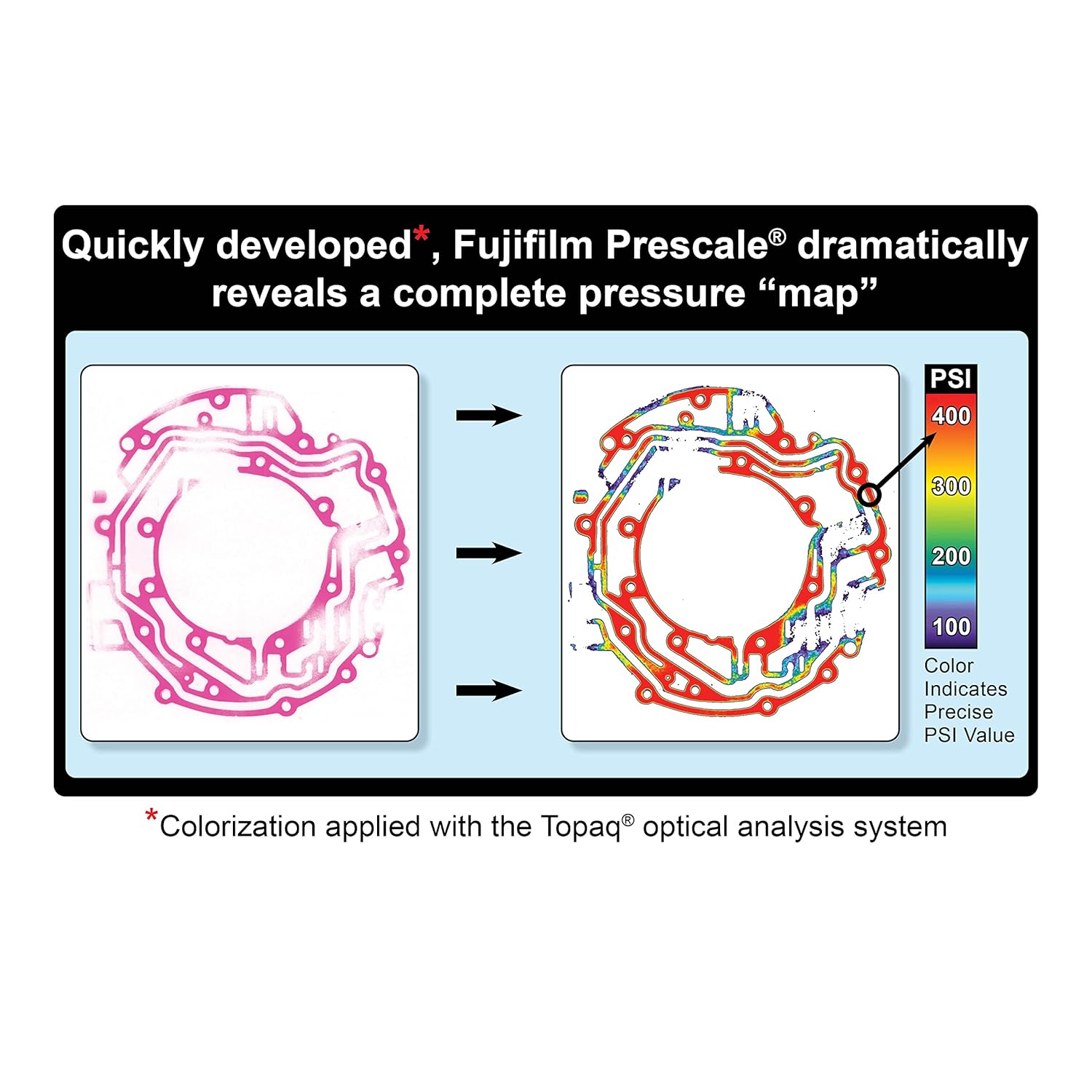

Prescale provides a surface pressure “map” that illuminates actual pressure magnitude (in precise PSI or kg/cm^2) and distribution between your two surfaces. The pressure range of this film is 7.2 - 28 PSI (0.5 - 1.97 kg/cm²)
Prescale reveals the contact surface pressure by virtue of a color change. This color change is instantaneous (less than a millisecond) and permanent

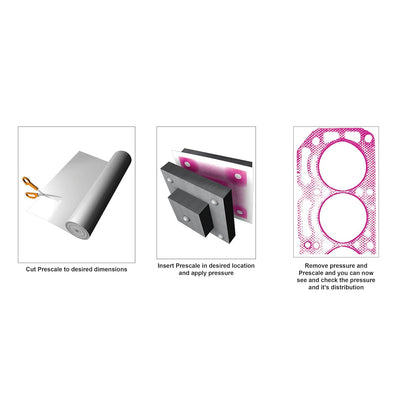

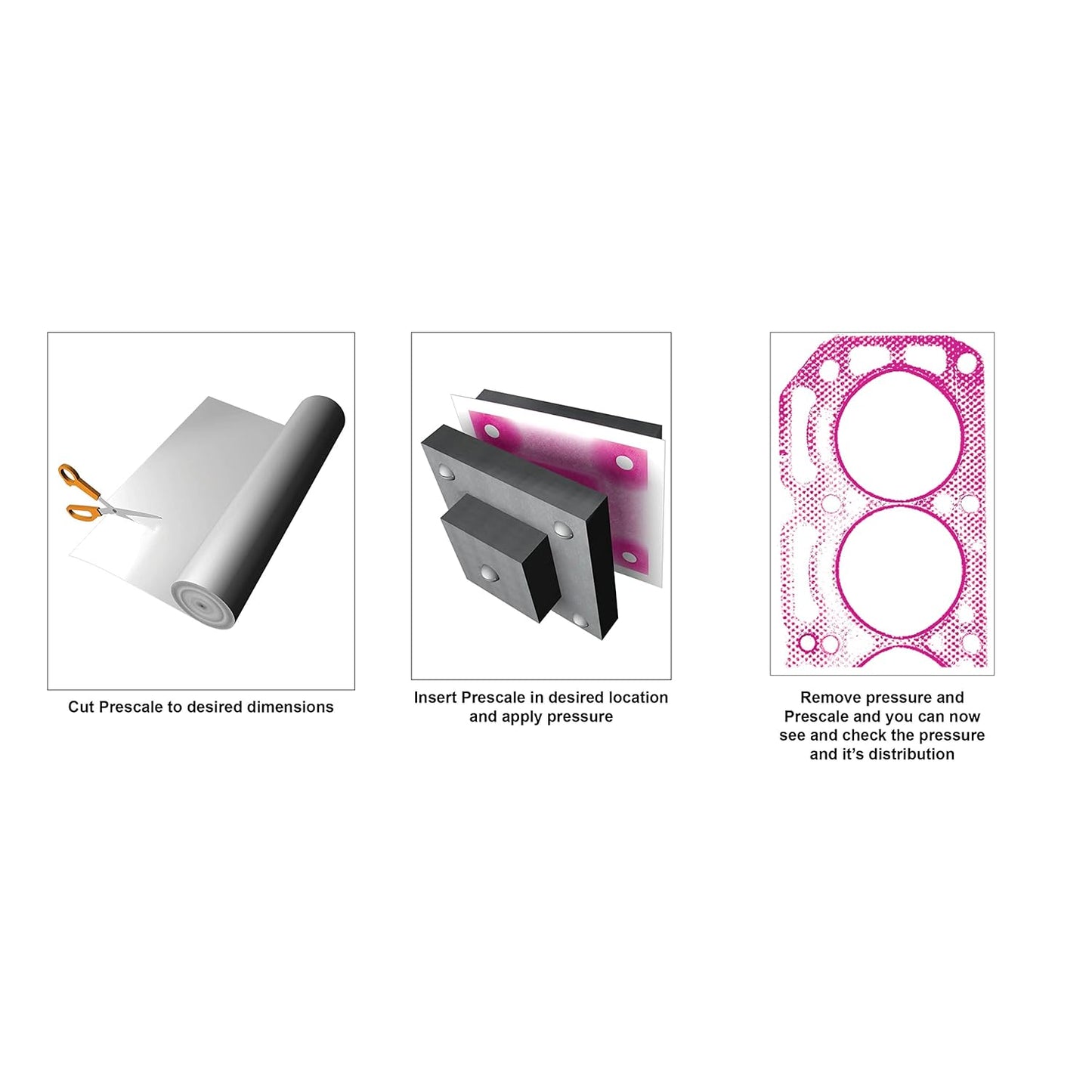

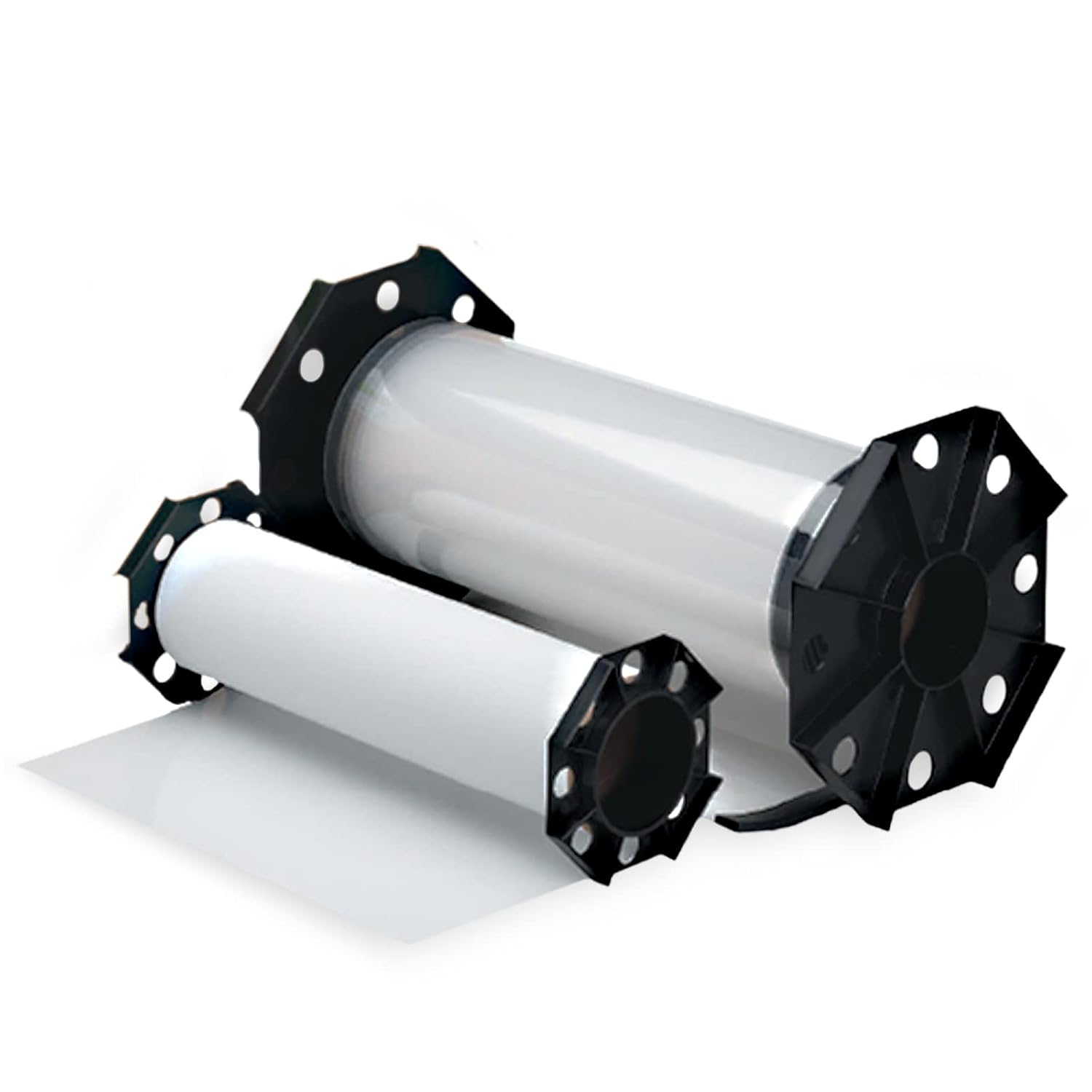

Prescale comes on a roll, is super thin, and can easily be cut from the supplied roll with scissor or laser to your precise application requirement

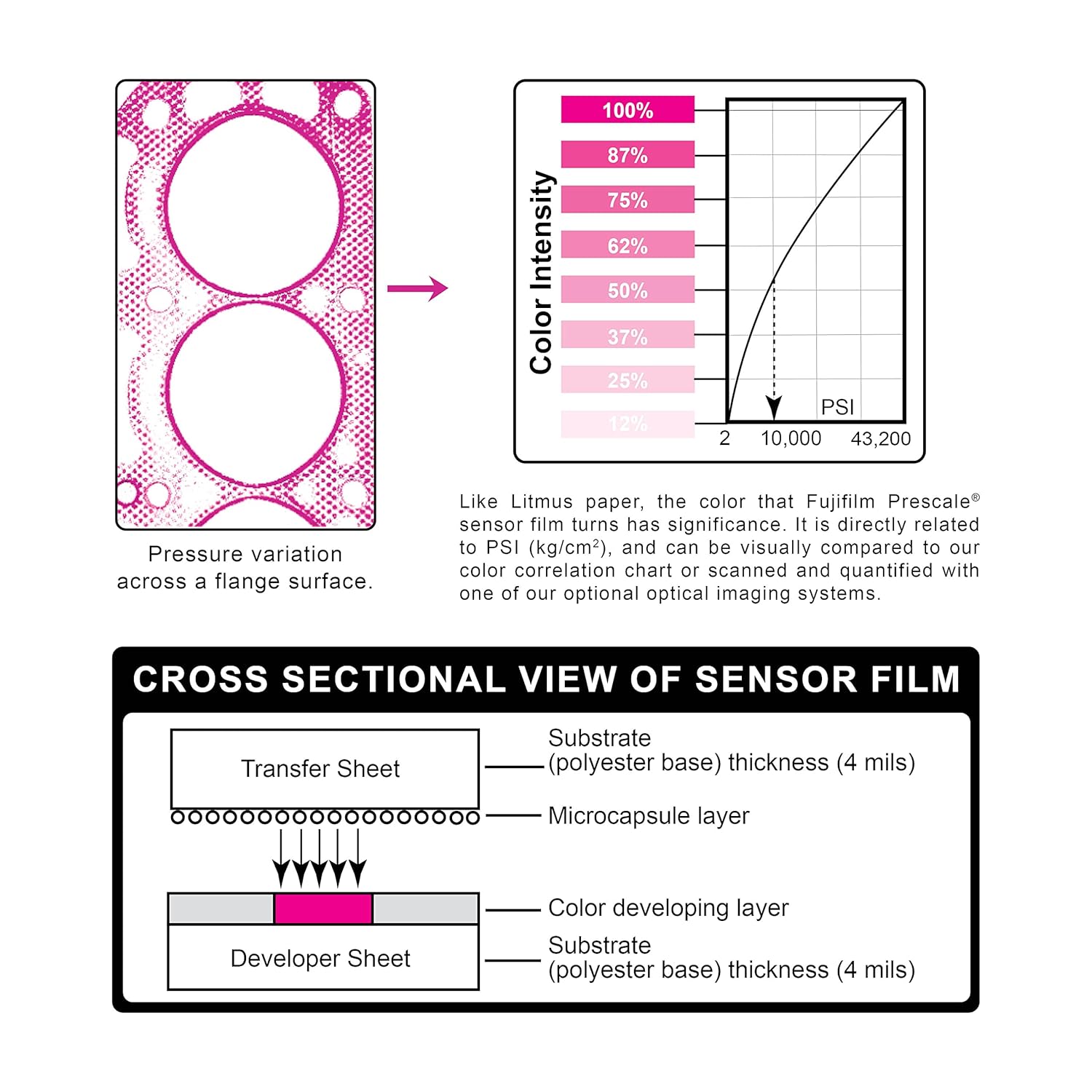

The color intensity of the film is directly related to the amount of pressure applied to it
All films guaranteed to have 18 months of shelf life available.
Specifications
Film Dimensions
9.8 ft. x 12.6 in. (3m x 320mm)
Pressure Range
7.2 - 28 PSI (0.5 - 1.97 kg/cm²)
Response Time
Instantaneous (less than a millisecond)
Color Change
Permanent
Form Factor
Roll
Shelf Life
18 months
Pros & Cons
👍 Pros
- Provides a visible surface pressure "map" for precise analysis of pressure distribution
- Offers immediate and permanent color change upon pressure application for quick results
- Comes on a roll, allowing users to cut the film to exact dimensions required for various applications
- Guaranteed to have an 18-month shelf life, ensuring availability for future projects
- Reveals pressure magnitude in precise PSI or kg/cm², offering quantitative data for analysis
👎 Cons
- The film has a specific pressure range of 7.2 - 28 PSI, limiting its use to low-pressure applications
- Requires precise cutting to fit specific application requirements, which may involve additional tools
- Does not provide continuous, real-time pressure monitoring, as it's a one-time use indicator film
- The film's color change, while instantaneous, must be interpreted to determine exact pressure values
- Being a physical film, it may not be suitable for applications with irregular or highly complex 3D surfaces without careful preparation
Frequently Asked Questions
What is the primary use of this Fujifilm Prescale film?
This film is designed to characterize surface pressure between any two mating, touching, or impacting surfaces, providing a visual map of pressure magnitude and distribution.
How quickly does the film react to pressure?
The color change revealing contact surface pressure is instantaneous, occurring in less than a millisecond, and is also permanent.
What is the pressure range that this film can measure?
This specific film is formulated for extreme low pressure, with a range of 7.2 to 28 PSI (0.5 to 1.97 kg/cm²).
Can this film be cut to a custom size for my application?
Yes, the film comes on a roll and is super thin, making it easy to cut with scissors or a laser to your precise application requirements.
How long is the shelf life for this Prescale film?
All films are guaranteed to have an 18-month shelf life available from the date of purchase.
