Fujifilm Prescale Low Pressure LW Film 3ft x 10.6in

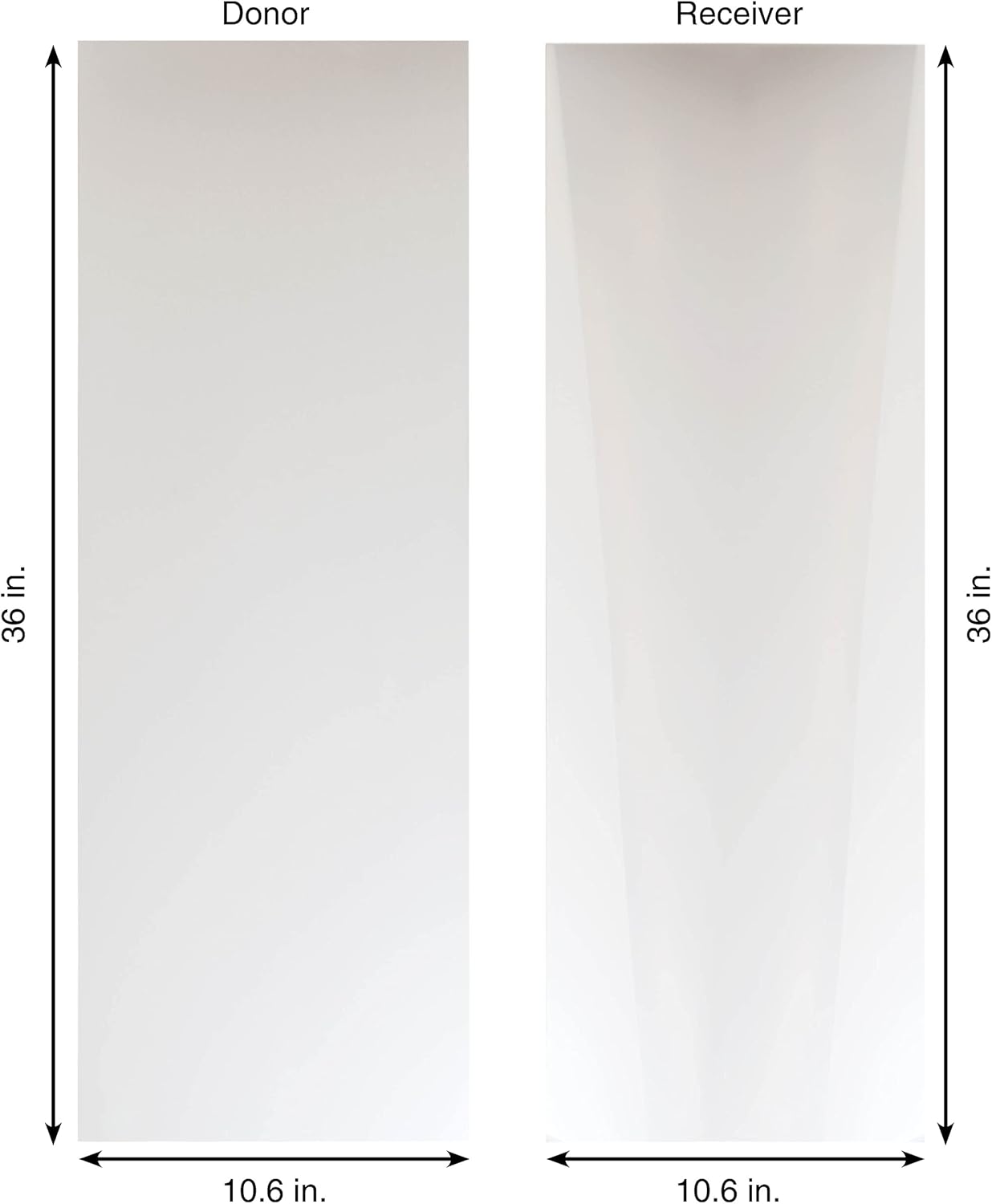

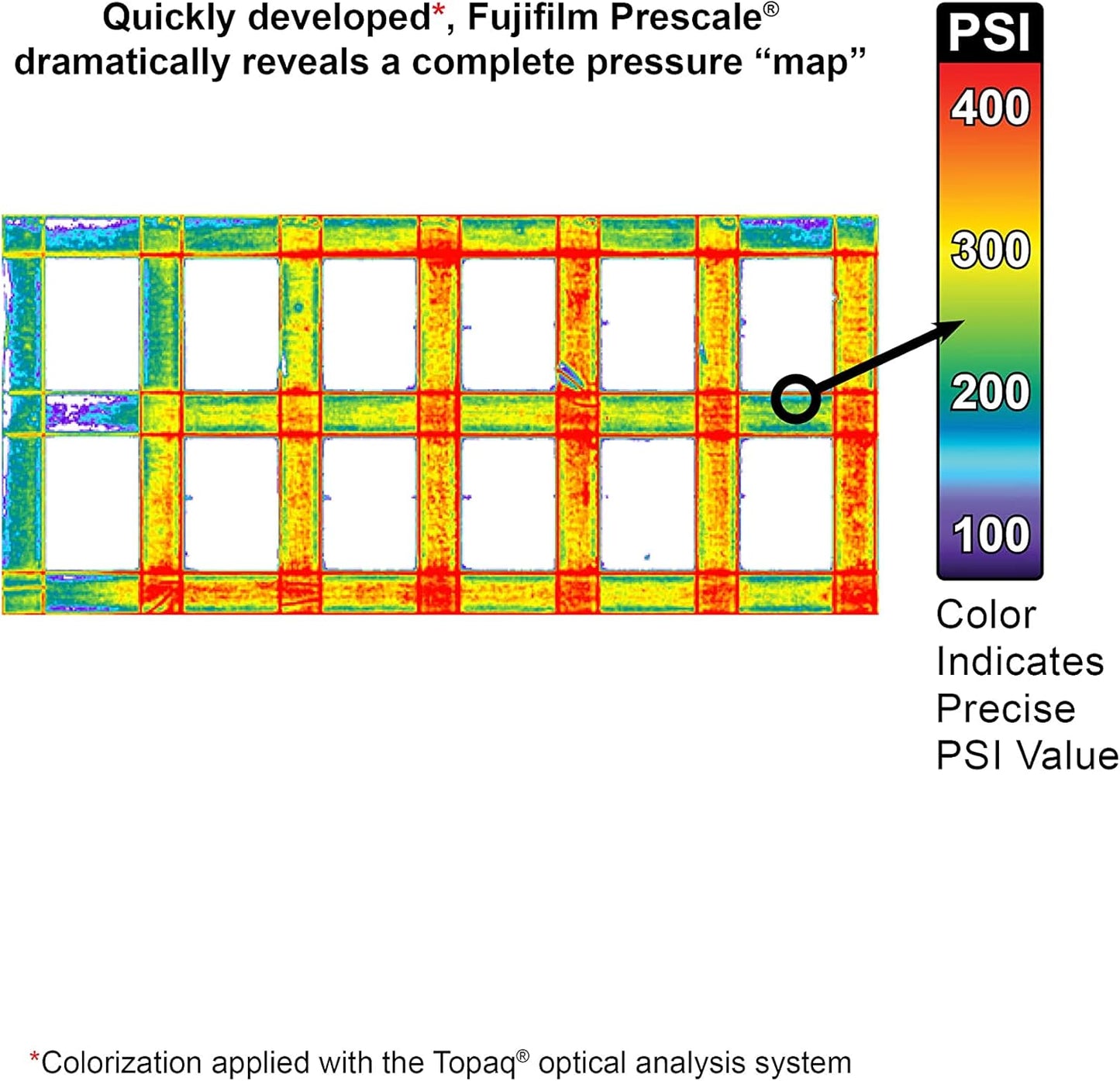

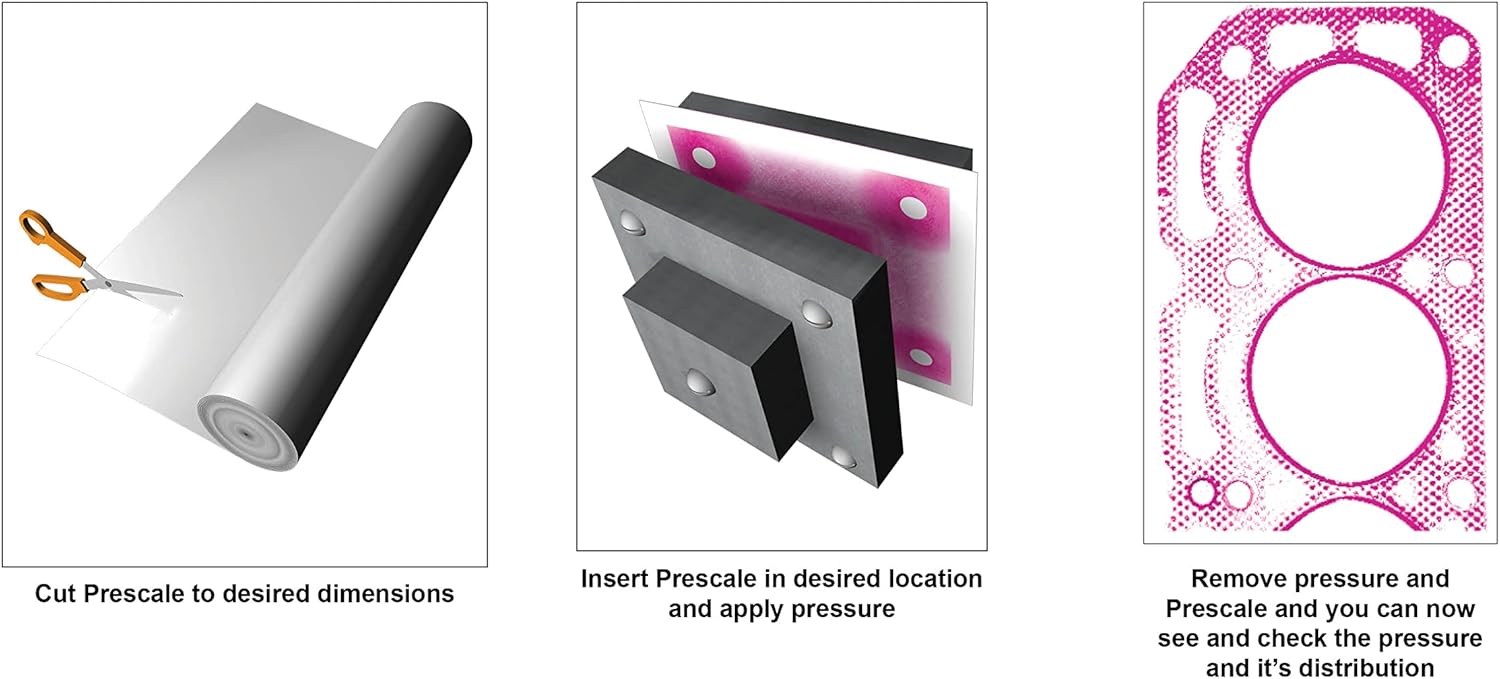

Fujifilm Prescale Low Pressure (LW) film addresses the measurement problem of contact pressure distribution between two mating surfaces — a parameter that cannot be captured by point sensors or load cells without significant surface modification. The film responds to applied pressures between 350 and 1,400 PSI (25–100 kg/cm²) with an instantaneous color change that is both proportional to load magnitude and permanent. The 3-foot × 10.6-inch roll format delivers approximately 0.22 square feet per foot of film, cuttable to any required geometry. Color intensity mapping is qualitative by eye and quantitative when measured with a calibrated densitometer against Fujifilm's published curves — the film does not replace a calibrated instrument but enables surface-wide pressure visualization that no array of point sensors can replicate economically.

Procurement use cases include gasket seating verification, mold clamping uniformity, fastener load distribution analysis, printed circuit board compression profiling, and bearing contact assessment. The sub-millisecond response makes it valid for impact characterization in addition to static clamping loads. Labs managing multiple pressure regimes should note that the LW grade covers a specific window — applications below 350 PSI require the Ultra-Low or Low-Low grades, and applications above 1,400 PSI require Medium or higher grades. The 18-month guaranteed shelf life supports bulk procurement for programs with predictable test volumes. Total cost of ownership calculations should account for the per-measurement consumable cost and the capital cost of densitometry equipment if quantitative PSI output is required.
