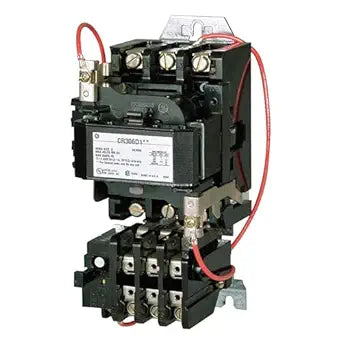

GE CR306D104 Magnetic Motor Starter 480V 3P 45A
Safeguard Your Motors with Reliable Control The GE CR306D104 Magnetic Motor Starter provides dependable control and protection for your motors. This NEMA size 2 starter is designed for industrial applications, offering robust performance and overload protection. Specifications: Brand: GE ...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Safeguard Your Motors with Reliable Control
The GE CR306D104 Magnetic Motor Starter provides dependable control and protection for your motors. This NEMA size 2 starter is designed for industrial applications, offering robust performance and overload protection.
Specifications:
- Brand: GE
- Model: CR306D104
- NEMA Size: 2
- Amps AC: 45 A
- Coil Volts: 480V AC
- Enclosure NEMA Rating: 1
- HP @ 3 Phase - 240V: 15 hp
- HP @ 3 Phase - 480V: 25 hp
- Number of Poles: 3
- HP @ 1 Phase - 120V: 3 hp
- HP @ 1 Phase - 230V: 7 1/2 hp
- HP @ 3 Phase - 208V: 10 hp
- HP @ 3 Phase - 575V: 25 hp
- Width: 7.38 in
- Height: 13.25 in
- Depth: 6.13 in
- Includes: Overload Relay
- Action: Nonreversing
- Standards: UL Listed/CSA Certified
Key Features
GE CR306D104 Magnetic Motor Starter,NEMA,480V,3P,45A
Specifications
Model
CR306D104
Type
Magnetic Motor Starter
NEMA Rating
Yes
Voltage
480V
Phase
3P
Current
45A
Pros & Cons
👍 Pros
- Designed for industrial applications with its NEMA rating, indicating durability and reliability.
- Capable of handling significant electrical loads with a 45A current rating.
- Operates on a 480V, 3-phase power system, suitable for heavy-duty machinery.
- Offers magnetic motor starting functionality, which can provide protection and control for motors.
- Manufactured by GE, a brand recognized for industrial electrical components.
👎 Cons
- The product is a specific industrial component and not a general-purpose electrical device.
- Requires professional installation due to its high voltage and current specifications.
- Lack of additional features beyond basic magnetic motor starting may limit versatility for some applications.
- The detailed specifications are limited to voltage, current, and phase, with no information on enclosure type or other protective features.
- Intended for NEMA-rated systems, which may not be universally applicable for all motor control requirements.
Frequently Asked Questions
What is the voltage rating for this GE Magnetic Motor Starter?
This GE Magnetic Motor Starter is rated for 480V.
What is the current capacity of the CR306D104 starter?
The CR306D104 starter has a current capacity of 45A.
Is this motor starter designed for single-phase or three-phase applications?
This motor starter is designed for 3-phase applications.
What does the NEMA rating indicate for this product?
The NEMA rating suggests that this product meets specific industrial standards for construction and performance.
Is this product suitable for all types of electric motors?
This product is a specific magnetic motor starter suitable for 480V, 3-phase, 45A applications, and should be matched to compatible motors.
