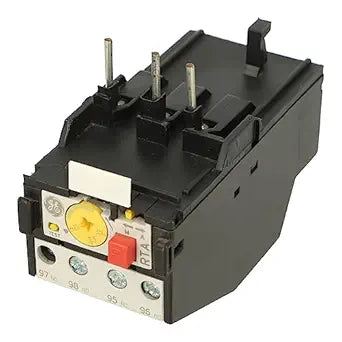

GE RTA1P Thermal Overload — main product image
GE

GE RTA1P Thermal Overload

The GE RTA1P thermal overload relay provides dependable overcurrent protection for motor circuits.

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The GE RTA1P Thermal Overload is an essential protective device for motor control circuits, designed to detect overcurrent conditions and interrupt the circuit before a motor sustains heat damage. Thermal overloads work by passing motor current through a set of heater elements that bend a bimetallic strip — when current exceeds the set threshold for a sustained period, the strip deflects enough to trip the relay and break the control circuit, stopping the motor. This passive, mechanical approach to overcurrent sensing is proven, reliable, and requires no external power supply to function.

As part of GE's motor control lineup, the RTA1P is built to integrate directly with compatible GE contactors, forming a complete motor starter assembly when combined. The adjustable current dial allows installers to fine-tune the trip point to match the specific full-load amperage of the motor being protected. It is important to note that thermal overloads protect against sustained overloads — not short circuits — so they must be used in conjunction with appropriate fuses or circuit breakers that handle fault-level currents. For facilities maintaining GE motor starters, the RTA1P provides a drop-in replacement that keeps equipment running safely.

Specifications

Brand
GE
Model
RTA1P
Type
Thermal Overload

Pros & Cons

👍 Pros

  • Provides reliable protection against motor burnout from sustained overcurrent
  • Compact form factor mounts directly onto compatible GE contactors
  • Adjustable trip settings allow matching to specific motor ratings
  • Simple manual or automatic reset after a trip event

👎 Cons

  • Compatibility is limited to specific GE contactor models
  • Minimal product documentation makes it harder to confirm exact current range before purchase
  • Not suitable for short-circuit protection — requires a separate fuse or breaker upstream

Frequently Asked Questions

It monitors current flow to a motor and automatically trips to disconnect power when it detects sustained overcurrent conditions, preventing motor damage from overheating.
Yes, GE thermal overload relays are designed to mount directly onto compatible GE contactors. Verify your contactor model against GE compatibility charts before purchasing.
GE thermal overloads typically feature an adjustable dial to set the trip point within a specified current range, allowing you to match the relay to your motor's full-load amperage.
Yes, thermal overloads can be reset — either manually via a reset button or automatically depending on configuration — once the overcurrent condition has been resolved and the relay has cooled.
