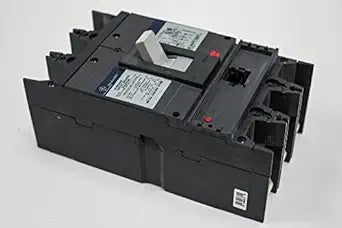

GE SGDA36AN0400 Switch: 400A, 600V, 3-Pole Spectra

Reliable Circuit Protection for Electrical Systems

The GE SGDA36AN0400 is a robust molded case switch designed for reliable circuit protection in electrical systems. Featuring an electronic solid state trip type and a high interrupting rating, this switch ensures safe and efficient operation.

Key Features:

• High Interrupting Rating: Offers interrupting ratings of 200 kA at 240 VAC, 100 kA at 480 VAC, and 65 kA at 600 VAC.
• Electronic Solid State Trip Type: Provides precise and reliable circuit protection.
• Spectra Brand: Part of the trusted GE Spectra series, ensuring quality and performance.
• Fixed High Set Instant Trip: Includes a fixed high set instant trip for added safety.
• Versatile Wire Size: Accommodates a wide range of wire sizes for flexible installation.

Specifications:

• Type: MOLDED CASE SWITCH
• Trip Type: ELECTRONIC SOLID STATE
• Size: 5.5 INCH W X 3.81 INCH D X 10.09 INCH H
• Max. AC Voltage Rating: 600 V
• Approval: UL, CSA
• Voltage Rating: 240/480/600 VAC
• Interrupting Rating: 200 KILOAMPERE AT 240 VAC, 100 KILOAMPERE AT 480 VAC, 65 KILOAMPERE AT 600 VAC
• Current Rating: 400 AMPERE
• Pole(s): 3 POLE(S)
• Frame Type: G FRAME
• Brand: SPECTRA[T]
• Includes: FIXED HIGH SET INSTANT TRIP
• Wire Size: (1) 8 AWG TO 600 KCMIL ALUMINUM/COPPER, (2) 2/0 AWG TO 500 KCMIL ALUMINUM/COPPER
• Model: SGD
